Summary of Contents for Dish TV DVB-S6800PLUS

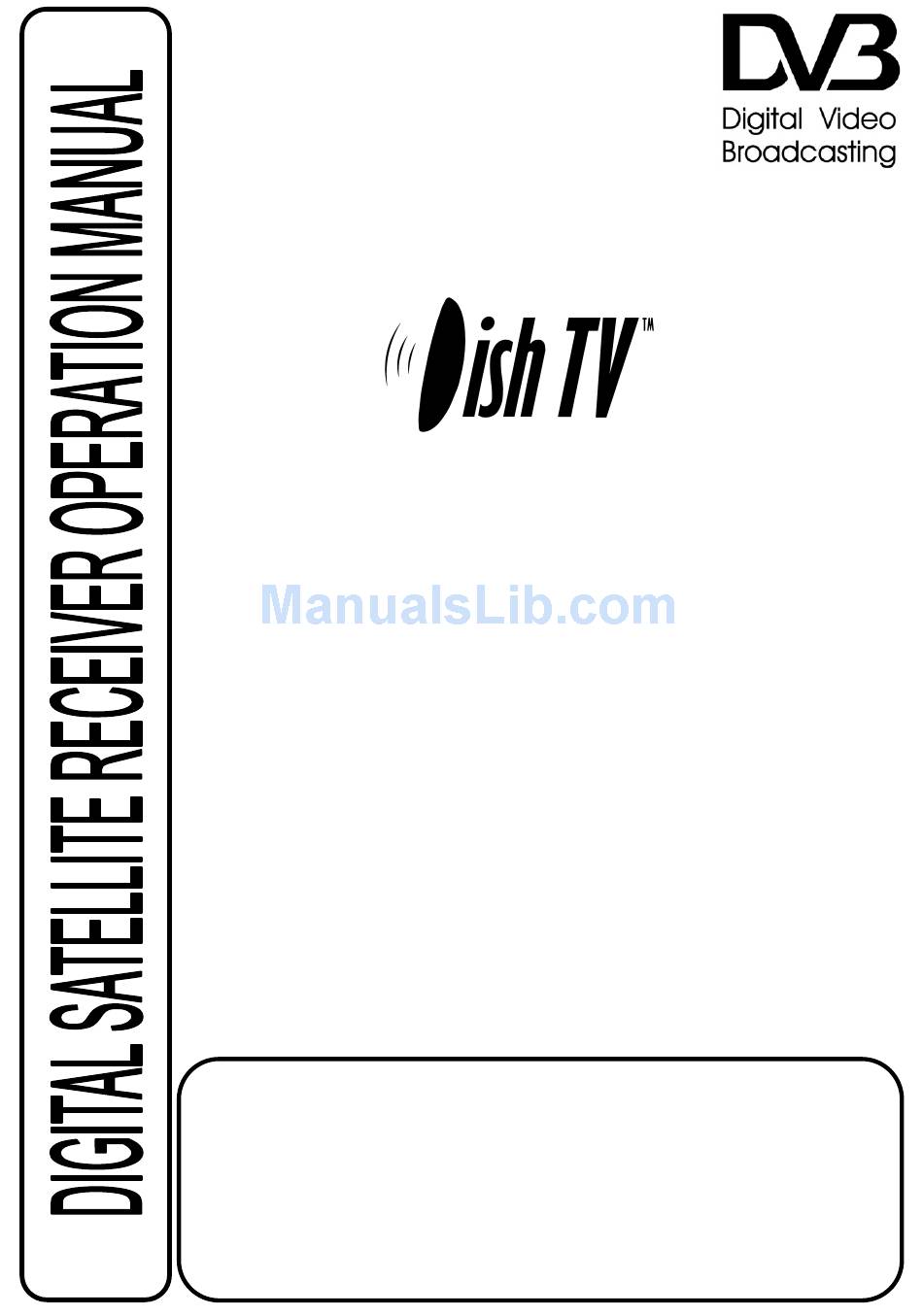

- Page 1 DVB-S6800PLUS DEAR CONSUMER GREAT APPRECIATION FOR PURCHASING OUR PRODUCT TO ENSURE THE BEST PERFORMANCE AND THE HIGHEST SAFETY, PLEASE READ THE FOLLOWING EXPLANATION CAREFULLY PLEASE READ THIS MANUAL WITH SUFFICIENT CAREFULNESS AND PATIENCE PRECEDE THE CONNECTION AND INSTALLATION...
-
Page 2: Table Of Contents
CONTENT Safety instruction ........................1 Front panel..........................2 Rear panel ..........................2 Remote control ........................3 Useful prompting ........................5 System connection .......................6 Power on ..........................6 Menu tree..........................7 Installation..........................8 Configuration ........................11 Games ........................13 Edit channels ........................14 Specification .........................16 Terms .........................17... -
Page 3: Safety Instruction
SAFETY INSTRUCTION Please read the following instructions carefully Do not overload the following wall outlets, extension cords or integral convenience receptacles as this can result in a risk of fire or an electrical shock Never allow liquids, sprays or other material to be exposed with the inside of the STB Unplug the STB from the wall outlet before cleaning and use the soft cloth to clean the exterior of the STB The LNB cable must be earthed to the system that earthing for the satellite antenna... -
Page 4: Front Panel
FRONT PANEL 1. audio channel selection 2. operation confirmation/ channel listing 3.5. volume adjustment/ cursor movement 4.6. channel changement/ cursor movement 7. menu entry/ exit 8. LED displaying board/ status indicator/ remote sensor 9. CARD SLOT REAR PANEL 1. plughole, power cord 2. -
Page 5: Remote Control
REMOTE CONTROLLER KEYS It's recommended to operate each function of the STB using the button on the remote. Please read this section to lend itself to advance your understanding of the function to the STB Non-menu: to mute the audio output To instruct the unit to enter the standby mode Non-menu: to reveal the favorite channel in the Favorite-n ( if existin g) - Page 6 Non-menu: to select the audio channel Non-menu: to enter the multi-scene surveying status Non-menu: to show the stored channel list, menu mode: to confirm the operation Non-menu: to instruct the scene between the active and the inactive (only on the TV status is effective) Non-menu: to enter the status of graphics context (optional) The key bwteen [POWER] and [MUTE].
-
Page 7: Useful Prompting
PREPARATION OF REMOTE CONTROLLER Load the batteries to the groove of the remote controller and then enable you to operate the native 1. Open the lid 2. Load the batteries (AAA type) and attend whether the anode and cathode of battery are corresponding to the polarity indicated on the remote controller 3. -
Page 8: System Connection
SYSTEM CONNECTION Connect the AUDIO, VIDEO or other terminals of this machine with the corresponding terminals of the TV set. Adjust the direction of the antenna according to the antenna signal level displaying on the screen. Connect the F terminal to both ends of the cable, one end to the terminal of LNB of the using satellite antenna and the other end to inputting terminal “SAT IN”... -
Page 9: Menu Tree
MENU TREE... -
Page 10: Installation
INSTALLATION On the Main Menu, drive the cursor onto the third instruction Press the OK key to enter its submenu. Drive the cursor onto the first instruction; press the OK key to enter its submenu Put the cursor onto the first instruction Satellite Name, press the </>... - Page 11 being used, keep the status of the LNB Power of the machine that connecting with the using satellite on the Auto; while keep the status of the LNB Power of the other machine on the Off Highlight the instruction Positioner, punch the </> key to switch the state between Disabled and DiSEqC 1.2, when the DiSEqC 1.2 is being chosen, punch the OK key on it to deploy the interface Postioner : press...
- Page 12 Punch the green key to reveal the interface Organize Bouquet: Punch the red key to enter the interface Manual Search: respectively, highlight instruction Frequency or Symbol Rate, punch the digit-keys to modify the value of parameter. In turn, highlight the instruction Polarization, FEC or Program Type, punch the </>...
-
Page 13: Configuration
On the menu Installation , light the fifth instruction, punch the OK key to enter: the manner of transmission has two, we recommend you using the second one. precondition: the master machine and the slave machine, connecting them with the serial cable on each serial data interface of the both machines well. - Page 14 Highlight the fourth instruction Video Format, punch the </> key to alternate the format of video between CVBS+Y/C and CVBS+RGB to fit your TV set. CVBS=Composite Video Broadcast Signal Highlight the seventh instruction Audio Beep, punch the </> key to switch the state between ON and OFF. When the state is set on ON, when punching key of the remote or of the local, the machine will buzz Return the interface to the Configuration...
-
Page 15: Games
Expressly, the latter three instructions need the support coming from the service-provider. Now, back to the interface Configuration Highlight Information, punch the OK key to unfold the dialog box including Model, HW Ver and SW Ver etc. Highlight the third instruction; punch the OK key to enter its submenu Parental Control Unless you've inputted the code correctly, the cursor can move onto the second instruction automatically, punch... -
Page 16: Edit Channels
EDIT CHANNELS Highlight the second instruction; punch the OK key to enter its submenu Edit Channels. Enter the submenu of Edit TV Channels Press SAT key, to opt one satellite's channel Highlight one channel; press the red key to reveal the window soft-keyboard to define the name of channel. - Page 17 reveal the interface Favorite-n, punch the key once more to show the window including All Satellite, Favorite-1-8, punch the , </> key and the OK key to determine. E.g. on this menu, the Favorite-1 is being chosen, then the submenu of Edit TV Cha -nnels only show the channel in the kind of Favorite-1 Enter the submenu of Edit Radio Channels.
-
Page 18: Specification
SPECIFICATION Tuner Input Frequency 950-2,150 MHz Signal Level -25dBm to -65dBm (75 ) LNB Control DiSEqC1.0/1.2 22KHz LNB Power & Polarization 13V/18V (Max. 400mA) Channel Decode Demodulation QPSK (SCPC, MCPC) Input Symbol Rate 2-40MSPS Video Profile Level MPEG-II MP@ ML Output System NTSC/ PAL Output Terminal... -
Page 19: Terms
TERMS (reference) DiSEqC (Digital Satellite Equipment Control) A standard through which it is possible to let a DiSEqC compatible receiver send a signal via the RF cable to a switching device to switch between different LNBs or dishes. The DiSEqC uses the 22KHz signal to control the switching device. -
Page 20: Packing List
PACKING LIST ITEMS Qty. REMARK DIGITAL SATELLITE RECEIVER INSTRUCTION MANUAL REMOTE CONTROL AV CABLE CELL NOTE: Any modification will not be noticed in advance. Our company reserves all the rights of the explanation to the difference...
