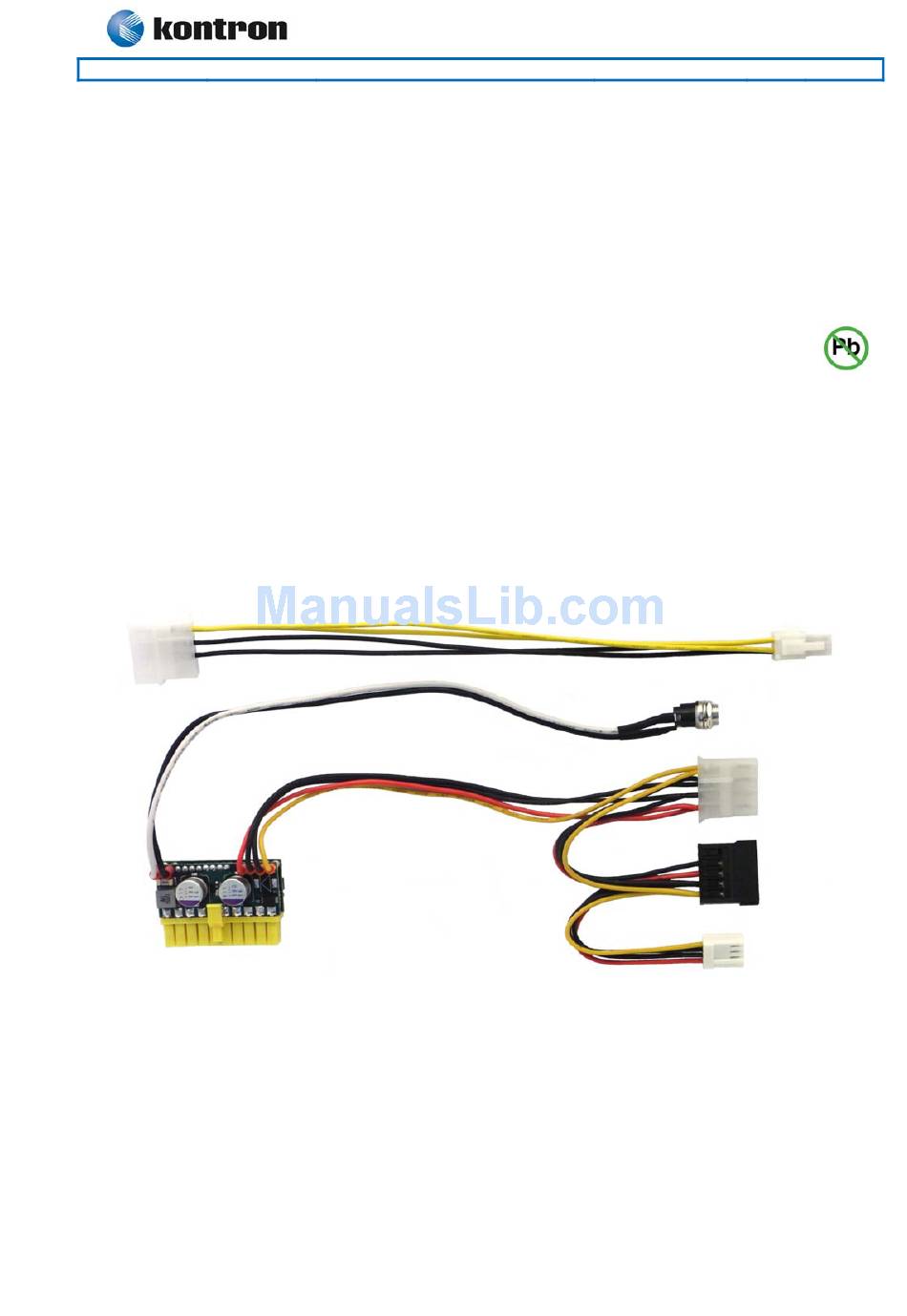

- Page 1 820152 DC-DC Supply 12Vin 120W KTD-00695-D Public User Manual Date: 2009-11-03 Page 1 of 4 User Manual for the 820152 DC-DC Power Supply 120W 12Vin ATX12V cable kit 12V Input Std. HDD SATA...
- Page 2 2 of 4 Introduction The 820152 DC-DC Power Supply is a fully compliant ATX power supply designed to power a wide variety of motherboard like the KT690mITX, 786LCD/mITX, 886LCD-M and 986LCD-M families of boards. It has included cable kit inclusive P4-12V cable, as required by the KT690mITX and 986LCD-M families, and it is supporting a wider temperature range than the standard embedded PC range 0 - 60ºC.
-
Page 3: Installation Guide
820152 DC-DC Supply 12Vin 120W KTD-00695-D Public User Manual Date: 2009-11-03 Page 3 of 4 Installation guide 1. Plug in (press in) the DC-DC Power Supply to the Mother Boards ATX power connector. Please notice that for the KT690mITX and 986LCD-M families: Four pins of the ATX Power Connector are not used, but the connector system is keyed so the DC-DC Power Supply can not be mounted in a wrong position. -
Page 4: Specifications
820152 DC-DC Supply 12Vin 120W KTD-00695-D Public User Manual Date: 2009-11-03 Page 4 of 4 Specifications Input Requirements 12V regulated, +5% / -3%, max=10A (load dependent). Over-voltage shutdown will occur at ~13-13.5V. DC-Jack: Female, panel mount, 2.5 * 5.5 * 10 mm.
