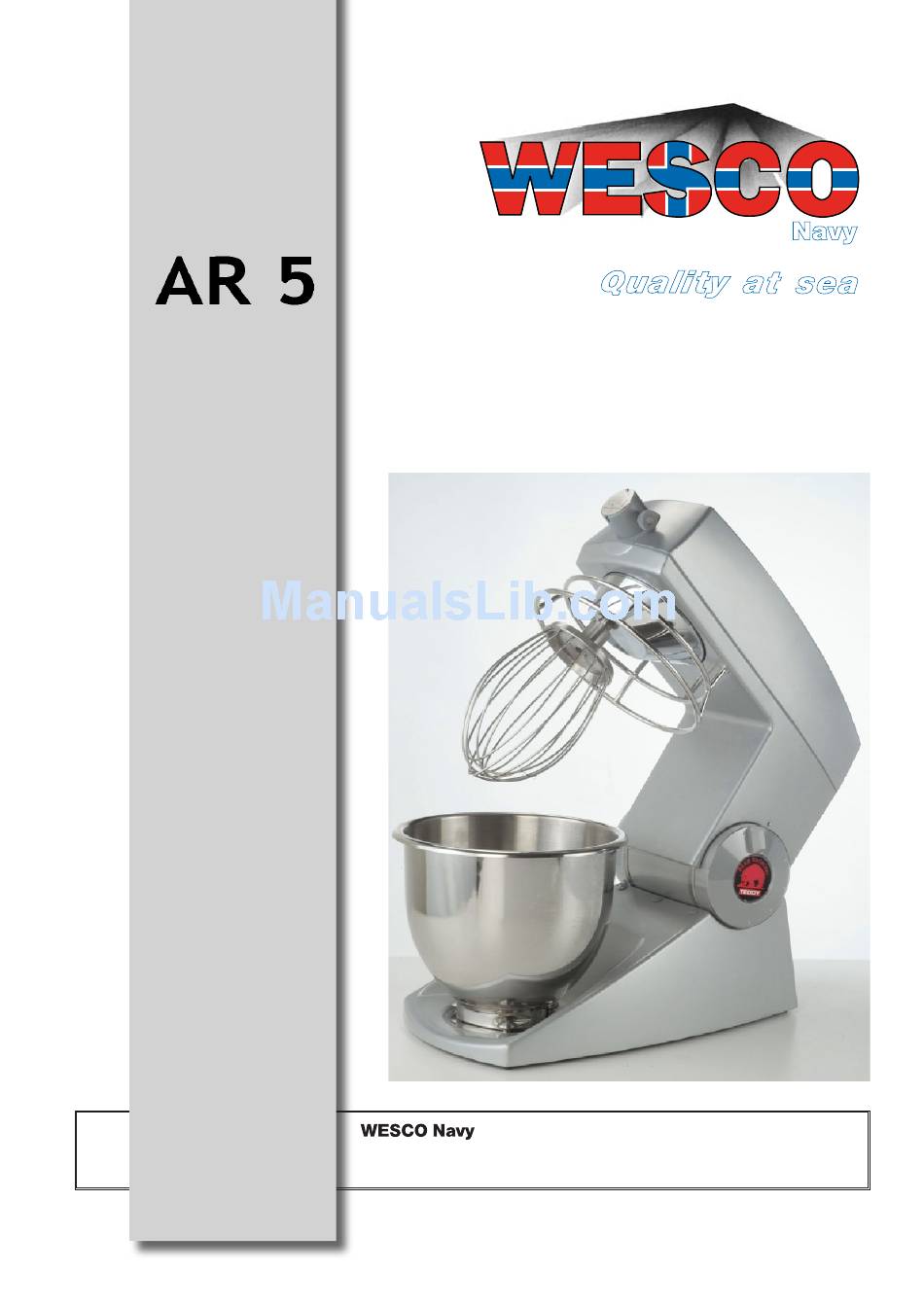

  • Page 1 Manual / Handbuch Spare parts list / Ersatzteilliste Equipment Imp.-Exp. GmbH Zitterpappelweg 9 • • D - 22391 Hamburg Tel.: + 49 40 60009468-0 Fax: + 49 40 536 75 01 • • E - M a i l : i n f o @ w e s c o - n a v y. c o m w w w .

  • Page 3: Table Of Contents

    OPERATING INSTRUCTIONS TEDDY 5L Mixer with Attachment Drive ONTENTS ............................... 1 AFETY : ..........................1 NSTALLATION OF NEW MIXER : ............................2 ONNECTION TO POWER : ..........................2 NTRODUCTION TO THE MIXER : ......................... 2 ECOMMENDED WORKING SPEEDS : ............................ 3 PERATION OF THE MIXER : .........................

  • Page 4: Connection To Power

    Equipment: ONNECTION TO POWER As standard the mixer comes with the following equipment: • Bowl in stainless steel. The enclosed cable must be used. • White plastic lid for bowl (lids in various colours are available). • Filling skid. The mixer must be connected to earth! •...

  • Page 5: Operation Of The Mixer

    PERATION OF THE MIXER AXIMUM CAPACITY OF THE MIXER The working capacity of the mixer depends of: The bowl must be mounted when the • The tool used. mixer is started! • Sort and quantity of the raw materials. • The optimum speed for a good result.

  • Page 6: Maintenance

    AINTENANCE OUNTING OF ACCESSORIES The mixer is equipped with an att achment drive with variable speed, The mixer requires no maintenance (motor and bearings for the mechanical parts are greased for life). and with the possibility of attaching the following equipment: •...
  • Page 7 SSEMBLY OF MEAT MINCER Place the feed screw (B) in the housing (A). Place the knife (C) and the disc (D) on the shaft of the feed screw. NB: The cutting edge to be facing the disc. Mount the ring (E) and tighten it by hand. Never use a tool to tighten the ring.
  • Page 8 SE OF THE MEAT MINCER The meat mincer is suitable for mincing of all kinds of meat as well as mashing of boiled vegetables. Food to be prepared in the meat mincer must be cut into pieces of approx. 3 x 3 cm. During stanstill conditions, take out the mains supply plug of the mixer before inspection of the meat mincer.
  • Page 9 ESERVEDELSLISTE Stopper ............ AR005-364-TD001 Fødebakke ..........AR005-363-TD001 Omløber ..........AR005-355-TD001 Hulskive m. 4mm huller ......AR005-357-TD002 Kniv ............AR005-358-TD002 Snegl ............AR005-356-TD001 Hakkehus ..........AR005-359-TD002 Hulskive med 3mm huller ......AR005-357-TD001 Hulskive med 8mm huller ......AR005-357-TD003 PARE PART LIST Plunger ............
  • Page 11 : ......S : ..... ESERVEDELSLISTE PARE PART LIST Stopper ..........Plunger ..........For- og bagpart monteret ....Front and rear part mounted .... Fingerskrue ........Thumb screw ........Leje for forpart ........Friction bearing for front part .... 5A. Snitte/rive skive 2 mm/3 mm ....Slicing/shredding disk 2 mm/3 mm .. 5B.
  • Page 12 ..E RSATZTEILLISTE ....Stößel ..................3VC-385 ....Front- und Hinterteil montiert ..........3VC-382Z ....Fingerschraube ............... 3VC-370 ....Lager für Frontteil ..............3VC-391 ....Schneid/Raffelscheibe 2 mm/3 mm ........3VC.S2R3 m ..Schneid/Raffelscheibe 2,6 mm/5 mm ........3VC.S26R5 ....Reibscheibe 2 mm ..............3VC.G2 ....Pommes Frites Scheibe 8x8 mm ..........3VC.J8 ....Welle für schneidende Scheibe ..........
  • Page 13 OUNTING AND ASSEMBLY OF VEGETABLE CUTTER • Mount the rear part of the vegetable cutter in the attachment drive of the mixer - it is important that the rear part is pressed all the way back in the attachment drive •...
  • Page 14 SE OF VEGETABLE CUTTER Recommended use of discs: Slicing disc - 2 mm, 2.6 mm: citrus fruits, apples, carrots, beetroots, radishes, potatoes, cucumbers, peppers, lettuce, cabbage, onions. Shredding disc - 3 mm, 5 mm: Apples, carrots, beetroots, radishes, potatoes, choco- late.
  • Page 15 XPLODED VIEW No..Beskrivelse ......... Description ......Beschreibung ......Part No. 1 ..Betjeningsknap, v. og h....Control button, l. and r..Drehknopf , l. und r...... AR005-178-TZ010 # 2 ..Bund ..........Base ........Ständer ........AR005-022-TZ0xx 2.1 ..
