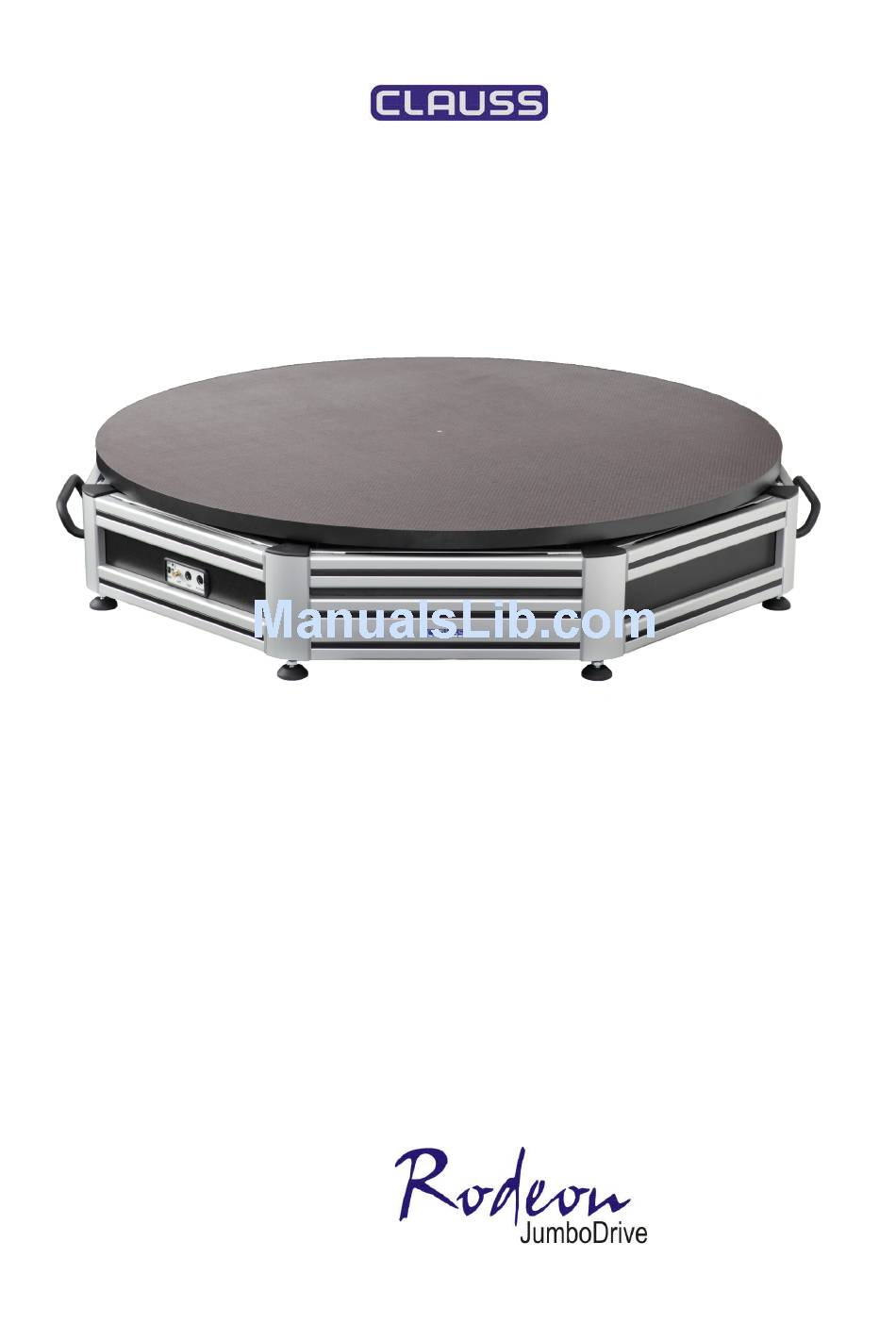

  • Page 1 User's Manual 12/01/13...

  • Page 2: Table Of Contents

    3.3 Control-, Indicating- and Connecting elements....7 4 Installation of the controlling software ........8 4.1 Installation on the PDA ..........8 4.2 Installation on a Windows PC ........10 5 Technical data ..............11 6 Maintenance and Extension hints........12 7 Guarantee ................12 Manufacturer................15 Copyright.................15 Questions about RODEON JumboDrive? ......16...

  • Page 3: Introduction And Intended Purpose

    JumboDrive – User's Manual Introduction and intended purpose The precision turntable JumboDrive is an automatic object-positioning table for the angular accurate stepwise or continuous rotation of items with a permissible maximum mass until 200 kg. The use is especially appropriate for recording object movies, photographic scans and multi- angular perspectives.
  • Page 4 JumboDrive – User's Manual non-skid and without possible collision of the rotating objects with the device itself or in interaction with other objects, e.g. camera, cables or lamps. In general, only the installation of items, not of persons, on the rotary platform, is designated.

  • Page 5: Device Definition

    RS-232-/USB cables and many more. Please find a current overview of the entire delivery program in the internet at www.dr-clauss.de. Getting started Installation The Turntable is to be placed at a plane, horizontal, stable and non-skid surface.

  • Page 6: Electric Connections

    JumboDrive – User's Manual loads. The feet of the device have to be adjusted by screwing in and out in order to have them all touching the installation surface. Electric connections The power supply is realised with the supplied Power supply cable from a standardized 230 V - socket.

  • Page 7: Control-, Indicating- And Connecting Elements

    JumboDrive – User's Manual Control-, Indicating- and Connecting elements BAT/SUP On-/Standby switch: Operational readiness in position SUP. In position BAT, the device is in a Standby mode. In case of longer breaks, we recommend to unplug the power cord, as the power supply unit of the device is further on active.

  • Page 8: Installation Of The Controlling Software

    Free updates are available at our download center at http://www.dr-clauss.de. You can get more information about using the PDA in the correspond- ing operation manual that is included in the provided product-CD. It is pointed out insistently, that using the PDA is much different to using a PC with MS-Windows.
  • Page 9 JumboDrive – User's Manual ply. In this case we recommend to copy the installation files into the ROM in order to be able to have access to them in every situation. Please follow the further instructions to install the controlling software „RODEONmodular“: 1.

  • Page 10: Installation On A Windows Pc

    JumboDrive – User's Manual on it and type in the password CLAUSS (in capitals!) and confirm with Enter/Return. 7. Please activate „Generic Serial“ and, if necessary, assign port (e.g. COM 9). 8. Confirm with „ready“ and close the Bluetooth manager.

  • Page 11: Technical Data

    JumboDrive – User's Manual Technical Data Dimensions (L x B x H) 805 x 721 x 150 mm³ Weight 40 kg Payload 200 kg Adressed angular steps 17.000 / 360 ° (approx. 0,0212 ° per step) Power Supply 230 V (internally switchable to 110 V) Camera-triggering 2 independent galvanically un-...

  • Page 12: Maintenance And Extension Hints

    Guarantee Guarantee terms, scope and conditions If a product manufactured by Dr. Clauss Bild- und Datentechnik GmbH (CLAUSS) turns out to be defective within 24 months after the purchase date at the trader or dir- ectly at the manufacturer (please present the original invoice or sales receipt), CLAUSS provides and honors this guarantee against the first final user worldwide.
  • Page 13 – use of the product with other systems, devices or spare parts than CLAUSS- – products which are not designed for or approved for using it with the...
  • Page 14 Beyond that, there will be no pass on of these data to third parties. If you should not agree or disagree with using your data by CLAUSS, their agencies and their associated enterprises, please contact us in written form at our manufac-...

  • Page 15: Manufacturer

    All rights reserved. No part of this publication may be reproduced, stored in a retrieval system or transmitted, in any form or by any means, electronic, mechanical, photocopy, recording or otherwise, without the prior written permission of Dr. Clauss Bild- und Daten- technik GmbH.

  • Page 16: Questions About Rodeon Jumbodrive

    Please read the operation manual on CD first to get more information for fundamental understanding! (please also see „Hints for fault tracing“) Internet: Having a look at our website www.dr-clauss.de, you'll – find current changes and additions that were perhaps not yet considered in your manual.
