First Steps
12/01/13

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Rodeon and is the answer not in the manual?

Questions and answers

Related Manuals for Clauss Rodeon

Summary of Contents for Clauss Rodeon

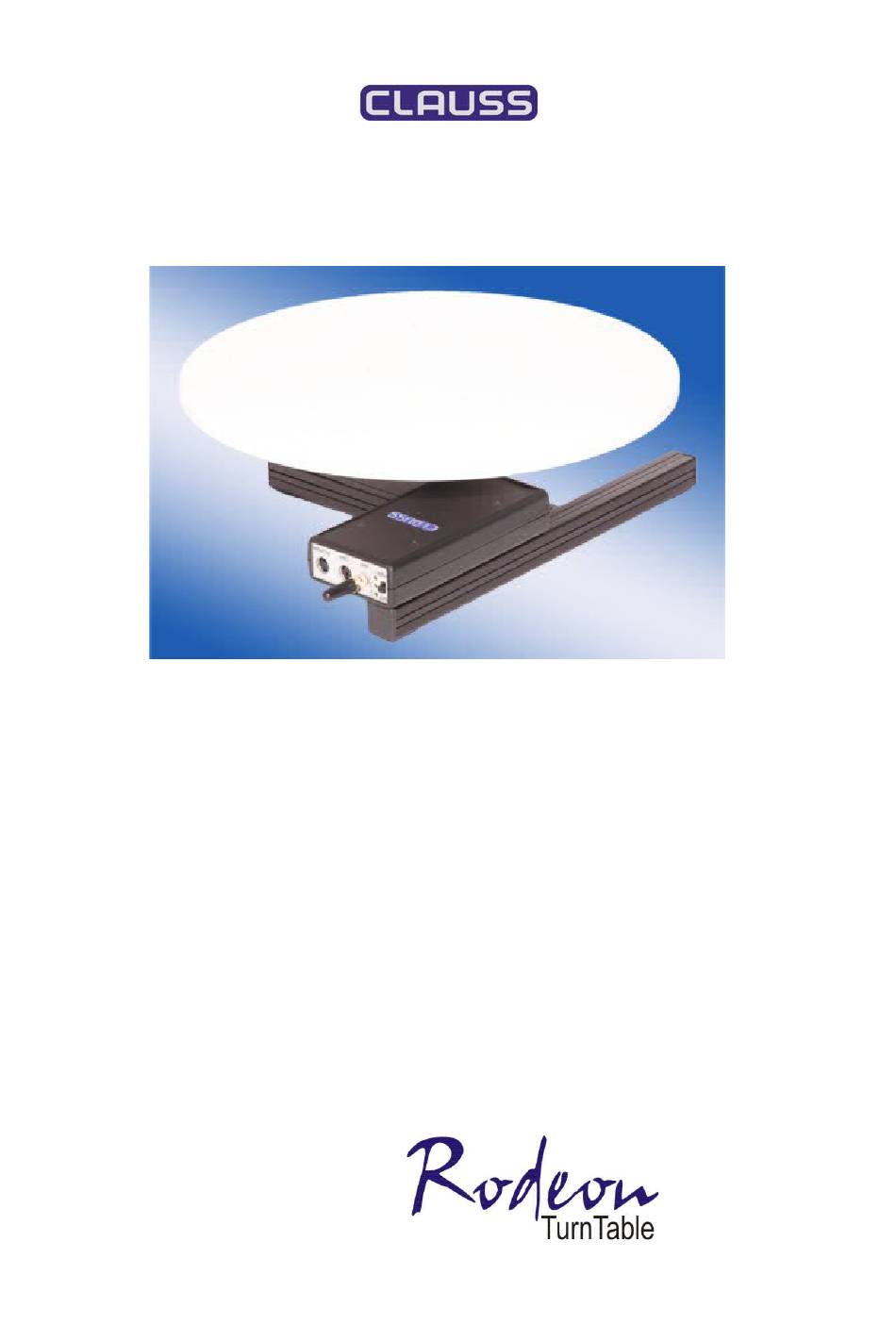

  • Page 1 First Steps 12/01/13...

  • Page 2: Table Of Contents

    4 Installation of the controlling software .............6 4.1 Installation of the controlling software on a PDA ......6 4.2 Installation of the controlling software on a Windows-PC....8 5 Technical data ..................9 6 Guarantee ....................10 7 Manufactured by..................13 8 Copyright....................13 9 Questions about RODEON Turntable ? ..........14...

  • Page 3: Introduction And Intended Purpose

    First Steps RODEON TurnTable Introduction and intended purpose Many thanks, that you have decided for the RODEON modular manufactured by our company. We are sure that you will have long joy with this purchase, if you read through and follow these instructions first.

  • Page 4: Device Definition

    3.1 Handling the RODEON Turntable Put the Turntable on a horizontal stable base. • Install the remote-control-connection between your camera and the RODEON • Turntable. For doing so, connect the remote-control-cable that is suitable for your camera by using the supplied camera extension cable at the sidewise mini-DIN- connector of the transceiver and to the remote-control-connector of your camera.

  • Page 5: Control Elements At The Transceiver

    First Steps RODEON TurnTable For using the Turntable via Bluetooth, please connect the plug-in power supply • unit directly at the transceiver. Switch on your turntable by moving the slide switch at the transceiver to 'SUP'. • Afterwards, please start the controlling software on the PDA or Windows PC/Laptop.

  • Page 6: Installation Of The Controlling Software

    First Steps RODEON TurnTable Installation of the controlling software 4.1. Installation of the controlling software on a PDA (Handheld) Requirements: Hardware: We recommend types of PDA that we tested ourselves. You can • purchase them from us with already installed software.
  • Page 7 By using the Bluetooth manager, search for new devices in the surrounding (often by using the menu item „New“ and „search for Bluetooth device“). The RODEON modular must be switched on with the installed antenna in order to find it as Bluetooth device.

  • Page 8: Installation Of The Controlling Software On A Windows-Pc

    First Steps RODEON TurnTable After the start of the controlling software the PA automatically connects with the RODEON Turntable and work can be started. 4. 2. Installation of the controlling software on a Windows-PC System requirements: - Windows 2000/XP/Vista - Desktop-PC/Laptop...

  • Page 9: Technical Data

    First Steps RODEON TurnTable Technical Data Dimensions (without objects) 300 x 305 x 95 Weight approx. 2 kg Range of motion 0°...360° Addressed angular steps 0,015° (24000 steps/360°) Max. Drive torque > 4000 mNm Payload < 20 kg Power Supply - Plug-in power supply unit 100..240 V...

  • Page 10: Guarantee

    Guarantee Guarantee terms, scope and conditions If a product manufactured by Dr. Clauss Bild- und Datentechnik GmbH (CLAUSS) turns out to be defective within 24 months after the purchase date at the trader or dir- ectly at the manufacturer (please present the original invoice or sales receipt), CLAUSS provides and honors this guarantee against the first final user worldwide.
  • Page 11 – use of the product with other systems, devices or spare parts than – CLAUSS-products which are not designed for or approved for using it with the product product installation against technical standards or safety laws in the –...
  • Page 12 Beyond that, there will be no pass on of these data to third parties. If you should not agree or disagree with using your data by CLAUSS, their agencies and their associated enterprises, please contact us in written form at our manufac-...

  • Page 13: Manufactured By

    All rights reserved. No part of this publication may be reproduced, stored in a retriev- al system or transmitted, in any form or by any means, electronic, mechanical, photo- copy, recording or otherwise, without the prior written permission of Dr. Clauss Bild- und Datentechnik GmbH.

  • Page 14: Questions About Rodeon Turntable

    (please also see chapter 13 „Hints for fault tracing“) - Internet Having a look at our website www.dr-clauss.de, you'll find current changes and additions that were perhaps not yet considered in your manual. - E-Mail general You can contact us with general questions: mail@dr-clauss.de...
