1. NAVIGATION OPERATION

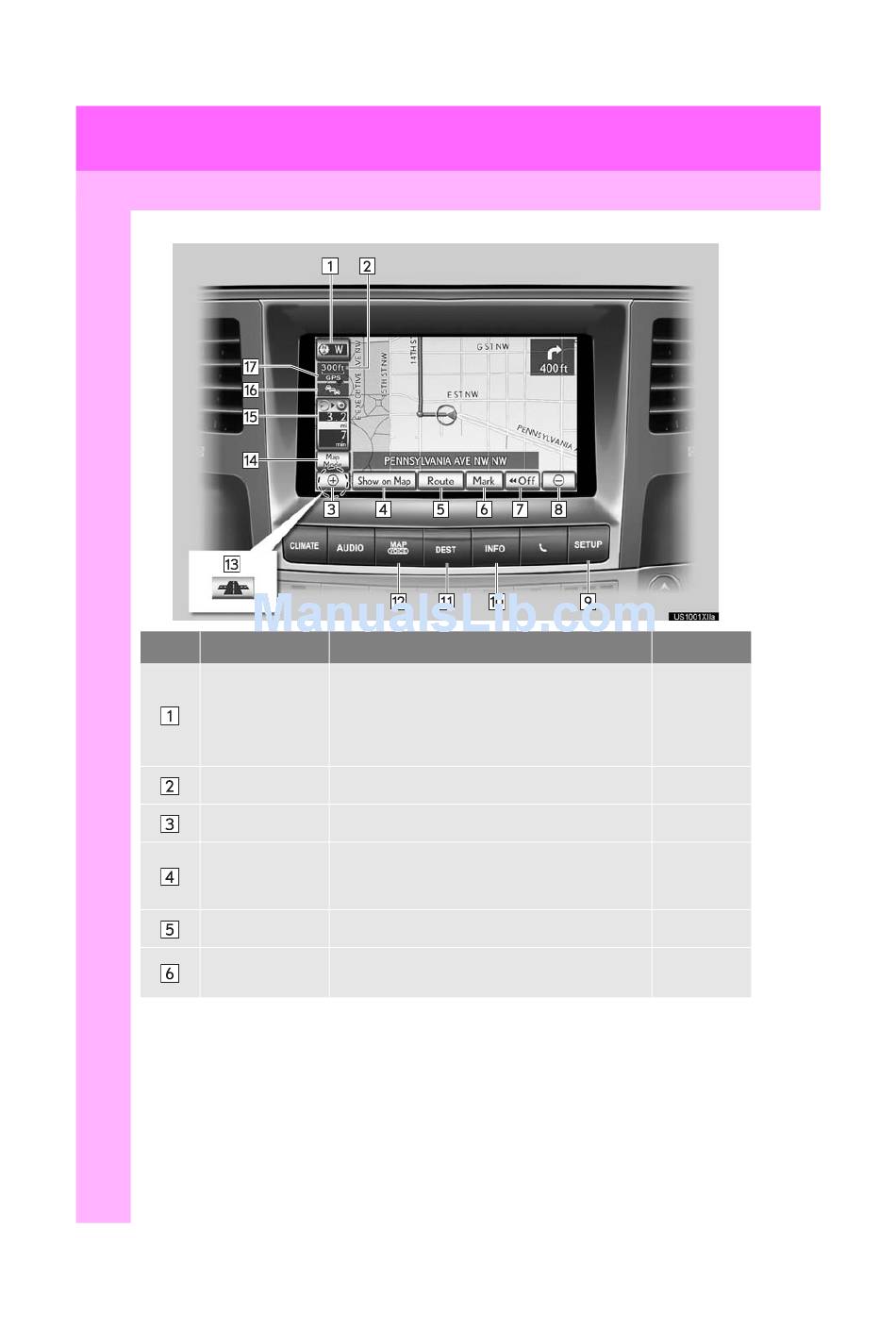

1. OVERVIEW BUTTON AND GUIDANCE SCREEN
No.
Name
North-up or
heading-up
symbol
Scale indicator
Zoom in button
"Show on Map"
"Route"
"Mark"
10
Function
This symbol indicates whether the map orienta-
tion is set to north-up or heading-up. Touching this
symbol changes the map orientation. Both north-
up and heading-up symbols display the vehicles
direction as a letter (e.g. N for north).
This figure indicates the map scale.
Touch to magnify the map scale.
Touch to browse information about guidance
route, to set the POI (Point of Interest) icons to be
displayed on the screen, to record the route, etc.
Touch to change the route.
Touch to register the current position or the cur-
sor position as an address book entry.
LX570_Navi_OM60L34U_(U)
13.06.18 10:03
Page
44
43
43
96, 166, 191
89, 91
36

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LX570 Navigation System and is the answer not in the manual?

Questions and answers

Related Manuals for Lexus LX570 Navigation System

Summary of Contents for Lexus LX570 Navigation System

  • Page 1 1. NAVIGATION OPERATION 1. OVERVIEW BUTTON AND GUIDANCE SCREEN Name Function Page This symbol indicates whether the map orienta- North-up or tion is set to north-up or heading-up. Touching this heading-up symbol changes the map orientation. Both north- symbol up and heading-up symbols display the vehicles direction as a letter (e.g.

  • Page 2: Foot Print Map

    1. NAVIGATION OPERATION Name Function Page Touch to obtain a broader view. Some of the but- “ Off” tons on the screen will not be displayed. They are displayed again by touching “On ”. Zoom out button Touch to reduce the map scale. 22, 33, 46, 56, 100, 116, “SETUP”...

  • Page 3: Registering Home

    1. NAVIGATION OPERATION 2. REGISTERING HOME Press the “DEST” button. There are 4 different methods to search your home. (See “DESTINA- TION SEARCH” on page 60.) Touch “Enter”. Touch “Go Home”. The “Edit Home” screen is displayed. If a home address has not been regis- tered, it can be registered by touching “Go Home”.
  • Page 4 1. NAVIGATION OPERATION Touch “OK”. Registration of home is complete. Home can also be registered by touching “Navigation” on the “Setup” screen. (See “REGISTERING HOME” on page 101.) The name, location, phone number and icon can be changed. (See “EDITING HOME”...

  • Page 5: Registering Preset Destinations

    1. NAVIGATION OPERATION 3. REGISTERING PRESET DESTINATIONS Press the “DEST” button. There are 4 different methods to search preset destinations. (See “DESTINATION SEARCH” on page 60.) Touch one of the preset destination Touch “Enter”. buttons. The “Edit Preset Destination” screen is A preset destination can be set to any pre- displayed.
  • Page 6 1. NAVIGATION OPERATION Touch “OK”. Registration of preset destinations is com- plete. Preset destinations can also be registered by touching “Navigation” on the “Setup” screen. (See “REGISTERING PRESET DESTINATIONS” on page 103.) The name, location, phone number and icon can be changed. (See “EDITING PRESET DESTINATIONS”...

  • Page 7: Operation Flow: Guiding The Route

    1. NAVIGATION OPERATION 4. OPERATION FLOW: GUIDING THE ROUTE Press the “DEST” button. Touch “Go to ”. The navigation system performs a search for the route. There are 11 different methods to Touch “OK”. Then start driving. search destinations. (See “DESTI- NATION SEARCH”...

  • Page 8: Setting Home As The Destination

    1. NAVIGATION OPERATION 5. SETTING HOME AS THE DESTINATION Press the “DEST” button. Touch “OK”. Then start driving. Routes other than the one recommended can also be selected. (See “STARTING ROUTE GUIDANCE” on page 78.) Touch “Go Home”. Guidance to the destination is displayed on the screen and can be heard via voice guidance.

  • Page 9: Navigation System Function Index

    2. FUNCTION INDEX 1. NAVIGATION SYSTEM FUNCTION INDEX Displaying maps Page Viewing the map screen Displaying the current position Viewing the current position vicinity map Changing the scale Changing the map orientation Displaying Points of Interest Displaying the estimated travel/arrival time to the destination Selecting the map mode Deleting map screen buttons Displaying traffic information...
  • Page 10 2. FUNCTION INDEX During route guidance Page Pausing route guidance Adjusting route guidance volume Deleting the destination Displaying the entire route map Useful functions Address book Page Registering address book entries Marking icons on the map Information Page Displaying vehicle maintenance Voice command system Page Operating the system with your voice...

  • Page 11: "Destination" Screen

    65, 189 been stored in the system’s database. Touch to provide you with live assistance finding “Destination destinations via the Lexus Enform with Safety 71, 187 Assist” Connect response center. Touch to select a destination from any of the last “Previous...
  • Page 12 3. QUICK REFERENCE Name Function Page “Del.Dest.” Touch to delete set destinations. Touch to select the desired location from a regis- tered entry in “Address book”. (To register ad- “Address Book” dress book entries, see “REGISTERING ADDRESS BOOK ENTRIES” on page 106.) Touch to select one of the 4 categories of emer- “Emergency”...

  • Page 13: Setup Screen

    3. QUICK REFERENCE 2. “Setup” SCREEN The items shown on the “Setup” screen can be set. Press the “SETUP” button to dis- play the “Setup” screen. LX570_Navi_OM60L34U_(U) 13.06.18 10:03...
  • Page 14 Touch to set vehicle information such as mainte- “Vehicle” nance information. Touch to set Lexus Insider, XM Sports, XM “Other” 168, 195 Stocks and XM Fuel Prices. Touch to set iPod and HD Radio™ channel set- Owner’...

  • Page 15: Information Screen

    3. QUICK REFERENCE 3. “Information” SCREEN This screen can be used to display the XM satellite system, fuel consumption, etc. Press the “INFO” button to display the “Information” screen. LX570_Navi_OM60L34U_(U) 13.06.18 10:03...
  • Page 16 “Traffic Incidents” Touch to display traffic incidents. “Map Data” Touch to display map data information. “LEXUS Insider” Touch to display the “LEXUS Insider” screen. “XM Touch to display weather information. NavWeather” Touch to display personally selected stocks infor- “XM Stocks”...
  • Page 17 LX570_Navi_OM60L34U_(U) 13.06.18 10:03...
