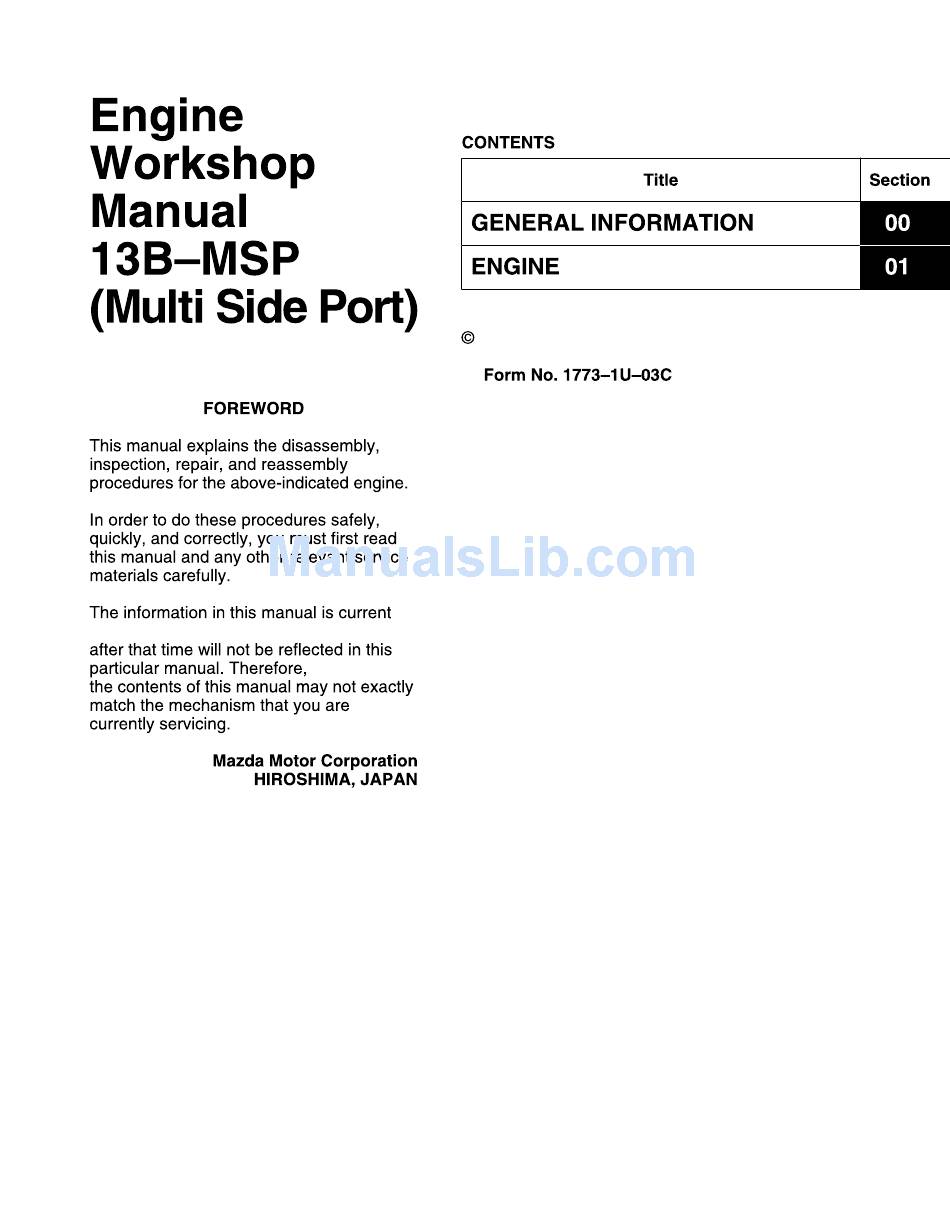

- Page 1 2008 Mazda Motor Corporation PRINTED IN U.S.A., OCTOBER 2008 Part No. 9999-95-E13B-MSP09 up to October, 2008. Any changes that occur...
-
Page 2: Table Of Contents
Engine Workshop Manual 13B-MSP (Multi Side Port) (1773–1U–03C) GENERAL INFORMATION SECTION 00–00 Toc of SCT GENERAL INFORMATION ..00-00 Toc of SCT 00–00 GENERAL INFORMATION HOW TO USE THIS MANUAL ..00–00–1 Inspection During Removal, Range of Topics . -
Page 3: Service Procedure
Engine Workshop Manual 13B-MSP (Multi Side Port) (1773–1U–03C) GENERAL INFORMATION Service Procedure Inspection, adjustment • Inspection and adjustment procedures are SHOWS PROCEDURE ORDER divided into steps. Important points regarding the FOR SERVICE location and contents of the procedures are explained in detail and shown in the illustrations. - Page 4 GENERAL INFORMATION Repair procedure 1. Most repair operations begin with an overview illustration. It identifies the components, shows how the parts fit together, and describes visual part inspection. However, only removal/installation procedures that need to be performed methodically have written instructions. 2.
-
Page 5: Symbols
GENERAL INFORMATION Symbols • There are eight symbols indicating oil, grease, fluids, sealant, and the use of SST or equivalent. These symbols show application points or use of these materials during service. Symbol Meaning Kind New appropriate Apply oil engine oil or gear New appropriate Apply brake fluid BRAKE... -
Page 6: Units
GENERAL INFORMATION UNITS CHU000000002E01 Electric current A (ampere) Electric power W (watt) Electric resistance 00–00 Electric voltage V (volt) mm (millimeter) Length in (inch) kPa (kilo pascal) Negative pressure mmHg (millimeters of mercury) inHg (inches of mercury) kPa (kilo pascal) kgf/cm (kilogram force per square Positive pressure... -
Page 7: Fundamental Procedures
GENERAL INFORMATION FUNDAMENTAL PROCEDURES CHU000000004E01 Preparation of Tools and Measuring Equipment • Be sure that all necessary tools and measuring equipment are available before starting any work. CHU0014W003 Special Service Tools • Use special service tools or equivalent when they are required. -
Page 8: Arrangement Of Parts
GENERAL INFORMATION Arrangement of Parts • All disassembled parts should be carefully arranged for reassembly. • Be sure to separate or otherwise identify the parts to be replaced from those that will be reused. 00–00 WGIWXX0029E Cleaning of Parts • All parts to be reused should be carefully and thoroughly cleaned in the appropriate method. -
Page 9: Adjustment
GENERAL INFORMATION Adjustment • Use suitable gauges and testers when making adjustments. CHU0014W005 Rubber Parts and Tubing • Prevent gasoline or oil from getting on rubber parts or tubing. WGIWXX0034E Hose Clamps • When reinstalling, position the hose clamp in the original location on the hose and squeeze the clamp lightly with large pliers to ensure a good fit. -
Page 10: Vise
GENERAL INFORMATION Vise • When using a vise, put protective plates in the jaws of the vise to prevent damage to parts. End Of Sie 00–00 PROTECTIVE PLATES CHU0014W010 ELECTRICAL SYSTEM CHU000000006E01 Connectors Disconnecting connectors • When disconnecting connector, grasp the NO GOOD GOOD connectors, not the wires. - Page 11 GENERAL INFORMATION Inspection • When a tester is used to inspect for continuity or GOOD NO GOOD measuring voltage, insert the tester probe from the wiring harness side. • Inspect the terminals of waterproof connectors from the connector side since they cannot be accessed from the wiring harness side.
-
Page 12: Sae Standards
• In accordance with new regulations, SAE (Society of Automotive Engineers) standard names and abbreviations are now used in this manual. The table below lists the names and abbreviations that have been used in Mazda manuals up to now and their SAE equivalents. -
Page 13: Identifying Specification
Engine Workshop Manual 13B-MSP (Multi Side Port) (1773–1U–03C) GENERAL INFORMATION IDENTIFYING SPECIFICATION CHU000000000E01 • Because the engine construction varies depending on the vehicle’s period of manufacture, determine the service specification by referring to the following identification. Identifying Specification Applicable VIN... - Page 14 Engine Workshop Manual 13B-MSP (Multi Side Port) (1773–1U–03C) MECHANICAL Toc of SCT MECHANICAL ... . . 01-10 SERVICE TOOLS ... 01-60 TECHNICAL DATA.
-
Page 15: Mechanical
Engine Workshop Manual 13B-MSP (Multi Side Port) (1773–1U–03C) MECHANICAL ENGINE OVERHAUL SERVICE WARNING CHU011002000E01 Warning • Continuous exposure to USED engine oil has caused skin cancer in laboratory mice. Protect your skin by washing with soap and water immediately after this work. -
Page 16: Dismounting
Engine Workshop Manual 13B-MSP (Multi Side Port) (1773–1U–03C) MECHANICAL 3. Install the SSTs (bolt, nut) to the three specified positions as shown in the figure. 4. Install the SSTs (bolts, nuts, hook, plate) in Step 3 49 L010 101 to the SST (arms, bolts) set in Step 2. -
Page 17: Housing Disassembly I
Engine Workshop Manual 13B-MSP (Multi Side Port) (1773–1U–03C) MECHANICAL HOUSING DISASSEMBLY I CHU011002000E04 1. Disassemble in the order indicated in the table. Type A BHJ0110E006 Oil filter component Oil pan (See 01–10–5 Oil Pan Disassembly Note.) Engine hanger (engine rear side) - Page 18 Engine Workshop Manual 13B-MSP (Multi Side Port) (1773–1U–03C) MECHANICAL 01–10-4 MECHANICAL CHU011002000E04 Type B 01–10 BHJ0110F002 Engine hanger (engine rear side) Oil pan upper block (See 01–10–5 Oil Pan Upper Block Disassembly Engine coolant temperature sensor Note.) Engine hanger (engine front side)
- Page 19 Engine Workshop Manual 13B-MSP (Multi Side Port) (1773–1U–03C) MECHANICAL THIS PAGE INTENTIONALLY LEFT BLANK 01–10-4–2...
-
Page 20: Oil Pan Disassembly Note
Engine Workshop Manual 13B-MSP (Multi Side Port) (1773–1U–03C) MECHANICAL Oil Pan Disassembly Note 1. Remove the oil pan using the separator tool. 01–10 BHJ0111W014 Oil Pan Upper Block Disassembly Note 1. Remove the oil pan upper block using the separator tool. -
Page 21: Housing Disassembly Ii
Engine Workshop Manual 13B-MSP (Multi Side Port) (1773–1U–03C) MECHANICAL HOUSING DISASSEMBLY II CHU011002000E05 1. Disassemble in the order indicated in the table. Type A BHJ0110E008 Pulley lockbolt Oil pump drive gear (See 01–10–7 Pulley Lockbolt Disassembly Note.) Oil pump component... - Page 22 Engine Workshop Manual 13B-MSP (Multi Side Port) (1773–1U–03C) MECHANICAL 01–10-6 MECHANICAL CHU011002000E04 Type B 01–10 BHJ0110F003 Pulley lockbolt Oil filter joint (See 01–10–7 Pulley Lockbolt Disassembly Note.) Plug Pulley component Oil pump sprocket wheel Eccentric shaft bypass valve (See 01–10–7 Oil Pump Sprocket Disassembly Note.)
- Page 23 Engine Workshop Manual 13B-MSP (Multi Side Port) (1773–1U–03C) MECHANICAL THIS PAGE INTENTIONALLY LEFT BLANK 01–10-6–2...
-
Page 24: Pulley Lockbolt Disassembly Note
MECHANICAL Pulley Lockbolt Disassembly Note 1. Lock the flywheel (MT) or counterweight (AT) against rotation using the SST. 01–10 49 1881 055A 49 F011 101 BHJ0110E007 Front Cover Disassembly Note 1. Loosen the engine front cover installation bolts in the order shown in the figure. BHJ0110E009 Oil Pump Sprocket Disassembly Note 1. -
Page 25: Housing Disassembly Iii
MECHANICAL HOUSING DISASSEMBLY III CHU011002000E06 1. Disassemble in the order indicated in the table. BHJ0110E010 Flywheel (MT), counterweight (AT) Tension bolt (See 01–10–9 Flywheel (MT), Counterweight (AT) (See 01–10–10 Tension Bolt Disassembly Note.) Disassembly Note.) 01–10–8... -
Page 26: Flywheel (Mt), Counterweight (At) Disassembly Note
Engine Workshop Manual 13B-MSP (Multi Side Port) (1773–1U–03C) MECHANICAL Rear housing Tubular dowel (front rotor housing side) (See 01–10–10 Rear Housing Disassembly Note.) (See 01–10–10 Tubular Dowel Disassembly Note.) Rear oil seal Intermediate housing (See 01–10–12 Intermediate Housing Disassembly Rear stationary gear Note.) -
Page 27: Tension Bolt Disassembly Note
Engine Workshop Manual 13B-MSP (Multi Side Port) (1773–1U–03C) MECHANICAL Tension Bolt Disassembly Note 1. Loosen the tension bolts in 2⎯3 passes in the order shown in the figure and remove them. BHJ0110E013 Rear Housing Disassembly Note 1. Move the rear housing to the left and right to cut the oil film. -
Page 28: Rotor Housing Disassembly Note
MECHANICAL Rotor Housing Disassembly Note 1. Remove the rotor housing being careful not to drop the apex seal. 01–10 BHJ0110E020 Rotor Disassembly Note Note • Pair each seal and spring according to the INTERNAL GEAR SIDE OPPOSITE INTERNAL GEAR SIDE numbers shown in the figure, and place them in the SST according to the numbers ROTATION LOCK TAB... -
Page 29: Intermediate Housing Disassembly Note
MECHANICAL 4. Remove the corner seal, side seal, and spring on the engine front side, and place them in the SST while keeping them in order. 49 0813 250 BHJ0110E022 Intermediate Housing Disassembly Note 1. Lift the intermediate housing up while another person pushes the eccentric shaft upward approx. -
Page 30: Oil Seal Disassembly Note
MECHANICAL Outer oil seal spring Inner O-ring (small radius) (See 01–10–13 Oil Seal Spring Disassembly Note.) Inner oil seal spring Inner oil seal (See 01–10–13 Oil Seal Spring Disassembly Note.) (See 01–10–13 Oil Seal Disassembly Note.) Oil Seal Disassembly Note 01–10 1. -
Page 31: Rotor Housing Inspection
MECHANICAL (1) Vertical wear WEAR AREA Maximum wear 0.10 mm {0.0039 in} CHU0110E002 (2) Convex oval OIL SEAL PATH Maximum wear Oil seal inner path (A): 0.01 mm {0.0004 in} Oil seal outer path (B): 0.10 mm {0.0039 in} CHU0110E003 (3) Oil seal stepped path wear WEAR AREA Maximum wear... -
Page 32: Rotor Inspection
MECHANICAL ROTOR INSPECTION CHU011011B10E01 1. Inspect the rotor and side housing clearance according to the following procedure: • If it is less than the minimum specification, replace the rotor. (1) Measure the width of the rotor housing in the position shown in the figure using a SHEET METAL micrometer. -
Page 33: Apex Seal Inspection
MECHANICAL 3. Inspect the corner seal groove of the rotor by 49 0839 165 inserting the SST. • If 1/2 or more of either end of the SST can be inserted into the seal groove, replace the corner seal. • If 1/2 or more of both ends of the SST can be inserted into the corner seal groove, replace the rotor. -
Page 34: Side Seal Inspection
Engine Workshop Manual 13B-MSP (Multi Side Port) (1773–1U–03C) MECHANICAL SIDE SEAL INSPECTION CHU011011B10E04 Replacing with a new side seal. If replacing the side seal, select the appropriate side seal from the side seal groove length rank marked on the rotor. -
Page 35: Cut-Off Seal Inspection
Engine Workshop Manual 13B-MSP (Multi Side Port) (1773–1U–03C) MECHANICAL (4) If the sum of the clearances on both ends exceeds the maximum, replace with a new side seal by selecting one from the side seal selection table. Maximum clearance 0.4 mm {0.016 in}... -
Page 36: Cut-Off Seal Spring
Engine Workshop Manual 13B-MSP (Multi Side Port) (1773–1U–03C) MECHANICAL Cut-off Seal Spring 1. Assemble the cut-off seal spring into the rotor. 2. Referring to the cut-off seal inspection procedure, verify that the height of the cut-off seal is at the minimum specification or more. -
Page 37: Rotor Bearing Oil Clearance Inspection
Engine Workshop Manual 13B-MSP (Multi Side Port) (1773–1U–03C) MECHANICAL 1. Measure the height of the apex seal spring using a vernier caliper with the spring placed on a surface plate. • If it is less than the minimum specification, replace the apex seal spring. -
Page 38: Rotor Bearing Replacement
Engine Workshop Manual 13B-MSP (Multi Side Port) (1773–1U–03C) MECHANICAL ROTOR BEARING REPLACEMENT CHU011011B10E09 Removal 1. Set the rotor with the internal gear at the bottom. 2. Remove the adapter ring and the securing screw from the SST. 49 0813 240 01–10... -
Page 39: Eccentric Shaft Inspection
Engine Workshop Manual 13B-MSP (Multi Side Port) (1773–1U–03C) MECHANICAL ECCENTRIC SHAFT INSPECTION CHU011011D01E01 1. Inspect for clogging in the oil passage. • If there is any clogging, remove it with a needle or similar device and clean with compressed air. - Page 40 Engine Workshop Manual 13B-MSP (Multi Side Port) (1773–1U–03C) MECHANICAL SPACER NEEDLE BEARING 3. Assemble the eccentric shaft pulley, eccentric PLATE shaft position plate, pulley boss component apply engine oil to the pulley lockbolt threads, and then tighten. Tightening torque 300—340 N·m {30.6—34.6 kgf·m, 222—250 01–10...
-
Page 41: Pilot Bearing Inspection/Replacement [Mt]
Engine Workshop Manual 13B-MSP (Multi Side Port) (1773–1U–03C) MECHANICAL PILOT BEARING INSPECTION/REPLACEMENT [MT] CHU011011D01E03 Inspection Caution • Inspect the pilot bearing when it is installed to the eccentric shaft. 1. Before removing the pilot bearing, inspect it for damage, wear, and proper rotation. -
Page 42: Eccentric Shaft Bypass
Engine Workshop Manual 13B-MSP (Multi Side Port) (1773–1U–03C) MECHANICAL ECCENTRIC SHAFT BYPASS VALVE CHU011011D01E04 Warning • Engine oil temperature will increase during the inspection and become very dangerous. Be careful not to burn yourself during the inspection. 1. Put the eccentric shaft bypass valve in a VERNIER CALIPER container filled with engine oil. -
Page 43: Main Bearing Replacement
Engine Workshop Manual 13B-MSP (Multi Side Port) (1773–1U–03C) MECHANICAL 3. Calculate the main bearing oil clearance from the main journal outer diameter and the main bearing inner diameter. STATIONARY GEAR MAIN BEARING Main bearing oil clearance = (main bearing inner diameter) – (main journal outer diameter) •... -
Page 44: Installation
Engine Workshop Manual 13B-MSP (Multi Side Port) (1773–1U–03C) MECHANICAL Installation Without stopper screw 1. Temporarily assemble the stationary gear and the main bearing so that the main bearing tab and ALIGN TAB AND NOTCH notch are aligned after pressing in the main bearing and stationary gear. - Page 45 Engine Workshop Manual 13B-MSP (Multi Side Port) (1773–1U–03C) MECHANICAL 2. Remove the SST handle. 49 0813 235 BHJ0110E059 3. Position the gear of the stationary gear downward, and install the main bearing using the SST. Caution • Press the main bearing in so that the top...
-
Page 46: Oil Pump Inspection
Engine Workshop Manual 13B-MSP (Multi Side Port) (1773–1U–03C) MECHANICAL OIL PUMP INSPECTION CHU011014100E01 Type A 1. Measure the body clearance between the outer rotor and the body using a feeler gauge. • If it exceeds the maximum specification, replace the oil pump. -
Page 47: Rotor Assembly
Engine Workshop Manual 13B-MSP (Multi Side Port) (1773–1U–03C) MECHANICAL ROTOR ASSEMBLY CHU011002000E08 1. Assemble in the order indicated in the table. BHJ0110E074 Inner oil seal spring Outer O-ring (large radius) (See 01–10–30 Oil Seal Spring Assembly Note.) (See 01–10–31 O-Ring Assembly Note.) -
Page 48: O-Ring Assembly Note
MECHANICAL Caution • • • • It is possible that the identification color may not be visible when reusing the oil spring. In that case, assemble the ENGINE FRONT SIDE AND REAR SIDE rounded end towards the rotor side and the squared end upward. -
Page 49: Oil Seal Assembly Note
MECHANICAL Oil Seal Assembly Note 1. Temporarily install the oil seal with the squared end of the oil seal spring fit into the slot of the oil OIL SEAL SLOT seal. SQUARED END CHU0110E026 2. Push in the oil seal using an old oil seal. 3. -
Page 50: Cut-Off Seal Assembly Note
MECHANICAL Cut-Off Seal Assembly Note 1. Assemble the cut-off seal so that it does not run ROTATION LOCK PIN CUT-OFF SEAL over the rotation lock pin. End Of Sie GOOD 01–10 ROTOR CUT-OFF SEAL SPRING NO GOOD NO GOOD CHU0110E029 01–10–33... -
Page 51: Housing Assembly I
MECHANICAL HOUSING ASSEMBLY I CHU011002000E09 1. Assemble in the order indicated in the table. SEALANT SEALANT 15.7—22.5 {1.61—2.29, 11.6—16.5} 3.9—11.7 {40—119 kgf·cm, 35—103 in·lbf} SEALANT SEALANT 31.4—39.2 SEALANT SEALANT {3.21—3.99, 23.2—28.9} 392—490 {39.8—49.9, 290—361} SEALANT SEALANT 15.7—22.5 {1.61—2.29, 11.6—16.5} N·m {kgf·m, ft·lbf} 68.6—78.4 {6.70—7.99, 50.6—57.8} CHU0110E052 Front housing... -
Page 52: Thrust Plate Assembly Note
Engine Workshop Manual 13B-MSP (Multi Side Port) (1773–1U–03C) MECHANICAL Plate Intermediate housing (See 01–10–38 Intermediate Housing Assembly Front rotor Note.) A: Side seal B: Side seal spring Rear rotor C: Corner seal (See 01–10–35 Rotor Assembly Note.) D: Corner seal plug... -
Page 53: Oil Jet Plug Assembly Note
Engine Workshop Manual 13B-MSP (Multi Side Port) (1773–1U–03C) MECHANICAL 2. Assemble the side seal spring in the direction SIDE SEAL shown in the figure. 3. Apply petroleum jelly between the side seal and side seal groove. ROTOR SIDE SEAL SPRING CHU0110E047 4. -
Page 54: Rotor Housing Assembly Note
Engine Workshop Manual 13B-MSP (Multi Side Port) (1773–1U–03C) MECHANICAL Rotor Housing Assembly Note Caution • Assemble the seal rubber without any torsion. • Do not get oil or grease on the seal rubber. 1. Apply petroleum jelly to a new seal rubber. -
Page 55: Intermediate Housing Assembly Note
Engine Workshop Manual 13B-MSP (Multi Side Port) (1773–1U–03C) MECHANICAL • If adhesive protrudes, remove with a ADHESIVE razor. Note • When using a new apex seal, the procedure above is not needed. RAZOR CHU0110E069 6. Assemble the apex seal and apex seal spring... -
Page 56: Rear Oil Seal Assembly Note
MECHANICAL Caution • • • • Do not allow the side piece to be caught between the rotor housing and intermediate housing. GOOD 01–10 NO GOOD CHU0110E060 Rear Oil Seal Assembly Note 1. Assemble the oil seal using the SST. Caution •... -
Page 57: Rear Housing Assembly Note
MECHANICAL Rear Housing Assembly Note 1. Assemble the rear housing with the rear stationary gear and the internal gear of the rotor engaged. Caution • • • • Do not allow the side piece to be caught between the rotor housing and rear housing. GOOD NO GOOD CHU0110E060... -
Page 58: Flywheel (Mt), Counterweight (At) Assembly Note
Engine Workshop Manual 13B-MSP (Multi Side Port) (1773–1U–03C) MECHANICAL Flywheel (MT), Counterweight (AT) Assembly Note 1. Lock the flywheel (MT) or counterweight (AT) against rotation using the SSTs. 01–10 49 F011 101 49 1881 055A BHJ0110E007 2. Tighten the locknut using the SST. -
Page 59: Housing Assembly Ii
Engine Workshop Manual 13B-MSP (Multi Side Port) (1773–1U–03C) MECHANICAL HOUSING ASSEMBLY II CHU011002000E10 1. Assemble in the order indicated in the table. Type A SEALANT 254—294 {25.9—29.9, 188—216} SEALANT 6.9—9.8 0.98—2.94 {0.10—0.29, 0.73—2.16} {0.8—0.9, 5.1—7.2} 31.4—46.1 {3.21—4.70, 23.2—34.0} 18.6—25.5 {1.90—2.60, 13.8—18.8} N·m {kgf·m, ft·lbf}... - Page 60 Engine Workshop Manual 13B-MSP (Multi Side Port) (1773–1U–03C) MECHANICAL 01–10-42 MECHANICAL CHU011002000E04 Type B 7.8—10.8 {80—110 kgf·cm, SEALANT SEALANT 69.0—95.5 in·lbf} 254—294 {25.9—29.9, 188—216} 7.8—10.8 {80—110 kgf·cm, 01–10 69.0—95.5 in·lbf} 7.8—10.8 {80—110 kgf·cm, 69.0—95.5 in·lbf} 7.8—10.8 {80—110 kgf·cm, 69.0—95.5 in·lbf} 31.4—47.0 {3.21—4.79, 23.2—34.6}...
- Page 61 Engine Workshop Manual 13B-MSP (Multi Side Port) (1773–1U–03C) MECHANICAL THIS PAGE INTENTIONALLY LEFT BLANK 01–10-42–2...
-
Page 62: Spacer Assembly Note
MECHANICAL Spacer Assembly Note Caution • • • • When assembling the spacer, do not allow the spacer to be caught in the needle bearing of the plate. SPACER NEEDLE BEARING Note PLATE • Perform eccentric shaft end play inspection. 01–10 (See01–10–22 ECCENTRIC SHAFT END PLAY INSPECTION.) -
Page 63: Front Cover Assembly Note
MECHANICAL Front Cover Assembly Note 1. Before installing the front cover, install the pulley PULLEY BOSS boss to the eccentric shaft and measure the height between the eccentric shaft top and the pulley boss. • If not within the specification, verify that the 10.34—11.14 mm spacer is not caught in the needle bearing. -
Page 64: Housing Assembly Iii
Engine Workshop Manual 13B-MSP (Multi Side Port) (1773–1U–03C) MECHANICAL HOUSING ASSEMBLY III CHU011002000E11 1. Assemble in the order indicated in the table. Type A 18.6—25.5 31.4—46.1 {1.90—2.60, 13.8—18.8} {3.21—4.70, 23.2—34.0} 01–10 15.7—23.5 {1.61—2.39, 11.6—16.5} 18.6—25.5 {1.9—2.6, 13.8—18.8} 18.6—25.5 {1.90—2.60, 13.8—18.8} 14.2—17.2 {1.45—1.75, 10.5—12.6}... - Page 65 Engine Workshop Manual 13B-MSP (Multi Side Port) (1773–1U–03C) MECHANICAL Type B 31.4—46.1 {3.21—4.70, 23.2—34.0} 18.6—25.5 {1.90—2.60, 13.8—18.8} 15.7—23.5 {1.61—2.39, 11.6—16.5} 18.6—25.5 {1.90—2.60, 13.8—18.8} 18.6—25.5 {1.90—2.60, 13.8—18.8} 7.8—10.8 {80—110 kgf·cm, 69.0—95.5 in·lbf} 7.8—10.8 {80—110 kgf·cm, 69.0—95.5 in·lbf} 7.8—10.8 {80—110 kgf·cm, 69.0—95.5 in·lbf} 18.6—25.5 {1.90—2.60, 13.8—18.8}...
-
Page 66: Oil Pan Upper Block Assembly Note
Engine Workshop Manual 13B-MSP (Multi Side Port) (1773–1U–03C) MECHANICAL Oil Pan Upper Block Assembly Note Caution • Apply the silicon sealant in a single, unbroken line around the whole perimeter. • Install the oil pan upper block within 5 min after applying the silicone sealant. - Page 67 Engine Workshop Manual 13B-MSP (Multi Side Port) (1773–1U–03C) MECHANICAL Type B Caution • Apply the silicon sealant in a single, unbroken line around the whole perimeter. • Install the oil pan within 5 min after applying the silicone sealant. • Using bolts with the old seal adhering could cause cracks in the housing.
-
Page 68: Technical Data
Engine Workshop Manual 13B-MSP (Multi Side Port) (1773–1U–03C) TECHNICAL DATA 01–50 TECHNICAL DATA ENGINE TECHNICAL DATA ..01–50–1 End of Toc ENGINE TECHNICAL DATA CHU015001001E02 01–50 ENGINE TYPE ITEMS 13B-MSP STANDARD POWER... - Page 69 Engine Workshop Manual 13B-MSP (Multi Side Port) (1773–1U–03C) TECHNICAL DATA ENGINE TYPE ITEMS 13B-MSP STANDARD POWER HIGH POWER OIL PUMP Standard 0.20—0.25 {0.0079—0.0098} Body clearance (Type A) (mm {in}) Maximum 0.3 {0.0118} Standard 0.03—0.12 {0.0012—0.0047} Tip clearance (Type A) (mm {in}) Maximum 0.15 {0.0059}...
-
Page 70: Service Tools
SERVICE TOOLS 01–60 SERVICE TOOLS ENGINE SST ..... . 01–60–1 End of Toc ENGINE SST CHU016001001E02 01–60 49 0107 680A 49 L010 1A0 49 J010 3A0A Engine stand...
