Gladiator ECD-44 Owner's Manual & Assembly Instructions

Chin/dip/vkr stand combo

Advertisement

Quick Links

OWNER'S MANUAL
& Assembly Instructions
ECD-44
Chin/Dip/VKR Stand Combo
L48 X W47 X H83
ECD-44_Rev0
Revision Date 3-28-12

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ECD-44 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Gladiator ECD-44

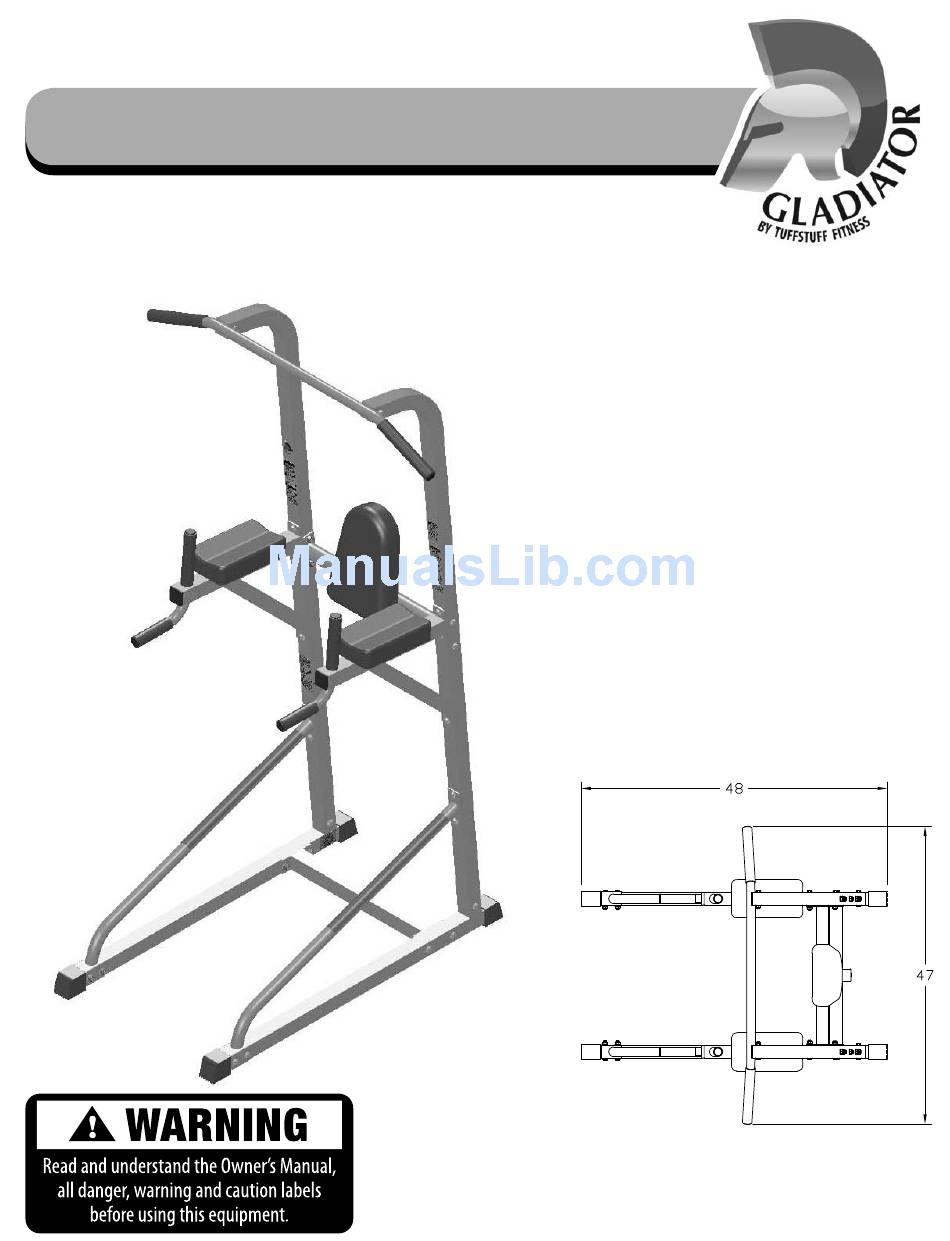

  • Page 1 OWNER’S MANUAL & Assembly Instructions ECD-44 Chin/Dip/VKR Stand Combo L48 X W47 X H83 ECD-44_Rev0 Revision Date 3-28-12...
  • Page 2: Table Of Contents

    Tuff Stuff Fitness Equipment Inc. continually engages in research related to product improvements. Please take the time to carefully read through this manual thoroughly. Instructions contained in this manual are not intended to cover all details or variations possible with Gladiator equipment, or to cover every contingency that may be met in conjunction with assembly, installation, operation, maintenance or troubleshooting of the equipment.
  • Page 3: Danger, Warning, & Caution Labels Information

    Carefully read ALL Danger, Warning & Caution labels posted on the machine BNH2907 BNH2917 BNH2919 ECD-44 Chin/Dip/VKR Stand Combo...
  • Page 4 Carefully read ALL Danger, Warning & Caution labels posted on the machine BNH2915 BNH2918 BNH2903 ECD-44 Chin/Dip/VKR Stand Combo...
  • Page 5: Important Safety Instructions

    DO NOT USE equipment until repaired. Use only components or parts. genuine Tuff Stuff parts. Failure to do so will void warranty and Assemble, lubricate all moving parts, and operate the ECD-44 on a solid, could result in serious injury or death. level and clean surface.
  • Page 6: Preparation & Assembly Tips

    ECD-44 Preparation & Assembly Thank you for purchasing the Gladiator ECD-44 Chin/Dip/VKR Stan Combo. This bench is part of the Tuff Stuff line of quality strength training equipment. To maximize your use of the equipment, please study the Owner’s Manual thoroughly.
  • Page 7: Assembly Instructions - Step

    FLAT WASHER SAE Z/P 3/8 HEX HEAD CAP SCREW Z/P 3/8-16 X 2 7/8 NYLON INSERT LOCK NUT Z/P 3/8-16 -WARNING- 1. IT IS STRICTLY RECOMENDED TO HAVE ANOTHER PERSON ASSIST WITH LOOSELY FASTEN THE INSTALLATION OF THIS UNIT. ECD-44 Chin/Dip/VKR Stand Combo...
  • Page 8: Assembly Instructions - Step

    ECD-44 Step 2 Assembly List Item # Description Qty. UPRIGHT FRAME SIDE FRAME CONNECTOR FLAT WASHER SAE Z/P 3/8 HEX HEAD CAP SCREW Z/P 3/8-16 X 1/2 HEX HEAD CAP SCREW Z/P 3/8-16 X 2 3/4 HEX HEAD CAP SCREW Z/P 3/8-16 X 2 7/8...
  • Page 9: Assembly Instructions - Step

    CENTER FRAME CONNECTOR CHIN/DIP FRAME FLAT WASHER SAE Z/P 3/8 HEX HEAD CAP SCREW Z/P 3/8-16 X 2 3/4 HEX HEAD CAP SCREW Z/P 3/8-16 X 2 5/8 NYLON INSERT LOCK NUT Z/P 3/8-16 LOOSELY FASTEN ECD-44 Chin/Dip/VKR Stand Combo...
  • Page 10: Assembly Instructions - Step

    ECD-44 Step 4 Assembly List Item # Description Qty. ARM SUPPORT FRAME FLAT WASHER SAE Z/P 3/8 HEX HEAD CAP SCREW Z/P 3/8-16 X 2 7/8 NYLON INSERT LOCK NUT Z/P 3/8-16 FULLY FASTEN ECD-44 Chin/Dip/VKR Stand Combo...
  • Page 11: Assembly Instructions - Step

    ECD-44 Step 5 Assembly List Item # Description Qty. ARM PAD BACK PAD FULLY FASTEN FLAT WASHER SAE Z/P 5/16 THESE AND ANY LOOSELY HEX HEAD CAP SCREW Z/P 5/16-18 X 2 3/4 FASTEN HARDWARE ECD-44 Chin/Dip/VKR Stand Combo...
  • Page 12: Parts List

    ECD-44 Parts List ECD-44 Parts List ITEM DESCRIPTION PART NO. BASE FRAME STABILIZER GLA1008 BASE FRAME CONNECTOR GLA1009 UPRIGHT FRAME GLA1010 SIDE FRAME CONNECTOR GLA1011 CENTER FRAME CONNECTOR GLA1012 CHIN/DIP FRAME GLA1013 ARM SUPPORT FRAME GLA1014 ARM PAD GLA1015 BACK PAD...
  • Page 13: Exploded View

    ECD-44 Exploded View ECD-44 Chin/Dip/VKR Stand Combo...
  • Page 14: Basic Exercise Guide

    Before working out, read and understand the Owner’s Manual, all danger, warning and caution labels listed on pages 3-4. This equipment is for HOME use only. Obtain a medical examination before beginning any exercise program. If you feel faint, dizzy or pain, stop exercising immediately. Chin Up Mid-Range Begin/End Mid-Range Begin/End ECD-44 Chin/Dip/VKR Stand Combo...
  • Page 15 Before working out, read and understand the Owner’s Manual, all danger, warning and caution labels listed on pages 3-4. This equipment is for HOME use only. Obtain a medical examination before beginning any exercise program. If you feel faint, dizzy or pain, stop exercising immediately. Knee Raise Mid-Range Begin/End Leg Raise Mid-Range Begin/End ECD-44 Chin/Dip/VKR Stand Combo...
  • Page 16: Warranty

    This warranty applies only in the United States to the products manufactured or distributed by Tuff Stuff Fitness Equipment Inc. under the Gladiator brand name. The warranty period to the original purchaser is 3 years on the frame and 1 year on ALL parts. Tuff Stuff warrants that the Product you have purchased for personal, family or household use from Tuff Stuff or from an authorized Tuff Stuff dealer is free from defects in materials or workmanship under normal use during the warranty period.
