ELPRO 105U-L Installation Manual

Wireless i/o
Hide thumbs Also See for 105U-L:
Table of Contents

Advertisement

Quick Links

Download this manual
Installation
Manual
105U-L Wireless
I/O
V e r s i o n 1 . 8
man_105U-L_installation_v1.8 .doc

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 105U-L and is the answer not in the manual?

Questions and answers

Related Manuals for ELPRO 105U-L

Summary of Contents for ELPRO 105U-L

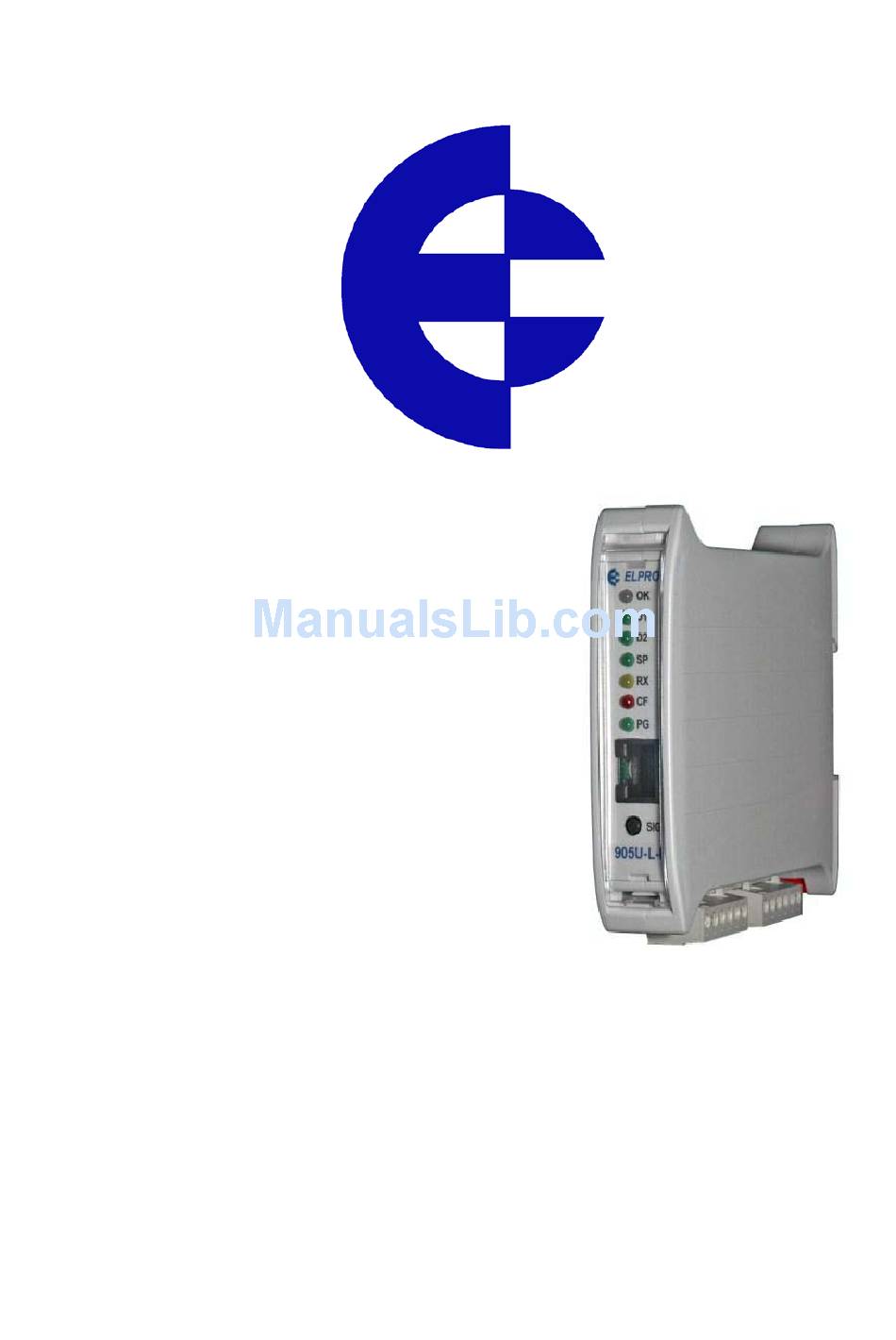

  • Page 1 Installation Manual 105U-L Wireless V e r s i o n 1 . 8 man_105U-L_installation_v1.8 .doc...

  • Page 2: Document Information

    This warranty is in lieu of and exclusive of all other warranties. This warranty does not indemnify the purchaser of products for any consequential claim for damages or loss of operations or profits and ELPRO is not liable for any consequential damages or loss of operations or profits resulting from the use of these products.

  • Page 3: Table Of Contents

    105U-L Wireless I/O Installation Manual Contents Contents __________________________________________________________________ 3 Safety information ..........................4 Hazardous Location Notices: ....................... 4 About this document ..........................4 Installing your unit __________________________________________________________ 5 Unit components and connections....................... 6 Transmitter unit ............................... 6 Receiver unit ..............................9 Installing the antenna .........................

  • Page 4: Safety Information

    Safety information Thank you for selecting the 105U-L for your telemetry needs. We trust it will give you many years of valuable service. To ensure your 105U-L enjoys a long life, double-check ALL your connections with the Installation Guide before powering on the module.

  • Page 5: Installing Your Unit

    105U-L Wireless I/O Installation Manual Installing your unit This section describes how to install your unit and contains the following sections: Step Description For more information, see … 1 – Read the safety Lets you understand important safety Safety Information on page 5.

  • Page 6: Unit Components And Connections

    Unit components and connections This section shows the components and terminal connections for the transmitter and receiver units. Transmitter unit The 105U-L-T transmitter unit has the following components and terminal connections: Earth Wire Lug underneath Unit 105U-L Wireless I/O Page 6 of 38...
  • Page 7 105U-L Wireless I/O Installation Manual The front panel contains the following components: The triangle on the rotary switch indicates the current position, for example: Position 0 Position 1 NOTE: To avoid damaging the rotary switch, use a screwdriver to change the position.
  • Page 8 105U-L Wireless I/O Installation Manual The LEDs on the front panel indicate the unit status: LED Status Indicates None No power supply. OK LED Green Current status of the unit OK. OK LED Red Fault condition detected in unit. TX Led Flashes Transmitting Message.

  • Page 9: Receiver Unit

    105U-L Wireless I/O Installation Manual Receiver unit Your 105U-L-R unit has the following components and terminal connections: Max. 30VDC 500mA DO 1 For inductive load, use surge diodes DO 2 DO 3 ANALOG OUTPUT Max. analog load 900 ohm DO contacts are rated at 1A, 250VAC...
  • Page 10 105U-L Wireless I/O Installation Manual The front panel contains the following components: The LEDs on the front panel indicate the unit status: LED Status Indicates None No power supply. OK LED Green Current status of the unit OK. OK LED Red Fault condition detected in unit.

  • Page 11: Installing The Antenna

    105U-L Wireless I/O Installation Manual Installing the antenna This section explains how to install your antenna and contains the following sections: Section Description For more information, see … Supported antennas Details the antennas and cables Supported antennas on page 11.
  • Page 12 For example, an SG900-6 antenna with a CC20/900 cable has a net gain of 2dB (i.e. +8 dB – 6 dB) at 900 MHz. The 105U-L-R module has no limitation on antenna gain, as this module does not incorporate a radio transmitter.

  • Page 13: Radio Transmission Distances

    1. ELPRO recommends using the 105-G module as a repeater unit between 105U- L-T and 105U-L-R modules. 2. To use a repeater unit, the 105U-L modules and the repeater module must be configured using the supplied configuration software. The factory default configuration described in the Quick Start Guide cannot use a repeater unit.

  • Page 14: Installing And Earthing Antennas

    You must connect an antenna to each 105 module using the SMA connector at the top of the enclosure. ELPRO recommends carefully taping the connections between the antenna and coaxial cable to prevent moisture ingress. Moisture ingress in the coaxial cable is a common cause of radio system problem as it greatly increases the radio losses.

  • Page 15: Dipole And Collinear Antennas

    105U-L Wireless I/O Installation Manual Dipole and collinear antennas This section contains important information for using dipole and collinear antennas. For more information, see the next sections. Dipole antennas Unity gain dipole antennas are commonly used on unlicensed channels. The dipole antenna does not provide any gain, so the power transmitted from the antenna is the same as the power out of the module.
  • Page 16 105U-L Wireless I/O Installation Manual The following diagrams shows the recommended installation for collinear and dipole antennas: 105U-L Wireless I/O Page 16 of 38 Version 1.8...

  • Page 17: Yagi Antennas

    105U-L Wireless I/O Installation Manual Yagi antennas Yagi antennas are directional and have positive gain to the front of the antenna and negative gain in other directions. You can use the gain to:  Compensate for coaxial cable loss for transmitter unit; and ...
  • Page 18 105U-L Wireless I/O Installation Manual The following diagrams shows the recommended installation for collinear and dipole antennas: 105U-L Wireless I/O Page 18 of 38 Version 1.8...

  • Page 19: Installing The Power Supply

    105U-L Wireless I/O Installation Manual Installing the power supply The unit works with a 9-30 VDC 0.6 Amp CSA certified Class 2 power supply. For use in Class 1 Div 2 explosive areas, the power supply must be approved for Class 1 Div 2 use.

  • Page 20: Inputs And Outputs

    105U-L Wireless I/O Installation Manual Inputs and outputs The units have the following inputs and outputs: Input/output 105U-L-T 105U-L-R Description For more information, see … Digital inputs Suitable for Voltage free Digital inputs on contact, NPN transistor, page 21. 0-5V signal.

  • Page 21: Digital Inputs

    105U-L Wireless I/O Installation Manual Digital inputs The 105U-L-T module provides two digital inputs suitable for:  Voltage free contacts – e.g. mechanical switches; or  NPN transistor devices – e.g. electronic proximity switches; or  0-5V signals - 2V – 4V Minimum range.

  • Page 22: Relay Outputs

    105U-L Wireless I/O Installation Manual Relay outputs The 105U-L-R module provides three normally open voltage-free relay contacts rated at 250VAC / 30VDC 1A. You can use these outputs to directly control low-powered equipment or power larger relays for higher-powered equipment.

  • Page 23: Status Outputs

    105U-L Wireless I/O Installation Manual Status outputs The unit contains the following status outputs:  System OK;  Setpoint Output; and  Communications Failure. Status outputs are FET output to common rated at 30VDC 500 mA. Connect the output circuit to the appropriate Status Output terminal. Each status output circuit is associated with an LED indicator that lights lit when the digital output is active.

  • Page 24: Analog Input

    You should only connect one end of the cable shield to Earth To connect an analog signal from a PLC or DCS output to an analog input on the 105U-L- T, you must carefully check the internal circuit of the output as different devices use different ways to create an analog signal.
  • Page 25 105U-L Wireless I/O Installation Manual The following diagrams illustrate different connection methods: Analog Example signal source 2 wire transducer 4 wire transducer Current source output 105U-L Wireless I/O Page 25 of 38 Version 1.8...
  • Page 26 105U-L Wireless I/O Installation Manual Analog Example signal source Current sink output 105U-L Wireless I/O Page 26 of 38 Version 1.8...

  • Page 27: Thermocouple Input

    105U-L Wireless I/O Installation Manual Thermocouple input The 105U-L-T provides one input suitable for connection to a thermocouple or a millivolt level signal. The module provides linearization tables for J, K and T type thermocouples and also supports other types via a user linearization table.

  • Page 28: Pulse Input

    105U-L Wireless I/O Installation Manual Pulse input The 105U-L-T module lets you configure the digital inputs as pulse inputs with the following characteristics: Characteristic Value Maximum rate 10 Hz Minimum off time 20 mSec Minimum on time 20 mSec Using this mode, you can map the pulse count to a remote output by transmitting the pulse count to a 105-G module register or re-generating as a Pulse Output on 105-1 or Digital Output on a 105-3 unit.

  • Page 29: Analog Output

    105U-L Wireless I/O Installation Manual Analog output The 105U-L-R module provides a 4 - 20 mA DC analog output for connecting to instrument indicators to display remote analog measurements. The analog output is a current source provided from an internally generated +24V loop supply.
  • Page 30 105U-L Wireless I/O Installation Manual Connection Example method To single- ended input device 105U-L Wireless I/O Page 30 of 38 Version 1.8...

  • Page 31: Installing And Configuring The Unit

    105U-L Wireless I/O Installation Manual Installing and configuring the unit This section describes how to install and configure your unit and contains the following sections: Section Description For more information, see … Installing the unit Describes how to physically install your Installing the unit on page 32.

  • Page 32: Installing The Unit

    105U-L Wireless I/O Installation Manual Installing the unit To install the unit: 1. Connect signals to the supplied terminals. 2. Connect the radio antenna. 3. Install DIN rail to mount the module. 4. Clip the module to the DIN rail: You can now configure your unit.

  • Page 33: Configuring Your Units

     User-defined customized configuration – that lets you set specific information about your network and allows communication with other ELPRO 105 series devices. For more information on setting a user-defined customised configuration, see the User Manual. For more information on setting the factory default configuration, refer to the Quick Start Guide included with your module.

  • Page 34: Testing Your Units

    • For default configuration, Repeat the procedure to check the receiver is register the receiver with the registered with the transmitter. transmitter. For support for other testing issues, please contact ELPRO. 105U-L Wireless I/O Page 34 of 38 Version 1.8...

  • Page 35: Unit Specifications

    105U-L Wireless I/O Installation Manual Unit specifications This section details the specifications for each unit. Transmitter unit Input/output Number Additional information Digital inputs Dry-contact digital inputs slow-pulsed at 10Hz. All inputs are suitable for voltage free contacts (e.g. mechanical switches) or NPN transistor devices (e.g. electronic proximity switches).

  • Page 36: Ancillary Hardware Reference Information

    Value Baud rate 9600 Bits 8 bits with 1 stop bit Parity No parity ELPRO supplies a green configuration cable wired to the following pin-out: Note The following pin-out information is for reference only. RJ-45 Signal name Normal colour Required...

  • Page 37: Index

    105U-L Wireless I/O Installation Manual Index 2 wire transducer ............. 26 lightening rod ............15 4 wire transducer ............ 26 lightening strike ............15 AC relays ..............23 line of sight .............. 14 active pulse device ..........See linearization tables ........... 28 active signal device ..........
  • Page 38 105U-L Wireless I/O Installation Manual specifications ............36 transmitter status outputs ............24 components ............7 surge diverter............15 front panel ............. 8 surge protection ............15 terminal connections ..........7 surge suppression ........... 15 UV-stabilized tape ........... 15 switches vertical polarization ..........
