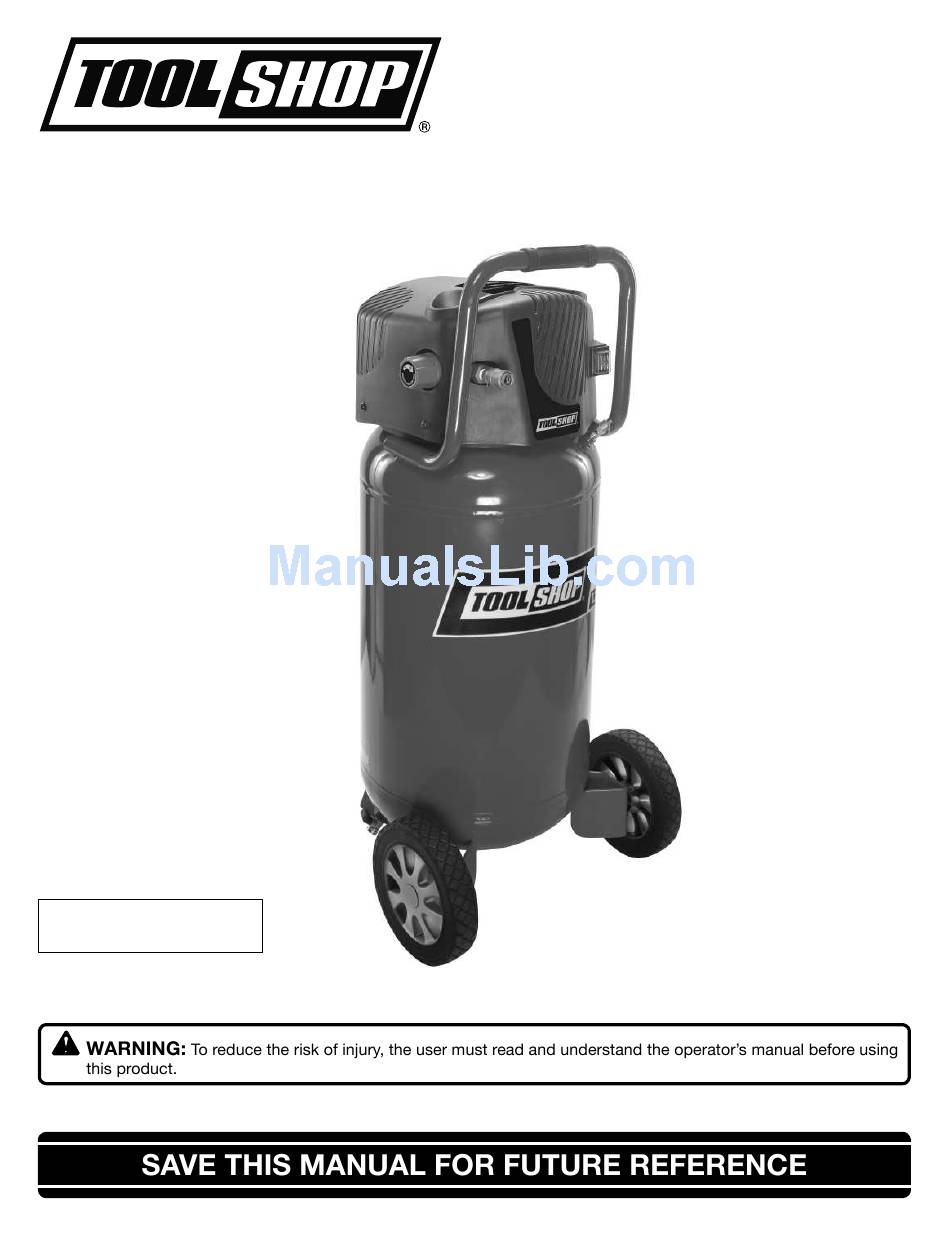

OPERATOR'S MANUAL
11 GALLON PORTABLE AIR COMPRESSOR
TS11OL227
CUSTOMER SERVICE
1-866-242-4298
Your air compressor has been engineered and manufactured to Tool Shop's high standard for dependability, ease of
operation, and operator safety. When properly cared for, it will give you years of rugged, trouble-free performance.
Thank you for buying a Tool Shop product.
H1512FWK
04/ 7
TS11OL227 OM Ver. 06/13
Advertisement
Table of Contents
Related Manuals for Tool Shop TS11OL227
Summary of Contents for Tool Shop TS11OL227
- Page 1 CUSTOMER SERVICE 1-866-242-4298 Your air compressor has been engineered and manufactured to Tool Shop’s high standard for dependability, ease of operation, and operator safety. When properly cared for, it will give you years of rugged, trouble-free performance. Thank you for buying a Tool Shop product.
-
Page 2: Table Of Contents
PRODUCT FOR CONSUMER USE ONLY. Not intended for commercial use. If this compressor is altered in any way, existing warranties shall be voided. Tool Shop disclaims any liabilities whatsoever for any loss, personal injury, or damage. -
Page 3: General Safety Rules
GENERAL SAFETY RULES Additional safety protection will be required in some environments. For example, the working area WARNING: may include exposure to a noise level which can lead to Read and understand all instructions. Failure to hearing damage. The employer and user must ensure follow all instructions listed below may result in electric that any necessary hearing protection is provided shock, fire, and/or serious personal injury. -
Page 4: General Safety Rules
GENERAL SAFETY RULES Never point any tool toward yourself or others. Disconnect power supply, open drain valve to decompress tank and allow water to drain, and Keep the exterior of the air compressor dry, clean, allow air compressor to become cool to the touch and free from oil and grease. -
Page 5: Specific Safety Rules
SPECIFIC SAFETY RULES Know your power tool. Read operator’s manual Always follow all safety rules recommended by the carefully. Learn its applications and limitations, as well manufacturer of your tool, in addition to all safety as the specific potential hazards related to this tool. rules for the air compressor. -
Page 6: Symbols
Do not adjust the regulator to result in output pressure greater than the marked maximum pressure of the attachment. Do not use at a pressure greater than the rated maximum pressure of this compressor. - Page 7 SERVICE Servicing requires extreme care and knowledge and should be performed only by a qualified service technician. For service we suggest you contact Customer Service at 1-866-242-4298.
-
Page 8: Electrical
SPEED AND WIRING The no-load speed of the electric motor varies by model and specification. The motor speed is not constant and decreases under a load or with lower voltage. For voltage, the wiring in a shop is as important as the motor’s horsepower rating. A line intended only for lights cannot properly carry a power tool motor. -
Page 9: Glossary Of Terms
SCFM (Standard Cubic Feet Per Minute) A unit of measure of air delivery. L/min (Liter Per Minute) A unit of measure of air delivery. Tank Pressure Gauge Indicates the pressure in the air tank. Thermal Overload Switch Automatically shuts off the compressor if the temperature of the electric motor exceeds a predetermined limit. -
Page 10: Features
FEATURES PRODUCT SPECIFICATIONS Running Horsepower ..........1.2 HP Lubrication .............. Oil-Free Air Tank Capacity ............11 gal. Gauges ..one gauge 1.5 in., one gauge 2.0 in. diameter Air Pressure ............135 PSI max. Input....... 120 V, 60 Hz, AC only, 13.5 Amps Air Delivery ......... -
Page 11: Assembly
FEATURES KNOW YOUR AIR COMPRESSOR PRESSURE REGULATOR KNOB See Figure 2. Use the pressure regulator knob to adjust the amount of Before attempting to use this product, familiarize yourself air being delivered through the hose. with all operating features and safety rules. REGULATOR PRESSURE GAUGE OIL-FREE UNIVERSAL MOTOR The current line pressure is displayed on the regulator... - Page 12 ASSEMBLY ASSEMBLING THE RUBBER FOOT AND WHEELS NUT 10mm See Figure 3. Mount the rubber foot as shown in figure 3. Tighten firmly with an open-end wrench (not included) WHEEL to secure it in position. PLUG Rubber foot packing list: –...
- Page 13 ASSEMBLY ASSEMBLY REGULATOR TANK BREAKING IN THE PUMP PRESSURE PRESSURE See Figure 4 - 5. GAUGE GAUGE PRESSURE REGULATOR Check and tighten all bolts, fittings, etc. KNOB Turn the pressure regulator knob fully clockwise to open the air flow. ON/OFF Place the switch in the OFF (O) position and plug in the SWITCH power cord.
-
Page 14: Operation
OPERATION APPLICATIONS WARNING: Air compressors are utilized in a variety of air system Do not allow familiarity with tools to make you careless. applications. Match hoses, connectors, air tools, and Remember that a careless fraction of a second is accessories to the capabilities of the air compressor. sufficient to inflict serious injury. -
Page 15: Draining The Tank
OPERATION DRAINING THE TANK See Figure 9 - 10. To help prevent tank corrosion and keep moisture out of the air used, the tank of the compressor should be drained daily. A correct use of the drain valve: Verify that the compressor is turned off. Holding the handle, tilt the compressor toward the drain DRAIN VALVE valve so that it’s set in a lower position. -
Page 16: Maintenance
Inspect the tank yearly for rust, pin holes, or other WARNING: imperfections that could cause it to become unsafe. When servicing, use only identical Tool Shop replacement parts. Use of any other parts may create a Avoid using solvents when cleaning plastic parts. Most hazard or cause product damage. -
Page 17: Troubleshooting
TROUBLESHOOTING Problem Possible Cause Solution Compressor will not run Tank has sufficient pressure. Compressor will turn on when tank pressure drops to cut-in pressure. No electrical power. Check to be sure unit is plugged in. Blown stop/house fuse. Replace shop/house fuse. Tripped shop/home breaker. -
Page 18: Replacement Parts List
REPLACEMENT PARTS LIST PARTS DIAGRAM − AIR COMPRESSOR... - Page 19 REPLACEMENT PARTS LIST AIR COMPRESSOR PARTS LIST − MODEL NO. TS11OL227 The model number will be found on a plate attached to air tank. Always mention the model number in all correspondence regarding your PORTABLE AIR COMPRESSOR or when ordering replacement parts.
- Page 20 REPLACEMENT PARTS LIST PARTS DIAGRAM − PUMP UNIT...
- Page 21 REPLACEMENT PARTS LIST PUMP UNIT PARTS LIST − MODEL NO. OL227 Always mention the model number when ordering replacement parts. KEY NO. CODE DESCRIPTION 9416794 ASSEMBLY MOTOR/CARTER OL227 120V FIFTY ..........1 A731000 CYLINDER BARREL OL196 ..................1 9415051 HEAD MACHINED OL195 SIL.................. 1 A861200 CRANKSHAFT OL197 POLY V J4 ................
-
Page 22: Warranty
1-YEAR LIMITED WARRANTY: This TOOL SHOP® brand power tool carries a 1-Year Limited Warranty to the original purchaser. If the tool fails within one (1) year from the date of purchase, simply bring this tool with your original sales receipt back to your nearest MENARDS®... - Page 23 NOTES...
- Page 24 OPERATOR’S MANUAL 11 GALLON PORTABLE AIR COMPRESSOR TS11OL227 CUSTOMER SERVICE 1-866-242-4298...
