Summary of Contents for Tool Shop AT01101

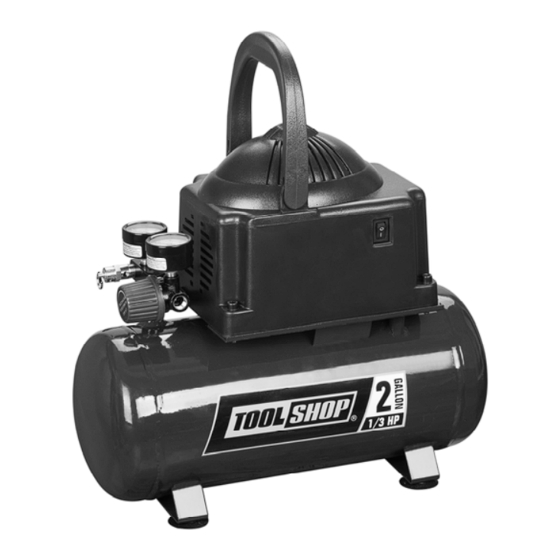

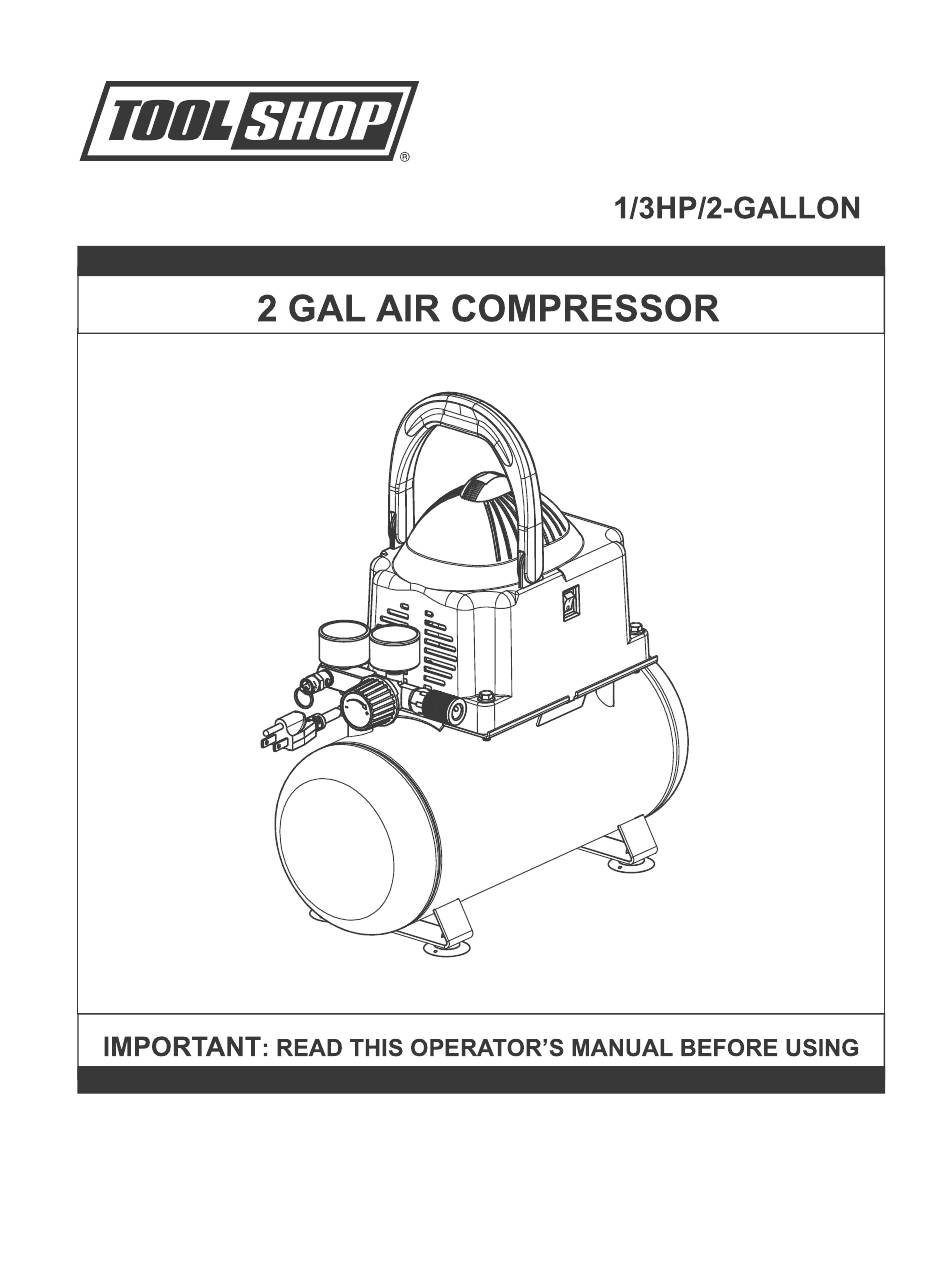

- Page 1 ITEM# AT01101 SKU# 207-1526 MANUAL OPERATOR’S 1-888-899-0146 Toll Free Helpline: info@altonindustries.com E-Mail:...
- Page 2 SAFETY GUIDELINES ------------------------------------------------------------------------------------3 BASIC COMPRESSOR FEATURES -------------------------------------------------------------------------4 ELECTRIC MOTOR & AIR COMPRESSOR PUMP-----------------------------------------------------------5 ON/OFF SWITCH------------------------------------------------------------------------------------------------------5 AIR LINE OUTLET-----------------------------------------------------------------------------------------------------5 REGULATED PRESSURE GAUGE-------------------------------------------------------------------------------5 TANK PRESSURE GAUGE-----------------------------------------------------------------------------------------5 AIR PRESSURE REGULATOR------------------------------------------------------------------------------------5 PRESSURE RELIEF VALVE----------------------------------------------------------------------------------------5 AIR TANK----------------------------------------------------------------------------------------------------------------5 AIR TANK DRAIN VALVE--------------------------------------------------------------------------------------------5 POWER CORD---------------------------------------------------------------------------------------------------------5 OPERATION ------------------------------------------------------------------------------------------------------------ DAILY STARTUP------------------------------------------------------------------------------------------------------6 SHUTDOWN-------------------------------------------------------------------------------------------------------------6 MAINTENANCE CHART...
- Page 3 This manual contains information that relates to PROTECTING YOUR SAFETY and PREVENTING EQUIPMENT PROBLEMS and is very important for you to know and understand. We use the symbols below to help you recognize this information. Never spray flammable liquids in a confined area. It is normal for the motor and pressure switch to produce sparks while operating.
- Page 4 A--------ELECTRIC MOTOR & AIR COMPRESSOR PUMP (inside of Shroud) B--------ON/OFF SWITCH C--------AIR LINE OULET D--------REGULATED PRESSURE GAUGE E--------TANK PRESSURE GAUGE F--------AIR PRESSURE REGULATOR G--------PRESSURE RELIEF VALVE H--------AIR TANK I---------AIR TANK DRAIN VALVE (not visible) J---------POWER CORD...
- Page 5 The motor is used to power the pump. It contains a thermal overload protector and an automatic reset. If the motor overheats for any reason, the thermal overload protector will shut it down to prevent the motor from being damaged. The motor will automatically restart when it completely cools.
- Page 6 1. Turn the ON/OFF switch to the OFF position (see A). 2. Close the tank drain valve (see D). Turn clockwise. 3. Plug in the power cord. High temperatures are generated by the electric motor and the pump. To prevent burns or other injuries, DO NOT touch the compressor while it is running.
- Page 7 To avoid personal injury always shut off and unplug the unit and relieve all air pressure from the system before performing any service on the air compressor. Regular maintenance will ensure trouble free operation. The items listed in the chart should be inspected on a regular basis.
- Page 8 Troubleshooting problems may have similar causes and solutions. Tank drain valve is open Close tank drain valve. Check fittings with soapy water. Tighten or reseal leaking fittings. Fittings Leak DO NOT OVERTIGHTEN. Restricted air intake Clean or replace air filter element. Prolonged or excessive use Decrease amount of air used.
- Page 9 On-off Switch Drain Valve Adaptor Fitting Washer Motor Screw M5×8 Screw M6×16 Tank Rubber Pad Connector Washer Small beam Screw M3×6 Relief Valve Circuit Board Pressure Gauge Pressure Switch Regulator Transfer Tube Quick Coupler Check Valve Power Cord Check Valve Spring Bolt M6×35 Rubber Foot Shroud...
- Page 10 MENARDS retail store. At its discretion, TOOL SHOP ® agrees to have the tool replaced with the same or similar TOOL SHOP product free of charge, within the stated warranty period, when returned by the original purchaser with original sales receipt.
- Page 12 Exploded View Parts List Warranty...
-
Page 19: Exploded View
EXPLODED VIEW... -
Page 20: Parts List
PARTS LIST... -
Page 21: Warranty
WARRANTY...
