Summary of Contents for Teltonika DPH401

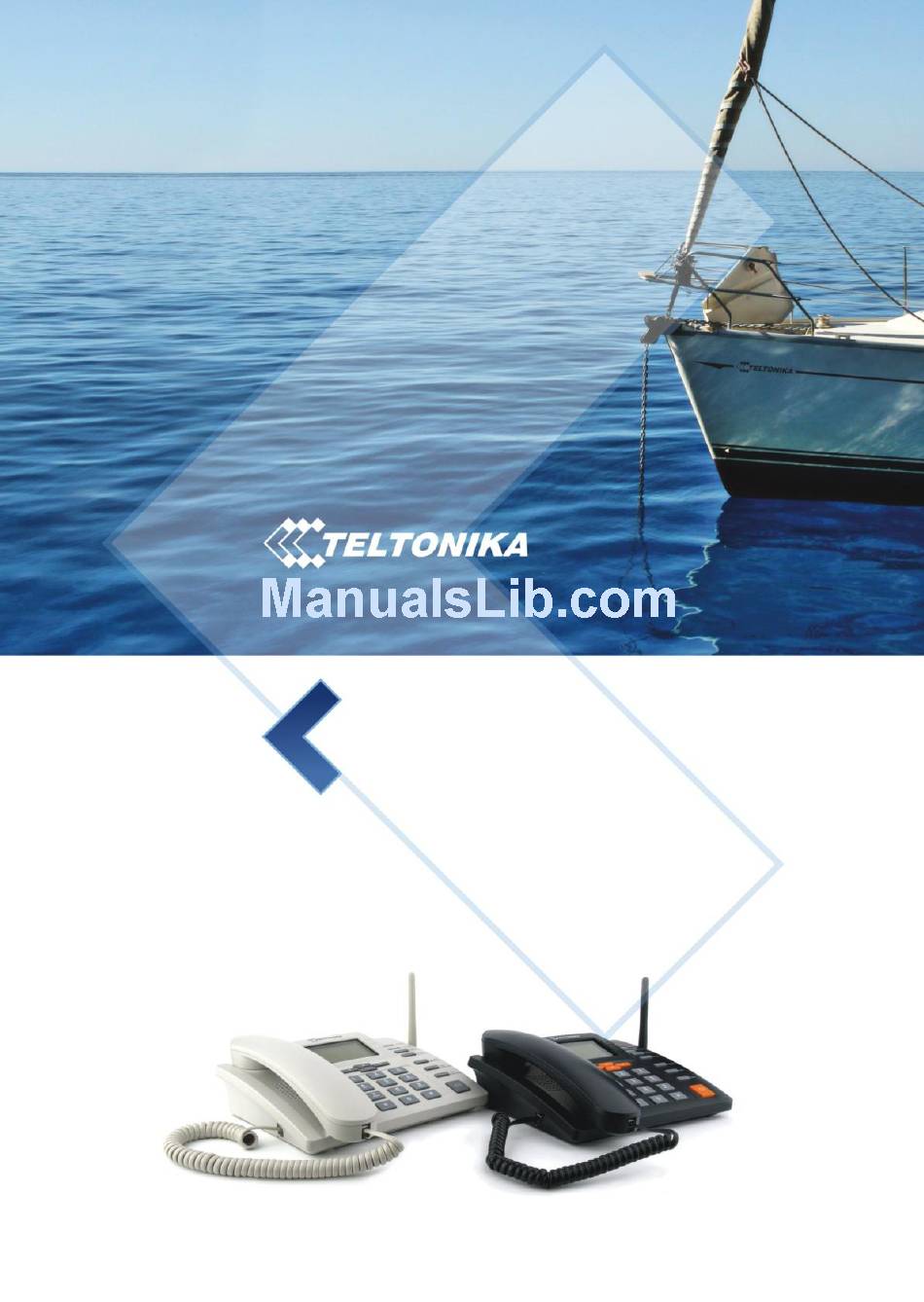

- Page 2 Teltonika © 2010, GSM Desktop Phone DPH401 User Manual v1.1 LEGAL NOTICE Copyright © 2010 TELTONIKA Ltd. All rights reserved. Reproduction, transfer, distribution or storage of part or all of the contents in this document in any form without the prior written permission of TELTONIKA Ltd is prohibited.
-
Page 3: Table Of Contents
Teltonika © 2010, GSM Desktop Phone DPH401 User Manual v1.1 Table of contents SAFETY INFORMATION ................4 GETTING STARTED ................. 5 PHONE OVERVIEW ................. 9 Description of the phone .............. 9 LCD screen icons ................ 9 DPH401 menu structure ............10 CALL FUNCTIONS ................. -
Page 4: Safety Information
SAFETY INFORMATION In this document you will be instructed how to use GSM Desktop Phone safely. We suggest you to adhere to following recommendations to avoid any damage to person or property. You have to be familiar with the safety requirements before starting to use the device! Device requires power supply source that satisfies all safety requirements listed in LST EN 60950-1 standard. -
Page 5: Getting Started
Teltonika © 2010, GSM Desktop Phone DPH401 User Manual v1.1 GETTING STARTED Package Contents A. Handset with cable B. Phone device C. Battery D. Power supply adapter E. External GSM Antenna F. USB Cable Note: If any of the components are missing or damaged, please contact the retailer or reseller from which this product was purchased. - Page 6 Teltonika © 2010, GSM Desktop Phone DPH401 User Manual v1.1 Connect back up battery Battery is under the same cover as the SIM card. To install the battery plug the battery connector in to the battery socket. Connect handset Connect one handset cable end to the handset and another one to the phone jack.
- Page 7 Teltonika © 2010, GSM Desktop Phone DPH401 User Manual v1.1 Wall mounting GSM desktop phone can be mounted on the wall. Device has two holes for mounting as shown in figure below: To mount device on the wall please do the following: Mark a location for two holes 115mm horizontally apart and drill two holes in the wall.
- Page 8 Teltonika © 2010, GSM Desktop Phone DPH401 User Manual v1.1 Connecting Handsfree earphones to GSM desktop phone Plug in 3.5 mm earphone jack to device. Earphones are used instead of internal deskphone handsfree speaker and microphone. Connecting GSM desktop phone to personal computer GSM desktop phone can be connected to PC for internet connection.
-
Page 9: Phone Overview
Teltonika © 2010, GSM Desktop Phone DPH401 User Manual v1.1 GSM antenna PHONE OVERVIEW 1.1 Description of the phone Arrow keys Indication LEDs Functional keys Handsfree button Number keypad 1.2 LCD screen icons Black 2G/3G sign - indicates that connected to 2G/3G network. -
Page 10: Dph401 Menu Structure
Teltonika © 2010, GSM Desktop Phone DPH401 User Manual v1.1 1.3 DPH401 menu structure User friendly menu navigation allows reaching all GSM Desktop phone features. Menu navigation To enter menu press the functional MENU key. Menu key Menu items are selected by using up and down arrow keys ▲▼ located below the LCD screen. -
Page 11: Call Functions
Teltonika © 2010, GSM Desktop Phone DPH401 User Manual v1.1 CALL FUNCTIONS 1.4 Making calls Pick up the handset or press the speaker phone key Wait for dial tone Enter the phone number then press DIAL key or wait for 5s or use a... -
Page 12: Sms
Teltonika © 2010, GSM Desktop Phone DPH401 User Manual v1.1 GSM Desktop phone allows sending and receiving SMS text messages. Each SMS message can be up to 160 characters length. Contact your service provider to activate SMS service. 1.7 Read SMS Read received message When a new message is received icon “Message”... -
Page 13: Message Settings
Teltonika © 2010, GSM Desktop Phone DPH401 User Manual v1.1 1.10 Message Settings Message Center Press the MENU key Select Messages and press Select Message settings and press Select Service center by and press Enter the number that your service provider gave you and press Note: If the number is already entered, press OK. -
Page 14: Address Book
Teltonika © 2010, GSM Desktop Phone DPH401 User Manual v1.1 Turn date display on the LCD screen On/Off Press the MENU key Select Settings and press Select Time and date and press Select Date settings and press Select Show date, select and press 1.12 Address Book... -
Page 15: Alarm
Teltonika © 2010, GSM Desktop Phone DPH401 User Manual v1.1 Select Settings and press Select Sound and press Select Ring volume and press Change ring volume by using arrow keys ▲▼ and press Change ring tone Press the MENU key... -
Page 16: Language Selection
Teltonika © 2010, GSM Desktop Phone DPH401 User Manual v1.1 Choose repeat alarm or not or Off) and press If repeat- select days to by repeat alarm using arrow keys ▲▼ and pressing Change. When finished press OK. Set alarm volume... -
Page 17: Operator Selection
Teltonika © 2010, GSM Desktop Phone DPH401 User Manual v1.1 Enter the phone number or use a Phone book to select contact Note: to disable Baby call feature select Disable Baby call delay menu. 1.19 Operator selection Desktop Phone allows selecting operator using automatically or manually. Select Automatic to set the device to automatically select one of the cellular networks available in your area. -
Page 18: Restore Factory Defaults
Teltonika © 2010, GSM Desktop Phone DPH401 User Manual v1.1 1.21 Restore Factory Defaults Press the MENU key Select Settings and press Select Factory reset and press Confirm resetting device to factory defaults by pressing SUPPLEMENTARY SERVICES (NETWORK DEPENDENT) 1.22 Call Barring Call barring feature allows barring of incoming or outgoing calls. -
Page 19: Call Waiting
Teltonika © 2010, GSM Desktop Phone DPH401 User Manual v1.1 1.23 Call Waiting Call Waiting enables notification of incoming calls when the DPH401 is on call. To respond to Call Waiting, press Answer to answer or Reject to reject the call. Press... -
Page 20: Hide Call Number
Teltonika © 2010, GSM Desktop Phone DPH401 User Manual v1.1 1.26 Hide Call number Using this network service feature allow to set whether your phone number is shown or hidden to the person you are calling to. Turn On/Off hide number feature... -
Page 21: Technical Specifications
Teltonika © 2010, GSM Desktop Phone DPH401 User Manual v1.1 TECHNICAL SPECIFICATIONS GSM Interface Quad-Band 850/900/1800/1900MHz 3G data Interface UMTS single, dual or tri band (2100/1900/900/850) HSUPA Download: 7,2 Mbps Upluoad: 5,76 Mbps Memory Address book up to 240 entries (SIM dependent) -
Page 22: Troubleshooting
Teltonika © 2010, GSM Desktop Phone DPH401 User Manual v1.1 TROUBLESHOOTING Messages Description Solution No network 1. Antenna not connected 1. Connect antenna and wait until network 2. No network signal or signal is found level too low 2. Contact your GSM network operator...
