Summary of Contents for Teltonika DPH200

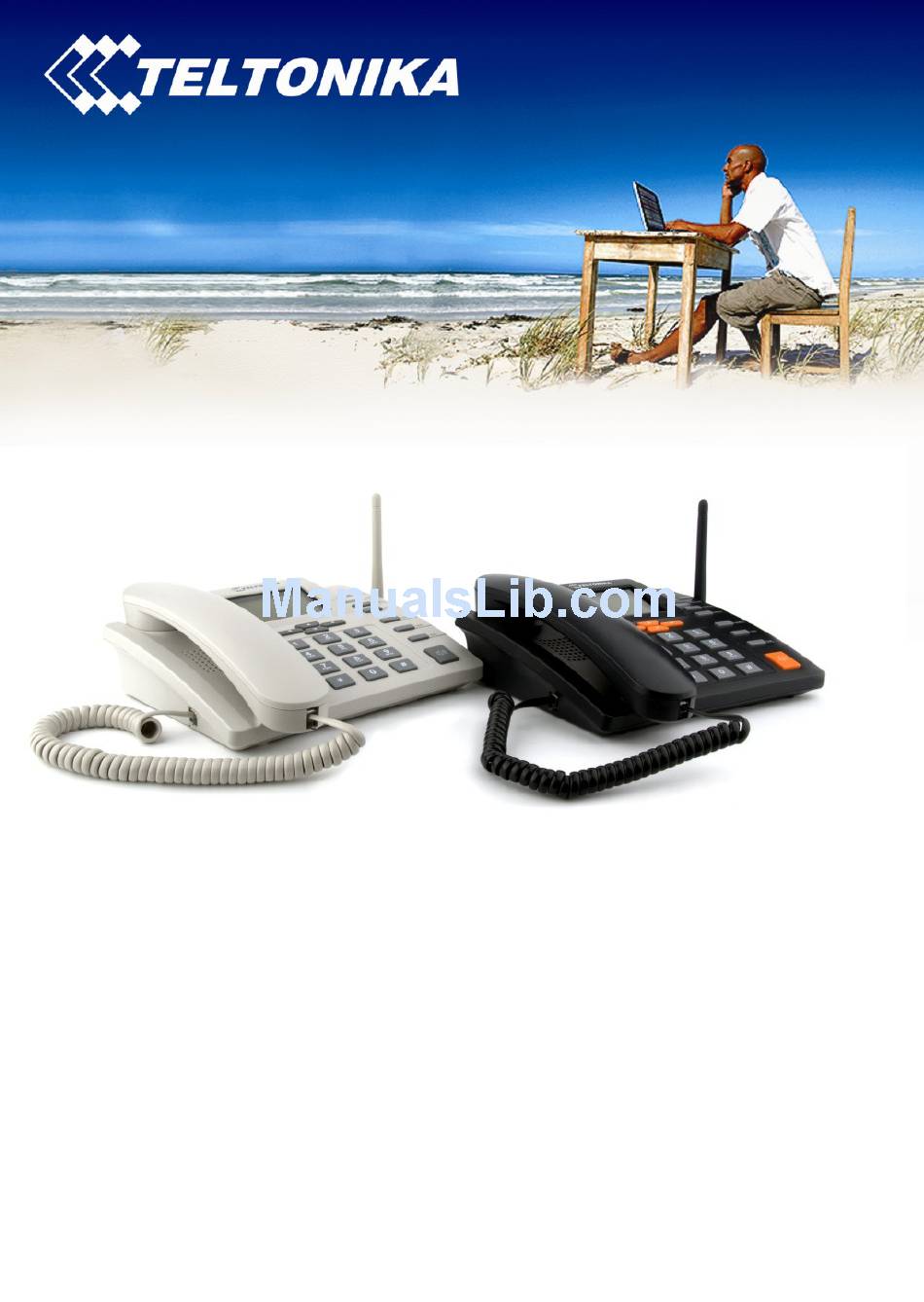

- Page 1 TELTONIKA GSM Desktop Phone DPH200 User Manual v1.02 LEGAL NOTICE...
- Page 2 Teltonika © 2008, GSM Desktop Phone DPH200 User Manual v1.02 Copyright © 2008 TELTONIKA Ltd. All rights reserved. Reproduction, transfer, distribution or storage of part or all of the contents in this document in any form without the prior written permission of TELTONIKA Ltd is prohibited.
-
Page 3: Table Of Contents
Teltonika © 2008, GSM Desktop Phone DPH200 User Manual v1.02 Table of contents SAFETY INFORMATION ................. 4 GETTING STARTED ................5 PHONE OVERVIEW ................8 Description of the phone .............. 8 LCD screen icons ................8 DPH200 menu structure ............... 9 CALL FUNCTIONS ................ -
Page 4: Safety Information
Teltonika © 2008, GSM Desktop Phone DPH200 User Manual v1.02 SAFETY INFORMATION In this document you will be instructed how to use GSM Desktop Phone safely. We suggest you to adhere to following recommendations to avoid any damage to person or property. -
Page 5: Getting Started
Teltonika © 2008, GSM Desktop Phone DPH200 User Manual v1.02 GETTING STARTED Package Contents A. Handset with cable B. Phone device C. Battery D. Power supply adapter E. External GSM Antenna F. User manual Note: If any of the components are missing or damaged, please contact the retailer or reseller from which this product was purchased. - Page 6 Teltonika © 2008, GSM Desktop Phone DPH200 User Manual v1.02 Connect back up battery Battery is under the same cover as the SIM card. To install the battery plug the battery connector in to the battery socket. Connect handset Connect one handset cable end to the handset and another one to the phone jack.
- Page 7 Teltonika © 2008, GSM Desktop Phone DPH200 User Manual v1.02 Wall mounting GSM desktop phone can be mounted on the wall. Device has two holes for mounting as shown in figure below: To mount device on the wall please do the following: Mark a location for two holes 115mm horizontally apart and drill two holes in the wall.
-
Page 8: Phone Overview
Teltonika © 2008, GSM Desktop Phone DPH200 User Manual v1.02 PHONE OVERVIEW 3.1 Description of the phone antenna Arrow keys Indication LEDs Functional keys Handsfree button Number keypad 3.2 LCD screen icons Speaker - indicates Alarm -indicates that Signal strength - indicates that ring volume is alarm clock has been set. -
Page 9: Dph200 Menu Structure
Teltonika © 2008, GSM Desktop Phone DPH200 User Manual v1.02 3.3 DPH200 menu structure User friendly menu navigation allows reaching all GSM Desktop phone features. Menu navigation To enter menu press the functional MENU key. Menu key Menu items are selected by using up and down arrow keys ▲▼ located below the LCD screen. -
Page 10: Call Functions
Teltonika © 2008, GSM Desktop Phone DPH200 User Manual v1.02 CALL FUNCTIONS 4.1 Making calls Pick up the handset or press the speaker phone key Wait for dial tone Enter the phone number then press DIAL key or wait for 5s or use a... -
Page 11: Sms
Teltonika © 2008, GSM Desktop Phone DPH200 User Manual v1.02 GSM Desktop phone allows sending and receiving SMS text messages. Each SMS message can be maximum of 160 characters length. Contact your service provider to activate SMS. 5.1 Read SMS Read received message When a new message is received icon “Message”... -
Page 12: Message Settings
Teltonika © 2008, GSM Desktop Phone DPH200 User Manual v1.02 5.4 Message Settings Message Center Press the MENU key Select Messages and press Select Message settings and press Select Service center by and press Enter the number that your service provider gave you and press Note: If the number is already entered, press OK. -
Page 13: Address Book
Teltonika © 2008, GSM Desktop Phone DPH200 User Manual v1.02 Change the date format Press the MENU key Select Settings and press Select Time and date and press Select Date settings and press format, select date format by using arrow keys ▲▼... -
Page 14: Speed Dialing
Teltonika © 2008, GSM Desktop Phone DPH200 User Manual v1.02 6.3 Speed Dialing Speed dialing function allows to quickly selecting saved number by using a number keypad keys (1-9). To program number keypad keys please do the following: Press the MENU key... -
Page 15: Alarm
Teltonika © 2008, GSM Desktop Phone DPH200 User Manual v1.02 Select Sound and press Select Speech volume and press Change speech volume using arrow keys ▲▼ and press Turn On/Off phone keypad tone Press the MENU key Select Settings and press... -
Page 16: Language Selection
Teltonika © 2008, GSM Desktop Phone DPH200 User Manual v1.02 6.6 Language Selection To select the language use following instructions: Press the MENU key Select Settings and press Select Language and press Select preferred language by using arrow keys ▲▼ and press 6.7 Dial delay... -
Page 17: Restore Factory Defaults
If busy - calls that come in when the line is busy If no answer - calls that are not answered after a specified number of seconds If not reachable - calls that come in when DPH200 is not reachable (no signal or turned off). -
Page 18: Call Barring
Select the desired barring type Using arrow keys ▲▼ select Enable/Disable and press 7.3 Call Waiting Call Waiting enables notification of incoming calls when the DPH200 is on call. To respond to Call Waiting, press Answer to answer or Reject to reject the call. -
Page 19: Call Transfer
Teltonika © 2008, GSM Desktop Phone DPH200 User Manual v1.02 7.4 Call Transfer A call transfer feature allows transferring an existing call to another phone. Contact your service provider to activate Call Transfer feature. Call transfer During call press Hold,... -
Page 20: Technical Specifications
Teltonika © 2008, GSM Desktop Phone DPH200 User Manual v1.02 TECHNICAL SPECIFICATIONS GSM Interface Quad-Band GSM 850 / 900 / 1800 / 1900 MHz. Output power: class 4 (2 W) for EGSM 850/900. class 1 (1 W) for GSM 1800/1900. -
Page 21: Troubleshooting
Teltonika © 2008, GSM Desktop Phone DPH200 User Manual v1.02 TROUBLESHOOTING Messages Description Solution No network 1. Antenna not connected 1. Connect antenna and wait until network is 2. No network signal or signal found level too low 2. Contact your GSM network operator...
