Aga-Rayburn THE SEVERN Installation Instructions Manual

THE SEVERN
Consumer Protection Act 1987
As manufacturers and suppliers of cooking and heating products, in
compliance with Section 10 of the Consumer Protection Act 1987,
we take every care to ensure as far as is reasonably practicable, that
these products are so designed and constructed as to meet the
general safety requirement when properly used and installed. To this
end, our products are thoroughly tested and examined before
despatch.
IMPORTANT NOTICE:
Any alteration that is not approved by Aga-Rayburn,
could invalidate the approval of the appliance, operation of the warranty and
could also affect your statutory rights.
Control of Substances - Health and Safety
Important
This appliance may contain some of the materials that are indicated
below. It is the Users/Installers responsibility to ensure that the
necessary personal protective clothing is worn when
PERFORMANCE
The Severn Stove with boiler is designed to provide space
heating and the heating of domestic hot water and
radiators and has been approved by the Domestic Solid
Fuel Appliance Approval Scheme.
The appliance and burning rate are controlled by the
manual adjustment of the appliance thermostat only.
RATING
Direct Space Heating
Water Heating
The maximum room size (of normal construction) and
radiator surface that can be heated are:-
Direct Space Heating
Pipe and radiator surface
(no domestic hot water)
Radiator Surface (with
domestic hot water)
The recommended heating surface area is based on an
average heat emission of 0.5kW/m
These figures are maxima and must not be exceeded.
A margin (about 10% or 1.4m

Installation Instructions

for Freestanding Severn Stove
with Boiler
Solid Fuel Wood
kW 2.9
2.9
kW 10.2 7.1
m 53.8 53.8
3
ft 1900 1900
2
m 2 20.9 14.5
225 156
ft
2
m 18.6 12.1
2
ft 200 130
2
(160 Btu/h/ft ).
2 2
- 15ft ) is recommended.
2 2
handling, where applicable, the pertinent parts that contain any of
the listed materials that could be interpreted as being injurious to
health and safety, see below for information.
Firebricks, Fuel beds, Artificial Fuels - when handling use
disposable gloves.
Fire Cement - when handling use disposable gloves.
Glues and Sealants - exercise caution - if these are still in liquid
form use face-mask and disposable gloves.
Glass Yarn, Mineral Wool, Insulation Pads, Ceramic Fibre,
Kerosene Oil - may be harmful if inhaled, may be irritating to skin,
eyes nose and throat. When handling avoid inhaling and contact with
skin or eyes. Use disposable gloves, face-masks and eye protection.
After handling wash hands and other exposed parts. When disposing
of the product, reduce dust with water spray, ensure that parts are
securely wrapped.
BOILER MODEL
UNDER NO CIRCUMSTANCES MUST THE
APPLIANCE BE FIRED DRY AS DAMAGE
WILL OCCUR

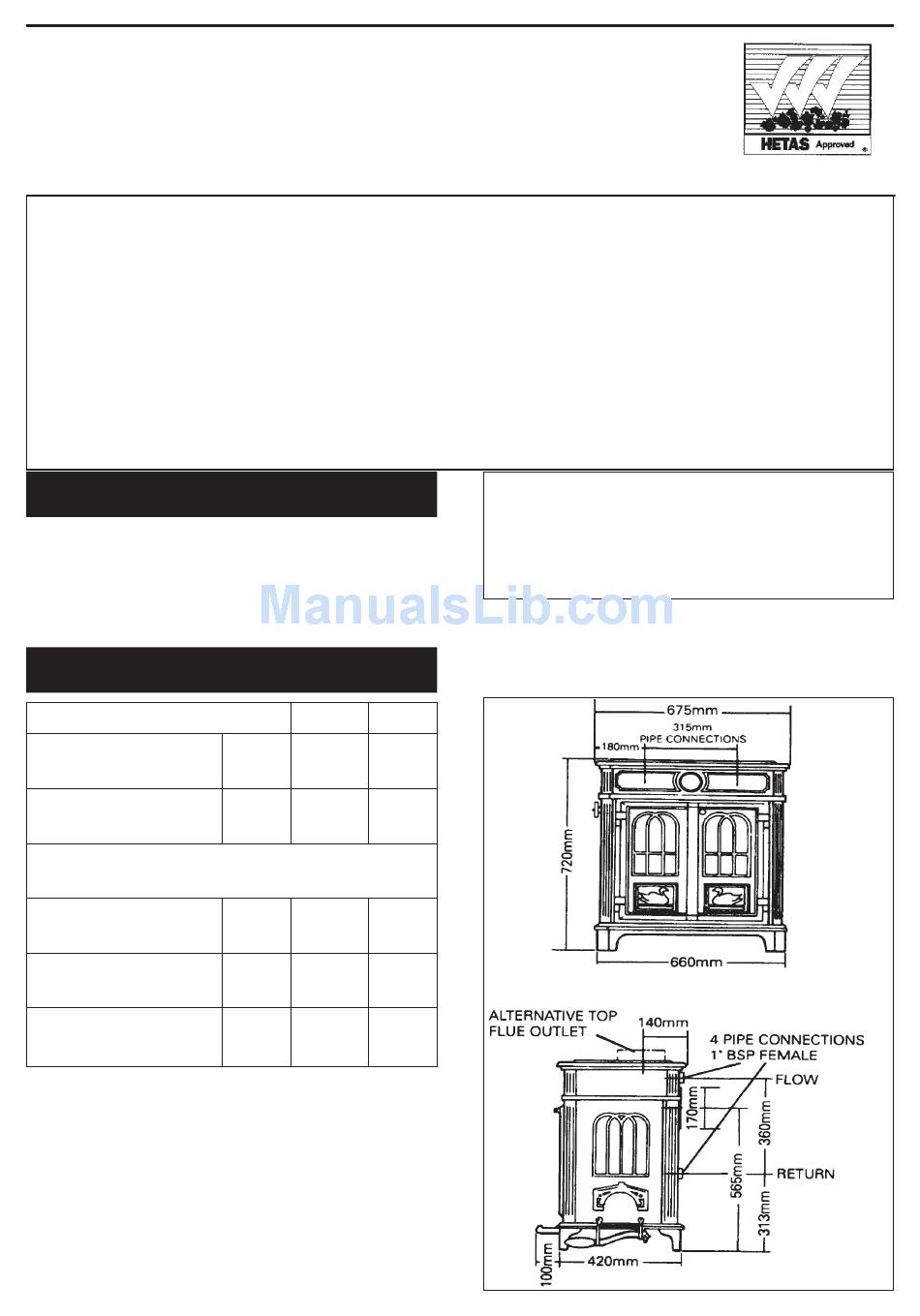

NOTE: THERE ARE TWO SETS OF BACK OUTLET
'FLOW AND RETURN' CONNECTIONS ON THE L.H.
AND R.H. SIDE OF THE BOILER.
THE STOVE CAN BE INSTALLED AS A TOP OR BACK
FLUE APPLIANCE
1
WARNING
10/00 EINS 33713
