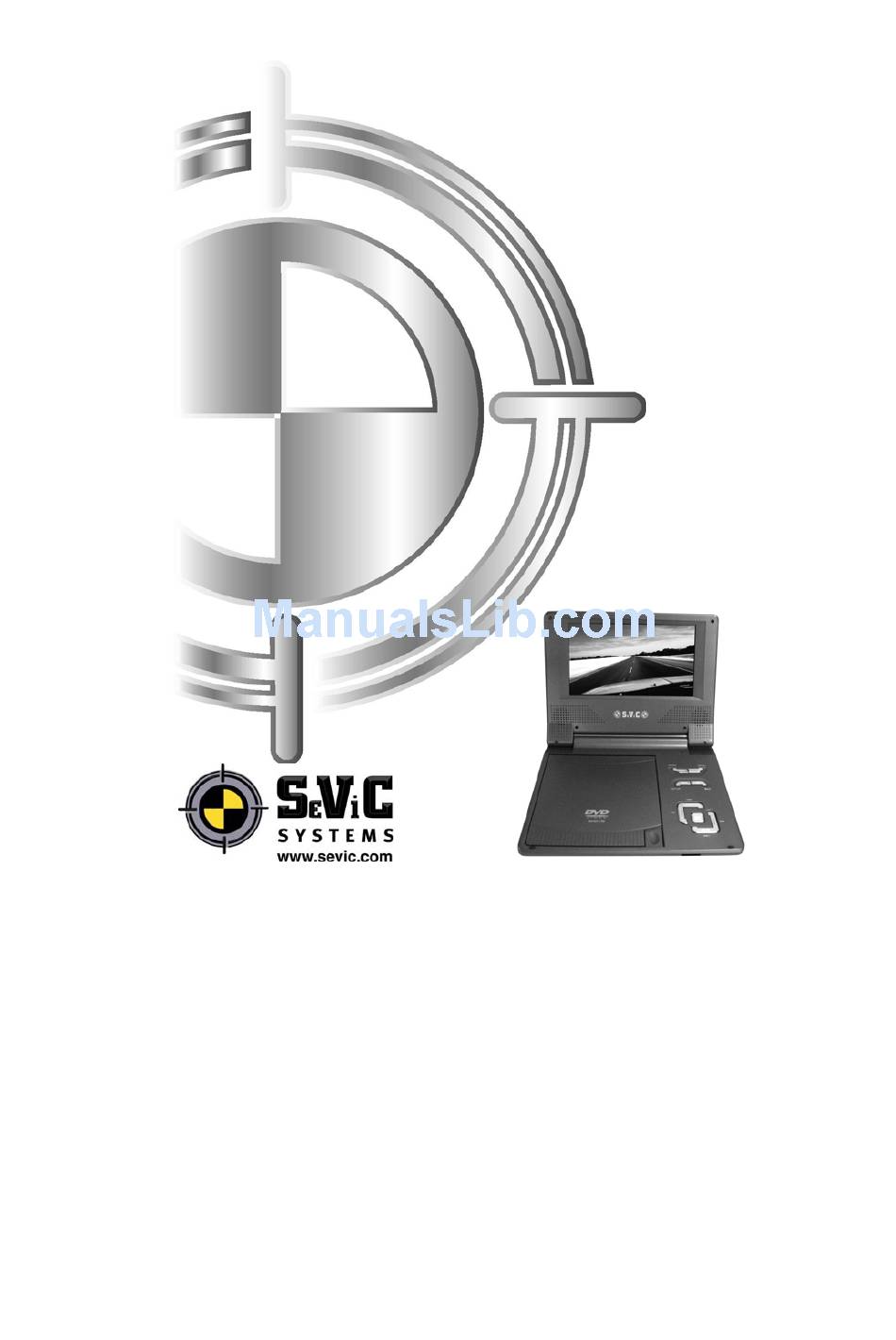

- Page 1 VISION LIBERTY COMPACT 11 - Instruction Manual SV101170 V20080701...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Introduction Main Features Safety Precautions Caution and Warnings Location of Controls Unit Remote Control Connections Connecting Power Connecting Headphones Connecting to TV Disc Operations 10-15 Start playback from menu Pause during playback Stop playback Fast forward and backward Playing JPEG files Playing MP3 files Locating a Specific Title, Chapter or Track... -
Page 3: Introduction
Introduction Thank you for choosing our portable device. The main features include a 7" Wide Screen LCD monitor and a DVD/DVB-T/TV. The unit applies the latest state of art electronics and is designed for use at home, in car, in hotels, offices. -
Page 4: Safety Precautions
Safety Precautions Please read the Manual carefully before using this player, and keep it for any further consultation. Warning: To alert the user about dangerous volt age on the spot. Caution: To re mind the user of important oper ating and maintenance inst ructions attached Warning: To aler... -
Page 5: Caution And Warnings
Caution and Warnings Placement To prevent fire or electric shock, do not expose this appliance to rain or moisture. Do not place the set on an unstable cart, stand, tripod, bracket or table to prevent it from falling. Keep the unit away from strong magnets, heat sources, direct sunlight and excessive dust. -
Page 6: Location Of Controls
Location of Controls Unit ANT IN USB port LCD switch button MODE button MENU button SETUP button PLAY/PAUSE button ( II) Next - Down / Previous F.FW - Right / F.RW - Left 10. OPEN button 11. Earphone Jack 12. Volume Knob 13. -
Page 7: Remote Control
Location of Controls Remote Control 1. EPG/OSD Button 11. TV/MUSIC/REPEAT 2. MODE (To select the source) 12. PIC 13. FAVORITE PR / TITLE 3. Number Buttons (0-9) 14. MEMORY/MENU (To enter or exit 4. Previous/Next button (To go to root menu) previous/next chapter or scene 15. - Page 8 Location of Controls Remote Control Please put the battery into the remote control as per illustration below CR2025 CR2025 When using remote control, make sure the infrared window is pointed to infrared receiving window of the machine. The distance between machine and remote control must be within 3 metres.
-
Page 9: Connections
Connections Connecting Power 1. Powering the system indoors Plug one end of the AC to DC adapter into the DC input jack on the side of the main unit, then plug the other end into the AC power receptacle. 2. Powering the system in a car Plug one end of the cigarette lighter adapter into the DC input jack on the unit, then plug the other end... -
Page 10: Connecting To Tv
Connections Connecting to TV Please use AV cable to connect the machine to TV and AMPLIFIER. Make sure it is connected correctly. -
Page 11: Disc Operations
Disc Operations Start Playback from the menu 1. Press TITLE/MENU to access the menu screen. 2. Press (cursor keys) or the numerical keys (will only work on certain discs) to select the desired title. 3. Press ENTER or PLAY button. The unit will start playback from the selected title. -
Page 12: Fast Forward And Backward
Disc Operations Fast forward and Fast backward You can playback a disc at 2x, 4x, 8x, 16x or 32x the normal speed. Press button to play fast backward the disc. Press button to play fast forward the disc. The playback speed changes each time buttons (as shown you press the ENT ER... -
Page 13: Playing Mp3 Files
Disc Operations Playing MP3 files MP3 is a format for storing digital audio. An audio CD-quality song is compressed into the MP3 format with very little loss of audio quality while taking up much less disc space. CD-R /RW discs that have been encoded in MP3 format are compatible with this system. -
Page 14: Locating A Title Using Title Menu
Disc Operations Locating a TITLE using title menu. You can locate a specific title using the title menu function, if the DVD video disc contains a title menu. 1. Press the TITLE button. The title menu will be shown 2. Use the cursor keys to select the title you want. -
Page 15: Zoom Function
Disc Operations Zoom Function This DVD video player allows you to zoom into a picture as well as the zoom point. Press ZOOM during normal playback or slow - motion. The player magnifies in the center of the picture. Press cursor keys during zoom mode to move the picture. -
Page 16: Multi-Angle Function
Disc Operations Multi-Angle Function THIS VIDEO PLAYER ALLOWS YOU TO SELECT FROM SEVERAL DIFFERENT ANGLES (disc dependant). Selecting the camera angle If the DVD video disc is recorded with multiple angles, you have the option to change the camera angle for the scene you are watching. Press the ANGLE button repeatedly during playback of a scene recorded with multiple angles (when available). -
Page 17: Analogue Tv
Analogue TV Operations When the unit is operated for the first time or if you press the MODE button, the below screen is displayed. Use Up/Down cursors to select ATV and press OK button to confirm. Make sure the antenna is connected. Note: This machine has a memory function. -
Page 18: Analogue Tv
Analogue TV Operations POSITION Use this item to set your favourite channel to a specific channel number Move Up/Down to highlight POSITION. Then choose the number where you want to store the current channel (by pressing left or right button). Press the SETUP button to save the settings. -
Page 19: Digital Tv (Dvb-T)
Digital TV Operations (DVB-T) When the unit is operated for the first time or if you press the MODE button, the below screen is displayed. cursors to select DVB and press OK button to confirm. Make sure the antenna is connected. First Time Installation At the first time operation, the screen will display First Time... -
Page 20: Dvb Menu
Digital TV Operations (DVB-T) DVB Menu In playing mode, press SETUP button, the unit will enter into the Main menu. To enter into DVB Setup page, select DVB Menu and press ENTER to confirm. PROGRAM LIST TV Program This option allows user to edit the program list and set programs into three types, including Favourite program, Move the program and... - Page 21 Digital TV Operations (DVB-T) Favor You can select your favourite programs with this option. Once a program is chosen, a mark will appear in its favor blank. To re move the program from the favor list, press ENTER button in the favor blank of that program.
- Page 22 Digital TV Operations (DVB-T) PROGRAM SEARCH Automatic Search By operating of this option, the unit can automatically search channels according to the information in Country and Time Zone setting. Before searching, the system will indicate whether reserved channels in the program list are supposed to be deleted.
- Page 23 Digital TV Operations (DVB-T) PARENTAL CONTROL Channel Lock Select Channel Lock to lock the channels in Parental Setting. When it is set YES, user has to enter password to watch the channel. Parental Setting Parental Setting can work together with Channel lock to lock channels.
- Page 24 Digital TV Operations (DVB-T) SYSTEM SETTING Country Select this option to set the country where you currently want to receive the DVB signal. Language Enter into this submenu; there will be 3 options available: 1 Audio Audio and Subtitle Audio User can choose the audio language from audio 1 or audio 2 .
-
Page 25: Basic Operations
Digital TV Operations (DVB-T) Basic Operations ADJUST CHANNEL Press CH-/CH+ to skip between previous /next channels or press the number buttons on the remote control. In playing mode, press ENTER button again, the program list will be displayed on the screen. Then choose channels by using cursors, press PLAY button to play. -
Page 26: Usb/Sd Operations
USB/SD Operations When the unit is operated for the first time or if you press the MODE button, the below screen is displayed. cursors to select USB or SD and press the OK button to confirm. Make sure USB drive or SD card is inserted in the unit. For operation refer to MP3 and JPEG section. -
Page 27: Dvd Setup
DVD Setup Press the SETUP button. The screen will display Main Menu (as below). In this mode the DVB menu is not available. Select DVD Setup with buttons and press II button to enter into the DVD Setup menu. Language Setup Select Language Setup with buttons and press button to enter... -
Page 28: Custom Setup
DVD Setup Subtitle Select Subtitle with buttons, then enter into the submenu to set the default subtitle language. If the DVD disc does not support it, the first language of the disc will be automatically chosen. External Subtitle Select External Subtitle with buttons, then enter into the submenu to set the default external subtitle language. -
Page 29: System Setting
System Setting Select this option to adjust settings which are not related to DVD and DVB, the System Setting Menu will appear on the screen. Language Setup Select this option to set the On Screen Display language. Enter into the submenu, then select the desired OSD language with buttons. -
Page 30: Display Setup
System Setting Display Setup Display Type This option is used to choose the display ratio. If the picture displayed is distorted you should change this setting to view the picture in the right ratio. Preference Change PIN Select this option to change the PIN (4 numbers). -
Page 31: System Setting
System Setting Default Select this option to return to the original setting. For example, if you carry out this option in DVB mode, all settings in DVB mode will be reset to the the original factory settings. Exit Press the Exit button to return to the Main Menu. -
Page 32: Specifications
Specifications Compatible disc: DVD/VCD/CD/MP3/MPEG4 Compatible support: DVD+/-R(W), CD-R(W) Signal system: PAL/NTSC Panel size: 7 inch Resolution: 480(RGB)x234 Contrast: 300:1 Brightness: 60cd/m² Frequency response: 20 Hz to 20 kHz Video output: 1 Vp-p/75 Ohm, unbalanced Audio output: 1.4Vrms/10kOhm Audio S/N: Better than 80 dB Dynamic range: Better than 85 dB USB: support USB 1.1 Laser: Semiconductor Laser, Wave Length: 650 nm/795 nm... -
Page 33: Troubleshooting
Troubleshooting PROBLEM SOLUTION Make sure the machine is connected properly. Make No sound or sure all cables are securely inserted into the distorted appropriate jacks. Make sure your DVB-T/TV is sound connected properly. You can't advance through the opening credits and Can't advance warning information that appears at the beginning of through a... -
Page 34: Warranty Terms And Conditions
8) For repairs: Please contact your retailer. 9) For any disputes or litigation: The law courts of Luxembourg are exclusively competent. 10) For all information contact: SEVIC SYSTEMS Luxembourg S.A., Zone Industrielle Breedewues, L-1259 Senningerberg Luxembourg Phone:(+352) 26.34.57.29 Fax:(+352) 26.34.57.27...
