Bavarian Soundwerks BMW E46 Installation Manual

BMW E46 Subwoofer System by BSW Installation Guide:
d110.e46c for BMW 3 Series, M3 Coupe '00-'06 (E46)
Tools Required:
Panel Removal Tool
•
Flat Head screwdriver
•
Metric Socket Set
•
Crimping Tool
•
Drill
•
Brain
•
We're going to proceed as follows:
1. Disassembling the trunk
2. Power/ground wire connections
3. Making appropriate wiring connections for audio inputs
4. Installing the subwoofer enclosure
5. Tuning/testing the system
Disassembling the Trunk Panels:
All of our connections take place in the trunk. We need to remove the drivers side carpeted panel in order to
gain access to the factory amplifier, where we will tap into the factory audio system.
1. Begin by removing all items from the trunk of the vehicle. Make sure that all tail lights are in working
order. If not, now is a good time to replace them. Also remove the carpet that covers the floor of the
trunk, as it will reveal several fasteners that will need removing.

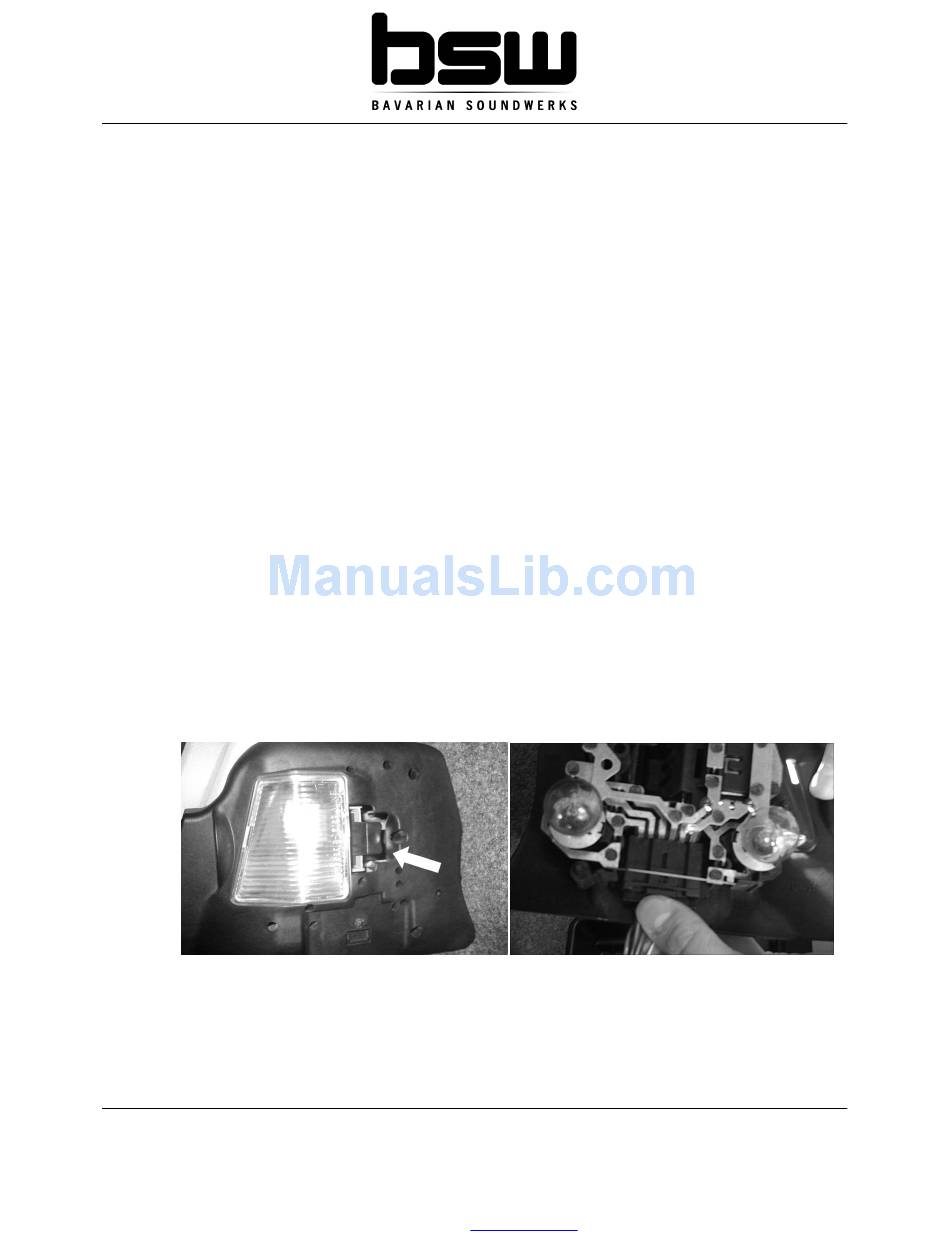

2. Start by removing the taillight covers. Push inward on the clip, and the light will release itself. Now
depress the wiring clip attached to the light bulb housing to release the housing, and move the
housing safely away from your working space
