Bavarian Soundwerks Subwoofer System Installation Manual

Subwoofer System Installation Guide for BMW 3 Series /

Tools Required:

Panel Removal Tool
•
10mm socket wrench
•
Crimping Tool / Wire Cutters
•
We're going to proceed as follows:
1. Disassembling the trunk
2. Making appropriate wiring connections for audio inputs
3. Power/ground wire connections
4. Installing the subwoofer enclosure
5. Tuning/testing the system
The Process:
1. Begin by removing all items from the trunk of the vehicle. Make sure that all tail lights are in working
order. If not, now is a good time to replace them. Also, remove the carpet that covers the floor of the
trunk, as it will reveal several fasteners that will need removing.
2. Start by removing the taillight covers. Twist the lever clockwise to free the plastic housing.
3. Now, look to the floor and you'll notice that there is a large black plastic tray on the driver's side of the
vehicle. We'll need to remove this. It is secured in place by 10mm plastic nuts.
Once the floor panel is removed, we can now pry the carpeted panel on the driver's side out of the car,
which will reveal the factory amplifier where our wiring connections will take place.

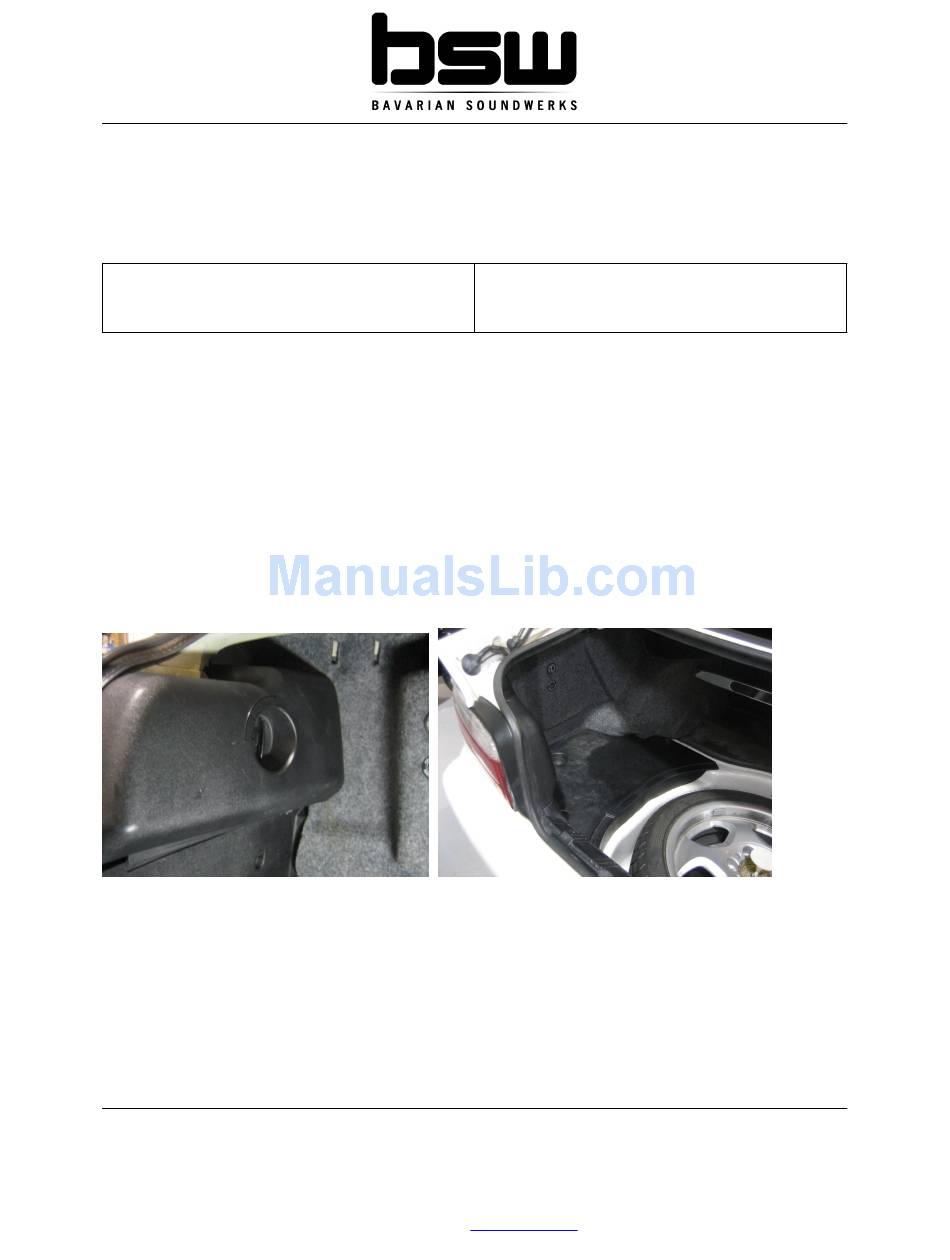

See photos next page.
