- Page 2 Precautions Do not subject the device to severe impact Do not use the device in extreme hot or cold, dusty or damp conditions. Do not expose it to direct sunshine. Avoid using the device in strong magnetic field. Keep the device away from water or other liquids. In the event that water or other liquids enter the device, power off the product immediately, and clean the device with soft cloth.
-
Page 3: Table Of Contents
TABLE OF CONTENTS Product Overview..............2 Key Features ................ 2 Package Content..............2 Buttons & Ports ..............3 Remote Control ..............4 Getting Started ..............4 Adjusting the stand............. 4 Connect to a wall outlet via the DC adaptor ....4 ... -
Page 4: Product Overview

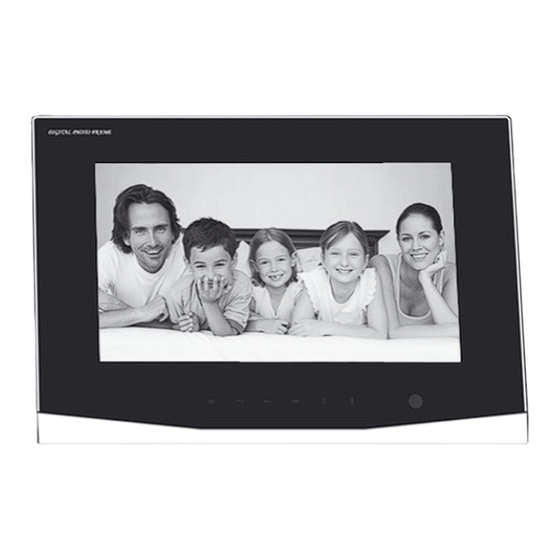

Product Overview The 7" Touch Pad enables you to view your photos on a high-resolution LCD screen. Simply insert a USB flash drive or SD, MMC or MS memory card into the appropriate slot located on the back MMC or MS back of the of the frame and your pictures will be displayed on the screen. -
Page 5: Buttons & Ports
Buttons & Ports LCD Display Stand – Confirm selection – Return Left/Previous – Move the cursor left. Right/Next –Move the cursor right Up – Move the cursor up Down – Move the cursor down Memory Card Slot – SD / MMS / MS –... -
Page 6: Remote Control
Remote Control Function Turn on or off the screen Enter the slide show mode SLIDE Set aspect ratio as 4:3, 16:9 & Original MODE Move the cursor up Move the cursor down DOWN Move cursor left or Show previous photo LEFT/ PREVIOUS Move cursor right or Show next photo RIGHT/ NEXT... -
Page 7: Inserting A Memory Card/Usb Flash Drive
Inserting a memory card/USB flash drive The device provides a card slot to support SD/MMC/MS memory cards and a USB port for USB flash drives. Please follow these steps to insert a memory card or USB flash drive: (1) Find the card slot or USB port on the body of the machine. (2) Insert a memory card into the slot with the face toward the back, or insert a USB flash drive into the USB port. -
Page 8: View Photos
MENU: Display photos Photo Calendar Display c alendar Setting S ystem Settings View Photos Step 1: Connect the de vice to a wall outlet Step 2: Power On Step 3: Insert a USB flash drive into the USB port or a memory card into the card slot. - Page 9 Previous/next Press the LEFT button to display the previous photo. Press the RIGHT button to display the next photo. Rotate the picture Press ROTATE on the remote control to rotate the picture clockwise by 90°. Change the Aspect Ratio When you are viewing a photo, repeatedly press the MODE button to change the aspect ratio between 4:3, 16:9 and Original Size.
-
Page 10: Calendar
Press LEFT, RIGHT, UP and DOWN to select a picture. Press the “ ” / “ENTER” button to confirm your selection and enlarge the photo to full screen. Press the / ESC button to return to the main menu. Calendar The 7”... -
Page 11: System Settings
Clock View When you are viewing the calendar, you can press the TIME button on the remote control to display the time as a clock. Press the TIME button again to exit from the clock and return to the calendar. System Settings On the main menu, select “Setting”... - Page 12 Set the slide show speed Select “Slide Show Speed” to set time interval between slides. Divide the screen into four display areas Select “Split Screen” and then “ON”. In the slide show mode, the photos will display separately in four areas of the screen. Load to default Select “Reset Settings”...
- Page 13 (1) Press the LEFT and RIGHT button to select among the time setting items – hour, minute, second. Press the UP and DOWN button to set the time. (2) Press the LEFT and RIGHT to select “Save” and then press the “...
-
Page 14: Troubleshooting
button to set the time. (2) Press the LEFT and RIGHT button to select “Save” and then press the “ ” / “ENTER” to confirm the date and time setting. Set Brightness and Contrast Select “Brightness / Contrast” to set the brightness and contrast of the screen. -
Page 15: Technical Specifications
Technical Specifications Item Description Display 7.0-inch TFT LCD screen USB Interface USB 2.0 Host (High Speed) Photo Format JPEG Clock & Calendar Available Supported Memory Card SD / MMC / MS English/French/Italian/German Supported Language /Spanish/Portuguese/Dutch LCD Resolution 480X234 pixel Memory Card Capacity MS/SD Up to 8GB, MMC Up to 2GB USB Flash Drive Up to 8GB...
