Summary of Contents for Mobileye AWS-2000

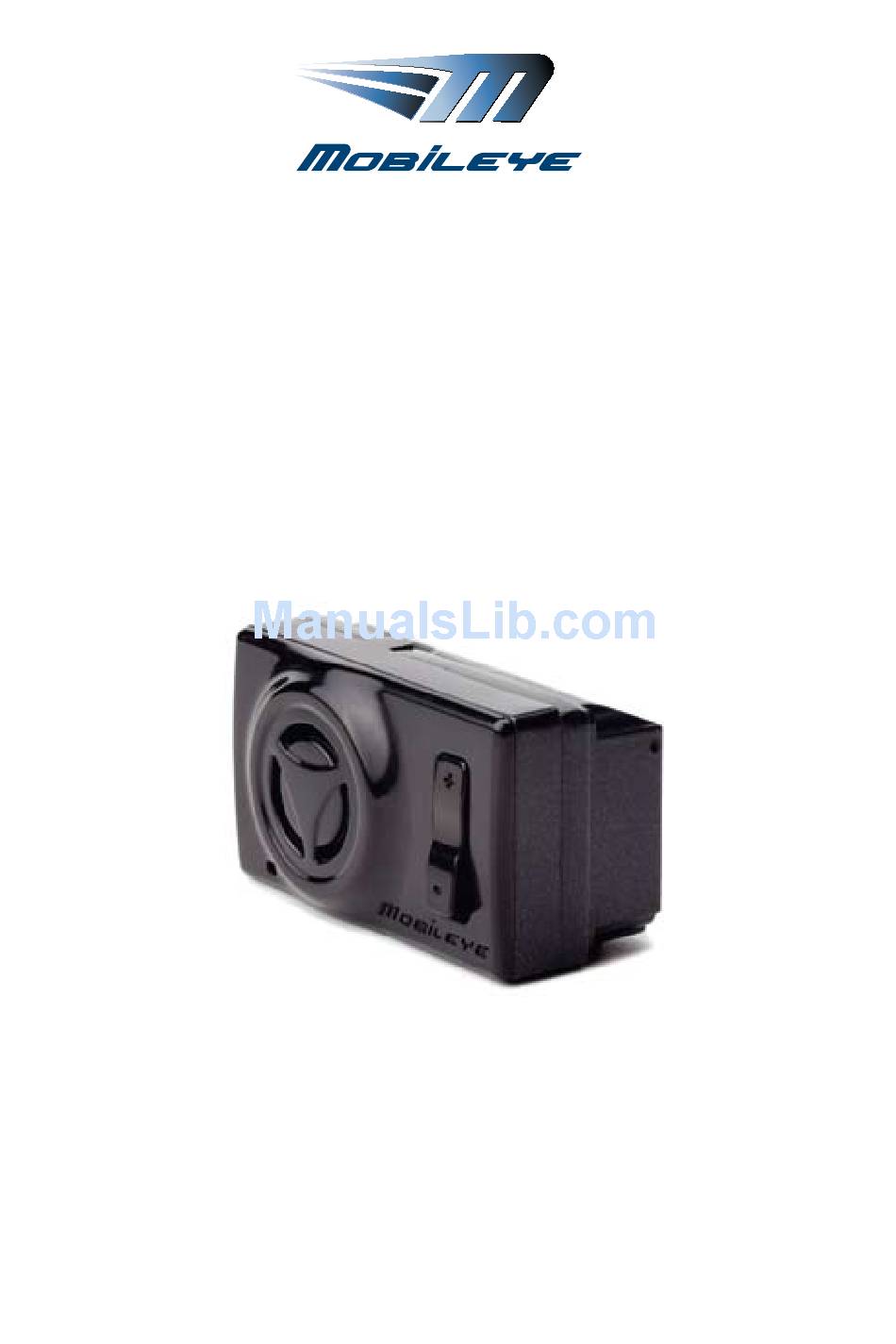

- Page 1 MOBILEYE AWS-2000 Advance Warning System User Manual...
- Page 2 Before installing or using a Mobileye® Advance Warning System, carefully read this User Manual and the important safety instructions and warnings it contains. icensing and arranty Please read 7 and 8 in this User Manual for licensing and warranty issues.
-
Page 3: Table Of Contents
System Components Section 2 2.1. Camera/Buzzer Unit 2.2. Windshield Mount Getting Started Section 3 3.1. Turning on the Mobileye System Forward Collision Warning (FCW) Section 4 4.1. What is FCW? 4.2. FCW is Generated When 4.3. FCW Audio Alert 4.4. -
Page 4: Warnings
Mobileye AWS is not an automated driving system and it does not act as a substitute for any aspect of driver vehicle control or safe driving practices. Drivers are strongly... -
Page 5: Installation And Safety Instructions
Authorized Mobileye AWS Dealer or Installer. The Mobileye AWS should only be operated with 12VDC~24VDC power. Do not cover, obstruct, or open the Camera Unit or Mobileye AWS Display and Control Unit. Tampering with the unit in any way may damage the focus and cause other irrevocable damage. -
Page 6: System Components

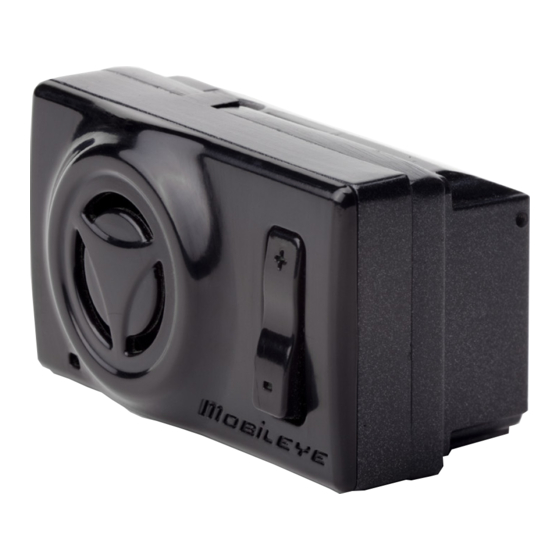

Systembestandteile Section 2 ystem omponents The Mobileye AWS-2000 includes the following components: Camera/Buzzer Unit Windshield Mount Camera/Buzzer Unit – Rear and Front View 2.1 Camera/Buzzer Unit The Camera/Buzzer Unit contains the camera, the main processor and the warning buzzer of the Mobileye system. The Camera/Buzzer Unit:... -
Page 7: Windshield Mount
3.1 Turning on the Mobileye System The system is turned on automatically when the car is started. nOTe: The Mobileye AWS-2000 is fully operational when the car is started, and requires no action on the part of the driver for their operation. Volume levels can be adjusted using the volume control button on the Camera/Buzzer Unit. -
Page 8: Forward Collision Warning (Fcw)
The Forward Collision Warning alerts you to the danger of an impending collision with the vehicle ahead. The Mobileye AWS-2000 calculates the expected Time to Collision (TTC) with the vehicle in front and, when the TTC drops to a dangerous level, the AWS/FCW immediately generates a sharp audio alert. -
Page 9: Lane Departure Warning (Ldw)
5.1. What is LDW? The Mobileye AWS-2000 provides a Lane Departure Warning (LDW) to alert you when you are about to unintentionally swerve outside of the lane that you are driving in. 5.2. LDW is Generated When… LDW alerts you when the car begins to swerve from the driving lane. The system generates an LDW audio alert up to 0.5 seconds before the vehicle crosses the lane... -
Page 10: Control Button
WARnInG! Do not adjust the Mobileye AWS/FCW volume control while driving! 6.1. Increase/Decrease Volume The Camera/Buzzer Unit has a volume control button that lets you select between six volume levels for audio alerts (levels 0 to 5). The LDW uses all six levels, while the FCW uses only levels 3 to 5. -
Page 11: Troubleshooting
Section 7 roubleshooting The following section provides possible solutions to situations that may occur when using the Mobileye AWS. Should this section fail in providing the required solution, please contact technical support for assistance. WARnInG! Do not perform any maintenance activities on the Mobileye AWS... -
Page 12: License And Warranties
This Limited Warranty is not assignable, and shall be voided if Mobileye AWS is transferred to another vehicle. Proof of original purchase is required from the warranty holder to obtain limited warranty coverage. -
Page 13: Warranty Disclaimer
No representative, distributor, dealer or agent of Mobileye has the authority to make any representation, warranty, or agreement on behalf of Mobileye with respect to the Mobileye AWS. No warranty of any kind or nature is made by Mobileye beyond those expressly stated herein. - Page 14 I have read and understood the safety instructions and operating manual before using Mobileye AWS, including 1 of this user manual "Warnings" and 7 “License and Warranties”. I acknowledge that I agree to the terms presented in 1 and 7 of this user manual.
- Page 16 © 2008-2009 Mobileye Technologies Limited. All rights reserved. Mobileye, Mobileye AWS, and the Mobileye logo are registered trademarks of Mobileye Technologies Ltd.
