Please read through this manual completely, and keep it in case you need to reference the
Any operation of this device beyond what is described in this manual, or any unapproved attempt to repair
this device, will void the product's warranty and is undertaken at your own risk. Sunleaves Garden Products is
not responsible for damage caused by inappropriate operation of this device.
Features of your Utopian Portable Dehumidifier
• 35-85% relative humidity range
• Ideal for spaces up to 2,500 or 4,000 sq ft
• Auto-shutoff when water tank is full
• Auto-restart function after power interruption
• 24-hour programmable timer
• Two-speed fan operation
• Removable/washable filter
• 6.3 or 12.72 pt water tank capacity
• Continuous drain capability
• 1-year warranty
UPD640
Moisture removal: 40 pt per day
Airflow (High/Low): 144.2/123.6 CFM
Wattage: 450W
Voltage: 115V
Current: 4.5A
Refrigerant: R410A
Operating Temperature: 41-95ºF
Net Weight: 29.8 lbs
Dimensions: 14.17" x 9.88" x 20.08"
WARNING
• Allow at least 8" of space around the unit for proper ventilation.
• Ensure the power source meets the requirements listed on the specification label.
• Do not use the unit with an extension cord.
• Do not use near gas appliances, open flame, or combustible liquids or gases.
• Operate, move and store the unit upright at all times.
• Do not move the unit while there is water in the tank.
• Do not remove the water tank while the unit is operating.
• The room temperature where the unit is operated must be within the range of 41-95°F (5-35°C).
• Disconnect the unit from the power source before cleaning it.
• Do not use solvent on plastic parts or pour water directly on the unit.
• Do not use the unit if the power cord or plug becomes damaged.
• Disconnect the unit from the power source if not in use for a prolonged period of time.
• For indoor use only.
• Do not attempt to repair the unit.

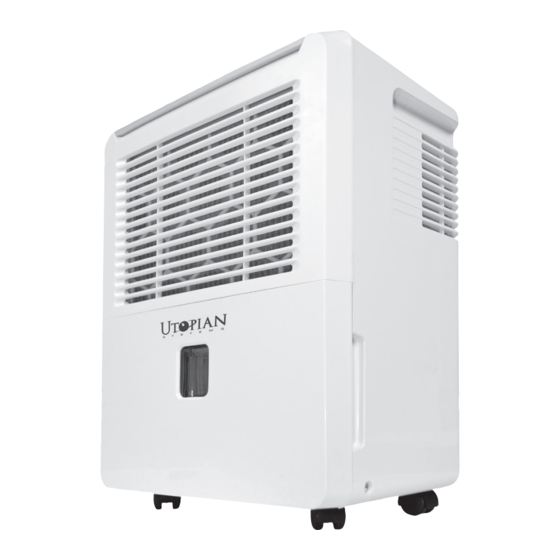

Utopian Portable Dehumidifier
Thank you for purchasing this quality Portable Dehumidifier!
information in the future.
UPD660
Moisture removal: 60 pt per day
Airflow (High/Low): 188.3/164.8 CFM
Wattage: 550W
Voltage: 115V
Current: 4.9A
Refrigerant: R410A
Operating Temperature: 41-95ºF
Net Weight: 39.6 lbs
Dimensions: 15.39" x 10.83" x 23.23"
REV 072013
Advertisement
Table of Contents
Related Manuals for Utopian Systems UPD660
Summary of Contents for Utopian Systems UPD660
- Page 1 Sunleaves Garden Products is not responsible for damage caused by inappropriate operation of this device. Features of your Utopian Portable Dehumidifier UPD660 Moisture removal: 60 pt per day • 35-85% relative humidity range Airflow (High/Low): 188.3/164.8 CFM...
- Page 2 Unit Part Names 1. Control panel 2. Air intake grille 3. Air outlet grille 4. Air filter (behind grille) 5. Water tank 6. Handle (both sides) 7. Drain hose outlet 8. Power cord storage band 9. Power cord and plug 10.
- Page 3 Unit Display Filter Turbo Filter Normal Full Cont. Auto defrost Cont. Timer FILTER button The filter light illuminates after 250 hours of operation as a reminder that the filter needs to be cleaned. To reset this function after cleaning the filter, press the FILTER button. CONT.
- Page 4 Operating Instructions Timer Operation 1. When the unit is on, press the TIMER button until the timer-off light illuminates. To set the auto- off time, use the UP and DOWN buttons to adjust the timer setting in increments of 0.5 hours up to 10 hours and 1 hour up to 24 hours.
- Page 5 Storage and Maintenance Cleaning the Air Filter 1. For optimal operation, clean the air filter every two weeks. 2. Slide the air filter out from the top of the unit. 3. Rinse the filter in warm water and allow it to dry completely before replacing it. Cleaning the Unit •...
- Page 6 Utopian Systems 1-Year Limited Warranty Sunleaves Garden Products warrants this product to the original purchaser to be free of defective materials and work- manship under normal use and service for 1 year from the original date of purchase. Sunleaves Garden Products, at its option, will repair or replace components of this product if they are found to be defective in material or workmanship within the warranty period.
