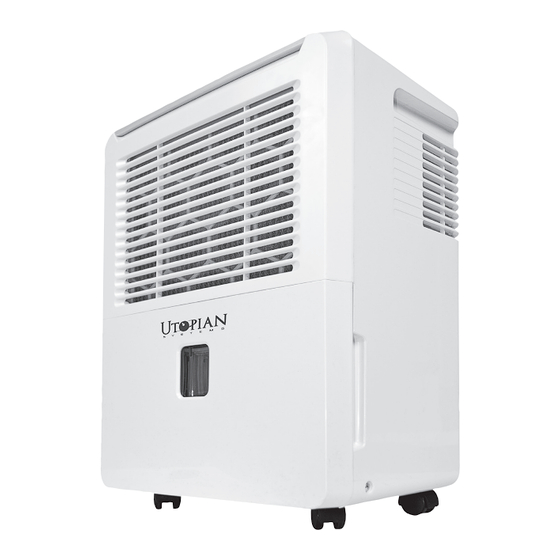

Portable Dehumidifier
READ AND SAVE THESE INSTRUCTIONS
Features
• 35% to 85% relative humidity range
• Two-speed fan operation
• Digital display
• Auto-shutoff function
• Auto-restart function
• 24-hour programmable timer
• Removable and washable filter
• Continuous drain capability
• One-year warranty
40 Pint
Volts: 115
Watts: 430
Amps: 3.8
Hertz: 60
Moisture Removal: 40 pts./day
Water Tank Capacity: 6.3 pts.
CFM (Low/High): 123.6/144.2
Operating Temperature: 41ºF to 95°F
Refrigerant: R410A
Net Weight: 29.8 lbs.
Dimensions: 14.17" x 9.88" x 20.08"
60 Pint
Volts: 115
Watts: 550
Amps: 5.9
Hertz: 60
Moisture Removal: 60 pts./day
Water Tank Capacity: 12.7 pts.
CFM (Low/High): 164.8/188.3
Operating Temperature: 41°F to 95°F
Refrigerant: R410A
Net Weight: 39.68 lbs.
Dimensions: 15.39" x 10.83" x 23.23"
WARNING
• Allow at least 8" of space around the unit for proper ventilation.
• Ensure the power source meets the requirements listed on the specification label.
• Do not use the unit with an extension cord.
• Do not use near gas appliances, open flame, or combustible liquids or gases.
• Operate, move and store the unit upright at all times.
• Do not move the unit while there is water in the tank.
• Do not remove the water tank while the unit is operating.
• The room temperature where the unit is operated must be within the range of 41°F to 95°F (5°C to 35°C).
• Disconnect the unit from the power source before cleaning it.
• Do not use solvent on plastic parts or pour water directly on the unit.
• Do not use the unit if the power cord or plug becomes damaged.
• Disconnect the unit from the power source if not in use for a prolonged period of time.
• For indoor use only.
• Do not attempt to repair the unit. Any unapproved attempt to repair the unit will void the warranty.
• Do not operate this device beyond the usage indicated in this manual. Sunleaves Garden Products is not responsible for damage caused by
inappropriate operation of this device.
REV 42016
Advertisement
Table of Contents
Related Manuals for Utopian Systems 40 Pint
Summary of Contents for Utopian Systems 40 Pint
- Page 1 • Auto-shutoff function • Auto-restart function • 24-hour programmable timer • Removable and washable filter • Continuous drain capability • One-year warranty 40 Pint Volts: 115 Watts: 430 Amps: 3.8 Hertz: 60 Moisture Removal: 40 pts./day Water Tank Capacity: 6.3 pts.
-
Page 2: Drain Hose
Unit Part Names 1. Control panel 2. Air intake grille 3. Air outlet grille 4. Air filter (behind grille) 5. Water tank 6. Handle (both sides) 7. Drain hose outlet 8. Power cord storage band 9. Power cord and plug 10. -
Page 3: Unit Display
Unit Display Filter Turbo Filter Normal Full Cont. Auto defrost Cont. Timer 1. Filter button: The Filter light illuminates after 250 hours of operation as a reminder that the filter needs to be cleaned. To reset this function after cleaning the filter, press the Filter button. 2. -
Page 4: Storage And Maintenance
Operating Instructions Emptying the Water Tank When the water tank is full, the unit beeps eight times, the Full light blinks and the display reads “P2.” If the unit is ON, the compressor turns OFF and the fan runs for 30 seconds to dry the condenser. 1. -
Page 5: Error Code
Error Codes Error Codes The following error codes may appear on the unit’s display panel. Error Code Cause Solution Humidity sensor error Disconnect the unit from the power source and reconnect it. If the problem persists, the unit may Temperature sensor error require service. - Page 6 This warranty covers defects in materials and workmanship under normal use, with the exceptions stated below. Who This Warranty Covers This warranty applies to the original purchaser of this Utopian Systems product with the original proof of purchase. How Long Warranty Coverage Lasts This warranty is in effect for a period of one year from the original date of purchase.
