Heating/Cooling Room Thermostat
Description
Features
®
TH 193 HC

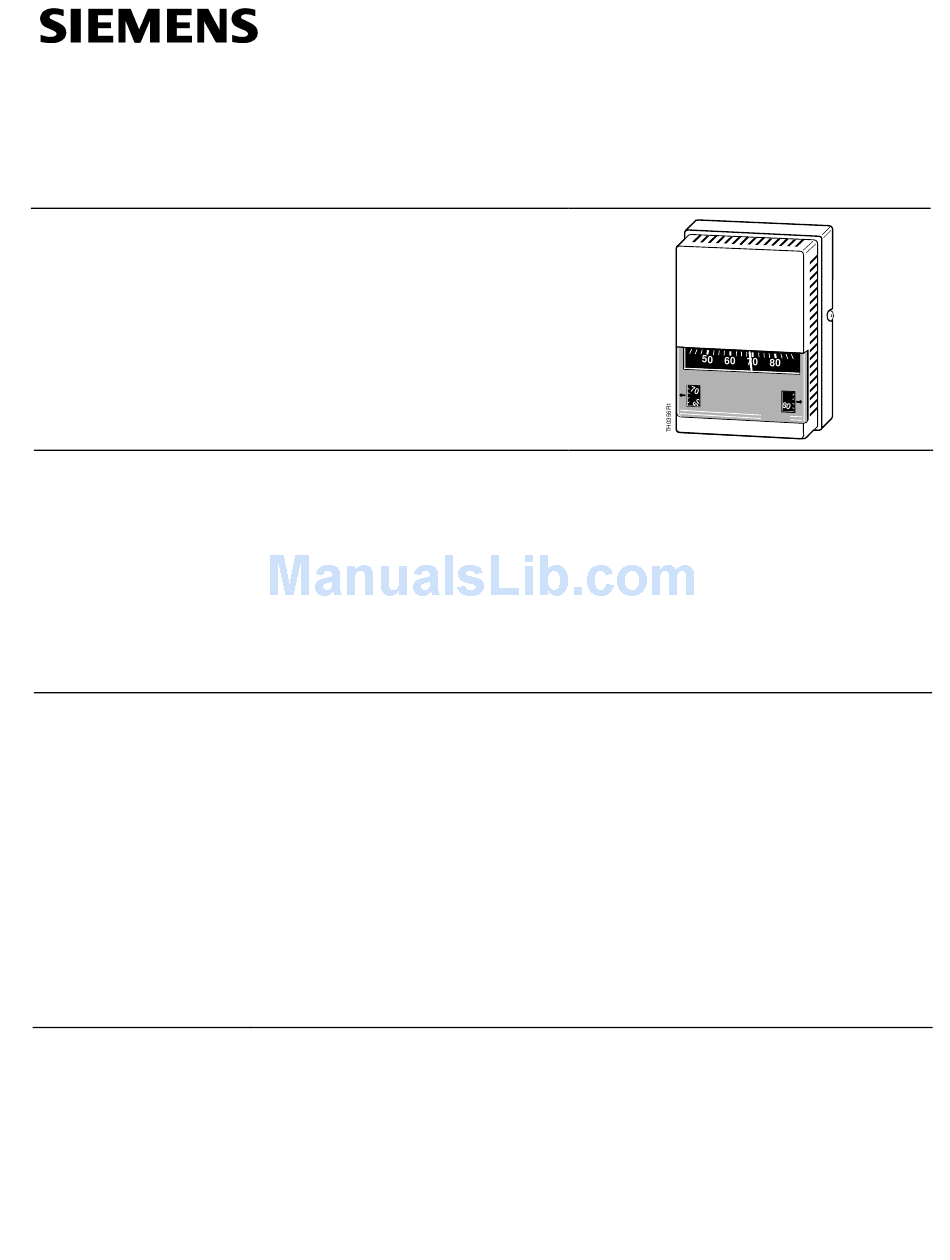

The TH 193 HC thermostats are proportional dual output, dual setpoint, two-pipe (dual
one-pipe, low air capacity) or three-pipe (dual two-pipe, high air capacity) sensor
controllers. Each thermostat includes a wall mounting plate for installation in a variety of
rough-in terminal boxes. Sensitive bimetals respond to temperature changes to
modulate control air through a flapper nozzle. As the heating load decreases due to
internal heat gains, a dead band of control minimizes energy consumption while the
setpoint changes from 72°F (22°C) heating mode to 78°F (26°C) cooling mode. Two
setpoint dials allow adjustment of the dead band 4°F (2°C) minimum. Air connections
are made with 5/32-inch (4 mm) O.D. plastic tubing, directly to the thermostat chassis
for retrofit applications or with plug-in adapters (provided with the TH 192 rough-in
terminal box or optional accessories), which slide into the wall mounting plate.
Direct and reverse acting for heating and cooling modes.
Two separate adjustable temperature setpoint indicating dials.
Two highly sensitive bimetal thermostatic elements.
Fahrenheit or Celsius models.
Individual field adjustable sensitivity with graduated scale.
Integral field adjustable limit stops.
Control pressure test port accessible without removing cover.
Easily replaceable thermometer, setpoint dials, filters and restrictor plate.
Covers available for concealed or exposed thermometers, and for concealed
adjustment and setpoint indication.
Standard plastic thermostat covers provide Desert Beige or white finish.
Technical Instructions
Document No. 155-068P25
October 26, 2010
POW ERS
TH 193-4
Siemens Industry, Inc.
