Page 1: Quick Start Guide
ZXCLOUD iBOX CT220 Quick Start Guide ZTE CORPORATION NO. 55, Hi-tech Road South, ShenZhen, P.R.China Postcode: 518057 Tel: (86) 755 26771900 Fax: (86) 755 26770801 URL: http://ensupport.zte.com.cn E-mail: support@zte.com.cn... -
Page 2: Revision History
ZTE CORPORATION or its licensors may have current or pending intellectual property rights or appli- cations covering the subject matter of this document. Except as expressly provided in any written license between ZTE CORPORATION and its licensee, the user of this document shall not acquire any license to the subject matter herein. -
Page 3: Installation
Safety Precautions Installation Use the power adapter delivered with the ZXCLOUD iBox CT220 Cloud Terminal. Use of any other power adapter can damage the power adapter or affect its normal operation. Ensure that the electric load of power sockets or power cables meets the requirements. - Page 4 The cloud terminal does not operate normally even if you follow the instruc- tions in this guide. The external part of the cloud terminal is damaged because the device is accidentally dropped or hit. The operation indicator of the cloud terminal does not operate normally.

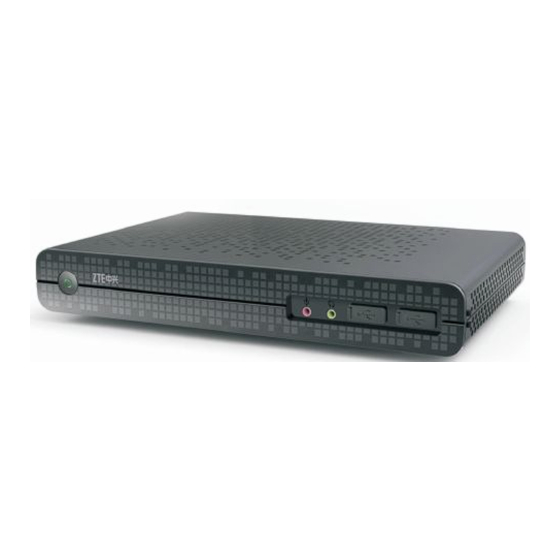

- Page 5 Terminal Terminal The ZXCLOUD iBox CT220 is a thin client or desktop cloud terminal with no mechanical com- ponents. It has a small size and light weight and requires low power consumption. In addition, it is reliable, easy-to-use, and energy-saving.
- Page 6 Components Components of of of the Components the Cloud Cloud Terminal Cloud Terminal Terminal Figure 2 shows the front panel of the cloud terminal. Figure 2 Front Panel Figure 3 shows the back panel of the cloud terminal. Figure 3 Back Panel Figure 4 shows the back panel of the cloud terminal if it is configured with a Power over Ethernet (POE) module.
- Page 7 Table 1 Description of the Cloud Terminal Components Serial Component Description Power on/off Press this button to turn on or off the cloud terminal. button/power The power indicator is red during the boot process of the cloud termi indicator nal. The power indicator is green if the cloud terminal operates normally.
- Page 8 Caution! The terminal can be ordered with a POE or WiFi wireless module as required. To check whether the terminal is configured with a POE or WiFi wireless module, view the model label on the terminal. If the label is printed with "POE" or "Wi-Fi", the terminal is configured with a POE or WiFi wireless module.
-
Page 9: Connecting The Terminal
2. Connect the cloud terminal to input and output devices, including a video display, a key- board, and a mouse. For the connections of the cloud terminal to related peripherals, see Figure Figure 5 ZXCLOUD iBox CT220 Connections Note: When connecting a display to the cloud terminal, do as follows depending on the interface of the display: If the display is equipped with a DVI-I interface, connect it directly to the cloud terminal. - Page 10 3. Connect the power adapter to the power input of the cloud terminal, and then connect the power adapter to a 110–240V AC, 50–60Hz power outlet. Caution! Use the power adapter delivered with the cloud terminal. Use of any other power adapter may damage the cloud terminal.
- Page 11 Turning Turning On/Off Turning On/Off On/Off the the Cloud Cloud Terminal Cloud Terminal Terminal Turning On the Cloud Terminal You can turn on the cloud terminal by pressing the power on/off button on the front panel of the cloud terminal. Note: During the operation of the cloud terminal, the power indicator is blue and steady.
- Page 12 Configuring the the Cloud Cloud Terminal Terminal Configuring Configuring Cloud Terminal After turning on, the cloud terminal executes the terminal self-test program before automatically loading the built-in operating system. You can log in to the operating system as a common user. As a common user, you can set the network, access the cloud desktop, and perform other daily operations.
-
Page 13: System Specifications
Operating temperature: 10℃–40℃ Operating humidity: 5%–95% (non-condensing) Warranty ZTE CORPORATION provides a 3-year warranty for the cloud terminal and 1-year warranty for the accessories (keyboard, mouse, and power cables). ZTE CORPORATION reserves the right to modify technical specifications in this manual without... - Page 14 Packing List List Packing Packing List In general, the ZXCLOUD iBox CT220 package box includes the following items: ZXCLOUD iBox CT220 Cloud Terminal Power adapter Base DVI-I to VGA converter Keyboard and mouse 1 set Quick Start Guide Certificate 1 copy Caution! The terminal may be configured with a POE or WiFi wireless module.
-
Page 15: Hazardous Substances
The declaration is issued base on our current level of knowledge. Since condi- tions of use are outside our control, ZTE CORPORATION makes no warranties, expressed or implied, and assumes no liability in connection with the use of this information. - Page 16 “Administration on the Control of Pollution Caused by Electronic Information Products” published by People’s Republic of China. 4. ZTE CORPORATION reserves the final rights of explanation of the parts included in this table. The symbol on the right side shows the Environment Friendly Use Period (EFUP) of this product.
