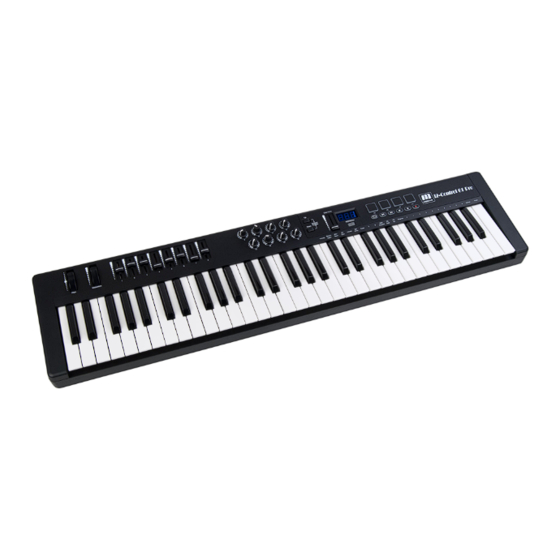

Miditech i2-Control 61 Pro
Owner`s manual
Class Compliant USB MIDI Controller Keyboard
Features:
61 dynamic keys, 4 velocity-sensitive trigger -pads, 8 sliders, 8 knobs
16 user emplates for own setups
Pitch-Bend/Modulation wheels
6 buttons for DAW transport- control
USB MIDI OUT, MIDI OUT
USB powered, optional with DC adaptor
Class compliant für Windows XP SP3/Vista/7/8 und Mac OSX
Incl. the Miditech free software bundle (download versions )
eMail:
info@miditech.de
Internet:
www.miditech.de
1
Advertisement
Table of Contents
Related Manuals for Miditech i2-Control 61 Pro
Summary of Contents for Miditech i2-Control 61 Pro
- Page 1 Pitch-Bend/Modulation wheels 6 buttons for DAW transport- control USB MIDI OUT, MIDI OUT USB powered, optional with DC adaptor Class compliant für Windows XP SP3/Vista/7/8 und Mac OSX Incl. the Miditech free software bundle (download versions ) eMail: info@miditech.de Internet: www.miditech.de...
-
Page 2: Table Of Contents
1.4 MIDI Connection..................6 1.5 Power supply..................7 Chapter 2 ： The basic MIDI Controllers ............7 2.1 i2-Control 61 Pro Modulation Wheel..........7 2.1.1 i2-Control 61 Pro Pitch Bend Wheel........8 2.1.2 Octave Knobs/ Data Entry Slider..........8 2.1.3 MIDI/SELECT and function keys ...........9 2.1.4 Reset..................9 2.1.5 Control Change data entry by Numeric keypad.....10... -
Page 3: Preface
The versatile and easy-to-use i2-Control 61 Pro is a great controller in the studio and concert. What’s in the Box? The following items should be in your package. -
Page 4: Chapter 1 ： Quick Start
The supplied USB MIDI OUT and KEYBOARD MIDI OUT can connect to other MIDI device by oneself. Power Supply: External 5-9V DC power, or USB power Quick Start 1.1 i2-Control 61 Pro Overview 1.1.1 Controller elements /front view 2 1 6 10 11 1.1.2 Back view / connections... -
Page 5: Controllers Description
16. Power Selector Switch 8. 8 Assignable Sliders 17. External Power Interface 9. 8 Programmable Knobs 1.2 Minimum System Requirement If you are using your i2-Control 61 Pro with a computer, the following minimum system requirements need: Windows Mac OS Macintosh G3*800/G4*733... -
Page 6: Installation
Setup". You can choose and enable your MIDI input and output devices in it. If the i2-Control 61 Pro driver is properly installed, and there is not other MIDI device connected, the MIDI In port of i2-Control 61 Pro In-1 (or "Port 1"on the Mac) will be selected as the first midi input, while the MIDI Out port of i2- Control 61 Pro Out-1 (or Port 1) will be selected as the first midi output. -
Page 7: Power Supply
1.5 Power supply Power switch has two options can be "USB" or "external power supply." Connect an USB cable from your computer to the i2-Control 61 Pro . The unit will be powered by the computer USB. Alternatively, if you do not want to use a computer for power, you can also use a 500mA power adapter(Center-positive, 2.5mm barrel diameter ）... -
Page 8: I2-Control 61 Pro Pitch Bend Wheel
Pitch Bend Wheel The Pitch Bend wheel is used for raising or lowering the pitch of a voice during performance. The range of pitch values depends on the sound generator (sound card or module) being used. Please refer to the manuals of your devices for information on how to change the Pitch Bend range. -
Page 9: Midi/Select And Function Keys
2.1.3 MIDI SELECT and function keys Some keys on the keypad gives you direct access to this MIDI functions: Velocity, Reverb Depth, Aftertouch, Pan, Volume, Set Ctrl, Reset, Transpose single note up and down, MIDI channel, CC data, CC number, Program number. -
Page 10: Control Change Data Entry By Numeric Keypad
2.1.5 Control Change data entry by Numeric keypad The i² Control-61 Pro allows you to use the numeric keys to specify your Control Change DATA parameter instead of the DATA ENTRY knob. By pressing MIDI/SELECT button and CC DATA key & then the required number and finally the Enter key to finish. -
Page 11: Assignment Of The 20 Real-Time Controllers
until you press the MIDI/SELECT knob to finish your choice. After you press cancel key the LED display will show blank to indicate that you pressed cancel key and will not disappear until you press the MIDI /SELECT knob to finish your choice. Program key Pressing MIDI/SELECT and then the Program key, then the numeric keys and then the ENTER key, you can select any patch number between 1 to 127. -
Page 12: Selecting And Setting A Presetbank
4. After a short time the active CC number will be shown. Overwrite it with the new CC controller number by the ten key groups (1-127) and press enter 5. Finally, press MIDI/SELECT knob key again to finish assign knob. Now you have assigned to one Control knob the MIDI Parameter -Repeat the same method for the other 16 real-time Controller Knobs and Faders. -
Page 13: Trouble Shooting
TROUBLE SHOOTING If anything doesn’t work . . . Please check following points: MIDI connection fault . . . Do you have installed your midi drivers from your soundcard or USB interface? Look at START --> Settings --> Systemcontrol --> Multimedia --> Tab Midi for installed midi drivers. - Page 14 If this not happens, there should maybe a technical problem. The Miditech i² Control-61 Pro is fully class compliant to any Windows versions up to Win 7 64 bit and Mac OSX 10.6 . This means, it will be automatically recognised and setup by the OS without installing an additional driver.
- Page 15 If it works normal, the power-supply may be damaged. If nothing helps . . . You can write an e-mail to our hotline Info@Miditech.de and we try to help you. Please have a look on our FAQ page first; maybe your problem is listed.
-
Page 16: Specification
Specifications Model: i² Control-61 Pro Keyboard 61 dynamic keys. Simultaneous Note 10 notes output (Reverse priority) MIDI Channel Reset Transpose -,+ Octave Program Change CC-No.(Generic CC Assignment) CC-Data Data Entry Velocity Assignment, Control switches Data Entry Reverb Send Level Assignment, Data Entry Chorus Send Level Assignment, Pan Pot Assignment(CC-10),... - Page 17 17 real time controller knobs and faders, 4 Trigger-Pads Pitch Bender Wheel, Modulation Wheel, Data Entry Knob DAW Transport Control Buttons External Control Terminals 1x MIDI Out (DIN), 1 x MIDI IN (DIN) Sustain, Power Sw. DC in. Display 7 segment LED x 3 digit Dimensions 58,5 x 23 x 7 cm Weight...
-
Page 18: Midi Implementation Chart
MIDI Implementation Chart Model: i² Control-61 Pro Functio Transmit Recogni Remarks Basic Channel Default 1-16 hanged Mode Mode 3 Default ************ ssages ered Note Number : 12-108 With Octave Change ************ e Voice Velocity Note ON ote OFF After Key's Touch Ch's Pitch Bender... - Page 19 CC-00, CC-32 System Exclusive System :Song Pos ng Sel Common :Tune System :Clock Real Time :Commands Message :Local ON/OFF Send with :All Reset. Notes OFF Send with tive Sense Reset. :Res Notes: Mode OMNI OFF, POLY o=Yes, x=No...
-
Page 20: Trigger Pads Controller Information
Trigger pads Controller Information standard note standard 27-D#1 High Q 58-A#3 Vibraslap 28-E1 Slap 59-B3 Ride Cymbal 2 29-F1 Scratch Push 60-C4 Hi Bongo 30-F#1 Scratch Pull 61-C#4 Low Bongo 31-G1 Sticks 62-D4 Mute Hi Conga 32-G#1 Square Click 63-D#4 Open Hi Conga 33-A1 Metronome Click... -
Page 21: Transport Controls Information
PAUSE FORWARD EJECT REWIND CHASE RECORD STROBE COMMAND ERROR REST Specification General Product Name i2-Control 61 Pro Keyboard 61 velocity-sensitive keys Maximum polyphony 10 notes Display LCD screen display Button Octave up & down, select, trigger pads, transport Wheels pitch and mod wheels...
