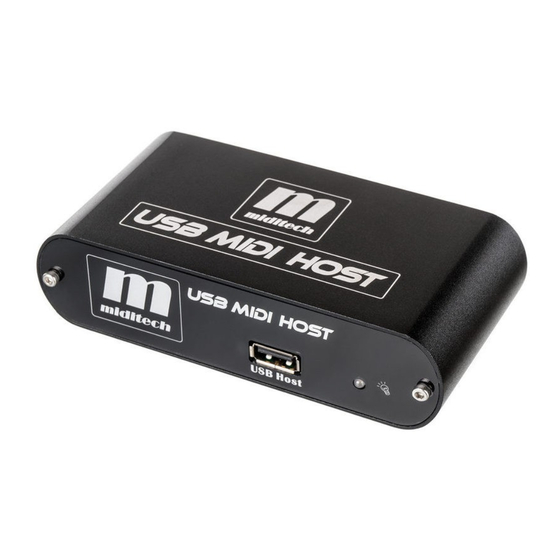

Miditech USB MIDI HOST Manual

Miditech USB MIDI HOST Manual

Advertisement

miditech
USB MIDI HOST
USB MIDI HOST
USB HOST port
Powert USB MIDI Keyboards
Wandelt USB MIDI Daten in Standard MIDI Daten (DIN)
Zweifarbige LED für Betriebsanzeige/ Power und MIDI Daten
DIN MIDI In-/ MIDI Output
USB Powered, mit optionalem USB Netzteil
Hochwertiges Aluminium Gehäuse
eMail:
info@miditech.de
Internet:
www.miditech.de
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the USB MIDI HOST and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Miditech USB MIDI HOST

  • Page 1 USB MIDI HOST USB MIDI HOST USB HOST port Powert USB MIDI Keyboards Wandelt USB MIDI Daten in Standard MIDI Daten (DIN) Zweifarbige LED für Betriebsanzeige/ Power und MIDI Daten DIN MIDI In-/ MIDI Output USB Powered, mit optionalem USB Netzteil Hochwertiges Aluminium Gehäuse...
  • Page 2 Bedienungsanleitung Vielen Dank, das Sie sich für den Miditech USB MIDI Host Adapter entschieden haben. Mit dem USB MIDI Host Adapter können Sie ein Masterkeyboard, Trigger Pad, USB Controller oder ein anderes MIDI Device, das nur einen MIDI USB port hat, ohne weitere Installation mit Strom versorgen und dessen USB MIDI Daten in herkömmliche Standard MIDI Daten wandeln.
  • Page 3 Auf der Rückseite des USB MIDI Host finden Sie die Standard MIDI Buchsen (5pol DIN Format), MIDI In und MIDI Out. Der Mini USB Anschluß dient zur Stromversorgung mit einem handelsüblichen USB Netzteil, DC 5V. . Schliessen Sie Ihr Masterkeyboard an den Front USB Input an, das USB MIDI Signal wird verzögerungfrei an die DIN MIDI Out Buchse auf der Rückseite gewandelt und weitergegeben.
  • Page 4 USB MIDI Host USB MIDI HOST USB HOST port Provides power to USB MIDI keyboards Converts USB MIDI data to standard MIDI data (DIN) 2 colour indicator LED for power and MIDI data DIN MIDI In-/ MIDI Output USB Powered, with optional USB DC adaptor...
  • Page 5 ● Mini-USB cable Features: ● The USB MIDI HOST has a USB HOST unique design, you can discard tedious MIDI cable to connect directly using a USB cable to the USB MIDI HOST connection with your MIDI devices , MIDI data transfer is complete.
  • Page 6 Panel: Front: ● Interface: USB HOST Interface (USB peripherals) Connect MIDI devices with USB output interface functions.( Any keyboard device) ● LED: Green and Red. If don’t connect any USB devices to USB HOST interface , LED light up Red. If connect any USB devices to USB HOST interface , LED light up Green.
  • Page 7: Important Safety Instructions

    2. Retain Instructions – The safety instructions and owner's manual should be retained for future reference. 3. Heed Warnings – All warnings on your Miditech product and in the Owner'sManual should be followed. 4. Follow Instructions – All operating and use instructions should be followed.
