12. AOIs (Areas of Interest)

12.1 AOIs (Areas of Interest) Overview

AOIs are Areas of Interest and consist of a
series of points making up an area of any size
or shape. These can be used:
• To mark various areas of interest on a map,
(e.g. forests, wetlands).
• To measure an area on a map.
• As an alternative to the circular POI
Radius as any shape can be drawn.
The area can be filled with different colours
and patterns.
Note: Use SatSYNC to add graphics or more
detailed information to an AOI. (See the
SatSYNC 1.5 User Guide).

12.2 Add AOI Screen

(GPS MAP → MAIN MENU → OOI Menu →
Add AOI by Map)
Add AOI by Map
To create an AOI, select
from the OOI Menu and press Select
press the joystick. This will take you to the
AOI screen where you will be able to lay down
points (green dots) to form an 'area'.
The orange locator circle has a red cross in
the centre to indicate you are in edit mode
Add AOI
on the screen. You can plot points
by either pressing the top left '+' button or by
centre pressing the joystick. Use the lower left
'x' button to remove points.
The area is shown as you create the AOI. You
© Satmap Systems Ltd
will be able to change the colour and pattern
options of the AOI. The name of the AOI
appears in the designated area.
Buttons:
Add AOI point (+)
Lay down AOI points on the map
Warning
Remove AOI point (x)
Remove AOI points from the map
GPS Map
Return to GPS MAP
Zoom
Zoom in/out
Done/(Back)
Go to keypad to name AOI and then to
Folders. (Back
takes you back to the
or centre

12.3 Add AOI in a Specific Folder

Add
(MAIN MENU → OOI Menu → OOI Folders
→ specific folder → final subfolder → Back →
Add AOI by Map)
This will add the AOI to the last visited folder.
Note: Folders are created using SatSYNC and
must contain at least one OOI or route to be
visible on the unit. (See SatSYNC User Guide
for more information).
AOI point
AOI point
Remove
screen
AOI point
OOI
cancels the operation and
OOI Menu).
71
Add
Draw Areas of
GPS Map
Interest
© Satmap Systems Ltd 2014

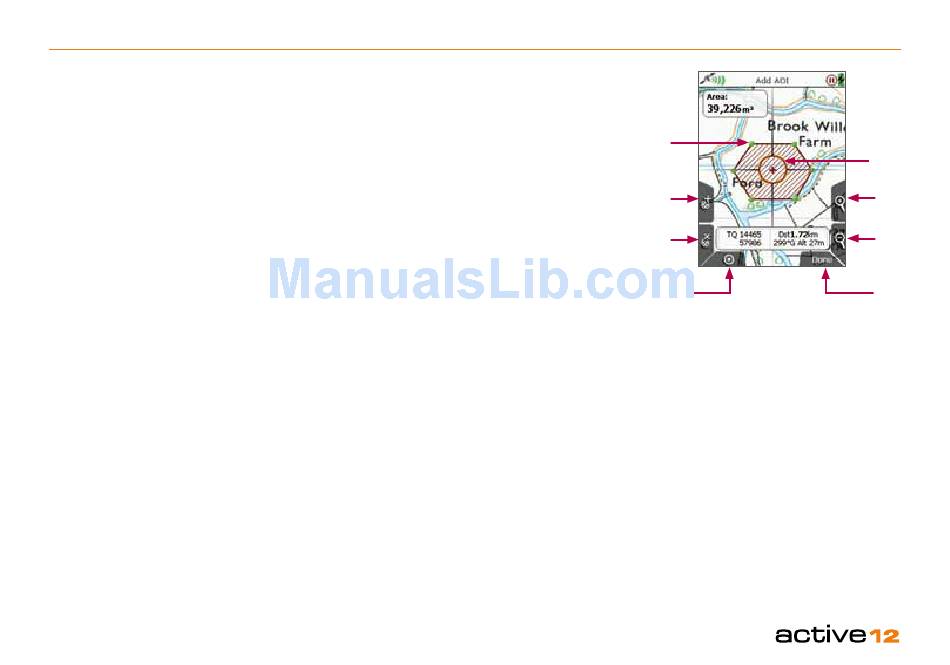

Locator
circle with
red cross
to indicate
edit mode
Zoom
In
Zoom
Out
Done/
Back
