ZXRC INSTALLATION

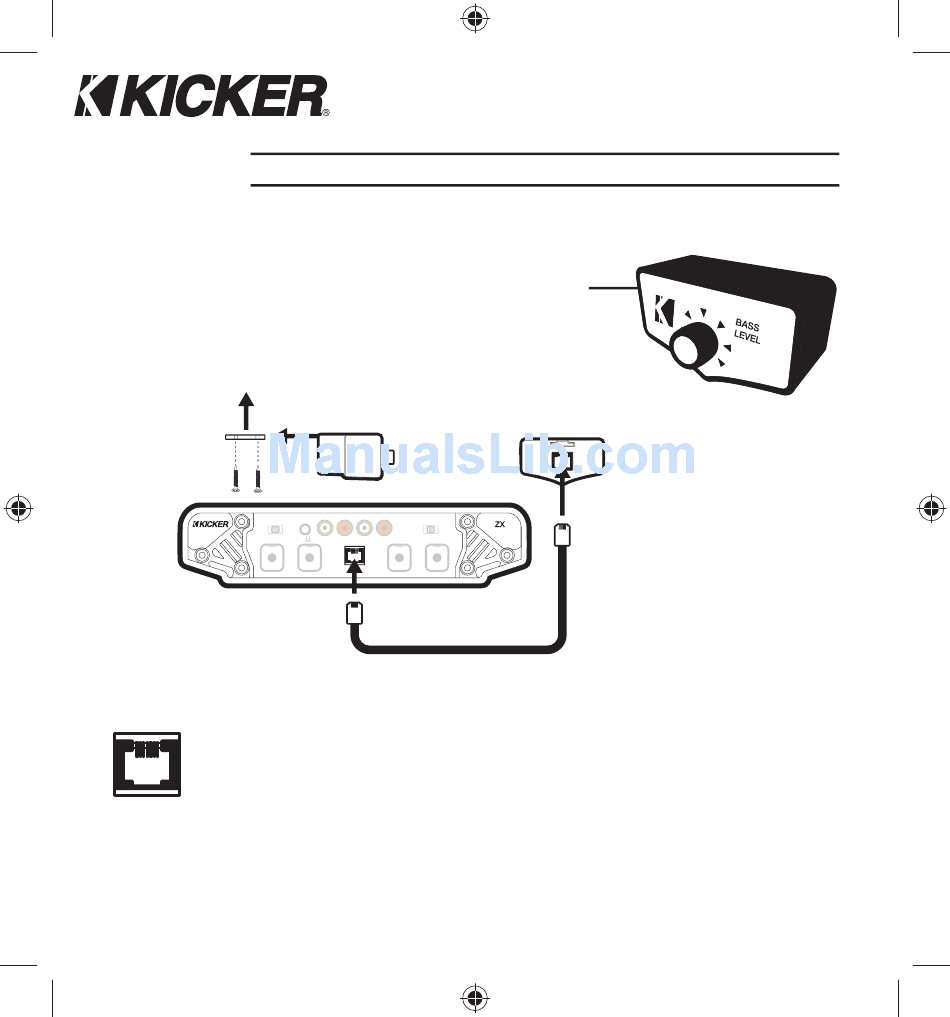

1. mount the metal
bracket
ZX Amplifi er

REMOTE BASS

The ZXRC is compatible with any KICKER ZX amplifi er equipped with a
REMOTE BASS jack on its end panel.
When the crossover on your ZX amplifi er is set to LO pass, you have the ability to control the output level of the amplifi er
remotely using the ZXRC. To mount the ZXRC remote bass level control, simply screw the metal bracket to the chosen
location, then slide the housing onto the bracket until it snaps into place. Run the cable from the controller to the REMOTE
BASS jack on the amplifi er chassis.
Note: When the crossover on 4-channel ZX amplifi ers is set to LO, The ZXRC only controls the AMP2 channel.
2010 ZXRC RevC.indd 2 2010 ZXRC RevC.indd 2
ZXRC REMOTE BASS CONTROL
Owner's Manual
2. slide the housing until it snaps into the
metal bracket
AUTO INPUT L R L R
TURN ON SENSITIVITY XOVER
+12V DC AUDIO OFF HI LO
LO INPUT OUTPUT
OFFSET
HI
REMOTE BASS
SPKR + SPKR - SPKR + SPKR -
4-conductor phone cable
16.4' (5m)
ZXRC
back view
