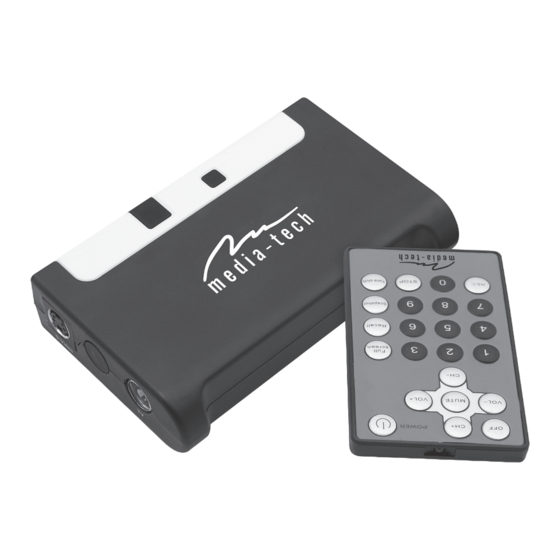

- Page 1 USB TV BOX XTREME MT4156 User’s Guide...
-
Page 2: Table Of Contents
Contents Introduction We would like to congratulate you on purchasing Introduction .................2 MT4156 USB TV BOX XTREME. With our device you Features..................2 can comfortably watch and record tv shows. Thanks to Specifi cation .................3 timeshift feature you don’t have to worry anymore that you miss any fragment of your favorite tv show and System requirements ..............3... -
Page 3: Specifi Cation
Specifi cation: Device Installation Steps: ■ standard RF socket (for TV antenna or cable) Note! Read installation steps before connecting the ■ standard S-Video input device. ■ standard AV input ■ audio input (stereo) 1. Put software CD into drive, if application does not start automatically, run „SETUPTV.EXE”... - Page 4 In some versions of Windows a massage box can ap- pear, showing that installed driver has no Windows logo. Click “Continue anyway” and system will go on with installation. When you plug device to USB port system will fi nd new hardware, select „Install Device Driver”...
- Page 5 4. From TV BOX installation window select „Install Re- On next screen mark option„I accept the terms of the mote Control” and then click “Install”. license agreement” and click “Next” 5. The last step is installation of honestech TVR, from TV BOX installation window select „Install Application”.
- Page 6 Click „Next” to confi rm program folder When following window appear enter product key and click „OK” After honestech TVR software is started, view window and application control panel are as below: Click „Finish” to end installation of honestech TVR. You can also close TV BOX installation window, press ALT+F4.
-
Page 7: How To Use Honestech Tvr
Application control panel is operated as follows: Utility icons Property settings This icon opens dialog window where you can set all settings to watch, seek and record TV programs. TV setting tab How to use honestech TVR Switching AV source Click on the following to make your choice: CABLE or TV antenna AV composite input... - Page 8 Category Setting TV signal from Antenna (TV) or Cable (CATV) Country Auto detect: automatically choose country of reception Select your country: manually select country of reception Operation method Order of stored channels: By Channel Number or By Order Number. For in- stance (look at picture above), to select channel 27 enter “27”...
- Page 9 Video setting tab Video source Video decoder tab: select video standard. To save changes click „apply”, then „OK” and then restart appli- cation. Don’t change other options on this tab. Video Proc Amp tab: video adjustment Fine Adjustment Setting Brightness, Contrast, Hue and Saturation. Press „Default”...
- Page 10 Record setting tab Etc Dialog tab Profi le Channel Surfi ng: Settings of TV programs preview Select diff erent recording format. Select MPEG1 or Auto Scan Mode MPEG2 to manually set parameters (some knowledge Mark this option to enable auto scan for channels dur- of video compression is needed) or select other profi...
- Page 11 Schedule recording Click this icon to open dialog box of schedule recording. Channel surfi ng Add – set a new schedule for recording Edit – rename a recorded video fi le Click this icon to open channel surfi ng window, chan- Delete –...
- Page 12 Pause – pause playing recorded video Audio Mode Stop – stop playing recorded video Backward – rewind Click this icon to switch between mode: mono, stereo and main. Forward – fast forward Quick Menu Function disabled for this model Right click on view window area to pop-up the quick menu: Volume control Increase volume...
-
Page 13: Remote Controller
■ Close the menu Timeshift: activate/deactivate timeshift mode ■ Screen: Full, Normal, Minimize Stop: stop playing recorded video ■ Select resolution: 352x288, 640x576, 720x576 Snapshot: take a snapshot ■ Aspect ratio: 4:3, 16:9 ■ Channel Up ■ Channel Down ■ Auto Scan ■... -
Page 14: Troubleshooting
To many connected usb devices may cause a prob- Troubleshooting lem on slower PC, disconnect other usb devices and Q: System could not fi nd device. check if there is any change. A: Connect TV BOX directly to USB 2.0 port, problems Q: No sound. - Page 15 For more information, drivers, instruction manuals, please visit our website: www.media-tech.eu Manufacturer is restricting right to modernize and making changes of this device. In accordance with continuous development of hardware and software some functions demonstrated on pictures might be presented diff erently in the future.
