Contents
Electrical Requirements ....................................... 3
Electrical Grounding Instructions ...................................... 3
Safety Features ...................................................... 3
Compressor Lockout ......................................................... 3
Low Voltage Protection ...................................................... 3
Operation ............................................................... 4
Vent Control ...................................................................... 4
Unit Control ....................................................................... 4
Timer Operation .................................................... 5
Special Features .................................................... 6
Variable Differential Control (VDC) .................................... 6
Intellistat ........................................................................... 6
Remote Control ..................................................... 7
Installing Batteries ............................................................. 7
Remote Control Operation ................................................ 7
General Information .............................................. 8
Changing Air Flow Direction .............................................. 8
Air Flow Around Unit ......................................................... 8
Care and Maintenance .......................................... 8
Oceanside or Corrosive Environment ............................... 8
Charcoal Air Filters ........................................................... 8
Charcoal Air Filter Installation ........................................... 9
Before Calling For Service ................................... 9
Fan Motor .......................................................................... 9
Slide out Chassis .............................................................. 9
Model Identification ........................................... 10
Any Questions? ................................................... 10

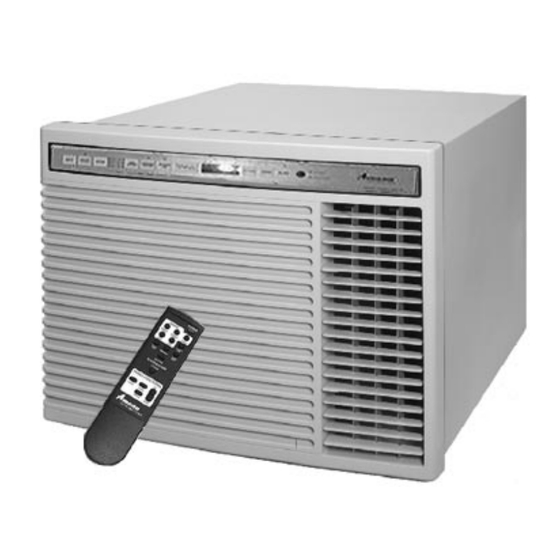

Please read this Use and Care Manual thoroughly. This
manual provides proper maintenance information for maxi-
mum benefit of the features selected.
RECOGNIZE THIS SYMBOL AS A SAFETY PRECAUTION
October 1997
To avoid death, personal injury or
property damage due to overheating, do
not leave this room air conditioner
unattended when used as cooling or life
support for persons or animals unable to
react to unit failure. Take precautions to
warn or guard against such an
occurrence.
Amana
Fayetteville, TN 37334
1
Use And Care
Manual
WARNING
20058101
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Amana Ultra Quiet Zone Room Air Conditioner
Summary of Contents for Amana Ultra Quiet Zone Room Air Conditioner
-
Page 1: Table Of Contents
Take precautions to warn or guard against such an occurrence. RECOGNIZE THIS SYMBOL AS A SAFETY PRECAUTION Amana October 1997 20058101 Fayetteville, TN 37334... - Page 2 Prevents young ones from changing settings can vary from your settings Amana’s Ultra Quiet Zone is the most advanced room air conditioner in the industry. It offers industry leading energy efficiency, electronic controls, air purification, and ultra quiet operation. Our filtered ventilation air reduces contaminants in the room.
-
Page 3: Electrical Requirements
Low Voltage Protection This unit is equipped with “brownout” protection. In case of an extreme brownout, the Amana control will interrupt power to the unit to prevent compressor failure. When the line voltage reaches at least 100 VAC, the control will WARNING reenergize your unit. -
Page 4: Operation
EXHAUST CLOSED FRESH AIR ® Amana’s Temp-Asure air sampling system works to main- tain the set temperature within 1.5°F while in ENERGY SAVER mode. Approximately every 5 minutes the fan will come on and “sample” the room air to determine if cooling EXHAUST - This setting opens the vent to move indoor air is needed. -
Page 5: Timer Operation
Timer Operation Default Timer Settings Time Temperature Mode Energy Saver Action Air Period 1 6:00 AM SMART COOL Period 2 8:00 AM SMART COOL Period 3 4:00 PM SMART COOL Period 4 10:00 PM SMART COOL TIMER Mode is like a setback thermostat on a central air conditioning system. At preset times during the day, the thermostat changes the set point (SP) and other operating settings (i.e. -
Page 6: Special Features
SLEEP - The SLEEP button starts a program Special Features SLEEP that adjusts the cooling comfort level. The program raises the cooling temperature 1°F Variable Differential Control (VDC) every hour for the next four hours. This feature controls the temperature difference between when the unit turns off and restarts especially useful for extended periods outside the room. -
Page 7: Remote Control
Remote Control The remote control gives you control of virtually all unit functions from your armchair. Installing Batteries 1. On the back of the remote control, press down on the arrow and lift out. POWER MODE 2. Insert AA batteries. Make sure to observe the proper polarity: (+) to (+) and (-) to (-). -
Page 8: General Information
General Information Oceanside or Corrosive Environment Salt air or a corrosive environment may greatly reduce the Changing Air Flow Direction life of the unit. After cleaning, sand and repaint any • Adjust horizontal baffles for changing air up or down. scratches or blisters on painted surfaces. -
Page 9: Charcoal Air Filter Installation
IMPORTANT NOTE: A dirty air filter reduces operating Charcoal Air Filter Installation efficiency. Inspect filter at least once every week during operation. Wash permanent air filter with warm soapy Remove charcoal air filter from plastic bag. Inset the three water. Rinse the charcoal air filter with warm water only. Do tabs on the right side of the filter into the three slots on the not scrub! Thoroughly dry before replacing. -
Page 10: Model Identification
Most of your questions can be answered by your local card to Amana’s Product Registration department. Amana dealer. Check with your dealer first if you need any registration card is missing, call Amana’s Consumer Infor- further information regarding the operation, maintenance, mation Line, (1-800-843-0304).
