Aerco Modulex 303 Installation & Operation Manual

Gas fired boiler systems modular, condensing, hot water boilers
Hide thumbs
Table of Contents

Advertisement

Quick Links

Instruction

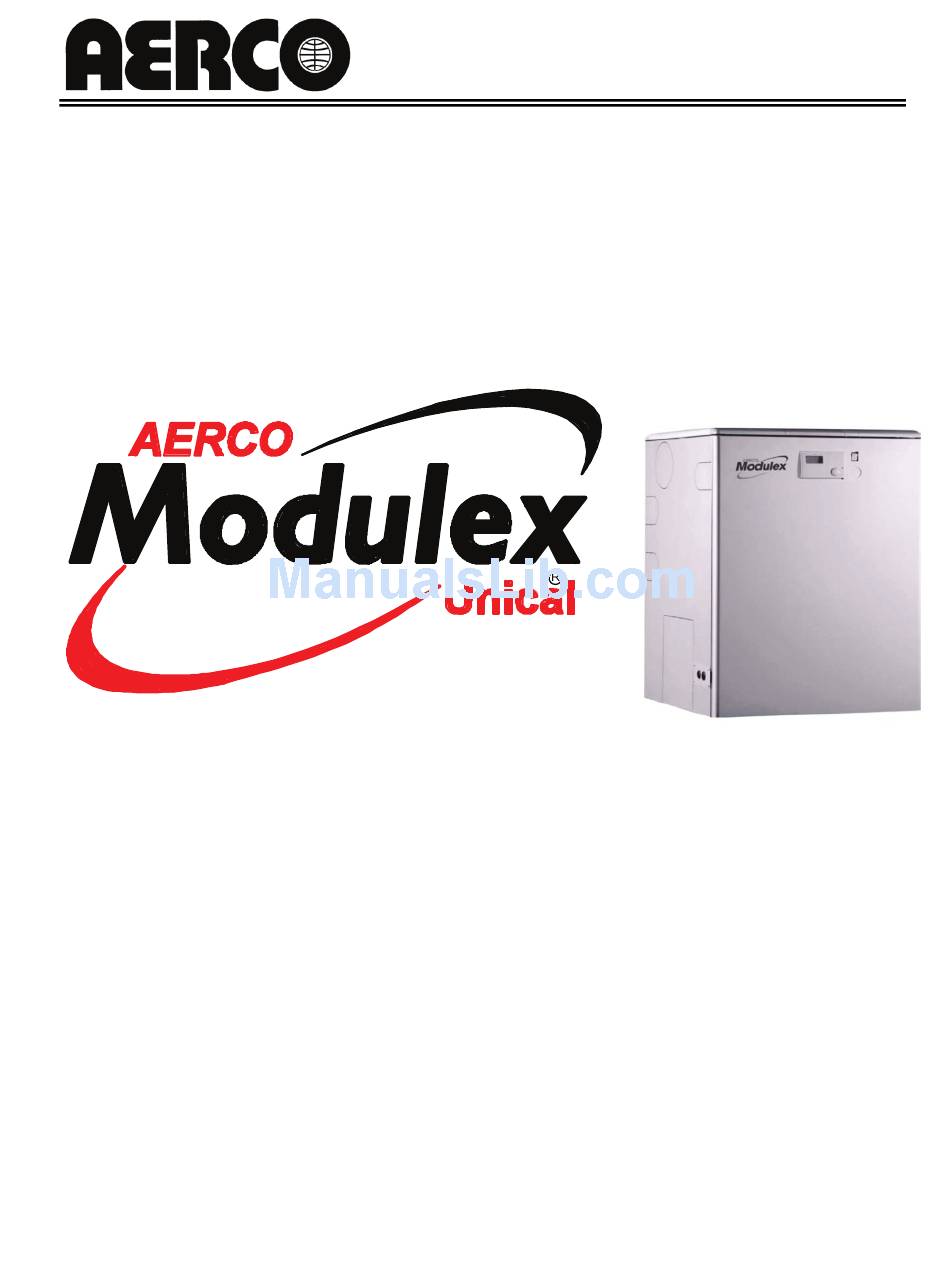

GF-115H
No.
AERCO INTERNATIONAL, Inc., Northvale, New Jersey, 07647 USA
Installation, Operation
& Maintenance Instructions
Gas Fired
Boiler Systems
Modular, Condensing, Hot Water Boilers
Models: 303, 454, 606, 757, 909, 1060
7/17/08
Printed in U.S.A.
