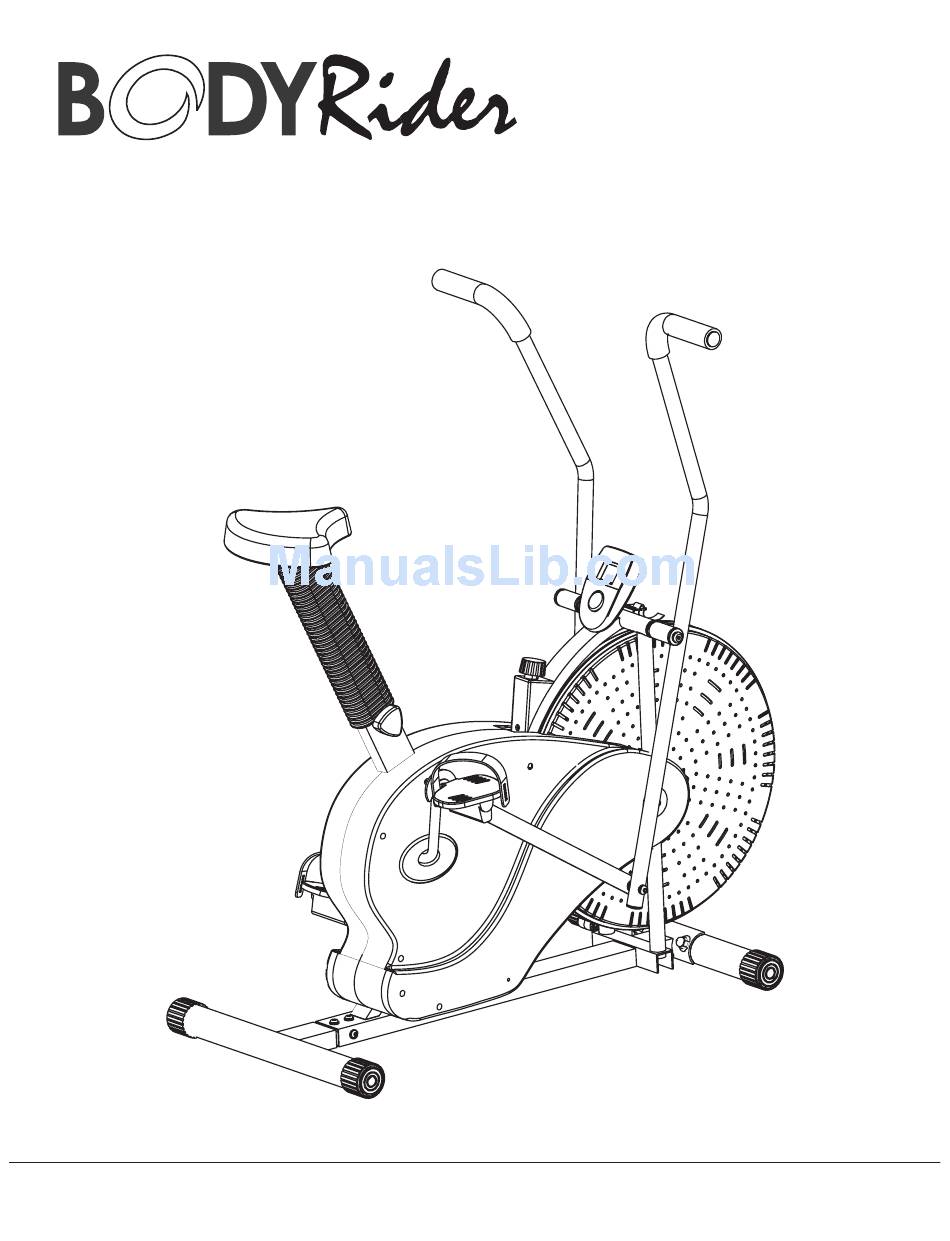

- Page 1 BRF 700 Fan Bike * This item is for consumer use only and it is not meant for commercial use. OWNE R’ S MAN UAL...
- Page 2 This page intentionally left blank...
-
Page 3: General Information
General Information Safety Warranty Before you undertake any exercise program, Body Flex Sports warrants your product for please be sure to consult with your doctor. a period of 1 year for the frame and 90 days Frequent strenuous exercise should be... - Page 4 The following hardware is used to assemble your unit. Please take a moment to familiarize yourself with these items. PLEASE NOTE: some of these parts may have already been pre-assembled on your unit. S10-S13-S15-S17-S19 [1 piece] BRF 700 Page 2...
-
Page 5: Parts Listing
D Shape Washer (M10) 37A Monitor Wire (Lower) Handlebar Axle 37B Monitor Wire (Upper) Knob (M12) Friction Belt Bolt (M8x43 mm) Bushing Washer (M8) Foam Grip Nylon Nut (M8) Round Cap (25) BRF 700 Page 3 BRM 3670 Stride Cycle Page ? -
Page 6: Exploded Diagram
Exploded Diagram BRF 700 Page 4... -
Page 7: Assembly Instructions
Secure the Front Stabilizer (#2) to the Main Frame (#1) with two Carriage Bolts (#26), two Arc Washers (#27) and two Cap Nuts (#28). Note: There are built in rollers on the Front Stabilizer (#2) to easily relocate the fan bike. BRF 700 Page 5... - Page 8 A s s e m b l y S t e p 2 Hardware Required Secure the Rear Stabilizer (#3) to the Main Frame (#1) with four Bolts (#24), four Spring Washers (#25) and four Washers (#19). BRF 700 Page 6...
- Page 9 • Right Hand Side: Turn CLOCKWISE to tighten the Right Pedal (#7R) on the right crank. Then turn COUNTERCLOCKWISE to tighten the Right Nylon Nut (#23R) [WHITE inner nylon ring] to secure the right pedal assembly. BRF 700 Page 7...
- Page 10 Carefully cut off the zip tie on the bushing of the Right Linkage (#6R) Then attach the Right Handlebar (#4R) to the Right Linkage (#6R) with a Washer (#19) in the between, secure with a Bolt (#18), a Washer (#19) and a Nylon Nut (#20). BRF 700 Page 8...
- Page 11 (#5) into the slot of the post that is protruding from the Main Frame (#1). Screw the Knob (#17) through the Main Frame (#1) post and align it into any one of the holes located on the Seat Tube (#5). BRF 700 Page 9...
- Page 12 A s s e m b l y S t e p 6 Hardware Required Attach the Monitor (#8) to the Main Frame (#1) and then connect the Monitor Wire (#37A) to the Monitor Wire (#37B). The assembly of fan bike is now complete. BRF 700 Page 10...
- Page 13 The more length you allow for the friction belt to wrap around the wheel, the less friction it will cause. Re-adjust the tension knob after you finished re-strapping. BRF 700 Page 11...
-
Page 14: Computer Operation
Calories: Display the amount of calories burned. Scan: Automatically alternate between the different functions. (Time, Distance, Calories) 4.BATTERY: This monitor requires one (or two) "AA" Battery(ies). You can replace the battery from the back of the unit. BRF 700 Page 12... -
Page 15: Proof Of Purchase
Proof of purchase Model Number BRF 700 Version: 07-20-2010 BRF 700 Page 13... - Page 16 Body Flex Sports, Inc. • 21717 Ferrero Parkway, Walnut, CA 91789 • Telephone: (888) 266 - 6789 • Email: info@bodyflexsports.com...
