WP-T800 1 Station Thermal Line Printer CONTENTS 1. GENERAL DESCRIPTION 1.1 O ..................... 3 VERVIEW 1.2 F ...................... 3 EATURES 1.3 A ....................3 CCESSORIES 2. SPECIFICATION 2.1 M ..................4 PECIFICATIONS 2.2 O ................
Page 3
WP-T800 1 Station Thermal Line Printer 9.7 C : PC863 (C ) ............. 37 ANADIAN RENCH 9.8 C : PC865 (N ) ..............38 ORDIC 9.9 C : PC852 (E ) ............39 ASTERN UROPE 9.10 C : PC866 (R ) ..............

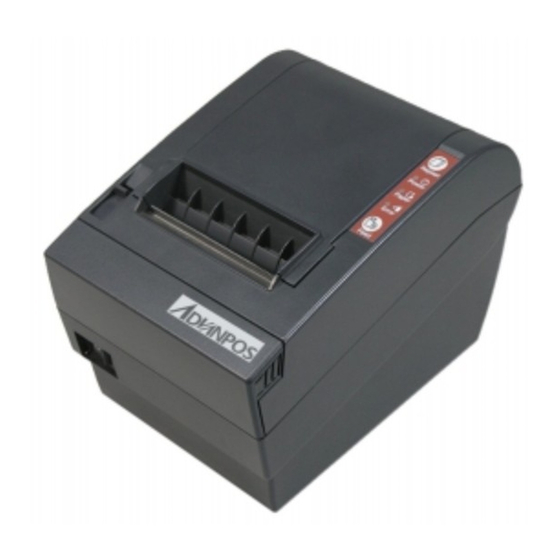

WP-T800 1 Station Thermal Line Printer 1. GENERAL DESCRIPTION 1.1 Overview The WP-T800 Series Line Thermal Receipt Printer is designed for use with ECR, electronic instruments, computer peripheral equipment, kitchen printers and so 1.2 Features 1. Compact desktop Line Thermal printer.
WP-T800 1 Station Thermal Line Printer 2. SPECIFICATION 2.1 Main Specifications Item Description 1 Printing method Thermal line 2 Printing speed 220mm / s 3 Command ESC/POS 4 Driver Linux, Windows and OPOS Alphanumeric( A) Alphanumeric( B) Kanji 5 Character structure 12×24...
WP-T800 1 Station Thermal Line Printer 2.2 Operating Specifications Item Specifications 0 to 45℃(41 to 113℃F),0 to 90% RH no Operating condensation allowed.(Refer to ambient Temperature/ operating ranges in the figure below.) Humidity -10 to +50℃(14 to 122℃F),10 to 90% RH...
WP-T800 1 Station Thermal Line Printer 3. EXTERNAL APPEARANCE AND PART DESCRIPTIONS 1 Printer cover 2 Cover open lever 3 Cutter cover 4 Power switch 5 Control panel 6 DIP switch cover 7 Interface connector 8 Power connector 9 Cash Drawer connector...
WP-T800 1 Station Thermal Line Printer 4. INSTALLATIONS 4.1 How to Connect Power Adapter (1) Ensure that the power switch is OFF. (2) Plug the power connector into the printer’s power connector at the arrow mark facing upward. (3) Plug the power cord into the outlet, and turn on the power.
WP-T800 1 Station Thermal Line Printer 4.2 How to Connect Cash Drawer (1) Ensure that the power switch is OFF. (2) Plug the cash drawer connector into the Drawer kick out connector at the arrow mark facing upward. (3) Plug the connector into the RJ11 phone jack.
WP-T800 1 Station Thermal Line Printer 4.3 Setting of the Printer Cover and Setting Paper Push the cover open lever, and open the printer cover. Remove any used paper roll’s core, and insert the paper roll as picture bellows shown.
Page 12
WP-T800 1 Station Thermal Line Printer Pull out the leading edge of paper , close the printer cover. Tear off the spare of paper as picture shown and complete paper replacing. Note: 1. Paper thickness is 0.05-0.06mm. 2. Paper width is range from 79-80mm.
WP-T800 1 Station Thermal Line Printer 5. CONTROL PANEL 5.1 Basic Operation Line feed button Feed When this push-button switch is pressed once briefly (for 0.5 seconds or less), the paper is fed forward by one line. When it is held down continuously, the paper is fed forward continuously until the switch is released.
WP-T800 1 Station Thermal Line Printer 5.2 Switch Operation (Combined Switch operation) (1) SELF PRINT TEST Feed + POWER ON (Turn the power on while holding the Feed button depressed, the buzzer gives one short beep.) Self-testing will be performed according to the VER.
Page 15
WP-T800 1 Station Thermal Line Printer (2) HEXADECIMAL DUMP MODE Repeat + POWER ON (Turn the power on while holding the Repeat button depressed, the buzzer gives one short beep.) Each of the signals sent from the computer to the printer will be printed out in hexadecimal code.
WP-T800 1 Station Thermal Line Printer 5.3 Setting Please use screw driver to unlock the DIP switch cover at the bottom, open it as shown on picture right side and it shows DIP switch DIP1 & DIP2 Settings as below (1).Select Handshaking Control...
Page 17
WP-T800 1 Station Thermal Line Printer (5). Select Baud Rate SW1-7 SW1-8 Baud Rate 9600 bps 19200 bps 38400 bps 115200 bps (6). Select Handshake Busy Control SW2-1 Handshake Busy Control Off line and buffer full Buffer full, ASB on (7).
WP-T800 1 Station Thermal Line Printer 6. INTERFACE SPECIFICATIONS WP-T800 provides RS232c, IEEE 1284, USB and other interface cards, which is replaceable for more convenient adjustment according to requirement. 6.1 Changing the interface card Turn off the printer and all components connected to it, remove the 2 screws and remove the interface card unit.
Page 19
WP-T800 1 Station Thermal Line Printer 6.2 Serial interface specifications 6.2.1 Specifications (Conform to RS-232C) : Asynchronous system Synchronizing system Handshaking : DTR/DSR control Baud rates : 9600,19200,38400,115200 (Refer chapter 5-3) Data length : Fixed 8 bit length Parity : None 6.2.2 Pin assignment...
WP-T800 1 Station Thermal Line Printer 6.3 Parallel interface specifications 6.3.1 Specifications (Conform to Centronics) : 8-bit parallel Data transmission format Synchronizing system : According to the strobe pulses Handshaking : According to the BUSY signal Signal level : TTL level 6.3.2 Pin assignment...
Page 21
WP-T800 1 Station Thermal Line Printer 6.4 USB(P) interface specifications 6.4.1 Specifications (Conform to Centronics) Data transmission : USB to UART(TTL) & USB TO parallel Synchronization : Asynchronous Baud rates : Adjustable Parity : None parity Bit length : 8 data bits...
WP-T800 1 Station Thermal Line Printer 7. DRAWER KICK CONNECTOR 7.1 Specifications (1) Data Transfer System The pulse specified by “ESC p” is output to this connector. The host can confirm the status of the input signal by using the “ESC u” command.
WP-T800 1 Station Thermal Line Printer 8. COMMAND 8.1 Control Codes list Command Code (Hex) Horizontal tab Name Command Code (Hex) Print and line feed Name Command Code (Hex) Print and return to standard mode in page mode Name Command...
Page 25
WP-T800 1 Station Thermal Line Printer ESC ! n Command 1B 21 n Code (Hex) Select print mode(s) Name ESC $ nL nH Command 1B 24 nL nH Code (Hex) Set absolute print position Name ESC % n Command 1B 25 n...
Page 26
WP-T800 1 Station Thermal Line Printer ESC @ Command 1B 40 Code (Hex) Initialize printer Name ESC D n1…nk NUL Command 1B 44 n1 …nk 00 Code (Hex) Set Horizontal tab positions Name ESC E n Command 1B 45 n...
Page 27
WP-T800 1 Station Thermal Line Printer ESC \ nL nH Command 1B 5C nL nH Code (Hex) Set relative print position Name ESC a n Command 1B 61 n Code (Hex) Select justification Name ESC c 3 n Command 1B 63 33 n...
Page 28
WP-T800 1 Station Thermal Line Printer FS g 2 m a1 a2 a3 a4 nL nH Command 1C 67 32 m a1 a2 a3 a4 nL nH Code (Hex) Read from user NV memory Name FS p n m Command...
Page 29
WP-T800 1 Station Thermal Line Printer GS H n Command 1D 48 n Code (Hex) Select printing position for HRI characters Name GS I n Command 1D 49 n Code (Hex) Transmit printer ID Name GS L nL nH Command...
Page 30
WP-T800 1 Station Thermal Line Printer GS f n Command 1D 66 n Code (Hex) Select font for Human Readable Name GS h n Command 1D 68 n Code (Hex) Select bar code height Name ①GS k m d1,,,dk NUL , ②GS k m n d1…dn Command 1D 6B ①m d1,,,dk 00 , ②...
Page 31
WP-T800 1 Station Thermal Line Printer FS 2 c1 c2 d1…dk Command 1C 32 c1 c2 d1…dk Code (Hex) Define user-defined Kanji characters Name FS C n Command 1C 43 n Code (Hex) Select Kanji character code system Name FS S n1 n2...
WP-T800 1 Station Thermal Line Printer 9. CHARACTER CODE TABLES 9.1 International Character sets ASCII (Hexadecimal notation) Country à ° ç § é ù è ¨ France § Ä Ö Ü ä ö ü β Germany £ U.K. Æ Ø...
