Exploded View; Parts List - MasterCraft LASER DISTANCE FINDER/MEASURING TOOL Instruction Manual

21

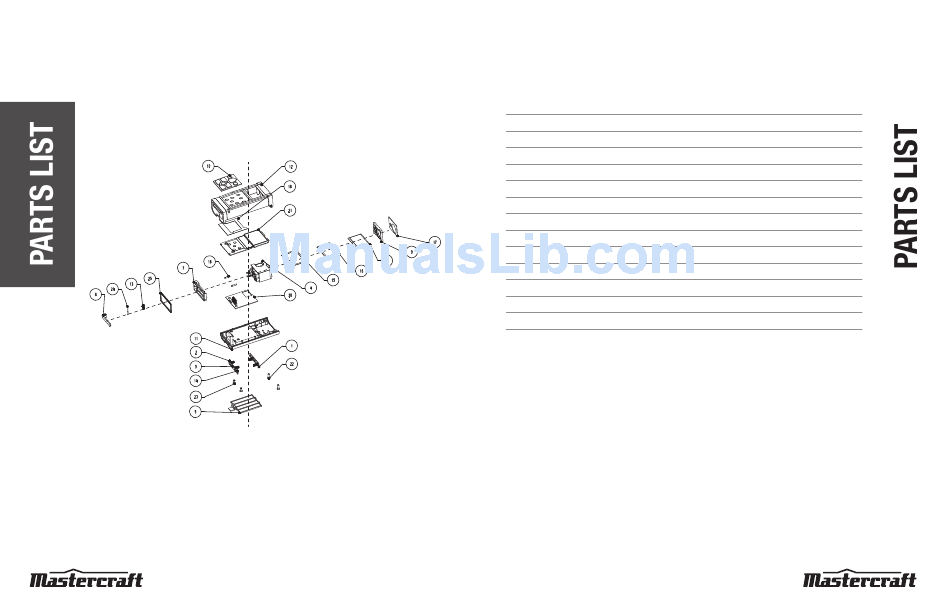

Exploded view

lasEr DistancE FinDEr/mEasurinG tool - 057-4585-0
No. Part No. Description
1 2820226000 contactor
2 2820227000 contactor
3 2822565000 contactor
4 2823407000 main support assembly
5 3124608000 Battery cover
6 3124609000 transparent Guard
7 3124610000 cover
8 3124611000 adjusting base
9 3124612000 upper Guard
10 3126711000 Push Button
11 3320806000 right Housing
12 3321526000 left Housing assembly
13 3660407000 spring
If any parts are missing or damaged, or if you have any questions,
please call the Toll-free Helpline, at 1-800-689-9928.
lasEr DistancE FinDEr/mEasurinG tool - 057-4585-0
22
No. Part No. Description
14 3700479000 Positive contactor
15 3704437000 sponge Pad
16 3704438000 adhesive tape
17 3704492000 sponge
18 3705522000 Paster
19 4860008000 inner Wire
20 4890989000 PcB assembly
21 4890920000 PcB assembly
22 5610011000 tapping screw
23 5610075000 tapping screw
24 5670252000 Pin
25 5690181000 seal ring
