- Page 1 Handbuch Manual Manuel d‘utilisation Guia usario Manuale d´istruzioni Gebruiksaanwijzing Guia usário Instukcja obstugi X-TATIC SOUND CONTROL UNIT...
-
Page 2: Table Of Contents
Content Features X-Tatic Sound Control Unit (SCU) Specifications X-Tatic SCU Compatibility X-Tatic SCU Parts and accessories The SCU at a glance Sound settings / sound technologies 6.1 Volume / Dolby Pro Logic (VOL / PL) 6.2 TD / DRC 6.2.1 TD (Time-Delay) 6.2.2... -
Page 3: Features X-Tatic Sound Control Unit (Scu)
Dynamic Range Control 2. Specifications X-Tatic SCU • Digital optical input (S/PDIF) • 2 analogue audio outputs for the X-Tatic headset • 3 analogue 3.5 mm audio outputs (front, rear, center / subwoofer) • 1 microphone connector for PS3 (USB A > USB B) •... -
Page 4: Parts And Accessories
(2.5 mm jack > 2.5 mm jack / D) • Optical connection cable (S/PDIF / E) • Manual Note: If you are missing any of the items listed above, please contact customer service e-mail support@sharkoon.com or call: + 49 (0) 6403 – 775 6100 X-TATIC SOUND CONTROL UNIT... -

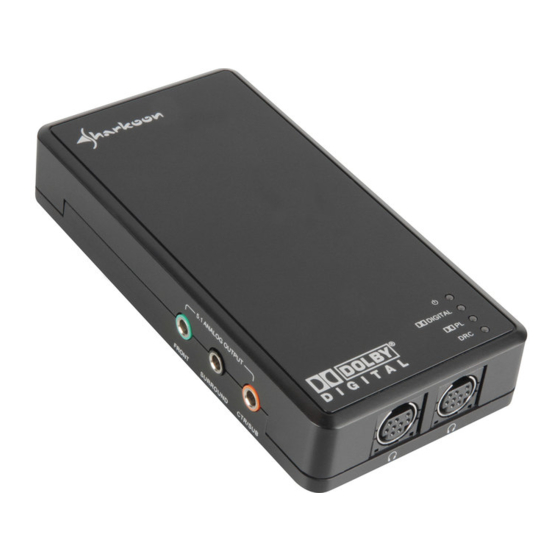

Page 5: The Scu At A Glance
LEDs for: – Power on / off – Dolby Digital on / off – Dolby ProLogic on / off – DRC on / off – Analogue audio outputs for the X-Tatic headset (2x 9-pin analogue plug) X-TATIC SOUND CONTROL UNIT... - Page 6 SCU power on / off button – Switch between Time-Delay for surround and center speaker – Switch between volume / Pro Logic (VOL / PL) and Time-Delay / Range Control (TD / DRC) – ISO power connector X-TATIC SOUND CONTROL UNIT...
-
Page 7: Sound Settings / Sound Technologies
It may take several seconds to recognize the signal and to display the current sound mode via LED. 6.1 Volume / Dolby Pro Logic (VOL / PL) Dolby Pro Logic is a Dolby technology which enables the transformation of a 2-channel signal into a 5.1-channel signal. X-TATIC SOUND CONTROL UNIT... -
Page 8: Td / Drc
6.2.2 DRC (Dynamic Range Control) Dynamic Range control limits the dynamic, decreasing the level difference between loud and quiet passages in a Dolby Digital 5.1 signal thus balancing the effect loudness. X-TATIC SOUND CONTROL UNIT... -
Page 9: Activating Td / Drc
“Pro Logic / DRC” (fig. 2 /D). fig. 2 The Sound Control Unit will keep all settings after shutdown. Changes to the Time-Delay settings in Dolby Digital 5.1 mode will affect the settings in Dolby Pro Logic mode and vice versa. X-TATIC SOUND CONTROL UNIT... -
Page 10: Restore The Factory Default / Reset
9-pin connector to the SCU’s according 9-pin plug. Connect the USB microphone cable to the respective plugs of the SCU and your PC. Connect the power supply delivered with the X-Tatic to a wall outlet and the headset cable’s ISO power connector. X-TATIC SOUND CONTROL UNIT... -
Page 11: Using The Scu With The Xbox / Xbox 360
2.5 mm microphone input on the X-Tatic’s volume controller and the controller of the game pad. Connect the power supply delivered with the X-Tatic to a wall outlet and the headset cable’s ISO power connector. Switch on the SCU and the game pad. -
Page 12: Using The Scu With The Ps2 / Ps3
Connect the USB microphone cable for PS3 to the SCU’s USB connector and the respective USB connector of the game pad. Connect the power supply delivered with the X-Tatic to a wall outlet and the headset cable’s ISO power connector. Switch on the SCU and the game pad. - Page 13 As a continuing policy of product improvement at SHARKOON, the design and specifications are subject to change without prior notice. National product specifications may vary. All rights reserved especially (also in extracts) for translation, reprinting, reproduction by copying or other technical means.
