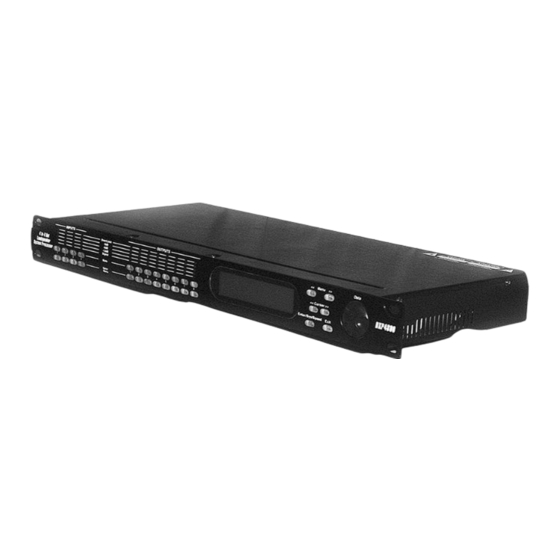

- Page 1 DXP4800 Loudspeaker Management System Owner’s Manual INSTALLATION GUIDE...
- Page 2 REFERENCE TO EC STATEMENT OF CONFORMITY This document confirms that the range of products of Community Professional Loudspeakers bearing the CE label meet all the requirements in the EMC directive 89/336/EEC laid down by the Member States Council for adjustment of legal requirements, furthermore the products comply with the rules and regulations referring to the electromagnetic compatibility of devices from 30 August 1995.
-
Page 3: Table Of Contents
Powering Up the Device ..........8 Operating the Device ............8 6.1 Input menus ..............8 6.2 Output Menus............9 6.3 System Menus............11 Quick Reference ............15 PC Control Software .............16 Specifications ...............17 10.0 Warranty and Service Information ......18 Community DXP4800 Owner’s Manual Page 3... -
Page 4: 1.0 Introduction
35 years. We’re really gratified you did and we will do our best to make sure you are satisfied with your new DXP4800 digital system controller. In order for you to get the most effective use of this product please take a few minutes to read this manual. -
Page 5: Features
Full 5-segment LED’s on every Input and Output Storage of up to 30 Program Setups Multiple Levels of Security Locks RS-232 Interface for PC Control and Configuration Options include Digital Audio I/O, RS485 and CobraNet Community DXP4800 Owner’s Manual Page 5... -
Page 6: Front Panel Functions
Enter is used only in the System Menu to proceed with selected actions. Sys enters the System Menu from the main menu. Speed modifies delay and frequency (1 Hz resolution mode) data values by 100X. Exit: Exit to the Main Menu Community DXP4800 Owner’s Manual Page 6... -
Page 7: Rear Panel Functions
1. Main Power - Connects via a standard IEC socket. A compatible power cord is supplied with the unit. The voltage input can be switched between 115VAC or 230VAC. The DXP4800 features a voltage switch to choose between 115VAC or 230VAC. 2. Main Fuse - T0.5A-250V for 115VAC and T0.25A-250V for 230VAC. Slow blow type. -
Page 8: Powering Up The Device
To cancel the linking, just press any other Menu key or the Sys key after releasing the held key. Input Menus Each of the DXP4800 input channels has a separate Menu key. There are 3 menus for each input channel. -
Page 9: Output Menus
IN_1:XXXXXX MENU:Ch-Name NAME:XXXXXX Name - Channel name. It is 6 characters in length. Output Menus Each output channel of the DXP4800 has a separate menu key. There are 6 menus for each output channel. Signal - Signal parameters OUT_1:XXXXXX MENU:Signal LEVEL:0.00dB... - Page 10 Low crossover High crossover configuration point point None FTRL Off FTRH Off Highpass FTRL not Off FTRH Off FRQL Lowpass FTRL Off FTRH not Off FRQH Bandpass FTRL not Off FTRH not Off FRQL FRQH Community DXP4800 Owner’s Manual Page 10...
-
Page 11: System Menus
Recall - Program Recall The DXP4800 has a built in non-volatile memory that can store up to 30 different program setups. A program can be recalled using this menu. Community DXP4800 Owner’s Manual... - Page 12 Store - Program store The DXP4800 has a built in non-volatile memory that can store up to 30 different program setups. A program can be stored using this menu. The old program with the same program number will be replaced. Once the program is stored in the flash memory, it can be recalled at a later time, even after power down.
- Page 13 PCLINK: - PC Link Enable. It enables (On) or disables (Off) RS232 communication with the PC software. It is recommended to turn off the link when the unit is not connected to the PC. Sampling - Sampling Rate Selection SYSTEM-SETUP MENU:Sampling SAMPLING RATE:96kHz Community DXP4800 Owner’s Manual Page 13...
- Page 14 24dB/Oct only, while 48kHz gives crossover slopes to 48dB/Oct. Security - Security Locks The DXP4800 enables the user to secure the unit and prevent undesired changes in the setup. In order to switch between the security level the user must enter the correct password. SYSTEM-SETUP MENU:Security...
-
Page 15: Quick Reference
Limit ATTACK 0.1/1 Out Release Time Limit RELEASE 2 / 4 / 8 / 16 / 32X Attack time Source Source 1, 2, 3, 4 Off / On Channel Name Ch-Name NAME 6 characters Community DXP4800 Owner’s Manual Page 15... -
Page 16: Pc Control Software
The DXP4800 is shipped with a special PC Graphic User Interface (GUI) application - XLink. XLink gives the user an option to control the DXP4800 unit from a remote PC via the RS232 serial communication link. The GUI application makes it much easier to control and monitor the device, allowing the user to get the whole picture on one screen. -
Page 17: Specifications
Audio: 3-pin XLR RS-232: Female DB-9 Power: Standard IEC Socket General Power: 115 / 230 VAC (50 / 60Hz) Dimensions: 19”x1.75”x8” (483x44x203 mm) Weight: 10lbs / 4.6kg Note: Specifications subject to change without notice Community DXP4800 Owner’s Manual Page 17... -
Page 18: Warranty And Service Information
Warranty and Service Information The Community DXP4800 Electronic System Controller is warranted in the USA to be free from defects in materials and workmanship for a period of one (1) years, as determined by one of the following two methods, whichever is longer: 1. - Page 19 This Community warranty is not extended by the length of time which an owner is deprived of the use of the product. Repairs and replacement parts provided under the terms of this warranty shall carry only the remaining portion of the warranty.
- Page 20 333 East 5 Street, Chester, PA 19013-4511 U.S.A. Phone (610) 876-3400 Fax (610) 874-0190 www.loudspeakers.net...
- Page 21 © 2004 Community Light & Sound, Inc. 040624JL Community DXP4800 Owner’s Manual Page 21...
