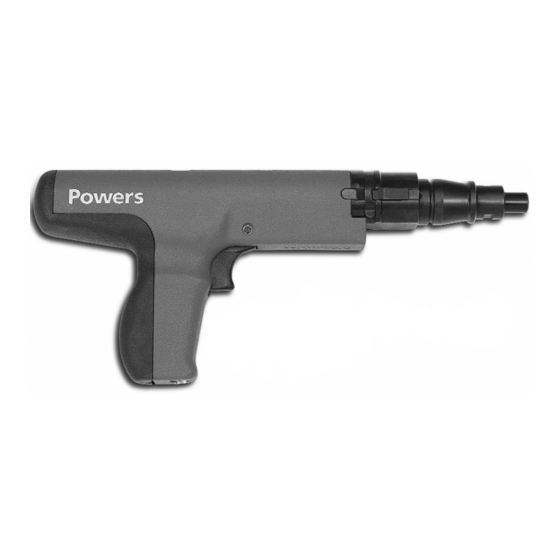

Low velocity powder actuated fastening tool
Hide thumbs Also See for P3500:
Table of Contents

Advertisement

Quick Links

See also: Operating Instructions Manual
MODEL P3500
WARNING
WARNING!
R2200
DANGER! - TO AVOID SERIOUS INJURY OR DEATH:
P3500
MANUAL CAT. NO. 52036 9/03

OPERATING INSTRUCTION

MANUAL
Low Velocity Powder Actuated
Fastening Tool
DO NOT OPERATE THE P3500 TOOL UNTIL YOU HAVE
READ THIS MANUAL AND RECEIVED THE PROPER
TRAINING ACCORDING TO ANSI STANDARD A 10.3-1995.
PRIOR TO OPERATING THE P3500 TOOL, STUDY THIS MANUAL CAREFULLY AND DEVELOP A THOROUGH
UNDERSTANDING OF THE CONTENTS.
PROPER TRAINING ACCORDING TO THE CURRENT ANSI STANDARD A 10.3, SAFETY REQUIREMENTS FOR POWDER
ACTUATED FASTENING SYSTEMS MUST BE COMPLETED AND A POWERS FASTENERS QUALIFIED OPERATOR CARD
MUST BE OBTAINED PRIOR TO OPERATION OF THE TOOL. STATE, LOCAL, OR OTHER REGULATIONS SHOULD ALSO BE
FOLLOWED. LAWS, REGULATIONS, AND STANDARDS REGARDING THE USE OF POWDER ACTUATED TOOLS MAY
PERIODICALLY BE REVISED. ANY SUCH REVISIONS MAY CHANGE THE SAFETY AND OPERATING PROCEDURES
DESCRIBED IN THIS MANUAL. POWERS FASTENERS, INC. IS NOT RESPONSIBLE FOR ANY SUCH REVISIONS WHICH
OCCUR AFTER PUBLICATION OF THIS MANUAL. IT IS THE RESPONSIBILITY OF THE USER TO MAINTAIN FAMILIARITY
WITH THE CURRENT LAWS, REGULATIONS, AND STANDARDS THAT APPLY TO THE POWDER ACTUATED TOOL.
NEVER CLOSE TOOL WITH ANY PART OF HAND OVER MUZZLE END.
OPERATORS AND BYSTANDERS MUST WEAR EYE AND HEARING PROTECTION.
ALWAYS ASSUME TOOL IS LOADED. DO NOT PLACE A FINGER ON THE TRIGGER OF LOADED TOOL UNTIL MUZZLE
END IS AGAINST WORK SURFACE AND YOU ARE READY TO MAKE A FASTENING. NEVER PLACE YOUR HAND OVER
THE MUZZLE WITH A POWDER LOAD IN THE TOOL. IF THE TOOL ACCIDENTALLY DISCHARGES THE PISTON OR
FASTENER MAY PENETRATE YOUR HAND RESULTING IN SERIOUS INJURY.
IT IS VERY IMPORTANT THAT THE OPERATOR OF THIS TOOL COMPLETELY READS AND UNDERSTANDS THE ENTIRE
TOOL MANUAL AND COMPLETES THE OPERATOR'S EXAM ON THE LAST PAGE. THE WARRANTY WILL NOT BE VALID
UNTIL THE TEST IS RECEIVED, WITH A COPY OF YOUR RECEIPT,
AND REVIEWED BY POWERS FASTENERS, INC.
CAT. NO.52000/Deluxe Kit
52001/Blister Pack
