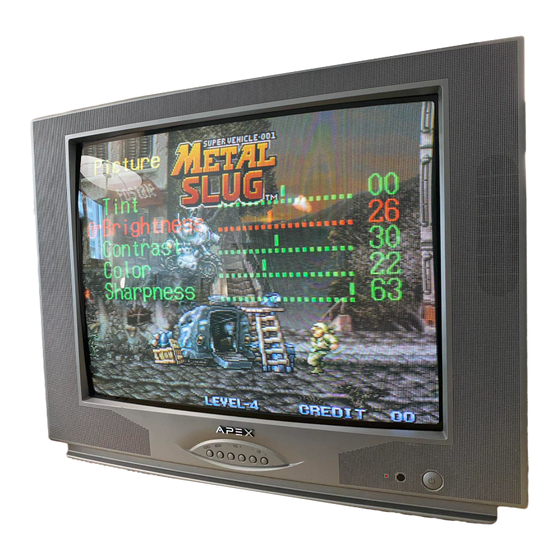

Apex Digital AT2408S, AT2708S Instruction Manual
Apex digital stereo color televisions instruction manual at2408s, at2708s
Hide thumbs
Also See for AT2408S, AT2708S:
- Instruction manual (16 pages) ,
- Instruction manual (46 pages) ,
- Service manual (62 pages)
Related Manuals for Apex Digital AT2408S, AT2708S
Summary of Contents for Apex Digital AT2408S, AT2708S
- Page 1 AT S TEREO OLOR ELEVISIONS INSTRUCTION MANUAL Standard - AT2408S, AT2708S Please read this manual carefully before operation.
-
Page 2: Introduction Safety Instructions
You will find the model number and chassis number of your TV on the back of your TV set. Record these numbers in the spaces provided below. Refer to them whenever you call APEX Digital customer service or your APEX dealer regarding this product. -
Page 3: Important Safety Instructions
Instruction Manual IMPORTANT SAFETY INSTRUCTIONS 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions. 8. -
Page 4: Table Of Contents
Instruction Manual INTRODUCTION Safety Instructions ...1 Specifications...3 Feature Descriptions ...4 Front and Rear Unit Profiles ...5 Remote Control Features ...6 INSTALLATION Connecting the Antenna ...7 Installing the Remote Control Batteries ...7 Connecting A/V Equipment Input from Device to TV ...8 Output from TV to Device ...8 FUNCTIONS &... -
Page 5: Packing List
Instruction Manual Feature Descriptions 181 Channel Tuner - total number of channels the TV can receive: 2-69 in Air mode, or 1-125 in Cable mode AV Input (Rear) - input designed for use with A/V devices, such as a VCR or DVD player AV Input (Front) - input designed for infrequent use, such as with a camcorder or video game unit AV Output (Rear) - output signals from TV to devices such as a VCR AV Stereo Sound - stereo sound for superior TV viewing experience... -
Page 6: Front And Rear Unit Profiles
Instruction Manual Front and Rear Unit Profiles Front panel AT2408S AT2708S STANDBY INFRARED SENSOR POWER INDICATOR AT2408S MENU SELECT CHANNEL DOWN/UP TV/VIDEO SELECT VOLUME DOWN/UP AT2708S MENU SELECT TV/VIDEO SELECT FRONT A/V INPUT VOLUME DOWN/UP CHANNEL DOWN/UP Rear panel... -
Page 7: Remote Control Features
Instruction Manual Remote Control Features FUNCTION Used for volume control and child lock KEYPAD Used to select channels by number 100+ Three digit select TIMER Accesses the Timer menu ARROWS Used to navigate the TV menus SCAN Scans all the active channels PICTURE Selects the various Picture Modes SOUND... -
Page 8: Installation
Instruction Manual INSTALLATION - Please read the safety instructions in this manual completely before installation. - Install your TV in an area where direct sunlight will not fall upon the screen. - Soft, indirect light is best for television viewing. - Allow enough space (at least 4 in.) between the TV and any walls or enclosures for proper ventilation. -
Page 9: Connecting A/V Equipment
Instruction Manual INSTALLATION (continued) Connecting A/V Equipment The following are diagrams showing basic instructions for attaching external equipment, like a VCR or DVD player, to your TV set. Please refer to operation manuals of external audio/video equipment that will be connected to your set for additional instructions. PLEASE TURN OFF ALL POWER BEFORE CONNECTING DEVICES TOGETHER. -
Page 10: Basic Functions Changing The Channel
Instruction Manual FUNCTIONS & FEATURES Turn On/Off 1. Turn On Plug in the power cord, and the TV should enter into Standby mode and its power indicator should light. Pressing STANDBY or the CH+/- key will turn on the TV and the power indicator will turn off. 2. -
Page 11: Tuner Menu
Instruction Manual FUNCTIONS & FEATURES Tuner Menu Note: This menu is only accessible while the TV is in Tuner mode. Channel: This feature allows you to change the channel displaying on screen. Use the left or right arrow key or the numeric keypad to change the channel. -
Page 12: Parental Guide
Instruction Manual FUNCTIONS & FEATURES (continued) System Menu (continued) Parental Guide This feature allows parents to block certain programs from being viewed, based on the programs' rating. In order to access this menu, you must first enter a pass code. The factory default is 6688. Enter the pass code while the Parental Guide is highlighted. -
Page 13: Useful Remote Control Features
Instruction Manual FUNCTIONS & FEATURES (continued) Useful Remote Control Features DISPLAY This key allows you to display the current information of the TV screen on the upper right hand corner of the screen. (channel, antenna mode, time, video, etc.) TIMER This key allows you to directly access the Timer menu. -
Page 14: Troubleshooting Guide
Instruction Manual TROUBLESHOOTING GUIDE Check the following guide for a possible correction to a problem before contacting customer service. Check FAQ at our website: www.apexdigitalinc.com. Symptoms No power No picture No sound No TV signal Stripe or purple interfe- rence appears in the screen. -
Page 15: Limited United States Warranty
Apex Digital, Inc. warrants this product and its parts against defects in material or workmanship for a period of ninety (90) days after the date of original retail purchase. During this period Apex Digital, Inc. will repair or replace a defective part or product at their option, with a new or refurbished part or product, without charge to you.You must deliver the entire product... - Page 16 APEX Digital, Inc. 2919 E. Philadelphia Avenue Ontario, California 91761 909-930-1239 FOR SERVICE CALL: 866-4-APEX-INC...
