Searchlight Operation - Peak Beam Systems Maxa Beam Operation Manual

1) Locate searchlight, battery and power
cable. Inspect items for physical
damage.

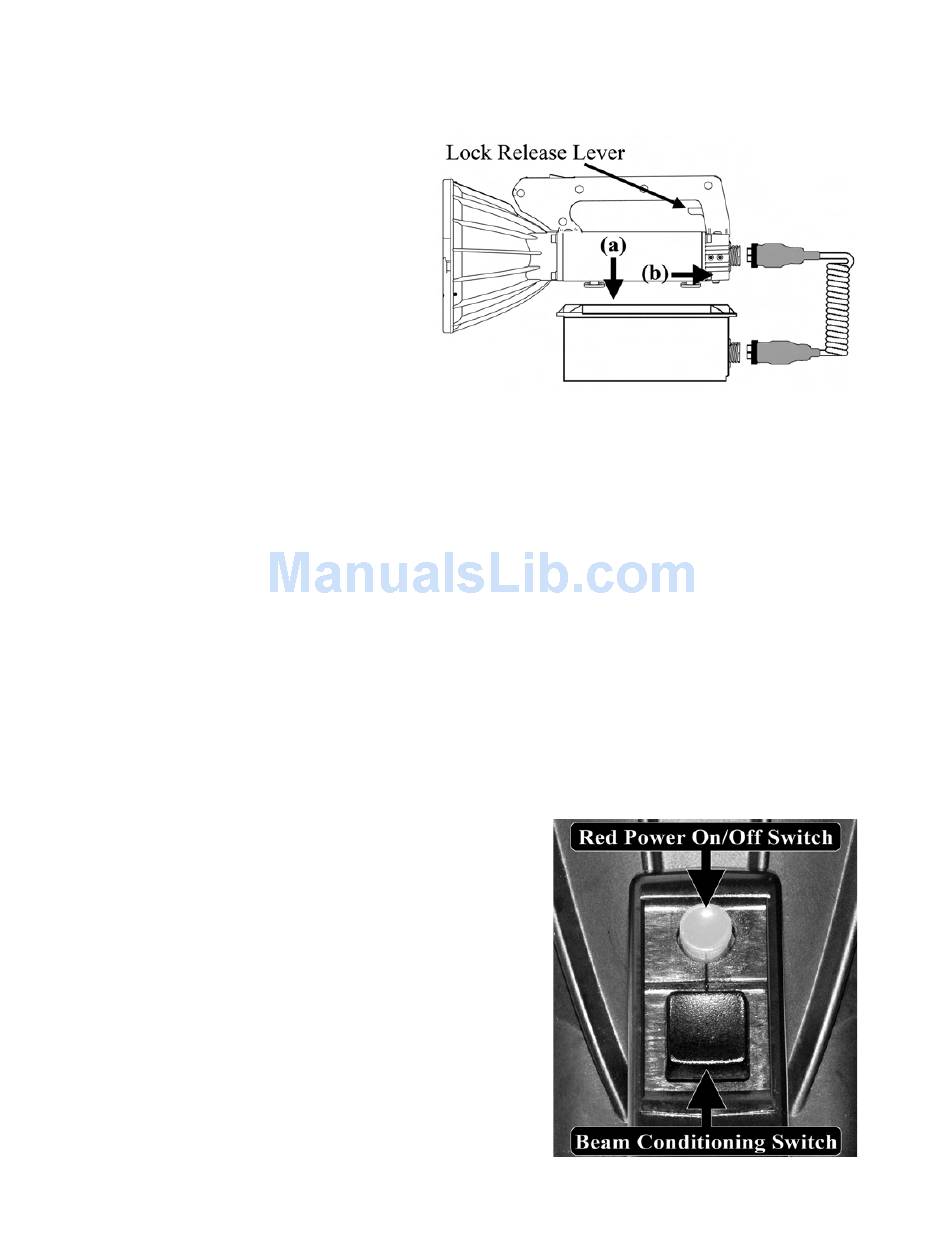

2) Attach Searchlight to Battery by
lining up the four feet of the
searchlight over holes in top of
battery (a). Lower the searchlight
into the holes and then slide the
searchlight towards the connector end
of the battery (b). If properly locked
in place the searchlight should not
move.
(To release searchlight from battery, lift lock release lever under searchlight handle, then
slide searchlight forward away from battery connector end.)
3) If desired, attach a battery shoulder strap to diagonally opposite ears on battery.
4) Attach male end of power cable to connector on battery. Attach female end of power cable
to 4-pin connector on searchlight. To lock rotate only the locking ring clockwise. All
connections are keyed; never force connections.
5) To Turn Searchlight On, press the red on/off switch. Searchlight starts on high power,
holds setting for 3 seconds, then drops to normal power.
6) To Adjust the Searchlight's Beam Width, pull the beam conditioning switch back to
increase beam width to flood. Push the beam conditioning switch forward to decrease beam
width to spot. The default beam width on start up is 9 degrees. To set a different beam width
on start up, please see the Programming section of this manual.
7) To Set Searchlight to Strobe, rock and hold the beam conditioning switch to the left. The
default setting is momentary strobe, which means that the searchlight will only strobe when
the beam conditioning switch is held to the left. To set continuous strobe or low beam mode,
please see the Programming section of this manual.
8) To Set Searchlight to High Beam, rock and hold
the beam conditioning switch to the right.
default setting is momentary high beam, which
means that the searchlight will only stay on high
beam when the beam conditioning switch is held to
the right. To set a 16 second timed high beam mode,
please see the Programming section of this manual.
9) To Attach a Maxa Beam Filter, line up the 3 tabs
on the filter with the slots on the front of the
searchlight. Place filter over front of searchlight and
turn filter counter-clockwise until it is fully seated.
Filter will lock in place. For filter options, see the
Filters and Accessories section of this manual.
4

Searchlight Operation

The
