Matrix MTX-HSPA-PH8-P+G User Manual

Umts-hspa terminal modem
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

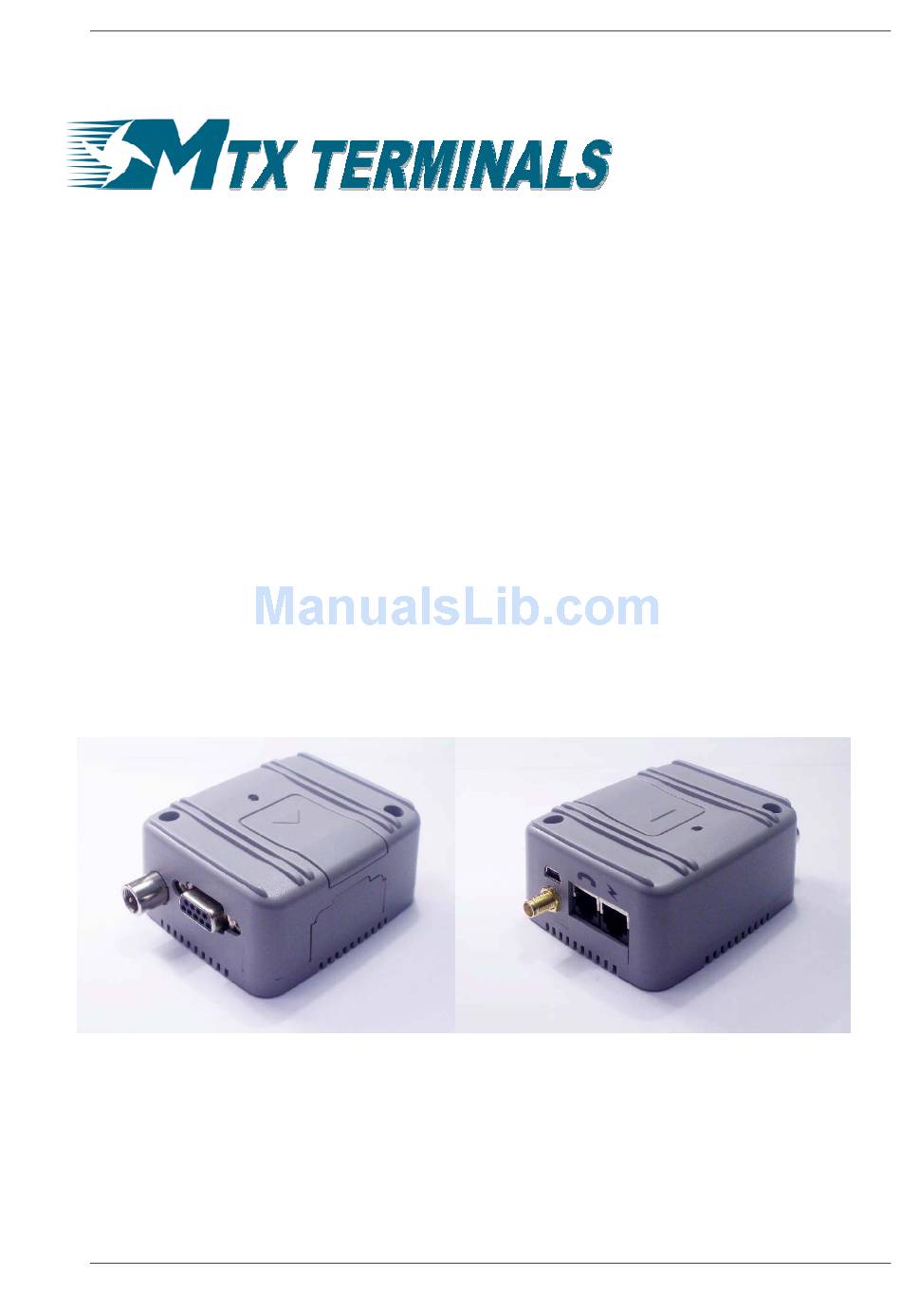

MTX-HSPA-PH8-P+G UMTS-HSPA terminal modem
http://www.matrix.es
MTX-HSPA-PH8-P+G
TERMINAL

User Manual

Powered by CINTERION WM PH8-P HSDPA-UMTS Wireless Module
MTX-HSPA-PH8-P+G
User Manual V.1.0
Pag. 1
Preliminary. Subject to change without prior notice

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MTX-HSPA-PH8-P+G and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Matrix MTX-HSPA-PH8-P+G

Summary of Contents for Matrix MTX-HSPA-PH8-P+G

  • Page 1: User Manual

    MTX-HSPA-PH8-P+G UMTS-HSPA terminal modem http://www.matrix.es MTX-HSPA-PH8-P+G TERMINAL User Manual Powered by CINTERION WM PH8-P HSDPA-UMTS Wireless Module MTX-HSPA-PH8-P+G User Manual V.1.0 Pag. 1 Preliminary. Subject to change without prior notice...

  • Page 2: Important Information

    Matrix Electronica has been advised of the possibility of such damages.

  • Page 3: Table Of Contents

    MTX-HSPA-PH8-P+G UMTS-HSPA terminal modem http://www.matrix.es   1. INTRODUCTION ..............................5 1.1 Description ..........................5   1.2 Highlights ..........................6   1.3 Main Features and Services ....................... 7     1.3.2 Short Message Service ............................ 9   1.3.3 Voice Calls ..............................9  ...
  • Page 4     7.1.1 Environmental conditions ..........................27   7.1.2 Signal strength .............................. 27   7.1.3 Connections of components to MTX-HSPA-PH8-P+G Terminal ..............27   7.1.4 Network and Subscription ..........................27 7.2 How to install the modem ......................27    ...
  • Page 5 UMTS data rate 57.6 kpbs V.120) as well Short Messaging (SMS) and FAX specifications. It also has an analogue interface and is capable to make voice communication calls. As a plus feature the MTX-HSPA-PH8-P+G adds a GPS receiver and NMEA protocol in the third multiplex channel (MUX GSM 07.10 protocol is needed).

  • Page 6: Mtx-Hspa-Ph8-P+G Umts-Hspa Terminal Modem

    MTX-HSPA-PH8-P+G UMTS-HSPA terminal modem http://www.matrix.es 1.2 Highlights General features: Specification for HSDPA data transmission: • HDPA 14.4 Mbps • HSDPA: max. 3.6 Mbps (DL), max. 384 kbps (UL) • Tri-Band UMTS/HSPA (WCDMA/FDD) 850/1900/2100 MHz • UE CAT [1-6], 11, 12 supported •...

  • Page 7: Main Features And Services

    1.3 Main Features and Services The MTX-HSPA-PH8-P+G perform a set of telecom services (TS) according to GSM standard phase 2+, ETSI and ITU-T. The services and functions of the MTX-HSPA-PH8-P+G are implemented by AT commands issued over the USB or ASC0 RS232 interface.
  • Page 8 MTX-HSPA-PH8-P+G UMTS-HSPA terminal modem http://www.matrix.es Feature Implementation Point-to-point MT and MO Cell broadcast Text and PDU mode Audio Audio speech codecs GSM: AMR, EFR, FR, HR 3GPP: AMR Speakerphone operation, echo cancellation, noise suppression, 9 ringing tones, TTY support GNSS...

  • Page 9: Short Message Service

    MTX-HSPA-PH8-P+G UMTS-HSPA terminal modem http://www.matrix.es 1.3.2 Short Message Service The wireless modem supports the following SMS services: • Sending; MO (mobile-originated) with both PDU (protocol data unit) and text mode supported. • Receiving; MT (mobile-terminated) with both PDU and text mode supported.
  • Page 10 MTX-HSPA-PH8-P+G UMTS-HSPA terminal modem http://www.matrix.es HSPA DATA HSPA data transfer in progress. Power consumption depends on network settings (e.g. TPC Pattern) and data transfer rate. Power The internal power section is shut down. The SW on the module is not active. The interfaces are not Down accessible.

  • Page 11: Air Interface

    MTX-HSPA-PH8-P+G UMTS-HSPA terminal modem http://www.matrix.es HSDPA Data transfer Band I @+23dBm USB suspend USB transceiver IVUSB supply current (average) USB active With an impedance of Z =50Ohm at the antenna connector. LOAD Without neighbouring cells; without t3212 timer occurrence. Under total mismatch conditions at antenna connector.
  • Page 12 E-GSM 900 GSM 1800 GSM 1900 1.3.8 SIM Card The MTX-HSPA-PH8-P+G supports an external SIM card through the integrated SIM holder. Both 3V and 1.8V SIM technology is supported. Older, 5V SIM technology is not supported. MTX-HSPA-PH8-P+G User Manual V.1.0 Pag.

  • Page 13: Mechanical Description

    MTX-HSPA-PH8-P+G UMTS-HSPA terminal modem http://www.matrix.es 2. MECHANICAL DESCRIPTION 2.1 Overview The pictures below show the mechanical design of the module along with the positions of the different connectors and mounting holes. The module case is made of durable PC/ABS plastic.
  • Page 14 MTX-HSPA-PH8-P+G UMTS-HSPA terminal modem http://www.matrix.es 2.2. Dimensions Figure 5. Dimensions of the MTX-H25+PLUS terminal in mm MTX-HSPA-PH8-P+G User Manual V.1.0 Pag. 14 Preliminary. Subject to change without prior notice...

  • Page 15: Electrical Description

    MTX-HSPA-PH8-P+G UMTS-HSPA terminal modem http://www.matrix.es 3. ELECTRICAL DESCRIPTION All electrical connections to the module are protected in compliance with the standard air and contact Electrostatic Discharge (ESD). The module uses the following industry standard connectors:  USB port  RJ12 6-way (power supply connector) ...

  • Page 16: Audio Connector

    • For electret microphones, a supply source is implemented. • The MTX-HSPA-PH8-P+G is pre-configured to work with a range of handsets. The audio interface is flexible and its performance can be configured using AT commands to match a particular handset or audio subsystem.
  • Page 17 MTX-HSPA-PH8-P+G UMTS-HSPA terminal modem http://www.matrix.es The electrical characteristics are given in the table below. Audio mode no. AT^SNFS= Default Name Headset Speaker phone Router User Handset Transparent Handset DSB with Analogue Direct access Handheld Purpose Votronic phone inter- Mono Headset...

  • Page 18: Mini Usb Connector

    The USB host is responsible for supplying, across the VUSB_IN line, power to the module’s USB interface but not to other MTX-HSPA-PH8-P+G interfaces. This is because the MTX-HSPA-PH8-P+G is designed as a self powered device compliant with the “Universal Serial Bus Specification Revision 2.0”.

  • Page 19: Umts-Gsm Antenna Connector

    MTX-HSPA-PH8-P+G UMTS-HSPA terminal modem http://www.matrix.es 3.5 UMTS-GSM Antenna Connector The antenna connector allows the transmission of radio frequency (RF) signals between the modem and an external customer-supplied antenna. The modem is fitted with a 50Ω, FME male coaxial jack. The external antenna must be matched properly to achieve best performance regarding radiated power, DC-power consumption, modulation accuracy and harmonic suppression.

  • Page 20: Sim Card Reader

    3.7. SIM card reader The MTX-HSPA-PH8-P+G Terminal is fitted with a SIM card reader and is designed for 1.8V and 3V SIM cards 3GPP 31.102 and ETSI 102 221. It is the flip-up type which is lockable in the horizontal position and is accessed through a removable panel as shown below: The card holder is a five wire interface according to GSM 11.11.

  • Page 21: Software Updates

    The MTX-HSPA-PH8-P+G contains a real time clock (RTC) to maintain accurate timekeeping and to enable “time stamping” of messages. The internal Real Time Clock of MTX-HSPA-PH8-P+G is supplied from a separate voltage regulator in the analog controller which is also active when MTX-HSPA-PH8-P+G is in POWER DOWN status.

  • Page 22: Switching On The Modem

    • Either use the AT^SMSO command; RECOMMENDED. The AT^SMSO command lets the MTX-HSPA-PH8-P+G Terminal log off from the network and allows the software to enter into a secure state and save data before disconnecting the power supply. The mode is referred to Power-down mode.

  • Page 23: Operating States/Led

    MTX-HSPA-PH8-P+G UMTS-HSPA terminal modem http://www.matrix.es 4.3 Operating States/LED The modem has an LED which displays the operating status of the Terminal. An LED is provided for signaling the module’s network connectivity status. This status function has to be activated with AT^SLED=2. This command is VOLATILE; the configuration is lost when the terminal shuts down.

  • Page 24: Ph8 At Command Interpreter

    This eliminates the need for the user to enter AT commands, such as +++, ATO and to switch back and forth between command and online mode when working on one interface only. See MTX-HSPA-PH8-P+G start user guide for a complete step by step installation process. MTX-HSPA-PH8-P+G User Manual V.1.0 Pag.

  • Page 25: Safety Instructions

    6.2. General precautions The MTX-HSPA-PH8-P+G Terminal as a stand-alone item is designed for indoor use only. For outdoor use it must be integrated into a weatherproof enclosure. Do not exceed the environmental and electrical limits as specified in “Technical Data”.

  • Page 26: Antenna Precautions

    >20cm from the body. In all other configurations the integrator is responsible for meeting the local SAR regulations. Users of the MTX-HSPA-PH8-P+G wireless modem device are responsible for ensuring that they meet the SAR regulatory requirements of the countries in which they intend to operate the device and that their documentation contains the relevant SAR declaration, certification information, and user guidance as appropriate.

  • Page 27: Installation Of The Modem

    MTX-HSPA-PH8-P+G UMTS-HSPA terminal modem http://www.matrix.es 7. INSTALLATION OF THE MODEM This chapter gives you advice and helpful hints on how to integrate the MTX-HSPA-PH8-P+G Terminal into your application from a hardware perspective. 7.1 Where to install the modem There are several conditions which need to be taken into consideration when designing your application as they might affect the modem and its function.

  • Page 28: Securing The Modem

    • Where access is restricted, it may be easier to connect all the cables to the modem prior to securing it in the application. • Securely attach the MTX-HSPA-PH8-P+G Terminal modem to the host application using two 3mm diameter pan-head screws.

  • Page 29: Possible Communications Disturbances

    8. ACCESSORIES The MTX-HSPA-PH8-P+G has been type approved together with a range of accessories including power supply, all type of antennas (indoor, outdoor, high gain, etc…), cables and a DIN adapter. We ship the MTX-HSPA-PH8-P+G without any accessories.

  • Page 30: Conformity Assessment

    Alejandro Sanchez 109 28019 Madrid Spain We declare under our sole responsibility that the products MTX-HSPA-PH8-P+G Terminal V2.0, containing Cellular Engine Siemens AG engine PH8 (Type S30960-N1055-A200), to which this declaration relates, are in conformity with the following standards and/or directives:...

  • Page 31: Rohs Statement

    MTX-HSPA-PH8-P+G UMTS-HSPA terminal modem http://www.matrix.es 10. ROHS STATEMENT The MTX-HSPA-PH8-P+G is compliant with the 2002/95/EC Directive of the European Parliament and of the Council of 27 January 2003 on the restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS).

  • Page 32: Abbreviations

    MTX-HSPA-PH8-P+G UMTS-HSPA terminal modem http://www.matrix.es 12. ABBREVIATIONS Abbreviation Explanations Cell Broadcast Message Cell Broadcast Service Circuit Switched Data Data Circuit Terminating Equipment Data Terminal Equipment DTMF Dual Tone Multi Frequency Enhanced Full Rate Electro-Magnetic Compatibility ETSI European Telecommunication Standards Institute...

  • Page 33: At Command Summary

    (TE) to the terminal adaptor (TA). The command line consists of a string of alphanumeric characters. It is sent to the MTX-HSPA-PH8-P+G to instruct it to perform the commands specified by the characters.
  • Page 34 MTX-HSPA-PH8-P+G UMTS-HSPA terminal modem http://www.matrix.es AT+CIMI Request International Mobile Subscriber Identity (IMSI) AT+CLCC List current calls of ME AT+CLCK Facility lock AT+CLIP Calling Line Identification Presentation AT+CMEE Mobile Equipment Error Message Format AT+CMGC Send an SMS command AT+CMGD Delete short message...
  • Page 35 MTX-HSPA-PH8-P+G UMTS-HSPA terminal modem http://www.matrix.es AT+CSMP Set SMS text Mode Parameters AT+CSMS Select Message Service AT+CSQ Signal quality AT+CSSN Supplementary service notifications AT+CSTA Select type of address AT+ES Synchronous Data Mode Configuration AT+ESA Synchronous access mode configuration AT+GCAP Request complete TA capabilities list...
  • Page 36 MTX-HSPA-PH8-P+G UMTS-HSPA terminal modem http://www.matrix.es Set result code presentation mode ATS0 Set number of rings before automatically answering a call ATS10 Set disconnect delay after indicating the absence of data carrier ATS3 Set command line termination character ATS4 Set response formatting character...

  • Page 37: Sales Contact

    MTX-HSPA-PH8-P+G UMTS-HSPA terminal modem http://www.matrix.es 14. SALES CONTACT www.mtx-terminals.com gsmsupport@matrix.es Matrix Madrid Matrix Electronica S.L.U. C/ Alejandro Sánchez, 109 28019 - Madrid Spain Tel. +34 91 5602737 Fax. +34 91 5652865 matrix@matrix.es MTX-HSPA-PH8-P+G User Manual V.1.0 Pag. 37 Preliminary. Subject to change without prior notice...
