Helo T2 Installation And User Manual
Hide thumbs
Also See for T2:
- Installation and user manual (100 pages) ,
- Operating and installation instructions (18 pages)
Related Manuals for Helo T2
Summary of Contents for Helo T2

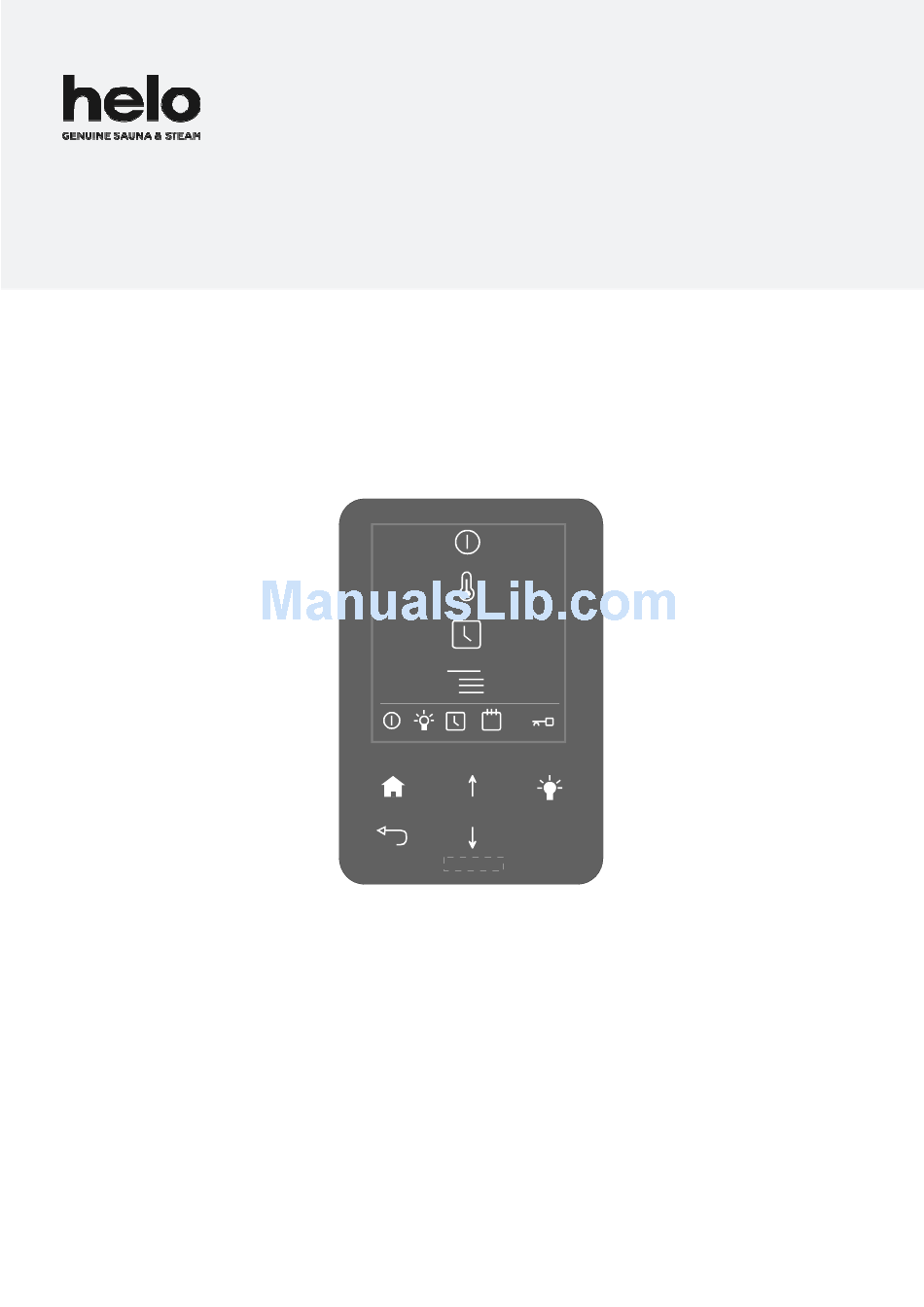

- Page 1 Installation and User's Manual Helo T2 CONTROL CENTRE RA – 28 (T2) 314 SYRA 67-3 C...
-
Page 2: Table Of Contents
4. Temperatures approaching 70°C assure a pleasant, smooth sauna bath experience. General information on the control panel Control centre 1601 – 28 (T2) and contactor case 2005 – 14 (WE – 14) can be used with the following sauna heaters: - SKLE - .…... -
Page 3: Circuit Diagram
NOTE: The cable connecting the Contactor case WE-14 to the Control centre must be screened, e.g. LiYY 4 x 0.25mm². Maximum length of the cable is 50m. Connecting terminal markers A, B, 11 Sensor markers SR1 and SR2 as well as and 12 of the Control panel T2 17 and 18 of the circuit board... -
Page 4: Basic Schematic Of The Terminal Connections And The Installation
Installation and User’s Manual Helo T2 Basic schematic of the terminal connections and the installation Connector strip Limiter Contactor box Sensor cable SR 1 SR 2 SR 1. Blue 1. Blue SR 2. White 2. White 17. Red 3. Red 18. -
Page 5: Installation And Use Of Control Panel T2
Installation and User’s Manual Helo T2 Installation and use of Control panel T2 Control panel RA28 (T2) Open the screw at the head of the control panel. Remove the control panel frame and lid. Install the bottom piece for the Install and connect the cable. -
Page 6: Control Panel T2
Installation and User’s Manual Helo T2 Control panel T2 Display Activated functions Touch display keys Motion sensor Screen symbols explained: Start and stop. Sauna room temperature setting. Value 60–110°C. 24h timer and calendar timer. The 24h timer can be pre-set 0–24 hours in advance to turn on the sauna heater. -
Page 7: Control Panel Functions
Installation and User’s Manual Helo T2 Control panel functions: General The control panel is intended for installation outside the sauna room. ‐ Maximum bathing time in monitored facility use is 18 hours. With timer control the maximum time is 12 hours, ‐... - Page 8 Installation and User’s Manual Helo T2 The door switch can be utilized also in supervised institutional and in private use. 22°c 19:34 Basic mode: 2012-03-10 In its basic mode, the control panel's screen is off. As the control panel senses an object e.g.
- Page 9 Installation and User’s Manual Helo T2 Settings The control panel has the following sub-menus: Settings Sauna Sauna ¤ Standby. The standby temperature can be set 0–20°C below the target temperature. General Service The standby temperature can be used also if a sauna user prefers a lower sauna room temperature;...
-
Page 10: External Switch Function
As long as the maximum time and temperature have been pre-set on the T2 Control panel, the sauna heater will stay on. If the calendar timer or the 24h timer has been programmed, the LED indicator light on the push button will blink slowly. -
Page 11: Rohs
Installation and User’s Manual Helo T2 RoHS Ympäristönsuojeluun liittyviä ohjeita Anvisningar för miljöskydd Tämän tuotteen käyttöiän päätyttyä sitä ei Denna produkt får inte kastas med saa hävittää normaalin talousjätteen vanliga hushållssopor när den mukana, vaan se on toimitettava inte längre används. Istället ska den sähkö- ja elektroniikkalaitteiden kierrätykseen...
