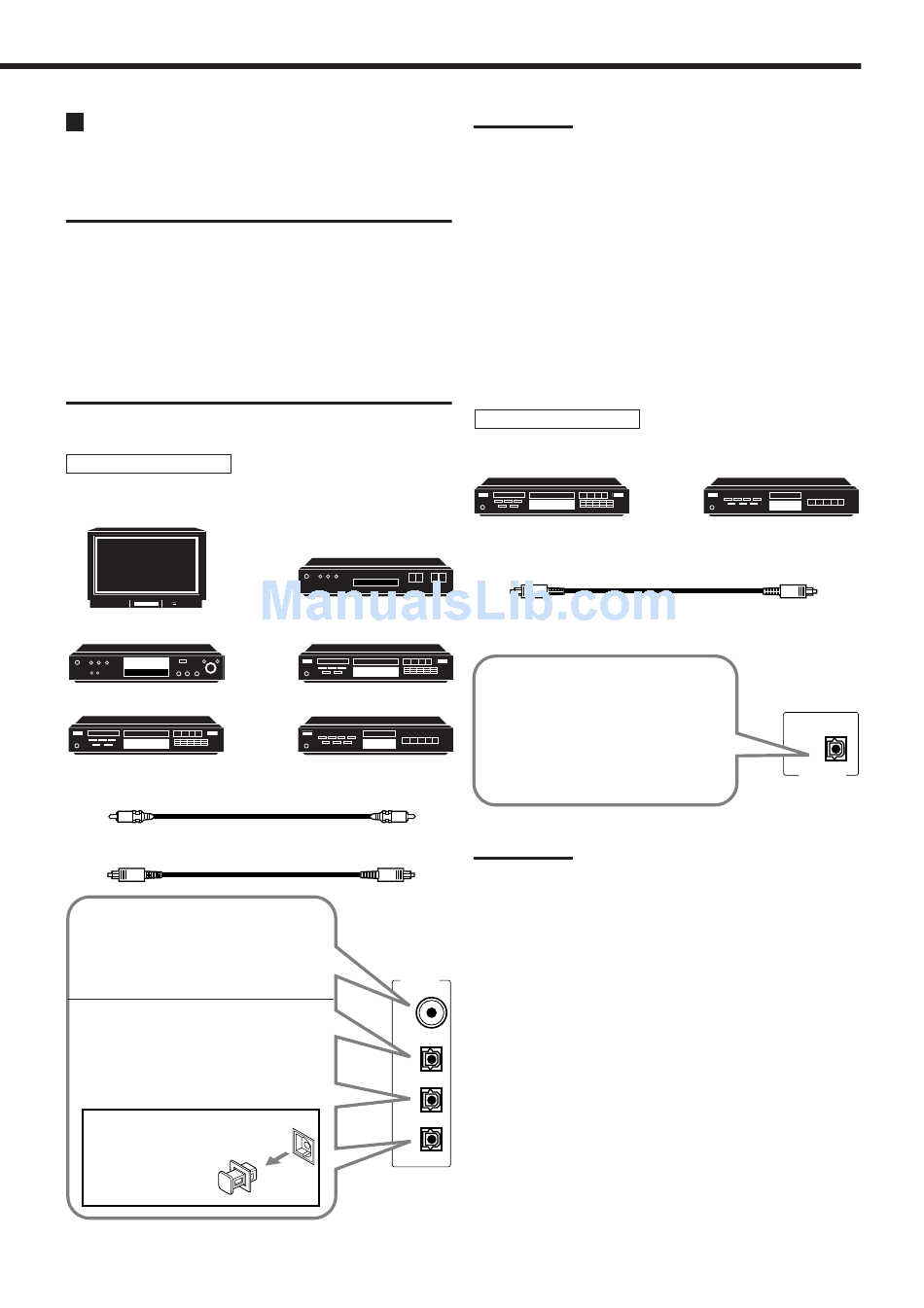

Digital Connections

This receiver is equipped with four DIGITAL IN terminals — one
digital coaxial terminal and three digital optical terminals — and
one DIGITAL OUT terminal.
IMPORTANT:
• When connecting the DVD player, digital TV broadcast tuner or
DBS tuner using the digital terminals, you also need to connect it to
the video terminal on the rear. Without connecting it to the video
terminal, you can view no playback picture.
• After connecting the components using the DIGITAL IN terminals,
set the following correctly if necessary.
– Set the digital input (DIGITAL IN) terminal setting correctly. For
details, see "Digital Input (DIGITAL IN) Terminal Setting" on page
30.
– Select the digital input mode correctly. For details, see "Selecting
the Analog or Digital Input Mode" on page 31.
Digital input terminals
You can connect any digital equipment as follows:
Digital TV
DVD player
DVD
CD recorder
Digital coaxial cable (not supplied)
between digital coaxial terminals
Digital optical cable (not supplied)
between digital optical terminals
When the component has a digital
coaxial output terminal, connect it to the
DIGITAL 1 (DVD) terminal, using the
digital coaxial cable (not supplied).
When the component has a digital
optical output terminal, connect it to the
DIGITAL 2 (CD), DIGITAL 3 (TV) or
DIGITAL 4 (CDR) terminal, using the
digital optical cable (not supplied).
Before connecting a digital
optical cable, unplug the
protective plug.
Notes:
• When shipped from the factory, the DIGITAL IN terminals have
been set for use with the following components:
– DIGITAL 1 (coaxial): For DVD player
– DIGITAL 2 (optical): For CD player
– DIGITAL 3 (optical): For digital TV broadcast tuner
– DIGITAL 4 (optical): For CD recorder
• When you want to operate the CD player, CD recorder, or MD
recorder using the COMPU LINK remote control system, connect
the target component also as described in "Analog connections"
(see pages 7 and 8).
• When you want to operate the DVD player using the AV COMPU
LINK remote control system, connect the DVD player also as
described in "Analog connections" (see page 9).
• To use the digital source components as the sub-room source, you
need to connect them using analog connection methods as well.
Digital output terminal
DBS tuner
DBS
CD player
When the digital recording
equipment such as an MD recorder
MD recorder
and a CD recorder has a digital
optical input terminal, connecting it
to the DIGITAL OUT terminal
enables you to perform digital-to-
digital recording.
Note:
The digital signal format output through the DIGITAL OUT terminal is
the same as that of the input signal. This means that when the DTS
Digital Surround signals are input, the DTS Digital Surround signals
are output.
DIGITAL IN
DIGITAL 1 (DVD)
DIGITAL 2 (CD)
DIGITAL 3 (TV)
DIGITAL 4 (CDR)
CD recorder
Digital optical cable (not supplied)
between digital optical terminals
MD recorder
PCM/DOLBY DIGITAL
/DTS
DIGITAL OUT
10
