71M6521 Demo Board
Getting Started

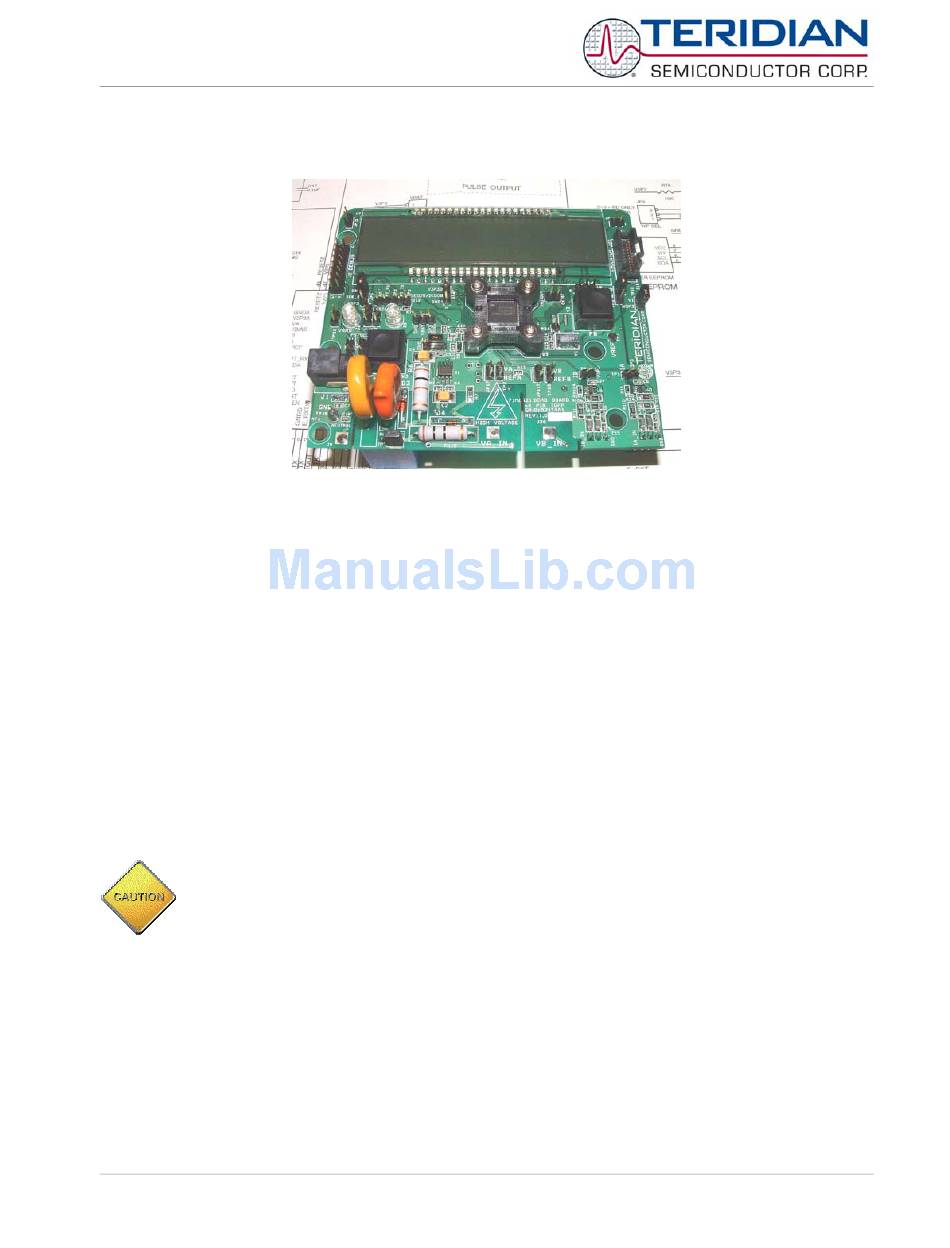

The TERIDIAN Semiconductor Corporation (TSC) 71M65121 Demo Board is a demonstration board for evaluating
the 71M6521D, 71M6521F, and 71M6521B devices for single-phase electronic power metering applications on a
two-layer PCB. It incorporates a 71M6521 integrated circuit, peripheral circuitry such as a serial EEPROM, emulator
port, and on-board power supply as well as a companion Debug Board that allows a connection to a PC through a
RS232 port. The Demo Board allows the evaluation of the 71M6521 energy meter IC for measurement accuracy and
overall system use.
The Demo Board is pre-loaded with MPU Demo Code in the FLASH memory of the 71M6521 IC. This embedded
application is developed to exercise all peripherals, flash programming, and CPU management (clock, timing, power
savings, etc.), and to provide easy access to all metering information.
Downloading of any other TSC or custom application can be done through the in-circuit emulator port using the
Signum ADM51 emulator or the Flash Programmer Module (TFP-1).
Safety and ESD Notes
Connecting live voltages to the demo board system will result in potentially hazardous voltages on the demo board.
EXTREME CAUTION SHOULD BE TAKEN WHEN HANDLING THE DEMO BOARD ONCE
IT IS CONNECTED TO LIVE VOLTAGES!
THIS DEMO SYSTEM IS ESD SENSITIVE! ESD PRECAUTIONS SHOULD BE TAKEN
WHEN HANDLING THE DEMO BOARD!
Demo Board Kit Contents
•
71M6521 Demo board in current transformer (CT) configuration containing one 71M6521 with pre-
loaded Demo Program
•
Debug Board with Serial cable, DB9, Male/Female, 2m (Digi-Key order number AE1379-ND)
•
Current shunt, pre-wired
•
2 x 5VDC/1,000mA universal voltage wall transformer w/ 2.5mm plug (Switchcraft 712A compatible)
•
CD-ROM containing documentation (Demo Board User's Manual, data sheet, board schematics, BOM,
layout), Demo Code and utilities
Note: The CD-ROM contains a file named readme.txt specifying all files found on the CD-ROM and their purpose.
Revision 1.0
QUICK START GUIDE
© Copyright 2004-2006 TERIDIAN Semiconductor Corporation
1 of 2
