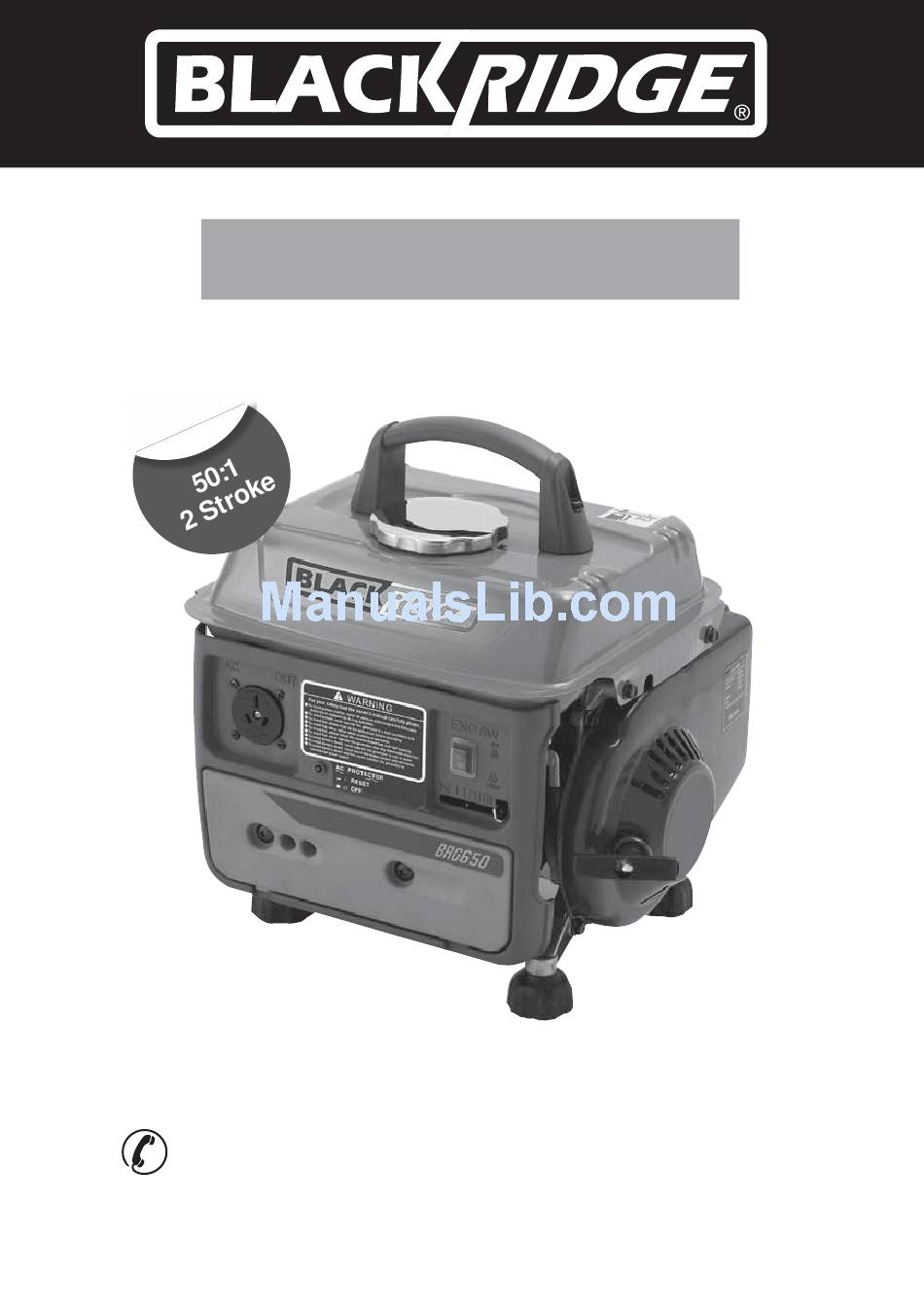

- Page 1 650W Generators For service, spare parts or product information, please contact Smart Marketing Group Pty. Ltd. AUST. 1300 660 457 N.Z. 0800 474 876 02824 08/11...
-
Page 2: Table Of Contents
3 – 4 multiple devices. General Safety Instructions 5 – 7 TECHNICAL INFORMATION Specific Safety Instructions Electrical Information Specifications Generator BRG650 Components and Controls Output Voltage 240V AC ~ 50Hz Operating Instructions 11 – 16 Continuous Maintenance 16 – 17... -
Page 3: Introduction
INTRODUCTION What is covered • Manufacturing fault or defect. Dear Customer, How to claim under this warranty. Thank you for purchasing this generator which has • Call customer service, phone number at the top. passed through our extensive quality assurance •... - Page 4 COMPLETE WARRANTY STATEMENT – GENERATOR GROUP As soon as you have purchased the generator, Damage caused to attached equipment or third we recommend that you check to make sure party accessories will not be covered under it is intact and that you read the operating this warranty.
-
Page 5: General Safety Instructions
SAFETY SELECT A GENERATOR WITH A Before attempting to operate this generator SUFFICIENT RATING the following basic safety precautions should be taken to reduce the risk of fire, electric Select the right generator for the job. Do not shock and personal injury. It is important to use a generator to do a job for which it was not read the instruction manual and to understand designed. - Page 6 MAINTAIN YOUR GENERATOR EXTENSION CORDS & REELS WITH CARE Inspect extension cords periodically and replace if damaged. Never use damaged extension cord When not using your generator ensure the fuel as these may cause injury. Always unwind any cock is ‘OFF’. Never leave the fuel cock ‘ON’ extension cords fully before plugging into mains as this can damage the carburettor.
- Page 7 PERSONAL SAFETY Clothing Do not wear loose clothing, jewellery or anything that could get caught in moving machinery. Hair Long hair should be tied back or contained in a protective covering. Eye Protection The use of safety goggles is highly recommended (normal glasses are not sufficient for eye protection) when using or refuelling generators.
-
Page 8: Specific Safety Instructions
SPECIFIC SAFETY • Never operate or store the generator on its side, ALWAYS operate or store in an upright INSTRUCTIONS manner on firm, solid ground. Warning! Do not use the generator in areas • Your generator is factory set, NEVER attempt where there is a risk of explosion or fire from to speed it up as this could endanger the user combustible materials. -
Page 9: Electrical Information
IMPORTANT ELECTRICAL DATA This generator is fitted with a sealed electrical connection socket that is compatible with the generator. If the electrical connection socket becomes damaged it must be replaced with a complete assembly that is identical to the original, and this must be replaced by an authorised service agent. Never connect to an external power supply. -
Page 10: Components And Controls
MIXING 2-STROKE FUEL 50 : 1 Unleaded Petrol (ULP) : Two (2) Stroke Oil 1 litre:20ml 1. Use only unleaded petrol (ULP) and 2 stroke 2 litre:40ml oil. Ratio 50:1 2. Ensure you use clean fresh unleaded petrol (ULP) + 2 stroke oil. 3. -
Page 11: Operating Instructions
OPERATING INSTRUCTIONS PIC. 2 Unpacking Carefully unpack your generator. This generator is bulky and heavy, two (2) person lift required. Dispose of all packing material in an environmentally responsible manner. Open carton, gently lift the generator clear of the carton and packaging, this may require 2 people. Remove from plastic bag. - Page 12 Generator ‘Earthing’ PIC. 3 Always ensure that this generator is “Earthed” BEFORE starting and using. 1. Ensure that engine is OFF when fitting the “Earth” stake and wire. 2. Attach the wire to the “Earth” point on the generator, see Pic. 3. 3.
- Page 13 USING YOUR GENERATOR PIC. 6 C Outlet Your generator is equipped with dual 240V AC power sockets this will run a range of devices providing they are with in the limits of the generators output. NOTE: The peak (surge) power requirements of some devices e.g.
- Page 14 Output Power Circuit PIC. 7 Breaker AC The AC output power circuit breaker, Pic. 7, will only turn OFF if the attached device is faulty or if the devices required power is greater than the generators ability. If this circuit breaker does turn OFF;...
-
Page 15: Your Generator
STOPPING YOUR GENERATOR PIC. 8 Important: Before stopping the engine ensure ALL electrical appliances or power leads are unplugged from the generator. Cooling Down Allow your generator to idle, CHOKE OFF, NO LOAD or 1-2 minutes. This will allow all components to cool gradually and prolong the life of the generator. -
Page 16: Maintenance
SAFETY DEVICES PIC. 9 AC Outlet Fuel tank filter under Your generator is equipped with an AC circuit fuel tank cap breaker, see page 14. If this is OFF, then the generator will produce NO POWER. To restart the power supply; 1. -
Page 17: Air Filter
Spark Plug Lift plug cap off PIC. 10 Spark plug should be checked every 50 hours the spark plug (operation) or every 3 months and replaced every 100 hours (operation) or every 6 months, which ever occurs first or whenever considered necessary. -
Page 18: Trouble Shooting
Insufficient ventilation to a more adequate supply of fresh air Repairs Repairs to your generator should only be carried out by an authorised service agent. Call BLACKRIDGE for your closest centre, Aust. Aust. 1300 660 457 N.Z. 0800 474 876. -
Page 19: Parts Diagram
PARTS DIAGRAM User replaceable parts listed below. All other parts must be serviced/replaced by an authorised service agent. Part Description SMG Part No. Tank Handle 84 BRG650TH Tank Handle Screw 84 BRG650HS Tank 84 BRG650FT Recoil Starter 84 BRG650RS... -
Page 20: Contact Information
SERVICE LOG Purchase Date Place of Purchase This Service is to be complete within 50 hours or This Service is to be complete within 100 hours or 3 months of purchase, which ever comes first. 6 months of purchase, which ever comes first. Replace Replace Check &...
