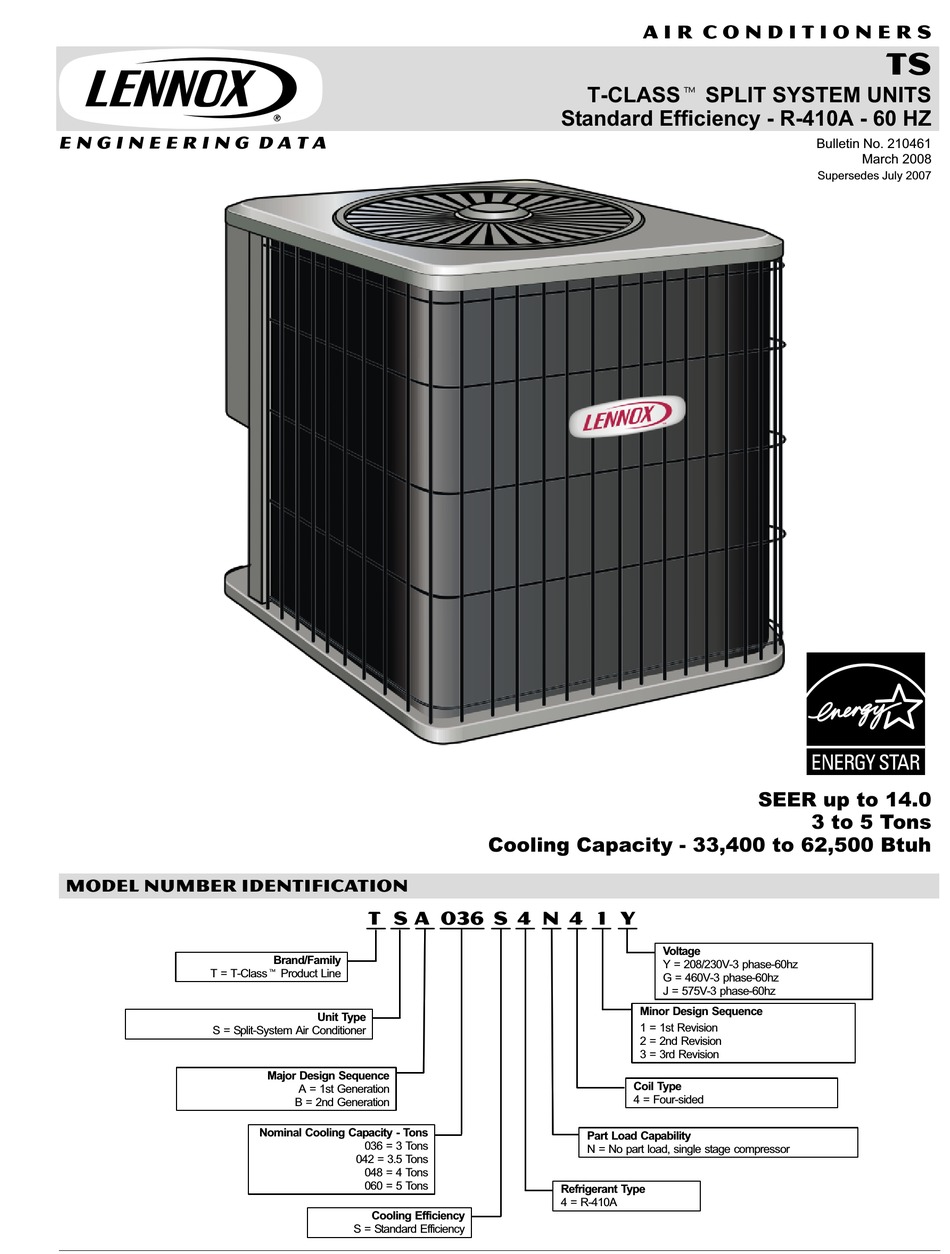

E N G I N E E R I N G D A T A
MODEL NUMBER IDENTIFICATION
T = T−Classt Product Line
S = Split−System Air Conditioner
T S A
Brand/Family
Unit Type
Major Design Sequence
A = 1st Generation
B = 2nd Generation
Nominal Cooling Capacity − Tons
036 = 3 Tons
042 = 3.5 Tons
048 = 4 Tons
060 = 5 Tons
Cooling Efficiency
S = Standard Efficiency

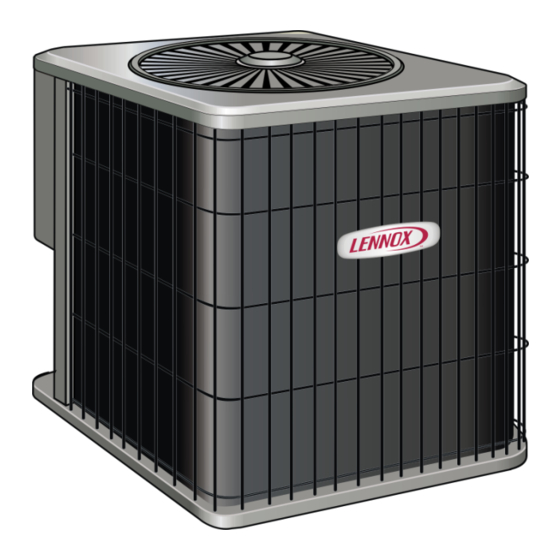

T−CLASSt SPLIT SYSTEM UNITS
Standard Efficiency − R−410A − 60 HZ
Cooling Capacity − 33,400 to 62,500 Btuh
036 S
4 n
4
1
Y
Part Load Capability
N = No part load, single stage compressor
Refrigerant Type
4 = R−410A
A I R C O N D I T I O N E R S
SEER up to 14.0
3 to 5 Tons
Voltage
Y = 208/230V-3 phase-60hz
G = 460V-3 phase-60hz
J = 575V−3 phase−60hz
Minor Design Sequence
1 = 1st Revision
2 = 2nd Revision
3 = 3rd Revision
Coil Type
4 = Four−sided
TS
Bulletin No. 210461
March 2008
Supersedes July 2007
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Lennox TSA036S4
Summary of Contents for Lennox TSA036S4
-
Page 1: Model Number Identification
A I R C O N D I T I O N E R S T−CLASSt SPLIT SYSTEM UNITS Standard Efficiency − R−410A − 60 HZ E N G I N E E R I N G D A T A Bulletin No. -
Page 2: Refrigerant System
Approvals Certified in Accordance with the USE certification program, which is based on ARI Standard 210/240−2005. Sound rated in Lennox reverberant sound test room in Accordance with test conditions included in ARI Standard 270-95. Tested in the Lennox Research Laboratory environmental test room. - Page 3 Compressor Copeland Scrollt Compressor Copper Tube/Enhanced Fin Coil Compressor features high Lennox designed and fabricated coil. efficiency with uniform suction Ripple-edged aluminum fins. flow, constant discharge flow Copper tube construction. and high volumetric efficiency Lanced fins provide maximum exposure of fin surface to and quiet operation.
- Page 4 FEATURES Cabinet CONTROLS Heavy gauge steel cabinet with five station metal wash OPTIONS process. ® L Connection Network Powder paint finish provides superior rust and corrosion See L Connection Engineering Handbook Bulletin in protection. Controls section for details. Painted base section. Low Ambient Control Control box is conveniently located with all controls Air conditioners operate satisfactorily down to 45°F...
- Page 5 OPTIONAL CONVENTIONAL TEMPERATURE CONTROL SYSTEMS − FIElD INSTALLED COMMERCIAL TOUCHSCREEN THERMOSTAT C0STAT02AE1L Intuitive Touchscreen Interface − Two Stage Heating / Two Stage Cooling Conventional or Heat Pump − Seven Day Programmable − Four Time Periods/Day − Economizer Output − Title 24 ®...
-
Page 6: Specifications
SPECIFICATIONS General Model No. TSA036S4 TSA042S4 TSA048S4 TSA060S4 Data Nominal Tonnage Connections Liquid line o.d. − in. (sweat) (sweat) Suction line o.d. − in. 1-1/8 Refrigerant (R-410A) furnished 5 lbs. 9 oz. 8 lbs. 3 oz. 8 lbs. 4 oz. -
Page 7: Outdoor Sound Data
Octave Band Sound Power Levels dBA, re 10 Watts Unit Sound Rating Center Frequency − HZ Model No Model No. Number (dB) Number (dB) 1000 2000 4000 8000 TSA036S4 70.5 67.5 69.5 72.5 69.5 TSA042S4 76.5 76.5 75.5 63.5 TSA048S4 73.5 76.5... -
Page 8: Top View
LIQUID LINE CONNECTIONS ELECTRICAL INLETS 2-3/4 (70) 2 (51) OPTIONAL UNIT SIDE VIEW SIDE VIEW (19) STAND-OFF KIT (4) (Field Installed) Model No Model No. TSA036S4 24-1/4 29-1/4 28-1/2 TSA042S4 24-1/4 33-1/4 32-1/2 TSA048S4 28-1/4 29−1/4 28−1/2 TSA060S4 28-1/4 37−1/4 36−1/4... - Page 9 ARI RATINGS − INDOOR COIL / AIR HANDLER SUBSTITUTION Substituting Coils in the ARI Tables Most R−22 and R−410A indoor coils and air handlers are The expansion device is based on the size of the outdoor the same except for the factory installed expansion unit.
-
Page 10: Ari Ratings
ARI Standard 210/240 Ratings Expansion Cooling Capacity Efficiency Indoor Unit Model No. Total Unit Total Unit Device Device Watts Btuh SEER TSA036S4 3 TON Up-Flow Indoor Coils Up−Flow Coils 3, 5 33,800 13.00 10.90 3100 CX34−38B−6F Factory TXV 34,600 13.00 11.00... - Page 11 ARI Standard 210/240 Ratings Expansion Expansion Cooling Capacity Efficiency Indoor Unit Model No. Total Unit Total Unit Device Device Watts Btuh SEER TSA036S4 3 TON Horizontal Indoor Coils + Furnace Horizontal Coils + Furnace 33,800 13.50 11.00 3075 CH23−51 G61MPV−36B−070 37L51 33,800 13.50...
- Page 12 ARI RATINGS ARI Standard 210/240 Ratings Expansion Expansion Cooling Capacity Efficiency Indoor Unit Model No. Total Unit Total Unit Device Device Watts Btuh SEER TSA042S4 3.5 TON Up-Flow Indoor Coils + Furnace Continued from Previous Page 41,000 14.00 11.50 3510 CX34−49C−6F G60UHV−60C−110 39L72...
- Page 13 ARI RATINGS ARI Standard 210/240 Ratings Expansion Cooling Capacity Efficiency Indoor Unit Model No. Total Unit Total Unit Device Device Watts Btuh SEER TSA042S4 3.5 TON Horizontal Indoor Coils + Furnace Horizontal Coils + Furnace 41,000 13.50 11.00 3605 CH33−48C−2F G71MPP−60C−090 39L72 41,000...
- Page 14 ARI RATINGS ARI Standard 210/240 Ratings Expansion Cooling Capacity Efficiency Indoor Unit Model No. Total Unit Total Unit Device Device Watts Btuh SEER tsa048s4 4 TON Up-Flow Indoor Coils Up−Flow Coils 47,000 13.00 11.00 4255 CX34−38A/B−6F 91M02 3, 5 47,000 13.00 11.00 4255...
- Page 15 ARI RATINGS ARI Standard 210/240 Ratings Expansion Cooling Capacity Efficiency Indoor Unit Model No. Total Unit Total Unit Device Device Watts Btuh SEER tsa048s4 4 TON Down-Flow Indoor Coils + Furnace Down−Flow Coils + Furnace 46,500 13.50 11.00 4085 CR33−60D−F G61MPV−60D−135 91M02 46,500...
- Page 16 ARI RATINGS ARI Standard 210/240 Ratings Expansion Cooling Capacity Efficiency Indoor Unit Model No. Total Unit Total Unit Device Device Watts Btuh SEER tsa048s4 4 TON Horizontal Indoor Coils + Furnace (Continued) Horizontal Coils + Furnace 48,000 14.00 11.50 4140 CH33−50/60C−2F G60UHV−60C−110 91M02...
- Page 17 ARI RATINGS ARI Standard 210/240 Ratings Expansion Cooling Capacity Efficiency Indoor Unit Model No. Total Unit Total Unit Device Device Watts Btuh SEER tsa060s4 5 TON Up-Flow Indoor Coils + Furnace Up−Flow Coils + Furnace 59,000 13.50 11.00 5225 CX34−49C−6F G60UHV−60C−110 Factory TXV 59,000...
- Page 18 ARI RATINGS ARI Standard 210/240 Ratings Expansion Cooling Capacity Efficiency Indoor Unit Model No. Total Unit Total Unit Device Device Watts Btuh SEER tsa060s4 5 TON Horizontal Indoor Coils + Furnace Horizontal Coils + Furnace 59,500 13.50 11.50 5185 CH33−60D−2F G61MPV−60D−135 91M02 59,500...
-
Page 19: Guide Specifications
This specification specifies [Lennox T−Classt] split system air conditioners. These products are manufactured by Lennox Industries. Revise section number and title below to suit project requirements, specification practices and section content. Refer to CSI MasterFormat for other section numbers and titles. -
Page 20: System Description
Electrical Characteristics: 60 hz 3−phase Specifier Note: The 575 V option below is only available on the 4 and 5 ton Lennox TS with R−410A and 3, 4 and 5 ton Lennox TS with R−22. [208/230 V] [460 V] [575 V] Specifier Note: Article below includes submittal of relevant data to be furnished by Contractor before, during or after construction. -
Page 21: Quality Assurance
GUIDE SPECIFICATIONS PART 1.05 QUALITY ASSURANCE Qualifications: Installer experienced in performing work of this section who has specialized in installation of work similar to that required for this project. Manufacturer Qualifications: Manufacturer capable of providing field service representation during construction and approving application method. - Page 22 Manufacturer: [Lennox Industries] Contact: [2100 Lake Park Blvd., Richardson, TX 75080; Telephone: (800) 453−6669; website: www.lennox.com] Proprietary Products/Systems: [Lennox T−Classt] Split System Air Conditioner Units, including the following equipment: Cabinet: Heavy gauge steel with 5 station metal wash preparation Powder paint finish...
-
Page 23: Installation
GUIDE SPECIFICATIONS Specifier Note: The High Pressure switch kit is a standard feature on the Lennox T−Classt R−410A models. [High Pressure Switch Kit] [Loss of Charge Kit] [Refrigerant Line Kits] [Controls:] [Low Ambient Kit: Allows unit to operate satisfactorily down to 30 degrees F. (field installed).]... - Page 24 Contact us at 1−800−9−LENNOX NOTE − Due to Lennox’ ongoing committment to quality, Specifications, Ratings and Dimensions subject to change without notice and without incurring liability. Improper installation, adjustment, alteration, service or maintenance can cause property damage or personal injury.
