Intek M-490 Plus Service Manual page 10

Model No: 3390
Customer :
TX power level
adjustment
Volume : optional
Squelch : optional
4
CH : selector : 1
CH9 : OFF
Created by:
For Stage:
Title
M-490 Plus

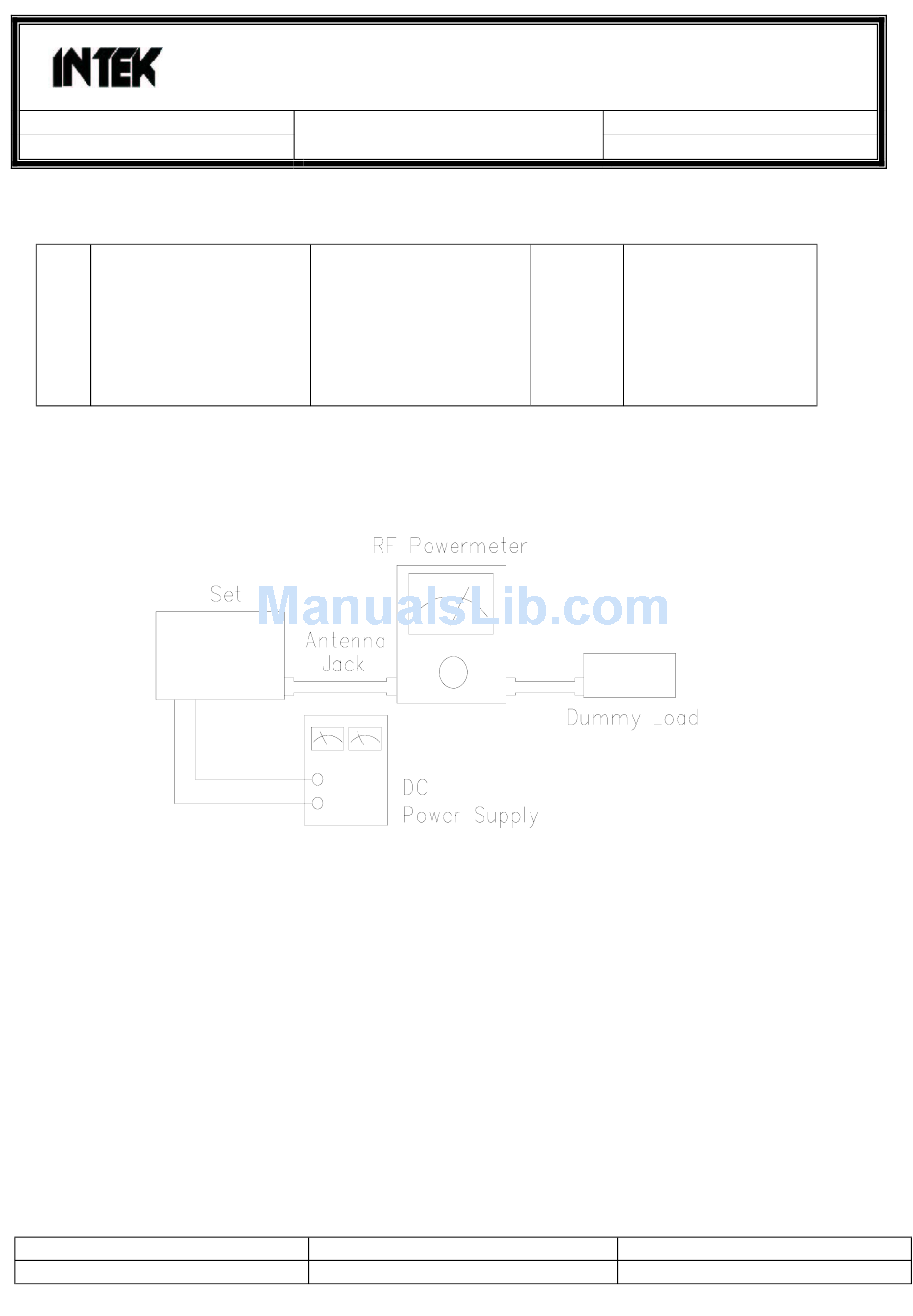

Connect dummy load
and oscilloscope through
Coupler to RF
powermeter connect
audio generator to
microphone jack
(Figure 6).
Figure 3
Approved by:
Release Date:
Drawring No:
Rev,Date:
RV202 Adjust until the 5
appears on the
channel display LCD.
Rev.No:
Page:
th
bar
10 / 61
