Intek i-Talk T70 User Manual

i-Talk T70
Walkie-Talkie PMR446 8 channels with accessories
1
2
3
C
4
5
6
7

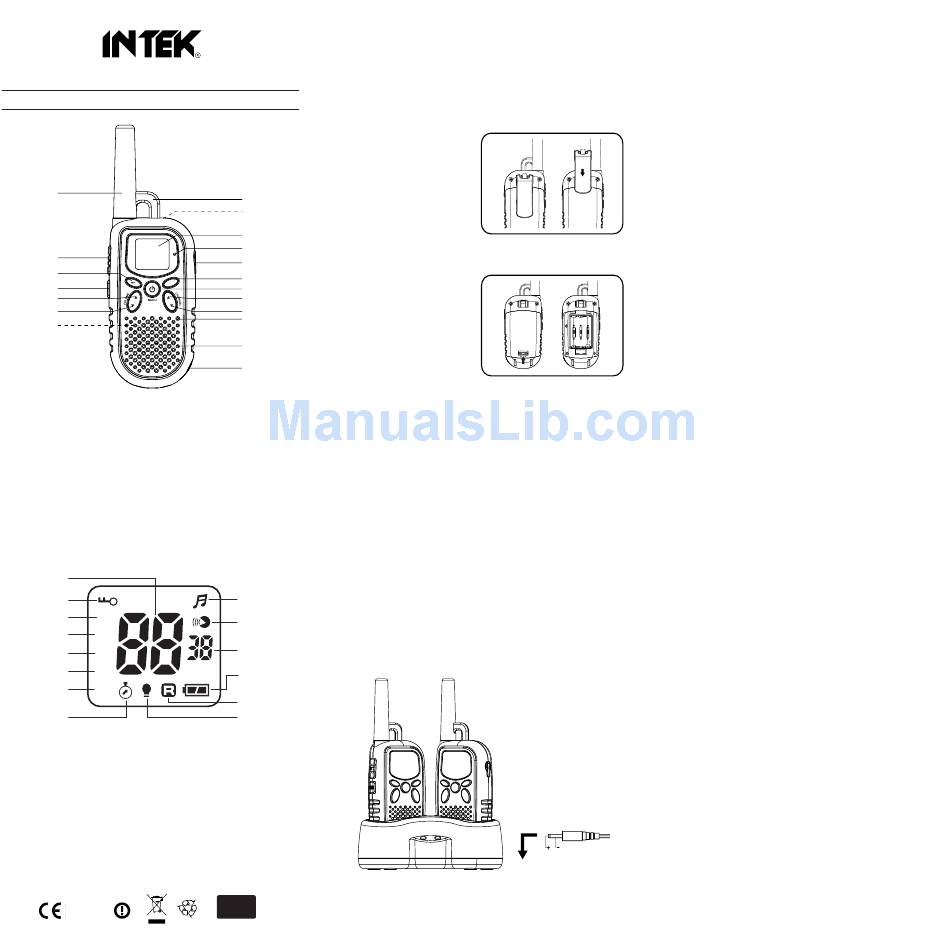

KEYS AND CONTROLS
1. High efficency antenna 10. Backlighted LCD Display
2. PTT (Push-To-Talk) Key 11. TX LED
3. Keypad LOCK / Confirm Key 12. External earset-microphone jack
4. LAMP / Monitor Key 13. C (CALL Tone) Key
5. VOLUME UP Key 14. ON-OFF / Menu Key
6. VOLUME DOWN Key 15. CHANNEL UP Key
7. Battery compartment 16. CHANNEL DOWN Key
8. Hook for Necklace 17. Built-in Microphone
9. Belt clip 18. Built-in Speaker
19. DC6V Charger jack
LCD DISPLAY
A
B
C
TX
D
RX
E
DW
F
SC
G
LO
H
A. Selected channel indication (1-8) G. LO Icon - Transmitter Low Power Icon
B. Keypad LOCK icon H. Stop Watch function Icon
C. TX Icon - Is lighted when the radio is in I. Keypad Tone Icon
transmit mode L. VOX (handsfree use) Icon
D. RX Icon - Is lighted when the radio is in M. CTCSS Code Number (1-38)
receive mode N. Battery Status Indicator
E. DW Icon - Dual Watch function O. R Icon - Roger Beep function
F. SC Icon - Automatic channels or P. Power SAve function Icon
CTCSS Tone scanning
1313
CONTENTS OF THE PACKAGE
Per favore verificare che nella confezione siano contenuti i seguenti componenti :
2 x Walkie-Talkie
1 x Double Desktop Charger
6 x 1.2V Ni-MH AAA Battery
2 x Earset-microphone
BATTERIES AND BELT CLIP INSTALLATION
Remove the belt clip before installing the batteries.
Removing and installing the Belt Clip
1) To remove the clip, pull the block tab
and slide the clip toward the up side
of the unit.
2) To install the clip, slide it down into
the slot situated on the rear side of
8
the unit, until the block system make
9
a click.
10
11
12
Battery installation
13 1) Release the battery cover latch
14
located on the rear side of the radio
15
and remove the battery cover.
16 2) Install 3 x 1.5V AAA alkaline batteries or
17
Ni-MH rechargeable batteries and pay
attention to the correct polarity as
indicated in the battery room.
18
3) Reinstall the battery cover and lock
the battery cover latch.
19
Battery charging
Radios must be recharged only by using supplied accessories.
1) Switch OFF the radio (do not turn ON the unit during charging process).
2) Install 3 x Ni-MH AAA batteries and pay attention to the correct polarity as indicated in the
battery room (7).
3) Connect the supplied 230VAC adaptor charger jack to the desktop charger outlet and
make sure that it has been fully inserted.
4) Plug the adaptor charger to the 230VAC outlet.
5) Place the unit into the desktop charger.
6) The LED indicators will be lighted to confirm that the charger is powered.
7) When the charging process has finished, remove the unit from the desktop charger and
disconnect it from the AC outlet.
NOTES :
1. LED indicators on the charger will not turn OFF automatically, except radio is removed
from the charger or it is disconnected from the AC outlet.
2. The charging time is around 6 hours to fully charge batteries if they are at their lowest
level or around 14 hours to fully charge new batteries.
3. In case LED indicators on the desktop charger do not light up with unit placed inside,
please check if it is in proper position and the correct batteries operation.
I
WARNING :
1) Do not attemp to charge any type or regular Alkaline batteries !
L
2) Only use the original 230VAC supplied adaptor charger !
3) If you're not going to use the unit for a long period of time, please take out the
batteries.
M
N
O
P
RoHS
2002/95/EC
BASIC OPERATION
Power ON-OFF
1. To power on the unit, press and hold the ON-OFF/MENU key (14), the LCD display (10) will
2 x Belt Clip
show the channel number (A) and the CTCSS code number (M).
2 x Necklace
2. To power off the unit, press and hold again the ON-OFF/MENU key (14).
1 x User Manual
Using the radio
The unit has 8 main channels and 38 CTCSS codes. You can communicate with any other PMR
that is using the same main channel & CTCSS code.
Speaking to other radios
1. Press and hold the PTT key (2), the TX Icon (C) will be lighted on the LCD display (10).
2. Hold the unit in a vertical position with the Microphone at 5-8 cm from the mouth and then
speak.
3. When you have finished speaking, release the PTT key (2).
4. Now you are ready to receive incoming transmission. Adjust the volume to the desired level
if necessary.
Using the supplied Earset-microphone (for PTT use only)
1. Plug the supplied Earset-Microphone into the earphone Jack (12).
2. Press the PTT key on the earphone to speak and release it to listen.
3. Adjust volume control if necessary.
WARNING !
Use only original accessories. Connecting and using accessories other than the original
ones, may cause serious damage to the radio and will void the warranty.
Always set the volume to minimum before connecting an external earset, in order to
avoid damaging the earset or the user's ear.
Channel Selection
Press the CHANNEL UP (15) or CHANNEL DOWN (16) to select the desired channel (1-8).
Adjusting speaker volume (8 Levels)
1. Press the VOLUME UP (5) to increase the volume level.
2. Press the VOLUME DOWN (6) to decrease the volume level.
The LE (A) icon and the selected volume level (01-08) (M) will appear on the LCD display (10).
ADVANCED FUNCTIONS
Menu Operation
Press ON-OFF/Menu Key (14) several time to select the Menu functions.
Menu --> CTCSS - TX Power selection --> VOX --> VOX sensitivity --> Channel SCAN -->
CTCSS Tone SCAN --> Dual Watch --> CALL Tone --> Roger Beep --> Keypad Beep Tone -->
Stop Watch
CTCSS Code Selection
The radio has 38 CTCSS private codes available. Different CTCSS tones may be associated to
different channels. To choose the desired CTCSS code, please proceed as follows :
1. Press the ON-OFF/Menu Key (14) until the CTCSS code number (M) blinks on the LCD
display (10). The CTCSS code 00 (M) indicates that no CTCSS tone is programmed on that
channel.
2. Press the CHANNEL UP (15) or CHANNEL DOWN (16) keys to select the desired CTCSS
code number. Pressing and holding the CHANNEL UP (15) or CHANNEL DOWN (16) keys,
the selection will move quicker.
3. To confirm the selection and exit the Menu Mode, press the LOCK key (3) or press the ON-
OFF/MENU Key (14) to move to the next function.
Selecting a CTCSS code of 00 will disable the CTCSS feature. To communicate between two or
more radios, both the channel and CTCSS code selections must be the same. To communicate
with other models and brands of radios, the actual radio frequency and CTCSS frequency must
be matched. The frequency chart and CTCSS Code chart are included to help with this
selection.
Transmitter RF Power Setting
Your radio has a HI/LOW Power selection function. This function is very convenient to reduce
the current drain and extend battery life when communicating within short distance. To select
the output power proceed as follow :
1. Press the ON-OFF/MENU Key (14) 2 times, until the HI or Lo (M) icons will blink on the
LCD display (10).
2. Press the CHANNEL UP (15) or CHANNEL DOWN (16) keys to select the desired power
level HI (high power) or LO (low power).
3. To confirm the selection and exit the Menu Mode, press LOCK key (3) or press the ON-
OFF/MENU key (14) to move to the next function.
VOX (Handsfree use) Function
Your radio is equipped with a user selectable Voice Operated Transmitter function (VOX), that is
used for automatic voice transmission (handsfree use or baby room monitor use). In this mode,
transmission is automatically initiated by speaking into the microphone (17) and there is no
need to push the PTT key (2). To enable the VOX function, please proceed as follows :
1. Press the ON-OFF/MENU key (14) three times, until the VOX icon (L) and the OFF
indication appear on the LCD display (10).
2. Press the CHANNEL UP (15) or CHANNEL DOWN (16) keys to enable the VOX function;
the On indication will appear on the LCD display (10).
3. To confirm the selection and exit the Menu Mode, press LOCK key (3) or press the ON-
OFF/MENU key (14) to move to the VOX sensitivity level selection function.
VOX SENSITIVITY LEVEL SELECTION
1. Press the ON-OFF/MENU key (14) four times, until the LE indication, the VOX icon (L) and
the selected VOX level will blink on the LCD display (10).
2. Press the CHANNEL UP (15) or CHANNEL DOWN (16) keys to select the level of
sensitivity (from 01 to 05). The VOX level 05 indicates the highest VOX sensitivity.
3. To confirm the selection and exit the Menu Mode, press LOCK key (3) or press the ON-
OFF/MENU key (14) to move to the next function.
