Viessmann Vitogas 050 Technical Data Manual
Ecv series gas-/propane-fired boiler, cast iron hot water heating boiler 65 to 200 mbh / 19 to 59 kw
Hide thumbs
Also See for Vitogas 050:
- Technical data manual (12 pages) ,
- User's information manual (4 pages) ,
- Installation and service instructions manual (52 pages)
Table of Contents
Advertisement
Advertisement
Table of Contents
Related Manuals for Viessmann Vitogas 050
Summary of Contents for Viessmann Vitogas 050

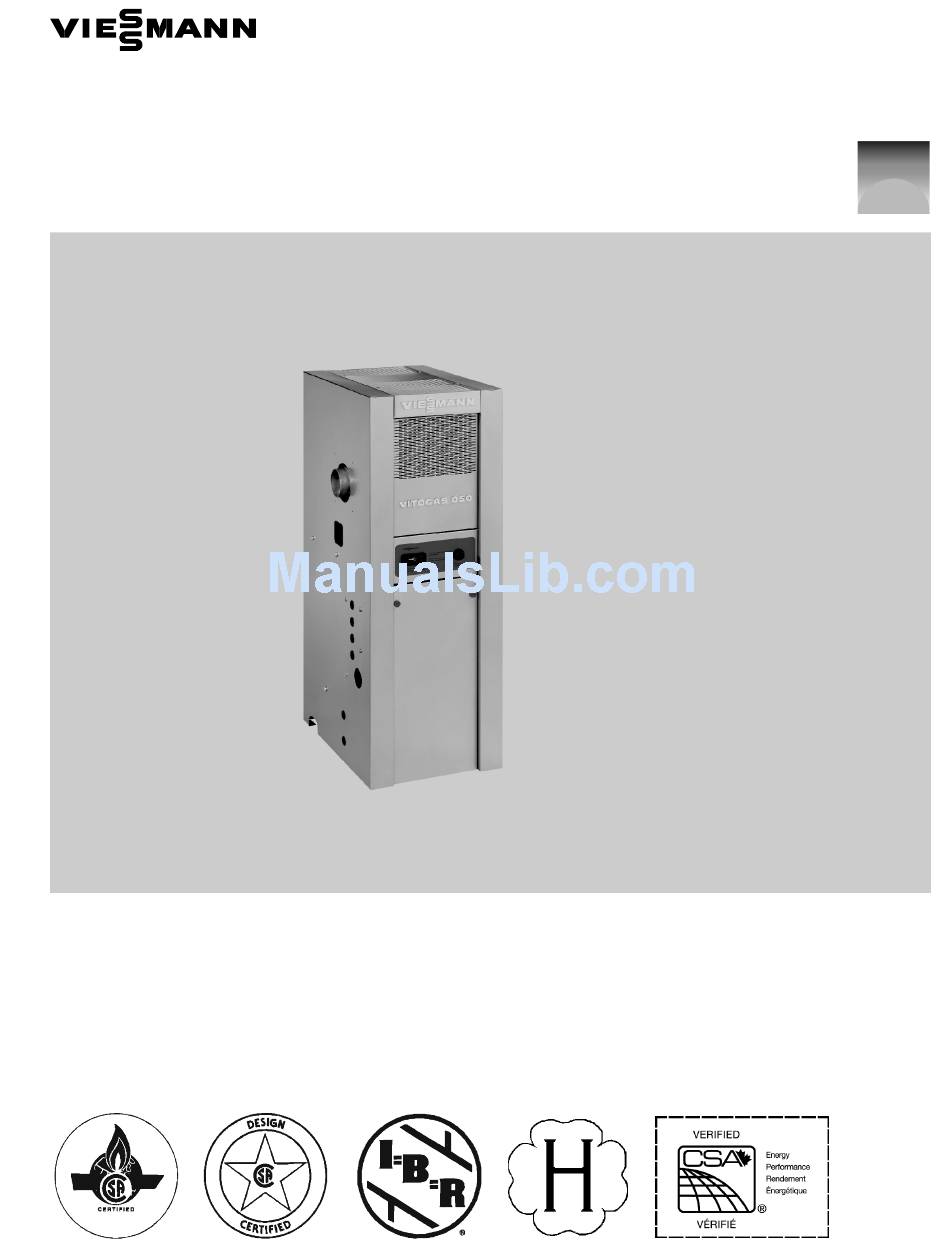

- Page 1 VITOGAS 050 Cast iron hot water heating boiler 65 to 200 MBH / 19 to 59 kW Technical Data Manual Model Nos. and pricing: see Price List Vitogas 050 ECV Series Gas-/Propane-Fired Boiler cast iron construction atmospheric Heating input: 65 to 200 MBH 19 to 59 kW 5167 449 v1.3 01/2008...
-
Page 2: Product Information
Vitogas 050 Impressive performance, yet a very compact design. Due to its compact dimensions, the Vitogas 050 is ideal for installation in small mechanical rooms and even in closets. In addition to saving space, the Vitogas 050 is economical in two ways - initial investment and operational cost. -
Page 3: Technical Data
Venting material to be 3” / 76 mm or 4” / 102 mm diameter (depending on maximum equivalent vent length, see above) stainless steel UL approved venting system for positive pressure. Do not use any other venting materials. See Price List. For information regarding other Viessmann System Technology componentry, please reference documentation of the respective product. "... - Page 4 BWR Boiler Water Return BWS Boiler Water Supply FGC Flue Gas Collar Gas Connection Vitogas 050, ECV Series Vitocell-H 100 or 300 (see separate Technical Data Manuals) Note: Support Bars are installed lengthwise for ECV-65 through ECV-115 and widthwise for ECV-140 through ECV-200.
-
Page 5: Standard Equipment
Mounting the Vitogas 050 on a Vitocell-H Top clearance: min. 18” min. min. 460 mm The Vitogas 050 can be mounted on a 18” 18” Vitocell-H as shown previously to reduce 460 mm 460 mm the footprint of heating equipment in the mechanical room. -
Page 6: Water Quality
System Design Considerations System Design Considerations Combustion air supply Water quality The Vitogas 050 is designed for closed loop, forced circulation hot water heating systems only. The boiler must not be located in areas or Treatment for boiler feed water should be... -
Page 7: Installation Examples
Installation Examples Important! These examples depict possible piping layouts for Viessmann product equipped with Viessmann System Technology. For boiler and tank combinations, please install only the feasible combinations listed in the Price List. These are simplified conceptual drawings only! Piping and necessary componentry must be field verified. - Page 8 Precharged expansion tank Domestic hot water storage tank (indirect-fired) Vitotronic 200-H, HK1M Series mixing valve control Viessmann Manufacturing Company (U.S.) Inc. Viessmann Manufacturing Company Inc. 45 Access Road 750 McMurray Road Warwick, Rhode Island • 02886 • USA Waterloo, Ontario • N2V 2G5 • Canada Tel.
