VNS G-201 Passive 3D Processor Quick User Manual

G-201 Quick User Manual
------------------------------------------------------------------------------------------------------------------------------------------------

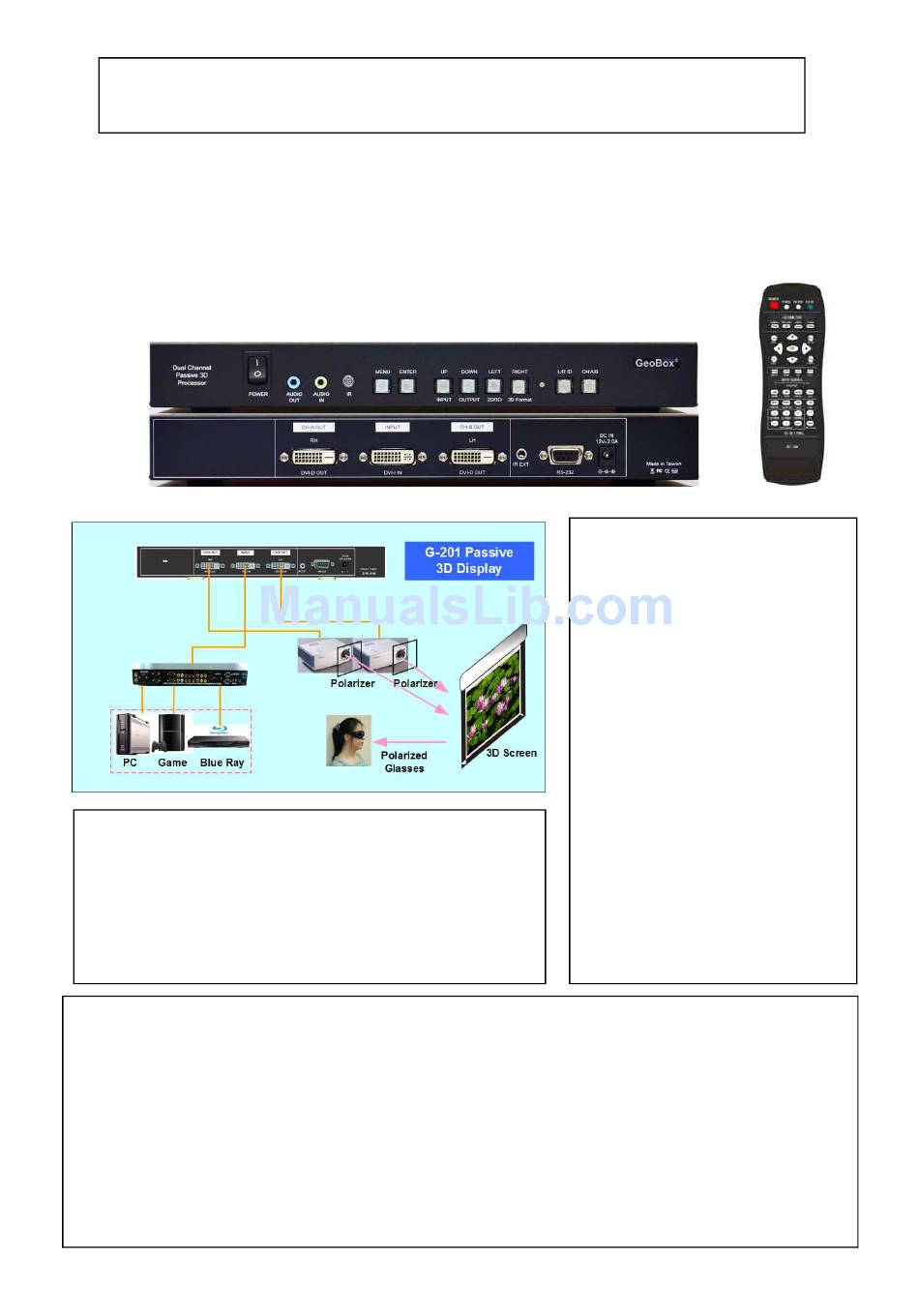

G-201 Passive 3D Processor Quick User Manual
Thank you for choosing G-201 passive 3D processor. G-201 is an advanced dual
channel passive 3D processor with 10 bits high end scaler and Perfect Sync 3D RH/LH
synchronization algorithm. It is a professional grade passive 3D demultiplexer and pure
hardware video wall controller without geometry adjustment function. User needs to use
keystone or lens shift function to align the images from two projectors. No additional
video distributor, tool or computer is required for the setup.

Brief specifications

1. Input: 1x DVI-I ( support VGA/DVI/HDM), up to 2048x1080
2. Output: 2x DVI-D (support DVI/HDMI), up to 2048x1080
3. Audio: In: HDMI, PC Jack, Out: HDMI, Analog PC Jack
4. Size: 303x157x36mm
5. Control: full function keypads, IR remote controller, RS232
Limited Warranty
This device is designed and tested to the highest standards and backed by a one year parts and labor warranty. Warranties are effective upon the
first delivery date to the end customer and are non-transferable. Warranty related repairs include parts and labor, but do not include repair of
faults resulting from user negligence, special modifications, abuse (mechanical damage), shipping damage, and/or other unusual damages. The
customer shall pay shipping charges when the unit is returned for repair. Manufacturer will pay shipping charges for return shipments to
customers.
Manufacturer does not assume responsibility for consequential damages, expenses or loss of revenue, inconvenience or interruption in operation
experienced by the customer. Warranty service shall not automatically extend the warranty period.
FCC/CE statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference when the equipment is operated in a residential / commercial
environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause
harmful interference in which case the user will be required to correct the interference at his own expense.
1. 2k x 1k (2048x1080) input and output
2. Support HDMI 1.4 standard 3D
formats from Blue Ray, game, PC...
3. DVI-I input port for the connection
with DVI, VGA & HDMI signals
4. Dual DVI-D output ports to support
DVI & HDMI connections
5. Embedded audio input and output
through HDMI connection
6. 10 bits scaler with high performance
de-interlace and scaling
7. 3D demultiplexer into RH/LH for
passive 3D display
8. Special algorithm for perfect RH/LH
synchronization in 3D mode
9. User friendly OSD and IR remote
control. No PC is required
10. Video wall function up to 15x15
matrix displays with pixel base
overlap adjustment
1
Document: G-201101

Features
