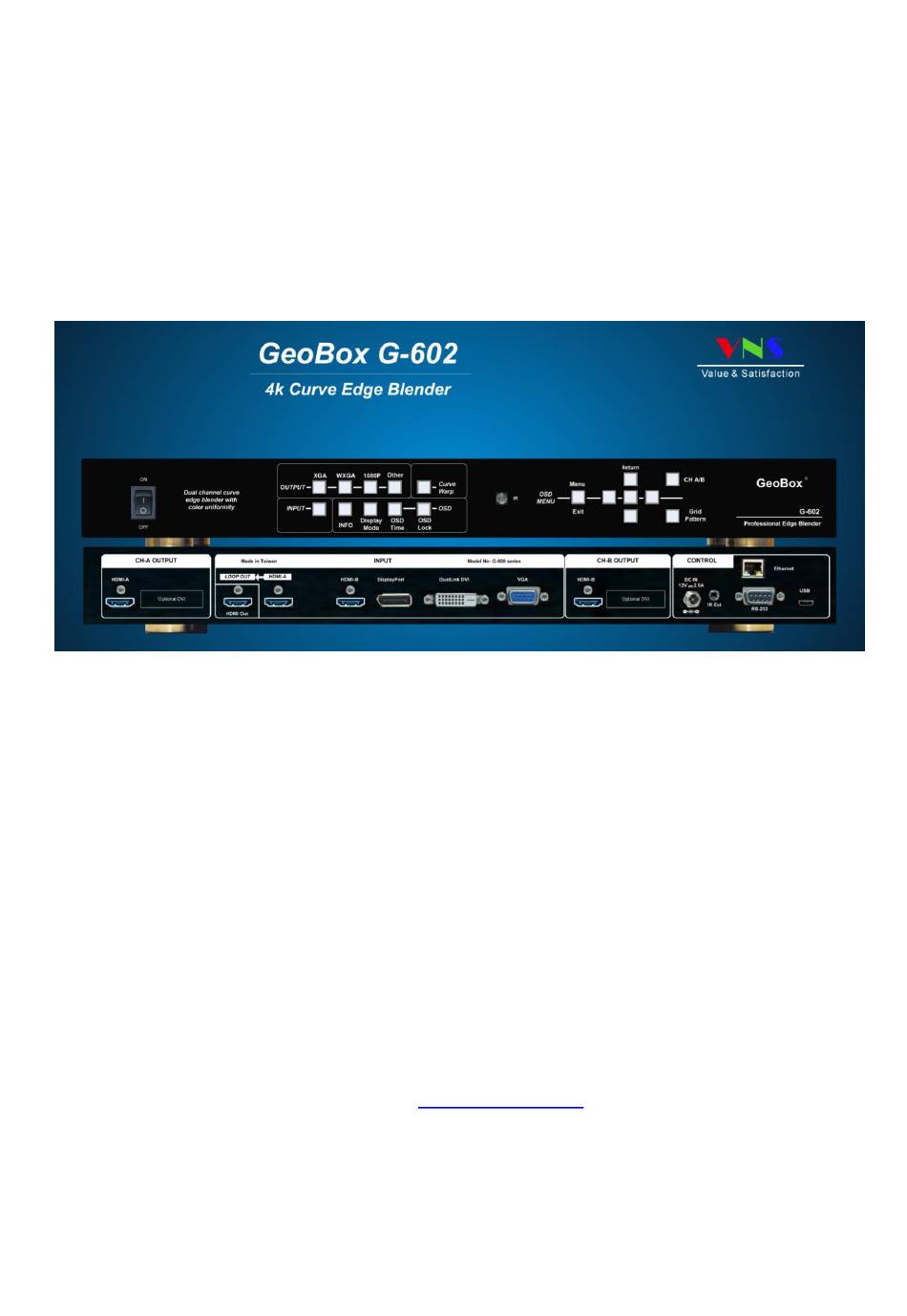

- Page 1 G-602 G-602 Quick User Guide (Dual channel Universal/Curved Screen Edge Blender) Technical support: E-mail: sales@vnstw.com Tel: +886-2-8751-2785 Cell: +886-935-678-033 Skype: vns-inc Version: 3.02 Website: www.vnstw.com.tw...
-
Page 2: Table Of Contents
G-602 Table of Contents Introduction…………………………………………………………………………………………..…... Outlook and Function…………………………………………………………………………………... Helpful Tips for system installation and setup..……………………………………………..Edge Blending procedures…………………………………………………………………………..System connection………………………..…….….…............Excel Spread Sheet calculation..............…....Mark image location…………………………………….…........... Set overlapped region size………………………………………......... Projector settings………………………………………………….......... GeoBox setting........................Geometry alignment by OSD menu.…………………………………………………………... 9 [Video Wall] settings...................... - Page 3 G-602 Revision history Revision Date Originator Comments V3.01 2017-08-05 Steve Wang New version and new content Limited Warranty This device is designed and tested to the highest standards and backed by two years’ parts and labor warranty. Warranties are effective upon the first delivery date to the end customer and are non-transferable. Warranty related repairs include parts and labor, but do not include repair of faults resulting from user negligence, special modifications, abuse (mechanical damage), shipping damage, and/or other unusual damages.
-
Page 4: Introduction
G-602 1 Introduction G-602 is a dual channel professional curved screen edge blending processor. It was designed for sophisticated edge blending as well as image warping, stacking, projection mapping, irregular video wall and passive 3D…etc. 5 inputs and 2x HDMI outputs are integrated in G-602. Input ports support up to 2560x1600 / 3840x1080 @60Hz and 4k UHD @30Hz resolution with 4:4:4 full color sampling. - Page 5 G-602 3 Helpful Tips for system installation and setup Select digital input to get better image and avoid image position shift. If 4k signal connection distance is more than 10m, please select a certified HDMI cable to avoid unstable signal connection. Usually [High Speed HDMI + Ethernet] cable will be better. The quality for signal adapter or converter, such as HDMI to DVI adapter and DisplayPort to HDMI converter, may downgrade the signal quality and cause issue.
-
Page 6: Helpful Tips For System Installation And Setup
G-602 negligence. To press [OSD Lock] key or [MENU] key for 5 seconds again, it will unlock OSD and user can manipulate the OSD again. [Image Setup] menu will not be activated if the input source is not from VGA. Please reset GeoBox before any new application to avoid unexpected settings in the system. -
Page 7: System Connection
5m, the final video quality will be very similar if signal source is only 4k resolution. e、 VNS can provide service free of charges to help customers in making project plan, including system configuration, type of projector, signal source and installation data. -
Page 8: Edge Blending Procedures
G-602 c、 Two outputs from G-602 will come from the same signal source. It is not for 2 independent displays. d、 User needs to use Micro USB cable for PC & G-602 connection if Gwarp PC Tool is used. User can extend USB control distance through USB extension cable. -
Page 9: Mark Image Location
G-602 Optimized content resolution: 3328*800 (This is the ideal resolution to set EDID) Installation distance: 3m-4.25m It is calculated from throw ratio and image wide for each projector. (2.5m*1.2=3m, 2.5m*1.7=4.25m) The overlap value in video wall setting: ... -
Page 10: Projector Settings
G-602 If the overlap is 256 pixels (25%) in XGA resolution, total adjusting points in overlap region are 15. The adjusting points in projector A & B will be at the same position in overlap region. User will have less adjustment flexibility. If increasing two grids (64 pixels) to 320 overlap pixels, user can have 30 adjusting points to get more accurate geometry alignment. -
Page 11: Geobox Setting
G-602 a、 Reset projector to default setting. b、 Disable dynamic color adjustment and DLP Brilliant color adjustment. c、 To disable “Auto Alignment” function if user wants to use VGA analog input signal to avoid image shift during projector switching ON/OFF process. d、... -
Page 12: Video Wall] Settings
G-602 d、 Use [Pattern] & [CH A/B] hot key to show grid patterns in all projectors. Press [Pattern] key again will change grid color. To set two different pattern colors in adjacent projectors will be more convenient during geometry alignment. e、... -
Page 13: Edge Blend] Settings
G-602 a、 Click [INFO] to check if correct input and output timing modes are set in the system. If no input signal is connected, the system will assume the input signal is the same as output signal during Overlap value setting. User needs to apply this input/output timing for Overlap Value calculation. b、... -
Page 14: Black Level Uplift
G-602 c、 If there is still some color difference, please try to change projector Display Mode first. If it is still can’t fix the issue, user can do further color adjustment in projectors or use [Color] sub-menu under [Edge Blend] menu to adjust individual projector color. 4.12 Black level uplift ( [Offset] adjustment under [Edge Blend] menu) a、... -
Page 15: Enable [Black Screen] While No Input Signal Or Mode Change
G-602 iii. Screen: To use lower gain value screen. Short throw projectors with high gain screen will have color difference in different viewing angle and cause different overlap area banding from difference viewing angles. 4.14 System power ON/OFF setting a、... -
Page 16: Geometry Alignment By Gwarp Pc Tool
G-602 maintain the same without adjustment until new PC is connected or new PC timing is applied to GeoBox. After edge blending setup, please use the same signal source to avoid position shift. b、 If the projector is connected through VGA, user needs to use HDMI to VGA converter. Projector will execute automatic image position alignment. -
Page 17: Warp Adjust]
G-602 5.2 [Warp adjust] (hotkeys are available through keyboard and mouse) a、 Before [Warp Adjust] operation, please enable [Pattern] (1) and select one color and Enable the pattern to show grid pattern on the screen. The pattern default grid size is 32x32 pixels. b、... -
Page 18: Keyboard Hotkeys For Convenient Gwarp2 Operation
G-602 User can check the result through OSD menu: [Anyplace] [Gwarp Pro] [UserMap #] [OK] User can fine-tune Gwarp2 result through [Fine-tune] menu under [Gwarp Pro] menu. The adjusting range is +_ 50 pixels in each corner. When fine-tune 4 corners, if will not affect curve adjustment result. -
Page 19: Edid] Setting
G-602 [CTRL + Arrow]: Continuously execute uniformity adjustment to the target points or region. Example to set different locations with the same uniformity adjustment value Move [Arrow] to new position and set uniformity values Click [Space bar] to implement and copy the value ... -
Page 20: System Bandwidth And System Crash
G-602 custom d、 Some PC may not follow EDID from GeoBox and show different result. If it happens, please open resolution setting window and select desired output from PC. e、 User can also set non-VESA standard output timings from PC, GeoBox can accept this kind of output timing under the conditions that the maximum clock rate shall be under 330MHz and the resolution shall not exceed 3840x2400. - Page 21 G-602 environment, video projector with 10,000:1 contrast ration or higher will be better. This contrast ratio should be native contrast ratio but not dynamic contrast ratio. If possible, please shut down Brilliant color and Dynamic auto color adjustments. They may affect edge blending result.
-
Page 22: Specifications
G-602 11 Specifications Input ports 1x DualLink DVI-D 2x HDMI 1.4 input 1x DisplayPort 1.1a input All digital input ports support 3840x2400 @30Hz, 2560x1600 and 3840x1080 at 60Hz Output in ports Input/Output 2x HDMI outputs for RH/LH channel up to 1920x1200 @60Hz interface ... - Page 23 G-602 correction in each projector. Support cylindrical screen and irregular curve screen edge blending. Color Uniformity adjustment in gain and offset across entire display is available. Minimum adjusting range is 64x64 pixels. Image split, crop and assign display location. ...
- Page 24 G-602 Reliable and durable design for 7/24 working condition. Programmable EDID resolution for optimized video quality. Full functional keypads, IR control, RS232 and optional Ethernet control. Gwarp PC tool is available to control GeoBox through USB. System control and ...
