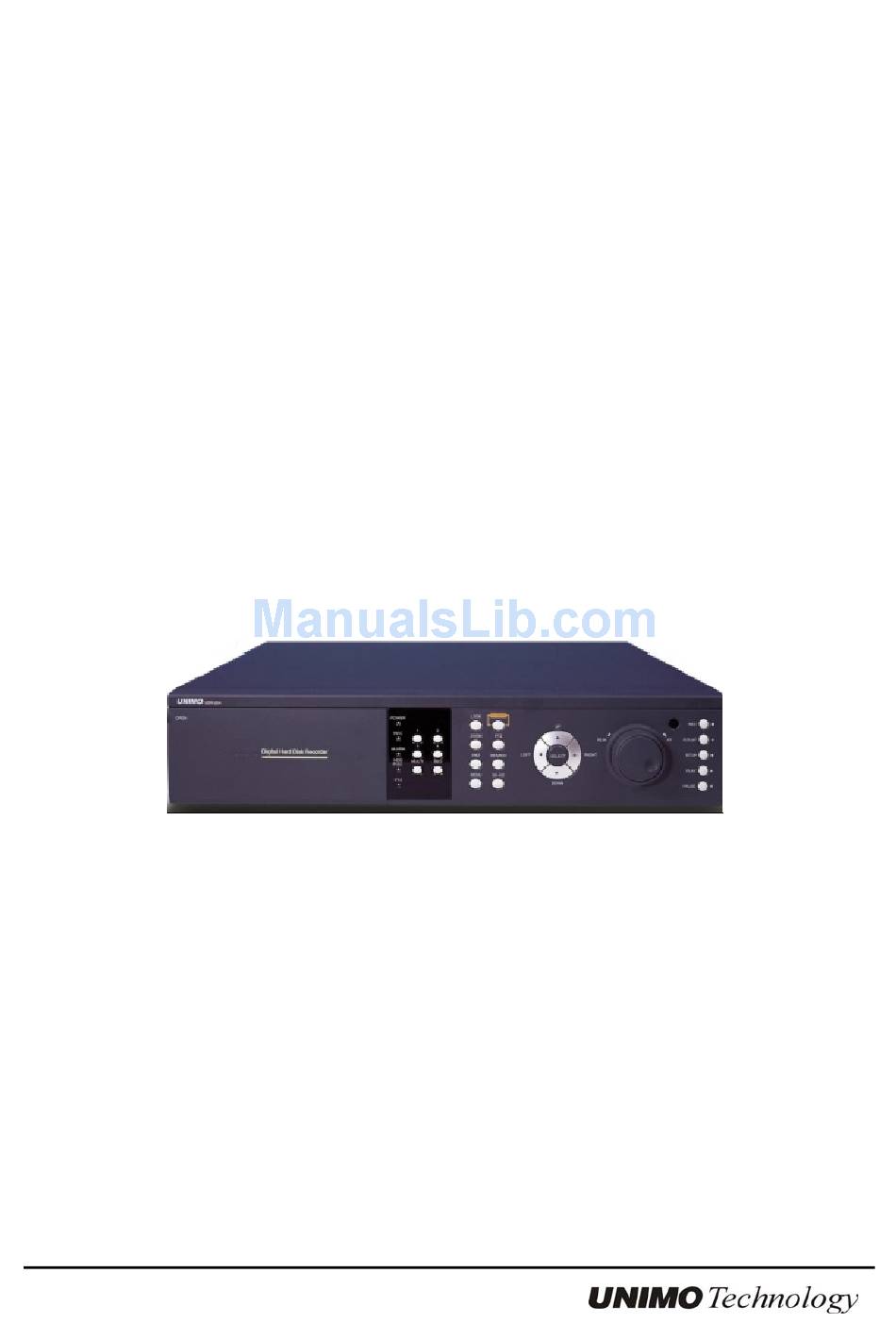

USER MANUAL

Digital Hard Disk Recorder
(UDR-204 & UDR-204C, MPEG-2)
* Default system password: 111111
(for RAMS, Record stop, Menu setup, System off, Auto key lock)
* Default ID: admin (for RAMS)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UDR-204 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for UNIMO Technology UDR-204

Summary of Contents for UNIMO Technology UDR-204

  • Page 1: User Manual

    USER MANUAL Digital Hard Disk Recorder (UDR-204 & UDR-204C, MPEG-2) * Default system password: 111111 (for RAMS, Record stop, Menu setup, System off, Auto key lock) * Default ID: admin (for RAMS)
  • Page 2 -- Any changes or modifications in construction of this device which are not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Warranty will be made void if the product is disassembled or manipulated by the user. UDR-204(C) Operation manual Revision 3.0...

  • Page 3: Safety Instructions

    UDR-204(C) Operation manual Revision 3.0...

  • Page 4: Table Of Contents

    Power on..........................24 2.1.2 Power OFF .......................... 24 & ......................24 TIME SETTING ..................24 ASSWORD SETTING PROCEDURE ......................24 ETWORK SETTING .......................... 24 ECORDING 2.5.1 Recording types........................25 2.5.2 Recording modes......................... 25 ........................... 25 LAYBACK UDR-204(C) Operation manual Revision 3.0...
  • Page 5 Picture Setting ........................31 3.1.5.1 Contrast, Brightness, Hue, Sharpness ....................32 3.1.5.2 Default ..............................32 3.1.6 Sequence time ........................32 ......................33 ECORD ETUP MENU 3.2.1 Record Type ........................33 3.2.2 MUX Type........................... 33 3.2.2.1 Resolution ............................33 UDR-204(C) Operation manual Revision 3.0...
  • Page 6 3.3.5.4 Target Path ............................44 3.3.6 FTP Trigger Setting ......................44 3.3.6.1 Sensor ..............................45 3.3.6.2 Motion ..............................45 3.3.7 E-Mail Address Setting ....................... 45 3.3.8 E-Mail Setting ........................46 3.3.8.1 Send (Period) ............................46 UDR-204(C) Operation manual Revision 3.0...
  • Page 7 Password Apply ..........................58 3.7.2.3 Auto Key Lock............................ 59 3.7.3 Time / Date.......................... 59 3.7.3.1 Set up Time / Date..........................59 3.7.3.2 Time / Date Format ..........................59 3.7.3.3 Day Light Saving Time ........................59 UDR-204(C) Operation manual Revision 3.0...
  • Page 8 Search by Time........................69 3.10.1.1 Starting Time............................69 3.10.1.2 Ending Time............................70 3.10.1.3 Channel ............................... 70 3.10.1.4 Event..............................70 3.10.1.5 Example of Search Result ........................70 3.10.2 Search of still image......................70 3.10.2.1 Screen of search ..........................71 UDR-204(C) Operation manual Revision 3.0...
  • Page 9 4.3.12 Still image Capture......................87 4.3.13 Watermark insertion ......................88 4.3.14 Printing still image ......................88 4.3.15 Motion picture recording..................... 88 4.3.16 D-Zoom ..........................89 4.3.17 PAN/TILT, ZOOM/FOCUS ....................89 4.3.18 HDD Information ........................ 90 UDR-204(C) Operation manual Revision 3.0...
  • Page 10 HDD Information ......................108 4.5.10 Confirmation of Version of Program ................. 109 4.5.11 Closing of Program ......................109 .......................110 UICK NSTALLER 4.6.1 Select model ........................110 4.6.2 System parameter setting....................110 4.6.3 Communication over Network or serial port..............111 UDR-204(C) Operation manual Revision 3.0...
  • Page 11 DSUB-15P (PTZ / AUX / ALARM / SENSOR) ..............116 ....................117 ACTORY EFAULT ALUE 5.3.1 Main Menu .........................117 5.3.2 Search Menu........................120 ......................... 121 ROTOCOL 5.4.1 Code table.......................... 121 5.4.2 Usage..........................122 ................... 123 RECORDING TIME TABLE UDR-204(C) Operation manual Revision 3.0...
  • Page 12 All rights reserved. No part of this publication may be reproduced or transmitted in any form or any means, electronic or mechanical, including photocopy, recording, or any information storage and retrieval system, without prior permission. UDR-204(C) Operation manual Revision 3.0...

  • Page 13: System Overviews

    1. SYSTEM OVERVIEWS 1.1 Packing list The following items are included with the UDR-204 or UDR-204C. Please be certain that all items are included as soon as you open the box: 1.1.1 Components UDR-204 (Removable HDD Rack) or UDR-204C (CD-RW Drive)

  • Page 14: Features & Specifications

    Motion detection, Video loss, and sensor alarm function User defined setting for recording frame rate & resolution Various backup method support ( Removable HDD (UDR-204), CD-RW(UDR-204C) USB, Network) Selectable Quad/MUX recording Audio recording available Multiple recording modes: Time lapse, video loss alarm, schedule, manual, & continuous...

  • Page 15: Specifications

    Built-in Real time clock Power Source Free Voltage (100 - 240VAC, 50Hz/60Hz, 50W) Dimension 433(W) x 385(D) x 88(H) Operating Temperature 5℃ ~ 40℃ Weight 5.5Kg (w/o HDD) Design and specifications are subjected to change without notice. UDR-204(C) Operation manual Revision 3.0...

  • Page 16: Name, Function & Connections

    1.3.1 Front view Description: 1. Removable HDD Rack (UDR-204) or CD-RW Rack (UDR-204C) Removable Hard Disk Drive or CD RW Drive 2. LED indicator POWER: Power Off status is indicated by a Red light and ON status is indicated by a Green light.
  • Page 17 Used as a selection key. Under PTZ control menu, used to be interchanged P/T mode with Z/F mode 6. Jog/Shuttle Shuttle: Multi-speed forward/reverse playback. Under Network Setup sub menu, used to input parameters fast. Jog: Frame by frame search. 7. IR receiver Remote control signal receiver UDR-204(C) Operation manual Revision 3.0...

  • Page 18: Rear Panel View

    Terminal for PTZ, sensor, alarm, and AUX IN/OUT (DB-15 Male Connector) 4. SERIAL Serial terminal for RS-232C (PC) for console or quick installation (DB-9 Male Connector) 5. AUDIO Audio line input OUT: Audio line output UDR-204(C) Operation manual Revision 3.0...
  • Page 19 Video input (to connect with camera output) OUT: Video output (Loop-through output for video input) 8. FAN Heat protection fan to reduce heat in the unit 9. POWER INPUT Power cord terminal (free voltage, 100 - 240VAC, 50Hz/60Hz) UDR-204(C) Operation manual Revision 3.0...

  • Page 20: Remote Controller Function

    NUMBER SEARCH MULTI MENU DIRECTION / OK REVERSE PLAY PAUSE STOP PLAY ZOOM 4 Division MUTE: Voice Mute HDD: HDD status information NET: Network connection status & user connection information INFO: Hardware & Software version UDR-204(C) Operation manual Revision 3.0...

  • Page 21: Installation

    When connecting the BNC cable to 'OUT', be sure that the BNC cable connects to a display monitor or other types of video equipment for termination. 1.4.1.2 Video Out The unit has one composite video output and one S-video output. Use either output for display monitors. UDR-204(C) Operation manual Revision 3.0...

  • Page 22: Audio

    DVR or to perform Quick Installation. 1.4.1.5 PTZ/AUX/ALARM 1.4.1.5.1 RS-485+, RS-485- UDR-204 uses RS-485 protocol to control PTZ Receiver, Speed Dome, and Auto-focus camera. Be sure to match the polarity. 1.4.1.5.2 AUX 1~5 AUX Port consists of 2 input ports (AUX 1,2) and 3 output ports (AUX 3,4,5) and the function of each port is selectable according to user’s purpose, user’s access to external DVR, or...

  • Page 23: Network

    Users can connect up to four N.O./N.C. type sensors and configure them within Main Menu, Sensor Setting. 1.4.1.6 Network Connect RJ-45 Ethernet cable. 1.4.1.7 USB flash memory Perform backup of recorded video files from DVR system to USB flash memory manually. UDR-204(C) Operation manual Revision 3.0...

  • Page 24: Basic Operation Procedures

    There are three types of network setting for the DVR: Static, DHCP, or PPPoE. Please set the network type. (Network Setup in Main Menu) 2.5 Recording Select recording related parameters in the Record Setup in the main menu. UDR-204(C) Operation manual Revision 3.0...

  • Page 25: Recording Types

    You will hear audio when video files containing audio is selected for playback. 2.7 Search 2.7.1 Search mode The UDR-204 has 3 types of search modes: SEARCH BY TIME: Displays recorded data by recording time and camera number. STILL IMAGE SEARCH: Displays recorded still images.

  • Page 26: Backup

    2.8.1 Removable HDD (UDR-204) If there are two hard disk drives equipped in the UDR-204, the removable HDD will be used as a backup drive. MANUAL BACKUP, AUTO BACKUP will be selectable for backup. MANUAL BACKUP: Execute backup during user’s preferable setting.

  • Page 27: Client Program

    4x4CH DVR, or 16x1CH DVR) 2.9.4 Quick Installer To setup configuration template for quick & easy, multiple unit setup using RS-232 or network To upload/download DVR menu setting from/to DVR as file form using pc. UDR-204(C) Operation manual Revision 3.0...

  • Page 28: Main Setup Screen

    3. Main Setup screen Figure 3-1 Main Setup screen 3.1 Camera Setup menu Figure 3-2 Camera setup screen UDR-204(C) Operation manual Revision 3.0...

  • Page 29: Channel Number

    User can make the live screen appear or not by channel with this function. If user sets up “On” in this function, the live screen of the selected channel does not appear. In case of recording, the recording continues, although screen does not appear. UDR-204(C) Operation manual Revision 3.0...

  • Page 30: Ptz Setup

    Without any further changing of cable connection, user can control PTZ controller by changing reverse direction of PTZ. Each PAN, TILT, ZOOM, FOCUS will be selectable to reverse direction and each parameter will be selectable ON /OFF. UDR-204(C) Operation manual Revision 3.0...

  • Page 31: Setting

    Users can access additional PTZ menu after pressing Menu button in the PTZ mode. Figure 3-5 Additional PTZ Menu - Set Preset: To preset the position of the Pan/Tilt drive. Users can preset 4 positions selected by Left/Right buttons and save the preset by pressing OK button. UDR-204(C) Operation manual Revision 3.0...

  • Page 32: Picture Setting

    Figure 3-6 Confirmation box on Picture Setting Default 3.1.6 Sequence time It can set sequential display time of each channel during Live Viewing mode. Choose from 2, 4, 5, 8, 10, 15, 30 second sequential display time. UDR-204(C) Operation manual Revision 3.0...

  • Page 33: Record Setup Menu

    Under MUX Recording mode, Resolution for NTSC is “360 x 240” or “720 x 480”. PAL is “360 x 288” or “720 x 576” selectable and selected resolution will be applicable to four channels simultaneously. UDR-204(C) Operation manual Revision 3.0...

  • Page 34: Audio Sync

    REC key on remote controller or on front key. • Continuous: Continuous recording mode that starts to recording automatically after turning on the systems. • Motion: Start to record under motion detection. Under Motion, it starts pre- UDR-204(C) Operation manual Revision 3.0...

  • Page 35: Quad Type

    Only 720 x 480 for NTSC (or 720 x 576 for PAL) is used at Quad recording. 3.2.3.2 Quality Normal, Enhanced Fine, Fine, Super Fine 4 quality level will be selectable for quality mode at Quad Recording and those are applicable to each channel. UDR-204(C) Operation manual Revision 3.0...

  • Page 36: Audio On/Off

    6, 10, 12, 25 fps will be selectable. This setting is applicable to all channels as equal forms. 3.2.3.5 Record mode Please refer to terms on Record mode 3.2.2.6 as it is same.. 3.2.4 Record Schedule setting Figure 3-9 Recording schedule setting screen UDR-204(C) Operation manual Revision 3.0...

  • Page 37: Event Setup Menu

    Help Message per Record Mode on the right position. After the setup, store the set schedule and exit to the top menu by pressing the Menu button. 3.3 Event Setup Menu Figure 3-10 Event Setup screen UDR-204(C) Operation manual Revision 3.0...

  • Page 38: Motion Detection Setting

    Under Quad recording mode, multi-channel is setup as same as one channel when user setup motion detection areas & sensitivities. 3.3.1.2 Sensitivity Sets up the motion detecting sensitivity. The lower the sensitivity gets the closer to the left the red bar gets. UDR-204(C) Operation manual Revision 3.0...

  • Page 39: Detection Zone

    Above screen is for MUX motion detection set-up and for QUAD motion detection set-up all four screens appear together. Full screen shall be as the motion detecting areas after entering MULTI button. The reverse key button is SEQ erasing motion detecting area. UDR-204(C) Operation manual Revision 3.0...

  • Page 40: Sensor Setting

    N.C.: Normal Close. Operation mode for the installed sensor’s contact point is usually close in normal condition and changed from close to open at sensor’s detect event. 3.3.2.2 Channel Link Assign sensors to designated Camera Channels. UDR-204(C) Operation manual Revision 3.0...

  • Page 41: Alarm Output

    Configure the alarm duration time. It can be set up from 1 second to 60 seconds in the unit of 5 seconds. 3.3.4 Post Alarm Record Time Configure the recording continuation time after starting an event recording. It can be set up from 10 seconds to 60 seconds in the unit of 10 seconds. UDR-204(C) Operation manual Revision 3.0...

  • Page 42: Ftp Setting

    OK button for setting up the next number. Change the IP address of the FTP server to fast forward or backward by using shuttle equipped in front panel. UDR-204(C) Operation manual Revision 3.0...

  • Page 43: Password

    Configure the FTP ID. The ID can contain maximum of 31 characters. Figure 3-16 FTP ID 3.3.5.3 Password Configure the FTP password. The password can contain maximum of 12 characters. Figure 3-17 FTP Password input UDR-204(C) Operation manual Revision 3.0...

  • Page 44: Target Path

    Select FTP length of image by second (5 to 10 seconds are selectable) to transmit image files for selected seconds. 3.3.6 FTP Trigger Setting Selects on/off for transmitting the video file to FTP for each channel. UDR-204(C) Operation manual Revision 3.0...

  • Page 45: Sensor

    Transmits the content of an event log periodically through e-mail. Configure up to four e-mail address to transmit under event status simultaneously. The e-mail address can contain maximum of 31 characters, and the event logs transmitted through e-mail will be deleted in the DVR unit. UDR-204(C) Operation manual Revision 3.0...

  • Page 46: E-Mail Setting

    Configure the e-mail transmitting cycle. It does not transmit when it is set to NO. The setting time can be set up at the units of within 2 minutes after event, 30minutes, 1, 2, 5, 12, 24 hours. UDR-204(C) Operation manual Revision 3.0...

  • Page 47: Prohibition Setting

    3.3.8.4 Authentication Users can select authentication process dependent on SMTP server requirement. Selects on/off for authentication process do authentication process whenever transmitting e- mail messages through SMTP server. 3.3.8.4.1 Password Enter sender’s mail password for authentication UDR-204(C) Operation manual Revision 3.0...

  • Page 48: Event Log

    Event Log Shows the event log of the selected channel. It can reset periodically by setting e-mail as described in paragraph 3.3.7. Figure 3-22 Event Log Display screen 3.4 Playback Setup Figure 3-23 Playback setup screen UDR-204(C) Operation manual Revision 3.0...

  • Page 49: Channel

    “Play” button is pressed. 3.5 Display Setup screen Figure 3-24 Display setup screen Determine whether to have the following be shown on the monitor: Camera name, Time/Date, HDD status, Borders (Quad View). Select either ON/OFF for each item. UDR-204(C) Operation manual Revision 3.0...

  • Page 50: Network Setup Screen

    Figure 3-25 Network Setup screen 3.6.1 DDNS setting Set up DDNS (Dynamic Domain Name System) server address & port number. Users can set up two DDNS server address and port. Figure 3-26 DDNS setup screen UDR-204(C) Operation manual Revision 3.0...
  • Page 51 (When IP router is connected from static IP, it is no necessary to setup DDNS link on) By indicating the address of a DDNS Server, the UDR-204 will update its IP address and its MAC address periodically. Therefore, when users access the DVR over the network, the same URL can be used.

  • Page 52: Remote Connection Login Password

    PPPoE (PPP over Ethernet) mode is used for network using PSTN such as ADSL. Please refer to paragraph 3.6.4, 3.6.5, 3.6.6 for detailed network type setup process UDR-204(C) Operation manual Revision 3.0...

  • Page 53: Static

    3.6.4.1 DDNS On/off 3.6.4.2 Port Configure the Port number to be used to connect to the UDR-204 system using RAMS (Remote Access & Monitoring System). The default Port number is port 80. Change easily by using Jog/shuttle equipped in front panel.

  • Page 54: Dhcp

    3.6.5 DHCP Figure 3-29 DHCP setup screen Port 3.6.5.1 Please refer to paragraph 3.6.4.1for Port setting of Static/ DHCP/ PPPoE) 3.6.6 PPPoE Figure 3-30 PPPoE setting UDR-204(C) Operation manual Revision 3.0...

  • Page 55: Port

    The password can contain maximum of 31 characters. Figure 3-31 ID input screen 3.6.6.3 Password Type in your user Password for the ADSL account (PPPoE), The password can contain maximum of 12 characters. Figure 3-32 Password input screen UDR-204(C) Operation manual Revision 3.0...

  • Page 56: Changing The Network Configuration

    3.6.7 Changing the Network configuration If users want to change network type of UDR-204, users must reboot the system. User can restart the new network mode setting after entering ‘yes’ key button. Figure 3-33 Changing the Network setting screen 3.7 System Setup screen Figure 3-34 System Setup screen 3.7.1...

  • Page 57: System Password

    Figure 3-35 DVR name screen Using the arrow, type in the DVR name. Click “OK” when finished. 3.7.2 System Password Figure 3-36 System password set up Set up part for system password, related function and application. UDR-204(C) Operation manual Revision 3.0...

  • Page 58: Password Setting

    Users can set up password ON/OFF for each feature. Setting to On, when each feature starts, users have to confirm password for each step. Setting to Off, users can use any confirmation of password. UDR-204(C) Operation manual Revision 3.0...

  • Page 59: Auto Key Lock

    3.7.3.3 Day Light Saving Time Set up Start Day and End Day in Day Light Saving Time mode For example, if users adopt day light saving time from May 01 to Oct.31, input the dates accordingly. UDR-204(C) Operation manual Revision 3.0...

  • Page 60: Buzzer

    Motion, & Video Loss. When users activate the buzzer, buzzer will make a sound when there any event occurs. There would be no sound if the buzzer is turned Off. Figure 3-39 Set up buzzer 3.7.5 Language English, Korean, Japanese and Spanish are available. UDR-204(C) Operation manual Revision 3.0...

  • Page 61: System Log

    The items that manage by Log are Video Loss, Power On, Power Off, Menu entry, HDD Full, failure of FTP transmission, failure of E-mail transmission. Figure 3-40 System Log screen 3.7.7 HDD Setup Set up for Internal HDD and Removable HDD, See the information. Figure 3-41 HDD Setup image UDR-204(C) Operation manual Revision 3.0...

  • Page 62: The Number Of Hdd

    Confirmation box on format will appear after entering format key. User can format and erase all information of HDD, after entering ‘yes’ key button. Figure 3-42 Confirmation box for HDD format 3.7.7.5 Removable HDD If one Hard disk drive is equipped in system, removable HDD doesn’t appear. UDR-204(C) Operation manual Revision 3.0...

  • Page 63: Aux Port

    ‘yes’ key button and it can erase all information of Removable HDD. Figure 43 Change of HDD Function mode 3.7.7.5.3 Format Please refer to paragraph 3.7.7.3.2. 3.7.8 Aux Port Set up for Aux Port UDR-204(C) Operation manual Revision 3.0...

  • Page 64: Active

    DVR AUX in port is RECORD START IN. • DISK FULL: If HDD is full, send signal to the AUX port. • RECORD STATUS: Indicate whether it is recording or not UDR-204(C) Operation manual Revision 3.0...

  • Page 65: Factory Default

    - Copy the downloaded files from the PC to the USB memory. - Connect the USB memory to the USB port at the rear panel. - Go to 'System Setup' then 'S/W Upgrade' then select Ramdisk or Kernel to upgrade. UDR-204(C) Operation manual Revision 3.0...

  • Page 66: Backup

    - After the unit recognizes the USB flash drive and upgrading end, the unit will reboot. Figure 3-47 Ramdisk Upgrade 3.8 Backup Backup recording data to HDD or USB Flash Drives Figure 3-48 Backup image UDR-204(C) Operation manual Revision 3.0...

  • Page 67: Backup Device

    This menu is used only when backup device is CD-RW. In case that backup device is CD- RW, format command has to be done by this menu, before starting backup. However, with CD-R media, backup can be started without format. UDR-204(C) Operation manual Revision 3.0...

  • Page 68: System Information

    It shows the H/W Version of system. 3.9.3 S/W version It shows the S/W Version of system 3.9.4 KERNEL version It shows the S/W Version of KERNEL. 3.9.5 Mac Address It shows Mac Address of system UDR-204(C) Operation manual Revision 3.0...

  • Page 69: Search Menu

    Figure 3-50 Main Screen of Search 3.10.1 Search by Time The recorded images are searched by Time, Channel, Event. UDR-204 saves lat searching condition so it automatically displayed last search condition under search mode. ** Screen where the condition of search will be input.

  • Page 70: Ending Time

    Still image is not searched by Time and Channel. If users press “search” Button, the still images recorded in the system appear from the oldest one to latest one, and Maximum 99 still images can be stored and searched UDR-204(C) Operation manual Revision 3.0...

  • Page 71: Screen Of Search

    The images that were backed up manually or automatically can be searched by Time, Channel, Event. Figure 3-54 Screen for input data of HDD Search The method of input and search is the same as that of recorded file, as indicated in the paragraph 3.10.1. UDR-204(C) Operation manual Revision 3.0...

  • Page 72: Playback

    Menu of Search, and press Button “ OK”. The screen of Search results disappears and the selected images are played back. The recorded files with Audio are played back with Audio. 3.11.1.2 Screen of played back. Figure 3-55 Screen of playback UDR-204(C) Operation manual Revision 3.0...

  • Page 73: Control During Play Back

    - Under MUX recording type: Select the channels by using button “ 1” ~ “4” and selected channels show the image which recorded at simultaneous time. If there are recorded image, it will show the image which close to recorded time at previous playback channel. UDR-204(C) Operation manual Revision 3.0...

  • Page 74: Playback Of Still Image

    Figure 3-56 Still Image of playing back 3.11.2.3 Control during Play back 3.11.2.3.1 Stop of play back To stop the playing back, User press button “STOP” or “ SEARCH”. Playback stops and screen of search list appears. UDR-204(C) Operation manual Revision 3.0...

  • Page 75: Playback The Backed Up-Image

    This menu is to use the five functions that are placed only on the remote control but on the keypad of the unit 3.12.1 NET Displays the current network IP and the user connected to the network. (it substitutes the NET button on the remote control). UDR-204(C) Operation manual Revision 3.0...
  • Page 76 3.12.4 HDD Displays the HDD information. It substitutes the HDD button on the remote control. 3.12.5 LOG Display the System Log. It substitutes the LOG button on the remote control. UDR-204(C) Operation manual Revision 3.0...

  • Page 77: Client Program

    4. UDR-204 Client program 4.1 Overview of UDR-204 UDR-204 (UNIMO Digital Video Recorder, MPEG-2, 4channel) has three types of client operation programs. RAMS (Remote Access & Monitoring System) is used to remotely access, monitor, and operate the DVR for real-time live viewing, playback, backup, on-the-fly recording, and control over the LAN/WAN.

  • Page 78: Rams (Remote Access & Monitoring System)

    ⑩ Connected DVR information indicator ⑪ Pan/Tilt, Zoom/Focus button ⑫ DVR Connect button, recording time setting button, UniPlayer link button, parameter setting button, Full Screen button, DVR recording button, DVR retrieve & backup button, DVR Setting button ⑬.Close program UDR-204(C) Operation manual Revision 3.0...

  • Page 79: Connecting To Dvr

    ⑥ Enter the correct password for either Admin or User for the target DVR. ⑦ Click Close to exit the DVR List ⑧ Click Connect after correct password has been entered to connect to the desired DVR. UDR-204(C) Operation manual Revision 3.0...

  • Page 80: Channel On/Off

    => Channel number 2 was turn off. 4.3.4 UniPlayer link If you click this button on main menu, UniPlayer program will be executed. Regarding the UniPlayer program, please refer to page 93 UDR-204(C) Operation manual Revision 3.0...

  • Page 81: Full-Screen Display

    If users press the key of ESC, you will return to the selected screen. 4.3.6 Program setup If users click this button in the main window, window of program setup appears. ① Capture a still image and select a folder where the image is recorded UDR-204(C) Operation manual Revision 3.0...

  • Page 82: Dvr Recording

    It works as recording button of DVR system. After logging in admin, button will be activated. Under recording mode at DVR, red icon will be displayed at the top of right at the window. => DVR (live viewing) UDR-204(C) Operation manual Revision 3.0...

  • Page 83: Dvr Playback Search

    => DVR (Recording mode) 4.3.8 DVR playback search This button is used for playback search, playback, and backup functions for DVR and after logging in by admin. UDR-204(C) Operation manual Revision 3.0...

  • Page 84: Dvr Playback Search

    ② Button for staring of backup. With pushing selected channel, start to playback. Start to playback after pushing selected channel,. If do double click selected files, it starts to playback. ③ Close DVR backup window UDR-204(C) Operation manual Revision 3.0...
  • Page 85 ③ Button for reverse playback, pause, still, reverse phase, forward phase, slow, fast, previous search, next search ④ Comeback playback mode to Live viewing mode Reverse playback button Playback button Temporarily pause button Still image button When user use temporarily pause image file move to backward UDR-204(C) Operation manual Revision 3.0...

  • Page 86: Dvr Backup

    After selecting a file at DVR backup list, user can start to backup with pushing start button The destination of backup files is below of backup folder located in directory of program installed. After starting backup, button changes button, displays backup UDR-204(C) Operation manual Revision 3.0...

  • Page 87: Dvr Setting

    Still image will be saved in a path frame directory established in RAMS’s setup section screen. If user change storage path of still image at setup window, still image will be recorded to destination in the future. UDR-204(C) Operation manual Revision 3.0...

  • Page 88: Watermark Insertion

    User can record each channel by pushing record button on top right side of channel or pushing record button at below side of window. After pushing recording, record time setting window will be popup. Users can change it or not. UDR-204(C) Operation manual Revision 3.0...

  • Page 89: D-Zoom

    If users push this button one more time, it will convert original image. 4.3.17 PAN/TILT, ZOOM/FOCUS These buttons are for PAN/TILT, ZOOM/FOCUS function of DVR and after logging in by admin and/or one channel selected. UDR-204(C) Operation manual Revision 3.0...

  • Page 90: Hdd Information

    ⑤ It shows the capacity of HDD used and to be used ⑥ Close the window 4.3.19 Check the program version Click UNIMO Logo to check program version or do S/W upgrade of DVR system. ① Display the name & version of program UDR-204(C) Operation manual Revision 3.0...

  • Page 91: S/W Upgrade Of Dvr

    ④ : Indicator of targeted file’s transmission status ⑤ : Close upgrade window ⑥ : Transmit targeted files. After that, changed to upgraded cancel (cancel of upgrade transmission) => Display status of SW Upgrade UDR-204(C) Operation manual Revision 3.0...

  • Page 92: Close Program

    ⑩ File path is displayed if selected at search list ⑪ Button for user searching ⑫ :Button for directory based searching ⑬ Retrieve button for watermark, printing, Quad Capture ⑭ Button for sound On/Off, volume adjustment ⑮ Button for closing program UDR-204(C) Operation manual Revision 3.0...

  • Page 93: Search

    ② Enter targeted recording date for search ③ Enter targeted DVR name for search ④ Enter targeted channel ⑤ Enter keyword to classification to list ⑥ Start to search accordingly ⑦ Close search option window UDR-204(C) Operation manual Revision 3.0...
  • Page 94 => If there is nothing to special condition for searching, all files saved in recording folder will be displayed on search window after searched. => Search window after selected channel number 1 as search option. UDR-204(C) Operation manual Revision 3.0...

  • Page 95: Search Option For Still Image

    ④ Enter keyword to classification to list ⑤ Start to search accordingly ⑥ Close search option window => If there is nothing to special condition for searching, all still images saved in folder will be displayed on search window after searched. UDR-204(C) Operation manual Revision 3.0...

  • Page 96: Searching By Directory

    You can use it when you know the directory has AVI file or still image file. It will be set up default directory at first. After that users can choose their own directory than see all folder user want to save will be on the list. CANCEL UDR-204(C) Operation manual Revision 3.0...

  • Page 97: Still Image Capture

    Still image will be saved in a path of which is established in RAMS’s setup section screen UDR-204(C) Operation manual Revision 3.0...

  • Page 98: Input Water Mark

    4.4.8 Moving picture file playback, playing, pause, temporarily pause, move by interval of frame, fast forward Playing Playing-back image file Playing image file Temporarily pause image file Pause UDR-204(C) Operation manual Revision 3.0...

  • Page 99: Water Mark Drawing

    Push this button one more time, reverts to original image state. => Still image Display screen. Push this button , water mark will be drawn. UDR-204(C) Operation manual Revision 3.0...

  • Page 100: Panorama

    And click the one screen which is one of the 16 channel, you can see 640x480 image. If you want to come out of the panorama mode, click button. Then program will go back to former state. UDR-204(C) Operation manual Revision 3.0...
  • Page 101 => Screen in panorama mode. UDR-204(C) Operation manual Revision 3.0...

  • Page 102: Check The Program Version

    => Image when click one screen in panorama mode. 4.4.11 Check the program version. Click Unimo logo to confirm version. 4.4.12 Close Program Close UniPlayer program UDR-204(C) Operation manual Revision 3.0...

  • Page 103: Multiviewer

    ② If inserted password is right, multiviewer runs. ③ Close program ④ Modify program password. ① After inserting current password, change password, & confirm password accordingly, changes program pass. ② Closing window without changing. Return to login window UDR-204(C) Operation manual Revision 3.0...

  • Page 104: Screen And Button

    ⑥ Information of Hard Disk of PC shows ⑦ Button for dividing screen (4 screen, 9 screen, 16 screen) ⑧ Button for DVR list, Full Screen, Recording time, Setting-up, link to UNI-Player ⑨ Button for Pan/Tilt, Zoom/Focus ⑩ Button for closing program UDR-204(C) Operation manual Revision 3.0...

  • Page 105: Dvr List Management & Connection

    ⑤ Delete the information selected in DVR List ⑥ Modify the information of DVR List ⑦ Add the information in DVR List ⑧ Connect to the selected DVR ID ⑨ Close the screen, after storing DVR List UDR-204(C) Operation manual Revision 3.0...

  • Page 106: Camera On/Off

    => If connection is impossible, it displays error defectives on screen. 4.5.4 Camera On/Off In order to connect to DVR in the main screen, please click button, and select DVR, and log in. After connection, please click one more time , and DVR is disconnected. UDR-204(C) Operation manual Revision 3.0...

  • Page 107: Full Screen

    4.5.5 Full Screen Click the Full Screen button to open a screen in full view. Press ESC to return. 4.5.6 Program Setup Click to launch Setup. UDR-204(C) Operation manual Revision 3.0...

  • Page 108: Link With Uniplayer

    These buttons are for PAN/TILT, ZOOM/FOCUS of DVR. After logging in by admin, please select one channel. 4.5.9 HDD Information ORANGE: used parts of HDD, WHITE: remaining part of HDD. This menu indicate the detailed HDD information UDR-204(C) Operation manual Revision 3.0...

  • Page 109: Confirmation Of Version Of Program

    ⑤ It shows both the used capacity of HDD and free space ⑥ Click to close the screen 4.5.10 Confirmation of Version of Program Click the UNIMO logo to check the program version. 4.5.11 Closing of Program Click to close the Multiviewer program UDR-204(C) Operation manual Revision 3.0...

  • Page 110: Quick Installer

    * File ->Open: Read to display saved parameter values from DVR system. 1. File ->Save: Click to save setting parameter values as file. 2. File->Close: Click to close program 3. System parameter-> Read parameters from DVR: Derive to display setting parameter values UDR-204(C) Operation manual Revision 3.0...

  • Page 111: Communication Over Network Or Serial Port

    Enter assigned network access password for Admin. After authenticated, users can communication between DVR using network. =>Serial mode as communication media Enter assigned network access password for Admin. After authenticated, users can communication between DVR using serial port. UDR-204(C) Operation manual Revision 3.0...

  • Page 112: Appendix

    Prepare one HDD. Verify the Jumper setting. It must be set to “Master”. Jumper Setting (Master) Open the cover of the Removable Bay. Connect the HDD power cable and the Data signal cable. Power Data Insert the HDD in the Rack and close the cover. UDR-204(C) Operation manual Revision 3.0...

  • Page 113: Installing Two Hard Disk Drives

    Lock the Removable Bay. 5.1.2 Installing two hard disk drives. The Jumper setting should be done as follows: - The Internal HDD: Master - The Removable Bay HDD: Slave Mount the HDD in the internal slot. UDR-204(C) Operation manual Revision 3.0...

  • Page 114: Installing Cd-Rw Drive

    CD-RW drive to Slave.] Mount the CD-RW drive in the Removable Bay then connect to DVR system. Once the CD-RW drive has been firmly mounted in the DVR, connect the power cable (4pin) and the data cable(40pin). UDR-204(C) Operation manual Revision 3.0...
  • Page 115 The CD-RW drive installed in the DVR system UDR-204(C) Operation manual Revision 3.0...

  • Page 116: Terminal Information

    DFO, RSO)* AUX5 Sensor4 Signal Ground * Abbreviation Record Start In RSTO Record Start Out Alarm Reset In ERRO Error Out RONOFFI Record On Off In Disk Full Out Alarm Record Out Record Status Out UDR-204(C) Operation manual Revision 3.0...

  • Page 117: Factory Default Value

    Sensor Type N.O. / N.C. N.O. Channel Link CH1~CH4 NONE Alarm Output Sensor1~Sensor4 Motion1~Motion4 Relay Time 0 sec Post-Alarm Record 10 sec 10, 20, 20, 40, 50, 60 FTP Setting FTP Server IP Blank Anonymous UDR-204(C) Operation manual Revision 3.0...
  • Page 118 ****** 111111 Password Apply Record Stop Menu Enter System Off Auto Key Lock Time/Date Time Setup(h/m/s) Current Time Date Setup Current Date Format Time Format Date Format YYYY/MM/DD Day Light Saving Time ON / OFF UDR-204(C) Operation manual Revision 3.0...
  • Page 119 Date : Date of Today Time : Current Time Channel Event NONE Format CD RW only System Video Type Current Type NTSC, PAL Info H/W Version 1.3.XX S/W Version Kernel Version 2.4.17_96 Mac Address 00:09:F8:XX:XX:XX Audio Language UDR-204(C) Operation manual Revision 3.0...

  • Page 120: Search Menu

    Time : Current Time Channel Event NONE Still Image Search Search Date : Date of Yesterday Start Time Time : Current Time Date : Date of Today Backup End Time Time : Current Time Search Channel Event NONE UDR-204(C) Operation manual Revision 3.0...

  • Page 121: Protocol

    Shuttle Right 8Step ksr7 Shuttle Right 7Step ksr6 Shuttle Right 6Step ksr5 Shuttle Right 5Step ksr4 Shuttle Right 4Step ksr3 Shuttle Right 3Step ksr2 Shuttle Right 2Step ksr1 Shuttle Right 1Step Shuttle Right 0Step UDR-204(C) Operation manual Revision 3.0...

  • Page 122: Usage

    - System protocol to control UDR-204 from remote client software installed in PC or remote controller. - It maps button function of remote controller with front key in the front panel of UDR-204. If user add English letters assigned protocol paragraph and \n(new line and transmit ASCII Code form, UDR- 204 will be activated same as for user to push one of pad or remote controller.

  • Page 123: Hdd Recording Time Table

    1013.1 QUAD 720*480 85.8 126.4 172.7 212.2 317.2 Enhanced 156.9 231.2 315.9 388.1 580.1 346.4 510.4 697.3 856.8 1280.6 96.6 142.4 194.5 239.0 357.2 Normal 178.2 262.7 358.8 440.9 659.0 399.1 588.1 803.4 987.2 1475.5 UDR-204(C) Operation manual Revision 3.0...
  • Page 124 780.2 QUAD 720*576 91.3 134.6 183.9 225.9 337.7 Enhanced 163.9 241.5 330.0 405.5 606.0 262.2 386.5 528.0 648.7 969.6 102.0 150.3 205.3 252.3 377.1 Normal 187.3 276.1 377.1 463.4 692.6 306.0 450.9 615.9 756.8 1131.2 UDR-204(C) Operation manual Revision 3.0...
  • Page 125 UNIMO Technology Co.,Ltd. 479-12 Bangbae-3Dong, Seocho-Gu, Seoul, KOREA 137-820 TEL: 82-2-3470-4490~4499, FAX : 82-2-581-3107 E-Mail: jsoh@unimo.co.kr, www.unimo.co.kr UDR-204(C) Operation manual Revision 3.0...

This manual is also suitable for:

Udr-204cMpeg-2

Table of Contents
